Brian2sun Build Thread

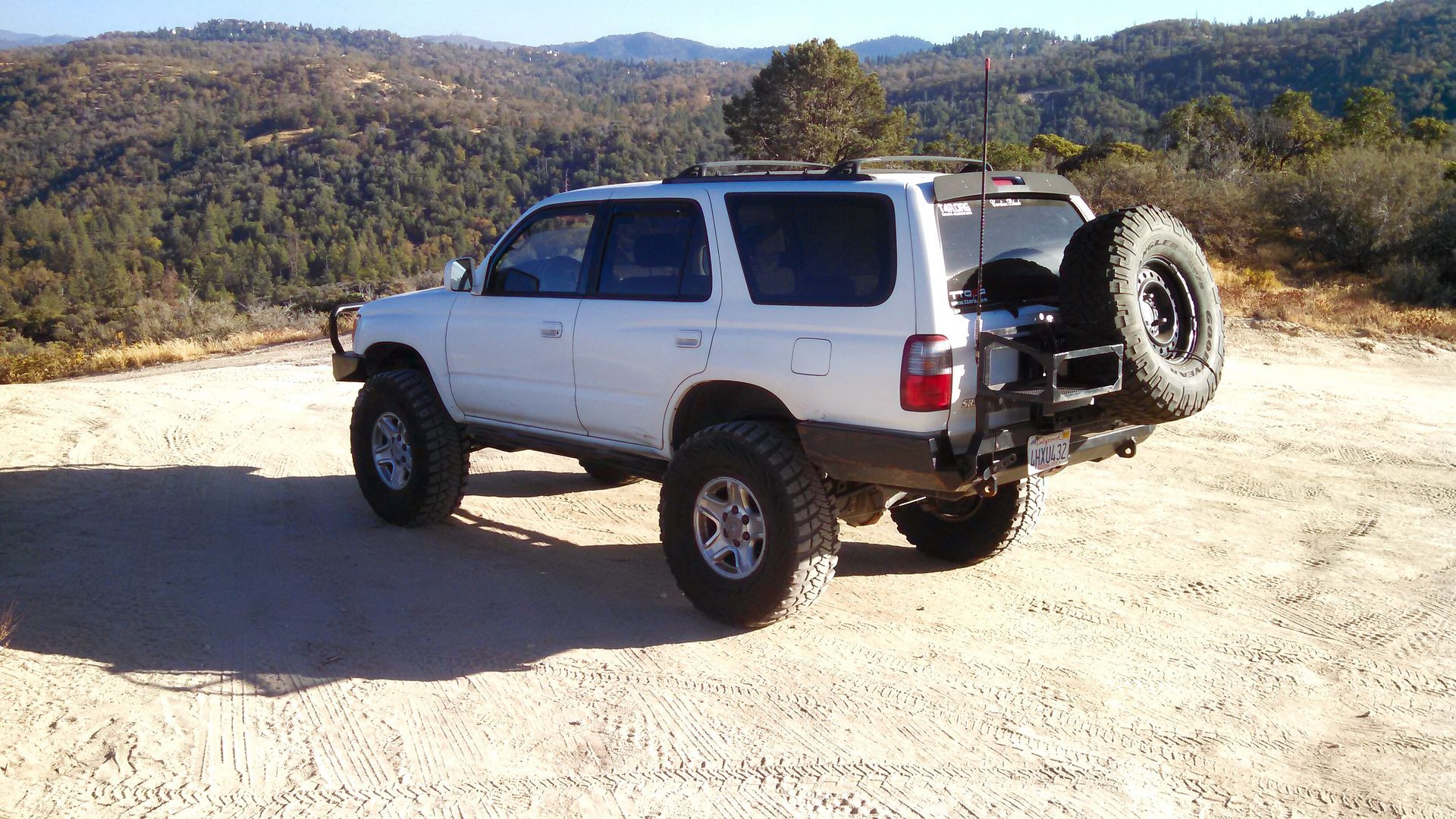

Brian's '97 4Runner SR5 4x4

Specs & List of Mods:

Engine:
3.4L 5VZ-FE V6 - Used Engine w/ 123K swapped in at 217K
4.5" Airbox Hole
AirRaid Intake Tube
TRD Cat-Back Exhaust (cut off right after rear axle)

Diffs/Transmission:
Front & Rear ARB Lockers
4:88 Motive Gears
1" Diff Drop
B&M 70268 Tranny Cooler
Extended Rear Diff Breather Mod

Lift/Suspension:
Front: 3" OME 883 Med-Heavy Duty Coils
OME N91SC Comfort Struts
WabFab Swaybar Links

Rear: 4" OME 861 Heavy Duty LandCruiser FJZ80 Coils
Tokico Trekmaster GE4095 LandCruiser FJZ80 Shocks
Custom-made Upper Links w/ Heim Joints/Poly Bushings
Toytec LCA Skids
1.5" Extended Bump Stops
No Swaybar

1" 4Crawler Body Lift

Tires/Wheels:
315/75/16 Goodyear MT/Rs
Stock 5 Star Wheels
1" Motorsport Technology Wheel Spacers

Brakes:
231mm Tundra Upgrade
Disabled ABS

Armor:
ARB Bullbar Front Bumper (chopped and modified for ground clearance and adapted for 1" body lift)
CBI Rear Bumper w/ (removable) Tire Swing-Away, Gas Can/Ice Chest Holder, and Hi-Lift Mount
4xInnovations 66" DOM Sliders w/ Kickouts
BudBuilt IFS Skid
BudBuilt Belly Pan
Lil' Skip's Gas Tank Skid
Rear LCA Frame Mount Skids - 3/16" Welded Plate
Icon/Toytec Rear Lower Shock Skids
Trail Gear Rear Diff Skid

Body/Interior:
Chopped Fenders and Flattened Firewall for 35s
Removed Black SR5 Flares
Removed Gold Emblems and Pinstripes
Rear Storage Panel Mod
Husky Floor Liners
Wade In-Channel Window Visors

Lighting:
(2) IPF 968 100W Lights

CB
Cobra 19 Ultra III w/ 3' Firestick Antenna

Other Misc. Stuff I Have in There:
Scangauge II
MasterFlow MV-90 Air Compressor
Staun Deflators
48" Hi-Lift Jack
Tools
Spare CV Axle and Misc. Parts


_______________________________________

The Story...
I bought my '97 4Runner in 2001 with 91K for $15,000 which was a good deal back then. I bought it as a little present to myself for graduating college that same week. She's was my DD for 10 years, now my DD is a '98 regular cab 4x4 5spd 4banger Tacoma. And my 4Runner is a dedicated trail/camping/snow rig.

Unfortunately I don't have any pics of the first few years because that was the age of film and PS1 and I've moved houses a lot and don't know where all my old photographs are, but the earliest pic I can find is from 2007 on a camping trip at Grant Lake, CA. It was still stock when this pic was taken except I replaced the gold emblems with chrome except for the front (but that'll come later). It also had 265/75s and no running boards at this point.



Then very shortly afterwards, I threw on my 1st of 2 and a half lifts.. a Daystar 2.5" spacer lift and some 305/70R16s. Around April '09 I scored an ARB bumper off my neighbor's friend for $200!..


Those Hella 500s were broken and I took them back. I have since replaced them with IPFs.

In July '09 I got an ARB rear locker and some 4.88 gears. I usually work on my truck myself, but I didn't want it to be the guinea pig for my first gear install so I don't have any pics of that stuff.

A few weeks later I painted my stock 3-spoke wheels flat black..


For Christmas '09 I ditched my spacer lift and got OME 883s and 891s, OME comfort shocks, and swapped out the 305s at the same time for some 285s. Just in time for some big snow..



Here's a wheelin shot at this stage..


I did a 1" 4crawler body lift back in February '10. I had to drill some new holes in the ARB to eliminate some of the gap, but I've since repositioned and welded the ARB mounts when I trimmed the bumper for clearance later on. I also trimmed my rear SR5 flares so they don't hang past the body (but I've since removed them too)..


__________________
1997 White SR5 4x4 on 35s w/ 4.88s, Lockers & Armor
**CLICK FOR '97 BUILD THREAD**
2016 Magnetic Gray Metallic SR5 4x4 (NEW!)

Last edited by brian2sun; 12-23-2015 at 01:13 PM.
brian2sun is offline   Reply With QuoteReply With Quote
Old 06-04-2010, 12:26 AM #2
brian2sun's Avatar
brian2sun brian2sun is offline
Elite Member

Join Date: Dec 2009
Location: Lake Arrowhead, CA.
Posts: 5,421
brian2sun will become famous soon enough brian2sun will become famous soon enough
brian2sun brian2sun is offline
Elite Member
brian2sun's Avatar

Join Date: Dec 2009
Location: Lake Arrowhead, CA.
Posts: 5,421
brian2sun will become famous soon enough brian2sun will become famous soon enough
I got rear-ended in April '10 and I ended up taking the cash instead of repairing it..


I went on a little spree with the insurance $$ and got some sliders and some 255/85R16 Maxxis Bighorn M/Ts mounted on new Cragar Soft 8 wheels. I'm also having CBI make a rear tire carrier bumper for me, but it won't be done for a few months. Here's how it sits as of June '10..


And here's some wheeling shots from last weekend with driffter33 and Pure_98 just so you guys don't start thinkin I'm a mall crawler.




And one of all of us.
__________________
1997 White SR5 4x4 on 35s w/ 4.88s, Lockers & Armor
**CLICK FOR '97 BUILD THREAD**
2016 Magnetic Gray Metallic SR5 4x4 (NEW!)

Last edited by brian2sun; 12-07-2011 at 03:54 AM.
brian2sun is offline   Reply With QuoteReply With Quote
Old 06-04-2010, 03:10 AM #3
Pure 98's Avatar
Pure 98 Pure 98 is offline
Member

Join Date: Dec 2009
Location: Rosemead, CA
Posts: 531
Pure 98 is on a distinguished road
Pure 98 Pure 98 is offline
Member
Pure 98's Avatar

Join Date: Dec 2009
Location: Rosemead, CA
Posts: 531
Pure 98 is on a distinguished road
it's come a long way. Looks good can't wait to see the bumper.

Ps Thats No Mall Crawler!
__________________
98 Desert Dune Metallic Toyota 4Runner limited 4x4 w/rear lockers
Suspension: 3" lift (F)OME 881- (R)OME 890 | ProComp shocks | 1" BL | 285/75/16 BFG KM2 | Deck plate mod | Audio: 7" pioneer Receiver | 1 12" L5 Kicker | Cobra 29 LTD Black Chrome CB | LIghts: HID Kit 6,000K | 2 Piaa 520 Xtreme White ATP Driving Light | Custom Cargo Box|
Pure 98 is offline   Reply With QuoteReply With Quote
Old 06-04-2010, 06:07 AM #4
Reina's Avatar
Reina Reina is offline
Member

Join Date: Mar 2010
Location: Colton CA
Posts: 148
Reina is on a distinguished road
Reina Reina is offline
Member
Reina's Avatar

Join Date: Mar 2010
Location: Colton CA
Posts: 148
Reina is on a distinguished road
Looking good. You 4runner gives me inspiration on what my 4runner could become.
__________________
98 4Runner V6 Manual 4WD SR5
https://www.facebook.com/masterjho
Automotive Tech ASE Certified Master Tech
Aviation Tech A&P rated
Reina is offline   Reply With QuoteReply With Quote
Old 06-04-2010, 10:24 AM #5
kregg's Avatar
kregg kregg is offline
Senior Member

Join Date: Jan 2006
Location: Birmingham, Al
Age: 30
Posts: 1,007
Real Name: Chris
kregg is on a distinguished road
kregg kregg is offline
Senior Member
kregg's Avatar

Join Date: Jan 2006
Location: Birmingham, Al
Age: 30
Posts: 1,007
Real Name: Chris
kregg is on a distinguished road
Like.
__________________

1996 Toyota 4Runner "UnLimited"
kregg is offline   Reply With QuoteReply With Quote
Old 06-04-2010, 10:34 AM #6
denverunner's Avatar
denverunner denverunner is offline
Member

Join Date: Nov 2009
Location: Denver, CO
Posts: 151
Real Name: Kyle
denverunner is on a distinguished road
denverunner denverunner is offline
Member
denverunner's Avatar

Join Date: Nov 2009
Location: Denver, CO
Posts: 151
Real Name: Kyle
denverunner is on a distinguished road
lookin good!
__________________
98 4Runner / 5 spd / 3.4L
98 Civic HX / 5 spd / 1.6L
denverunner is offline   Reply With QuoteReply With Quote
Old 06-04-2010, 12:10 PM #7
CharlotteFire's Avatar
CharlotteFire CharlotteFire is offline
Member

Join Date: Feb 2010
Location: Charlotte,NC
Age: 40
Posts: 133
CharlotteFire is on a distinguished road
CharlotteFire CharlotteFire is offline
Member
CharlotteFire's Avatar

Join Date: Feb 2010
Location: Charlotte,NC
Age: 40
Posts: 133
CharlotteFire is on a distinguished road
Looks GREAT B! That trip you took is SICK. Nothing like that here in Charlotte. How much was that Locker? Paint your rear bumper black...then tell me how ya did it. lol
__________________
96' SR5 4x4 Surco roof rack, Bike rack, Blackout badges and wheels, 2.5in Lift, Kelly AT's
CharlotteFire is offline   Reply With QuoteReply With Quote
Old 06-04-2010, 02:03 PM #8
brian2sun's Avatar
brian2sun brian2sun is offline
Elite Member

Join Date: Dec 2009
Location: Lake Arrowhead, CA.
Posts: 5,421
brian2sun will become famous soon enough brian2sun will become famous soon enough
brian2sun brian2sun is offline
Elite Member
brian2sun's Avatar

Join Date: Dec 2009
Location: Lake Arrowhead, CA.
Posts: 5,421
brian2sun will become famous soon enough brian2sun will become famous soon enough
Thanks for the compliments everone!

Quote:
Originally Posted by CharlotteFire View Post
Looks GREAT B! That trip you took is SICK. Nothing like that here in Charlotte. How much was that Locker? Paint your rear bumper black...then tell me how ya did it. lol
This site is so awesome for networking because it makes it even more fun to go wheel with other 4runners - and 3rd gens at that! Driffter33 and Pure 98 had to drive a ways, but I know they had a blast too.

The locker/compressor was about $1000. I'm not sure what the labor would be for the locker alone because I had gears installed and had them throw the locker in at the same time to save $$. I would guess about $500 to install.
__________________
1997 White SR5 4x4 on 35s w/ 4.88s, Lockers & Armor
**CLICK FOR '97 BUILD THREAD**
2016 Magnetic Gray Metallic SR5 4x4 (NEW!)

Last edited by brian2sun; 06-04-2010 at 02:10 PM.
brian2sun is offline   Reply With QuoteReply With Quote
Old 06-04-2010, 02:05 PM #9
xskydivingdudex's Avatar
xskydivingdudex xskydivingdudex is offline
Senior Member

Join Date: Feb 2010
Location: San Antonio, TX
Posts: 1,732
xskydivingdudex is on a distinguished road
xskydivingdudex xskydivingdudex is offline
Senior Member
xskydivingdudex's Avatar

Join Date: Feb 2010
Location: San Antonio, TX
Posts: 1,732
xskydivingdudex is on a distinguished road
looks good dude... ive been wondering when u were gonna make a build thread.
__________________

| G3 Projectors | OME/LC | 315/75 Kelly Safari TSR | Custom LC Rims | Rola Vortex Roof Rack | Gobi Ladder |
xskydivingdudex is offline   Reply With QuoteReply With Quote
Old 06-05-2010, 02:49 AM #10
jsmithjr732's Avatar
jsmithjr732 jsmithjr732 is offline
Member

Join Date: Feb 2010
Location: San Diego
Posts: 250
jsmithjr732 is on a distinguished road
jsmithjr732 jsmithjr732 is offline
Member
jsmithjr732's Avatar

Join Date: Feb 2010
Location: San Diego
Posts: 250
jsmithjr732 is on a distinguished road
Looks great. Like the new additions.

You need to get a rear bumper now!
jsmithjr732 is offline   Reply With QuoteReply With Quote
Old 06-05-2010, 01:29 PM #11
racerunner's Avatar
racerunner racerunner is offline
Member

Join Date: May 2010
Location: So. Cal
Posts: 178
Real Name: Racerunner
racerunner is on a distinguished road
racerunner racerunner is offline
Member
racerunner's Avatar

Join Date: May 2010
Location: So. Cal
Posts: 178
Real Name: Racerunner
racerunner is on a distinguished road
Lovin the new wheel and tire combo.It ain't no mall crawler Ive seen it in action
racerunner is offline   Reply With QuoteReply With Quote
Old 06-05-2010, 03:01 PM #12
JohnsD90's Avatar
JohnsD90 JohnsD90 is offline
Elite Member

Join Date: Jul 2009
Location: CT
Age: 27
Posts: 4,995
JohnsD90 will become famous soon enough
JohnsD90 JohnsD90 is offline
Elite Member
JohnsD90's Avatar

Join Date: Jul 2009
Location: CT
Age: 27
Posts: 4,995
JohnsD90 will become famous soon enough
I like the new tailight. Lookin good.
__________________
1999 Toyota 4Runner V6 4wd 5 Speed
1974 Land Rover Series 3 88" 4 Speed
2005 Ford Ranger Edge 2wd Auto
JohnsD90 is offline   Reply With QuoteReply With Quote
Old 06-05-2010, 04:17 PM #13
Duhockey's Avatar
Duhockey Duhockey is offline
Senior Member

Join Date: Jun 2009
Location: Snowy Colorado!!
Age: 39
Posts: 2,434
Duhockey will become famous soon enough
Duhockey Duhockey is offline
Senior Member
Duhockey's Avatar

Join Date: Jun 2009
Location: Snowy Colorado!!
Age: 39
Posts: 2,434
Duhockey will become famous soon enough
Nice!!!

about time you put one of these together
__________________
07 SR5 V8 Build Thread
Jayden- "Jeeps don't go 4wheeling!"
In Colorado or coming out to 4wheel? Check out RM4x4.org

Duhockey is offline   Reply With QuoteReply With Quote
Old 06-05-2010, 04:36 PM #14
brian2sun's Avatar
brian2sun brian2sun is offline
Elite Member

Join Date: Dec 2009
Location: Lake Arrowhead, CA.
Posts: 5,421
brian2sun will become famous soon enough brian2sun will become famous soon enough
brian2sun brian2sun is offline
Elite Member
brian2sun's Avatar

Join Date: Dec 2009
Location: Lake Arrowhead, CA.
Posts: 5,421
brian2sun will become famous soon enough brian2sun will become famous soon enough
Quote:
Originally Posted by jsmithjr732 View Post
Looks great. Like the new additions.

You need to get a rear bumper now!
My CBI should be done in about 6-8 weeks. It's killing me waiting for it! I got the swing-away, gas can holder, hi-lift mount, cut-out for the exhaust pipe (it'll be piped out the side of the bumper instead of hanging below like stock), lighted license plate holder, and tab for the CB antenna. They're also adapting it to work with my 1" body lift so here won't be a big gap between the bumper and the body.

Quote:
Originally Posted by racerunner View Post
Lovin the new wheel and tire combo.It ain't no mall crawler Ive seen it in action
Thanks, I like the new combo way better too!

Quote:
Originally Posted by JohnsD90 View Post
I like the new tailight. Lookin good.
Hells yeah! Thanks again.


Quote:
Originally Posted by Duhockey View Post
Nice!!!

about time you put one of these together
I know. I'm still trying to figure out how to pull photos off my old phone (disconnected), I can view them on the phone, but not sure how I would download them to my computer without it being hooked up to any service. I have some of different stages and also my ARB install.
__________________
1997 White SR5 4x4 on 35s w/ 4.88s, Lockers & Armor
**CLICK FOR '97 BUILD THREAD**
2016 Magnetic Gray Metallic SR5 4x4 (NEW!)
brian2sun is offline   Reply With QuoteReply With Quote
Old 06-07-2010, 10:52 PM #15
brian2sun's Avatar
brian2sun brian2sun is offline
Elite Member

Join Date: Dec 2009
Location: Lake Arrowhead, CA.
Posts: 5,421
brian2sun will become famous soon enough brian2sun will become famous soon enough
brian2sun brian2sun is offline
Elite Member
brian2sun's Avatar

Join Date: Dec 2009
Location: Lake Arrowhead, CA.
Posts: 5,421
brian2sun will become famous soon enough brian2sun will become famous soon enough
Here's a couple shots from yesterday (for you guys who think 891s are to stiff to flex)...



__________________
1997 White SR5 4x4 on 35s w/ 4.88s, Lockers & Armor
**CLICK FOR '97 BUILD THREAD**
2016 Magnetic Gray Metallic SR5 4x4 (NEW!)
brian2sun is offline   Reply With QuoteReply With Quote
Reply

Thread Tools
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On

Forum Jump

Powered by vBadvanced CMPS v3.2.2

All times are GMT -4. The time now is 12:27 PM.

Powered by vBulletin® Version 3.8.11
Copyright ©2000 - 2020, vBulletin Solutions Inc.
Search Engine Optimisation provided by DragonByte SEO (Pro) - vBulletin Mods & Addons Copyright © 2020 DragonByte Technologies Ltd.
Feedback Buttons provided by Advanced Post Thanks / Like (Lite) - vBulletin Mods & Addons Copyright © 2020 DragonByte Technologies Ltd.
User Alert System provided by Advanced User Tagging (Lite) - vBulletin Mods & Addons Copyright © 2020 DragonByte Technologies Ltd.
***This site is an unofficial Toyota site, and is not officially endorsed, supported, authorized by or affiliated with Toyota. All company, product, or service names references in this web site are used for identification purposes only and may be trademarks of their respective owners. The Toyota name, marks, designs and logos, as well as Toyota model names, are registered trademarks of Toyota Motor Corporation***Ad Management plugin by RedTyger

Copyright © 2020
