4th Gen Stereo Install Info Including Pics of Reverse & Parking Brake Wires

I just installed a new Kenwood DDX373BT HU and ran wiring for a soon-to-be-installed backup camera. Hope this info may help someone else. Others have posted re the parking and reverse wiring, but even with the pics in those threads, I was still having trouble locating the wires under the driver's side kick panel and the last thing I wanted was electrical problems from screwing up the taps. So I called Crutchfield (who I highly recommend) and the info they gave is below with pics.

First, here's the gear I used:

Crux SWRTY-61S Wiring interface - wire this to the HU wiring plug, then plug into the factory harnesses.

Metra 95-8202 Dash Kit - small trim pieces for each side of the HU.

Hosa Stereo RCA to Mini Adapter - Optional, use if you want to keep the factory Aux plug in the console bin. You'll also need a short (6" will do) female-to-male extension because this adapter is too wide to plug straight into the back of the HU.

T-Spec 20' Video Cable - yep, I overpaid, and others have probably used less than a 20' cable. But I wanted to run this once and once only forever and also wanted no question over whether I would have enough to reach the back regardless of routing, so I bit the bullet and bought this cable. I ended up going across under the steering column, under the door sill trim (there's even a little clip holding another cable there that this one fits right into), up behind the back door to the headliner, then working it underneath the headliner, then zip tying the extra cable in the space behind the driver's side convex mirror pending the camera install.

I had no need to bypass the DVD safety feature so I was looking for the parking brake wire, and needed to tap the reverse wire for the backup cam. Crutchfield's tech rep described the locations as follows.

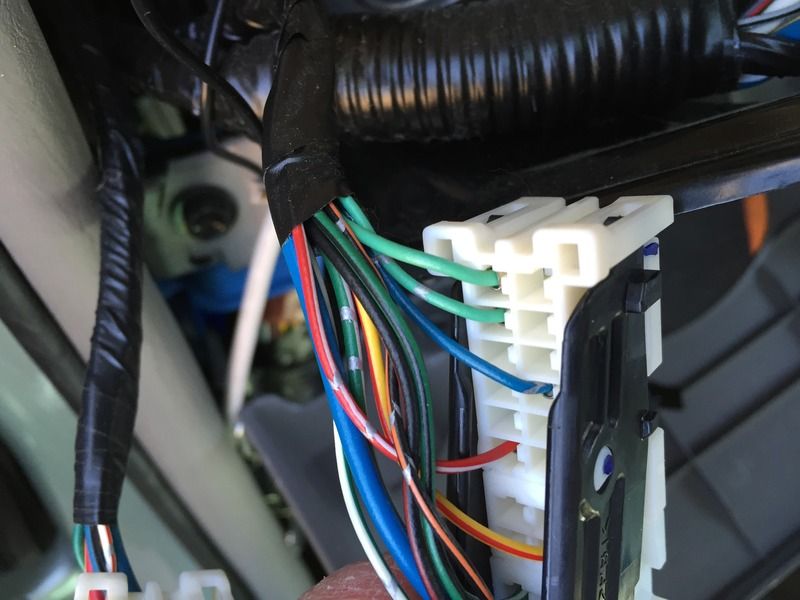

The plugs described are side-by-side on the left side of the dash fuse box:



Reverse wire - red with yellow stripe, pin #10 on a 16-pin plug. (Note - "16-pin" means there are 16 places for pins; some may be unused & thus empty.) This wire is in pin 10, it's 2nd from the end in this pic but I'm holding it upside down and there are 8 pins across, so if you count from the top end of the plug, the blue wire is pin #9 and the target, the red w/ yellow stripe, is #10.



Parking brake wire - light green, pin #1 on the larger 24-pin plug. Note that the other light green wire has silver on it - don't use that one - you want the plain light green wire in the first pin spot on the end.



You have to work off some of the black protective covering before the wires can be separated enough to get a tap on 'em. I used Scotchloks, love those things.

Very happy with the finished product.


Last edited by Bluesky 07; 02-29-2016 at 11:26 AM.
Bluesky 07 is offline   Reply With QuoteReply With Quote
Old 02-29-2016, 06:36 PM #2
USMCEngineer USMCEngineer is offline
Member

Join Date: Dec 2015
Location: Broomfield, CO
Posts: 68
USMCEngineer is on a distinguished road
USMCEngineer USMCEngineer is offline
Member

Join Date: Dec 2015
Location: Broomfield, CO
Posts: 68
USMCEngineer is on a distinguished road
Camera

Thanks for the good info. I'm planning a reverse camera install as well with a Kenwood DNX8120. Now I don't have to run a wire all the way to the back for the reverse signal. What style camera are you planning to use? I bought one that mounts on the two license plate bolts, but I'm unsure if that is the best way to go after looking at what it will take to route the cables back to the head unit.
USMCEngineer is offline   Reply With QuoteReply With Quote
Old 03-01-2016, 12:02 AM #3
Bluesky 07's Avatar
Bluesky 07 Bluesky 07 is offline
Senior Member

Join Date: Sep 2014
Location: Cherokee Co., GA
Posts: 1,361
Real Name: Russell (OB #9908)
Bluesky 07 is just really nice Bluesky 07 is just really nice Bluesky 07 is just really nice Bluesky 07 is just really nice
MY GARAGE
Bluesky 07 Bluesky 07 is offline
Senior Member
Bluesky 07's Avatar

Join Date: Sep 2014
Location: Cherokee Co., GA
Posts: 1,361
Real Name: Russell (OB #9908)
Bluesky 07 is just really nice Bluesky 07 is just really nice Bluesky 07 is just really nice Bluesky 07 is just really nice
MY GARAGE
I got this one because of the 5 different mounting options & the clearance price.

Audiovox Multimount Rear Observation Camera Black CMOS2 - Best Buy

Haven't installed the cam yet but have some ideas and I don't plan on going into the tailgate to run wires. I'll post an update as soon as it's in.

Also, I did a separate thread to reach more people but am adding this here too: another poster said he tested a backup cam by plugging the video cable into his TV and touching the cam leads to a tool battery. I didn't have a battery with marked terminals so I tried a 9V battery instead and it was enough to get a signal. This is helpful to make sure the camera works if you don't plan to install it for a while after purchase, and during an install to make sure a signal is getting to the HU, trying out the view from different mounting points, etc. without having to make the power connections to the vehicle.

Worked for me, may work for you, don't know of any potential bad consequences, but try at your own risk.

Last edited by Bluesky 07; 03-01-2016 at 11:45 AM.
Bluesky 07 is offline   Reply With QuoteReply With Quote
Old 03-14-2016, 12:49 PM #4
Bluesky 07's Avatar
Bluesky 07 Bluesky 07 is offline
Senior Member

Join Date: Sep 2014
Location: Cherokee Co., GA
Posts: 1,361
Real Name: Russell (OB #9908)
Bluesky 07 is just really nice Bluesky 07 is just really nice Bluesky 07 is just really nice Bluesky 07 is just really nice
MY GARAGE
Bluesky 07 Bluesky 07 is offline
Senior Member
Bluesky 07's Avatar

Join Date: Sep 2014
Location: Cherokee Co., GA
Posts: 1,361
Real Name: Russell (OB #9908)
Bluesky 07 is just really nice Bluesky 07 is just really nice Bluesky 07 is just really nice Bluesky 07 is just really nice
MY GARAGE
Update: I mounted the camera on the bottom of the bumper.



Ran the wiring through flexible plastic mill conduit and zip tied it to the trailer wiring. The rubber grommet entering the body is under the driver's side cargo tie-down ring panel near the tailgate. The grommet pulls out easily, so I used an Xacto knife to slice a small slit in the grommet and fed through the conduit. If you keep the opening small enough, it's tight against the conduit but I used some sealer to be on the safe side.

This got me into the driver's side tail light cubby where I tapped the red/yellow (reverse) and black/white ground and plugged in the previously routed video cable. Done!

Last edited by Bluesky 07; 09-12-2018 at 03:34 PM.
Bluesky 07 is offline   Reply With QuoteReply With Quote
Old 03-18-2016, 06:01 PM #5
matthewkristof's Avatar
matthewkristof matthewkristof is offline
Member

Join Date: Apr 2011
Location: Orange County, CA
Posts: 257
matthewkristof is on a distinguished road
matthewkristof matthewkristof is offline
Member
matthewkristof's Avatar

Join Date: Apr 2011
Location: Orange County, CA
Posts: 257
matthewkristof is on a distinguished road
I just reinstalled a new backup camera and ran new video, reverse and ground wires to the front. Tapped into the red/yellow wire for reverse like before, grounded to a nearby bolt.

Picture came on but then continues to flicker and sometimes goes out. Sometimes it goes on and stays on but I get some horizontal flickering. Sometimes it doesn't even go on at all...just a black screen (it does sense reverse so I know the reverse connection is good). Didn't find a kink or anything. All brand new cables and brand new wires. I know it's not a bad video connection...I know what that is. Do I have a bad ground?
__________________
2007 SE, Galactic Grey Mica - original owner
Mods/Upgrades: Oh Crap Handle on driver's side, Hilux Surf Trash Stash, Amber Colored Auto-Dimming Mirror w/compass, USB ports using 115V switch, LED interior, Weathertech Digital Floor Liners, Homelink Garage Door Opener, Footwell Lighting, Automatic Headlights, Dual Cargo Organizers, Maplight Mod, Morimoto 5k HID Low-Beam and Fogs, LED exterior, 15% 3M tint, AVIC-6100nex, Pioneer speakers (TS-G1345R, TS-G1645R, TS-T110), Limited Grill, Mini Backseat Organizer, Heated Cloth Seats, KO2s
matthewkristof is offline   Reply With QuoteReply With Quote
Old 11-27-2016, 02:47 PM #6
theladyviola's Avatar
theladyviola theladyviola is offline
Member

Join Date: Nov 2016
Location: Nashvegas, TN
Posts: 325
theladyviola is on a distinguished road
theladyviola theladyviola is offline
Member
theladyviola's Avatar

Join Date: Nov 2016
Location: Nashvegas, TN
Posts: 325
theladyviola is on a distinguished road
4th Gen Stereo Install Info Including Pics of Reverse & Parking Brake Wires

Quote:
Originally Posted by matthewkristof View Post
I just reinstalled a new backup camera and ran new video, reverse and ground wires to the front. Tapped into the red/yellow wire for reverse like before, grounded to a nearby bolt.



Picture came on but then continues to flicker and sometimes goes out. Sometimes it goes on and stays on but I get some horizontal flickering. Sometimes it doesn't even go on at all...just a black screen (it does sense reverse so I know the reverse connection is good). Didn't find a kink or anything. All brand new cables and brand new wires. I know it's not a bad video connection...I know what that is. Do I have a bad ground?


I wanted to check in with you to see how you are still liking the Kenwood DDX373BT. I usually do my own audio install but Best Buy has the unit on sale for Cyber Monday $199 installed. I, too, will be installing a backup camera in my '03 Sport and probably 1 to 2 amps. Like I said, wanted your opinion on the HU now that you've had it in for awhile. Thanks!


Sent from my iPhone using Tapatalk

Last edited by theladyviola; 11-27-2016 at 02:49 PM.
theladyviola is offline   Reply With QuoteReply With Quote
Old 02-05-2019, 01:21 PM #7
4thGenV8 4thGenV8 is offline
Junior Member

Join Date: Feb 2019
Location: Alexandria, VA
Posts: 20
4thGenV8 is on a distinguished road
4thGenV8 4thGenV8 is offline
Junior Member

Join Date: Feb 2019
Location: Alexandria, VA
Posts: 20
4thGenV8 is on a distinguished road
Quote:
Originally Posted by Bluesky 07 View Post
I just installed a new Kenwood DDX373BT HU and ran wiring for a soon-to-be-installed backup camera. Hope this info may help someone else. Others have posted re the parking and reverse wiring, but even with the pics in those threads, I was still having trouble locating the wires under the driver's side kick panel and the last thing I wanted was electrical problems from screwing up the taps. So I called Crutchfield (who I highly recommend) and the info they gave is below with pics.

First, here's the gear I used:

Crux SWRTY-61S Wiring interface - wire this to the HU wiring plug, then plug into the factory harnesses.

Metra 95-8202 Dash Kit - small trim pieces for each side of the HU.

Hosa Stereo RCA to Mini Adapter - Optional, use if you want to keep the factory Aux plug in the console bin. You'll also need a short (6" will do) female-to-male extension because this adapter is too wide to plug straight into the back of the HU.

T-Spec 20' Video Cable - yep, I overpaid, and others have probably used less than a 20' cable. But I wanted to run this once and once only forever and also wanted no question over whether I would have enough to reach the back regardless of routing, so I bit the bullet and bought this cable. I ended up going across under the steering column, under the door sill trim (there's even a little clip holding another cable there that this one fits right into), up behind the back door to the headliner, then working it underneath the headliner, then zip tying the extra cable in the space behind the driver's side convex mirror pending the camera install.

I had no need to bypass the DVD safety feature so I was looking for the parking brake wire, and needed to tap the reverse wire for the backup cam. Crutchfield's tech rep described the locations as follows.

The plugs described are side-by-side on the left side of the dash fuse box:



Reverse wire - red with yellow stripe, pin #10 on a 16-pin plug. (Note - "16-pin" means there are 16 places for pins; some may be unused & thus empty.) This wire is in pin 10, it's 2nd from the end in this pic but I'm holding it upside down and there are 8 pins across, so if you count from the top end of the plug, the blue wire is pin #9 and the target, the red w/ yellow stripe, is #10.



Parking brake wire - light green, pin #1 on the larger 24-pin plug. Note that the other light green wire has silver on it - don't use that one - you want the plain light green wire in the first pin spot on the end.



You have to work off some of the black protective covering before the wires can be separated enough to get a tap on 'em. I used Scotchloks, love those things.

Very happy with the finished product.

That metra kit looks solid. My biggest worry is dropping hundreds on a sweet new unit and you get tacky plastic trim to surround it. Triflin. That looks good.
4thGenV8 is offline   Reply With QuoteReply With Quote
Old 02-06-2019, 11:31 PM #8
Bluesky 07's Avatar
Bluesky 07 Bluesky 07 is offline
Senior Member

Join Date: Sep 2014
Location: Cherokee Co., GA
Posts: 1,361
Real Name: Russell (OB #9908)
Bluesky 07 is just really nice Bluesky 07 is just really nice Bluesky 07 is just really nice Bluesky 07 is just really nice
MY GARAGE
Bluesky 07 Bluesky 07 is offline
Senior Member
Bluesky 07's Avatar

Join Date: Sep 2014
Location: Cherokee Co., GA
Posts: 1,361
Real Name: Russell (OB #9908)
Bluesky 07 is just really nice Bluesky 07 is just really nice Bluesky 07 is just really nice Bluesky 07 is just really nice
MY GARAGE
Thanks, I appreciate it.
Bluesky 07 is offline   Reply With QuoteReply With Quote
Old 07-28-2019, 04:15 PM #9
mtnracer51 mtnracer51 is offline
Junior Member

Join Date: Jan 2012
Location: Paso Robles
Posts: 4
mtnracer51 is on a distinguished road
mtnracer51 mtnracer51 is offline
Junior Member

Join Date: Jan 2012
Location: Paso Robles
Posts: 4
mtnracer51 is on a distinguished road
Hi Bluesky07,
Just installed a kenwood DDX-395 in my runner and need to aquire the Metra trim kit to fill in the sides as you have done. Looked on their website and couldnt quite find what i was after. Do you have a source and model number where you got that trim kit?
Thanks!
Alex
mtnracer51 is offline   Reply With QuoteReply With Quote
Old 07-28-2019, 04:18 PM #10
mtnracer51 mtnracer51 is offline
Junior Member

Join Date: Jan 2012
Location: Paso Robles
Posts: 4
mtnracer51 is on a distinguished road
mtnracer51 mtnracer51 is offline
Junior Member

Join Date: Jan 2012
Location: Paso Robles
Posts: 4
mtnracer51 is on a distinguished road
Hi again, just re read the first post and found what I was after Thanks anyway!
mtnracer51 is offline   Reply With QuoteReply With Quote
Old 08-01-2019, 08:44 PM #11
revox92's Avatar
revox92 revox92 is offline
Member

Join Date: Apr 2015
Location: GA
Posts: 214
revox92 is on a distinguished road
revox92 revox92 is offline
Member
revox92's Avatar

Join Date: Apr 2015
Location: GA
Posts: 214
revox92 is on a distinguished road
Quote:
Originally Posted by Bluesky 07 View Post
Update: I mounted the camera on the bottom of the bumper.



Ran the wiring through flexible plastic mill conduit and zip tied it to the trailer wiring. The rubber grommet entering the body is under the driver's side cargo tie-down ring panel near the tailgate. The grommet pulls out easily, so I used an Xacto knife to slice a small slit in the grommet and fed through the conduit. If you keep the opening small enough, it's tight against the conduit but I used some sealer to be on the safe side.

This got me into the driver's side tail light cubby where I tapped the red/yellow (reverse) and black/white ground and plugged in the previously routed video cable. Done!

Awesome guide, man! We'll be working on buddy's new 4Runner soon right after we finished installing the brake kit and maxxis truck tires on the current Ram project. We'll definitely follow your trick here.
__________________
2004 Toyota 4Runner SR5 4WD Auto
revox92 is offline   Reply With QuoteReply With Quote
