DIY lift gate lock assembly

About 3 years ago the rear lift gate started acting up. I would press the button on the gate, it would make a sound like it was going to open but wouldn't. After about 2-3 tries it would finally open. Well this winter it finally stopped working completely. It would still make the sound but it would not open. I searched these forums and discovered that some other people had the same problem but nobody really had a solution. Couple weeks ago I had the car at the dealership to replace one of the catalytic converters. While there I asked them to look into the lift gate. They told me that the lock assembly had to be replaced and quoted me over $500. I told them no thanks but asked them for the part # that needed to be replaced.
I ordered the part from conicelli Toyota (partznet dot com) and it cost me $170 delivered (they had a sale at the time). I replaced it today and it took me about 1.5 hr.
The part number is 69110-35062 Lock Assy, w/motor and it looks like this:

New part on left, old on right. Notice that the cover on the left side of the old part is missing. It had broken away and was laying inside the lift gate. I wonder if that contributed to the lock getting dirty and stuck.
The replacement procedure is pretty simple. Remove the back door trim using this procedure:
http://www.toyota-4runner.org/600822-post4.html

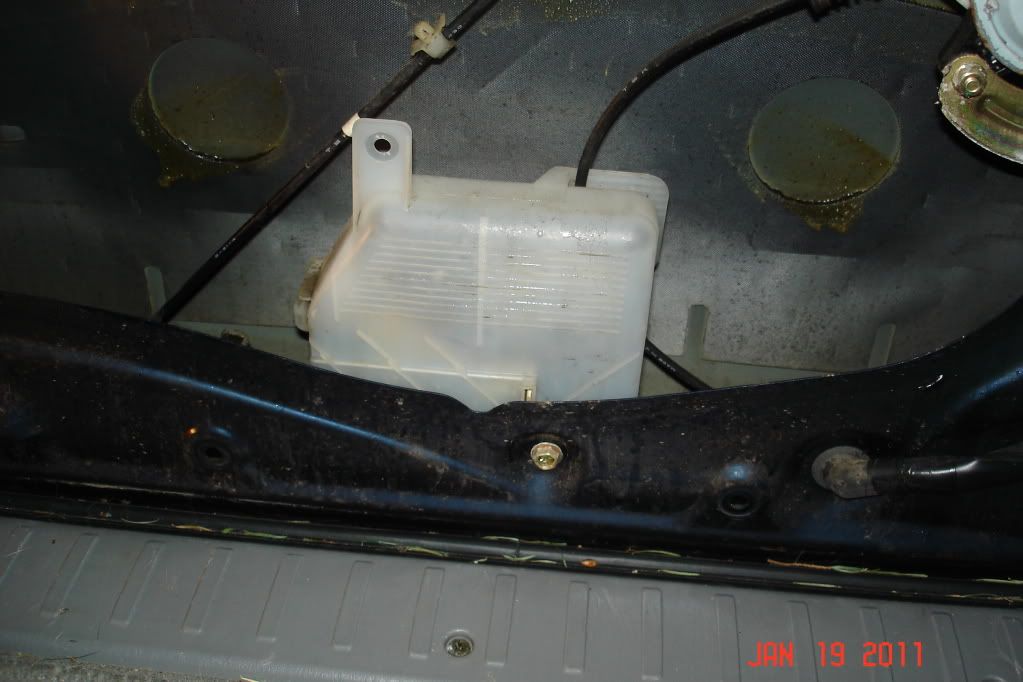

You will see this:

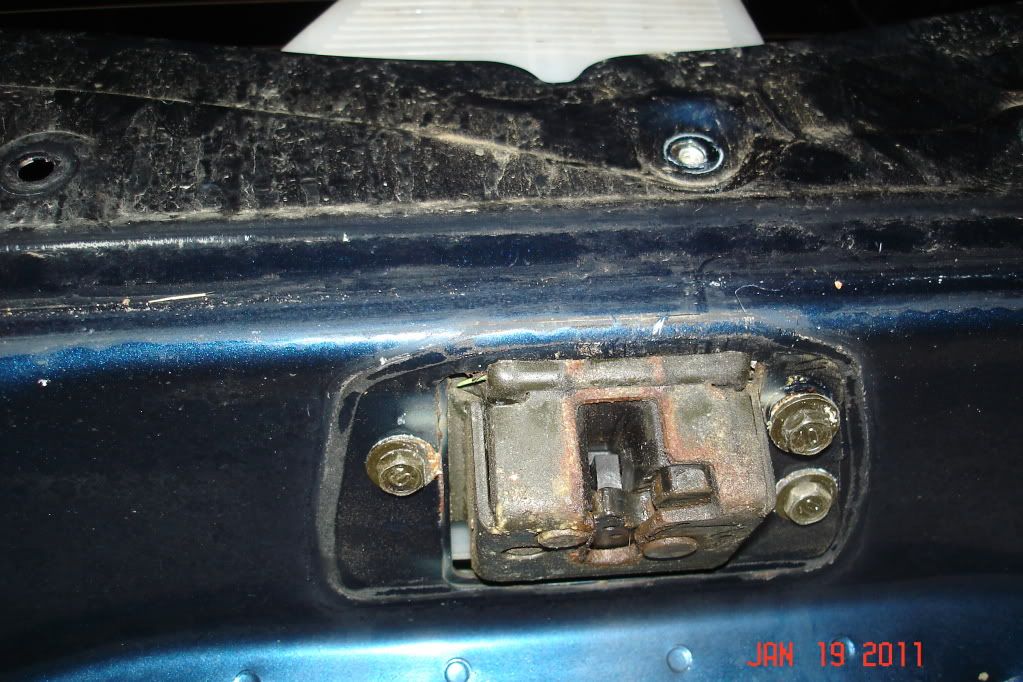

Remove the plastic trim from the bottom of the lift gate and you'll see this:

Remove the 3 bolts from the bottom and the 1 from the back, unplug the harness and remove the entire lock assembly. Installation of the new part is reverse of removal. This whole procedure takes about 30 minutes. Why did it take me 1.5 hr? Because I had to reset the computer which I didn't know about. After installing the new part the lock did not work. Nothing... dead silence. I checked the fuses, tried it with the back glass down and up, tried it using the key but nothing worked. Finally I started reading these forums and found a reset procedure here:
http://www.toyota-4runner.org/178185-post2.html
This worked but I also had to start the car for it to work. Somebody also mentioned that unplugging the bottom right harness on the backdoor computer also works but I didn't try that. If I knew that the computer had to be reset before I started working on this I would have been done in 30 minutes. Over all I saved about $400 by doing this myself.
__________________
2013 Toyota 4Runner Limited, Magnetic Gray
2004 Toyota 4Runner SR5, Stratosphere Mica <-- SOLD
oblivionis is offline   Reply With QuoteReply With Quote
Old 01-19-2011, 04:51 PM #2
Trevloc's Avatar
Trevloc Trevloc is offline
Senior Member

Join Date: Dec 2010
Location: Tucson, AZ
Age: 30
Posts: 1,059
Trevloc is on a distinguished road
Trevloc Trevloc is offline
Senior Member
Trevloc's Avatar

Join Date: Dec 2010
Location: Tucson, AZ
Age: 30
Posts: 1,059
Trevloc is on a distinguished road
t4r.org 1.... stealership 0.


now obviously this forum has won more than that, but i am making a statement.

mine has kinda sorta started doing the whole push the button more than once thing occasionally.... and if it dies officially, i now know exactly where to go and i thank you for that.
__________________
2004 4Runner SR5 V6 2wd
My Build/Mod/Repair Thread
My Beauty Shots

Trevloc is offline   Reply With QuoteReply With Quote
Old 01-19-2011, 05:10 PM #3
BobbyZee's Avatar
BobbyZee BobbyZee is offline
Member

Join Date: Jun 2010
Location: Plano, TX
Posts: 244
BobbyZee is on a distinguished road
BobbyZee BobbyZee is offline
Member
BobbyZee's Avatar

Join Date: Jun 2010
Location: Plano, TX
Posts: 244
BobbyZee is on a distinguished road
Excellent write-up. I am definitely gonna bookmark it down.
__________________
2006 SE 4WD V6 Galactic Gray Mica, Cornfed 3/2, 265/70/17 BFG KO2, Spidertrax, Black Leather, Satoshi Grill Mod, ROLA Roof Rack, Interior LED's, Plasti-dip Grille & Wheels
2005 SR5 V6 2WD - Traded
2003 PreRunner V6 - Sold
2004 Suzuki GSXR 750 Grey - Weekend Toy! SOLD!
BobbyZee is offline   Reply With QuoteReply With Quote
Old 01-19-2011, 05:48 PM #4
97BlackAckCL's Avatar
97BlackAckCL 97BlackAckCL is offline
Senior Member

Join Date: Mar 2010
Location: Pittsburgh
Posts: 4,947
Real Name: Chris
97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold
97BlackAckCL 97BlackAckCL is offline
Senior Member
97BlackAckCL's Avatar

Join Date: Mar 2010
Location: Pittsburgh
Posts: 4,947
Real Name: Chris
97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold
I replaced mine, but haven't gotten the motor to work, which reset procedure did you do, the one for the rear power window?

Thanks for posting this btw, I found no diy when I searched.
97BlackAckCL is offline   Reply With QuoteReply With Quote
Old 01-19-2011, 08:19 PM #5
oblivionis's Avatar
oblivionis oblivionis is offline
Member

Join Date: Oct 2006
Location: Chicagoland
Posts: 165
oblivionis is on a distinguished road
oblivionis oblivionis is offline
Member
oblivionis's Avatar

Join Date: Oct 2006
Location: Chicagoland
Posts: 165
oblivionis is on a distinguished road
I disconnected the battery for 5 minutes. Then I had the ignition to ON and rolled the driver window all the way down and up, then the rear window. If I remember correctly at that point the rear gate still didn't work so I started the car and it started working.
__________________
2013 Toyota 4Runner Limited, Magnetic Gray
2004 Toyota 4Runner SR5, Stratosphere Mica <-- SOLD
oblivionis is offline   Reply With QuoteReply With Quote
Old 01-19-2011, 08:29 PM #6
JD914's Avatar
JD914 JD914 is offline
Member

Join Date: Mar 2005
Location: Huntington Beach, CA
Age: 46
Posts: 449
JD914 is on a distinguished road
JD914 JD914 is offline
Member
JD914's Avatar

Join Date: Mar 2005
Location: Huntington Beach, CA
Age: 46
Posts: 449
JD914 is on a distinguished road
Would your gate open if you pressed hard on the door (like leaning ALL your weight on it)?
I've had that problem forever, and haven't found any answers for it. I wonder if this will fix it?
JD914 is offline   Reply With QuoteReply With Quote
Old 01-19-2011, 10:16 PM #7
oblivionis's Avatar
oblivionis oblivionis is offline
Member

Join Date: Oct 2006
Location: Chicagoland
Posts: 165
oblivionis is on a distinguished road
oblivionis oblivionis is offline
Member
oblivionis's Avatar

Join Date: Oct 2006
Location: Chicagoland
Posts: 165
oblivionis is on a distinguished road
No it would not open at all. The motor made noise but the latch would not open. As you can see in the first picture the motor and the latch are all one assembly. So if you're having a problem with the latch you'd have to change the whole thing.
__________________
2013 Toyota 4Runner Limited, Magnetic Gray
2004 Toyota 4Runner SR5, Stratosphere Mica <-- SOLD
oblivionis is offline   Reply With QuoteReply With Quote
Old 01-19-2011, 10:58 PM #8
2003-4x4runner's Avatar
2003-4x4runner 2003-4x4runner is offline
Member

Join Date: Dec 2007
Location: San Jose, CA
Posts: 730
Real Name: Mike
2003-4x4runner will become famous soon enough
2003-4x4runner 2003-4x4runner is offline
Member
2003-4x4runner's Avatar

Join Date: Dec 2007
Location: San Jose, CA
Posts: 730
Real Name: Mike
2003-4x4runner will become famous soon enough
Thumbs up

Nice write up, thanks for taking the time to take the photos. I wonder if slamming the read door has anything to do with the lock assembly going out. I notice at the local car wash that they slam the rear door close, not knowing they dont have to slam the door shut
__________________
2003 V6 BLACK SR5 4X4-Runner
OB #1334
https://www.instagram.com/ob_1334/?hl=en
Dad's Travel Service.
We drive around till we find it. No map's needed!
2003-4x4runner is offline   Reply With QuoteReply With Quote
Old 01-20-2011, 09:24 AM #9
Jerrydog's Avatar
Jerrydog Jerrydog is offline
Member

Join Date: Jan 2011
Location: maine
Posts: 237
Jerrydog is on a distinguished road
Jerrydog Jerrydog is offline
Member
Jerrydog's Avatar

Join Date: Jan 2011
Location: maine
Posts: 237
Jerrydog is on a distinguished road
Quote:
Originally Posted by 2003-4x4runner View Post
Nice write up, thanks for taking the time to take the photos. I wonder if slamming the read door has anything to do with the lock assembly going out. I notice at the local car wash that they slam the rear door close, not knowing they dont have to slam the door shut
The power rear latch was one of a few reasons I considered NOT buying my 4runner. I did end up getting it and I love it but I'll take a mechanical rear latch any day.
Jerrydog is offline   Reply With QuoteReply With Quote
Old 01-20-2011, 09:39 AM #10
Kmvreter's Avatar
Kmvreter Kmvreter is offline
Senior Member

Join Date: Mar 2004
Location: Ontario, Canada
Posts: 3,016
Kmvreter will become famous soon enough
Kmvreter Kmvreter is offline
Senior Member
Kmvreter's Avatar

Join Date: Mar 2004
Location: Ontario, Canada
Posts: 3,016
Kmvreter will become famous soon enough
Quote:
Originally Posted by oblivionis View Post
No it would not open at all. The motor made noise but the latch would not open...
Mine hasn't failed (yet) but recently acted up twice in the same way you describe. I'm thinking it's on the way out.
So I have a silly question: how did you get the failed latch open in the first place to get the lift gate open to change the latch.
__________________
__________________

'04 SR5 V6 4x4 Galactic Grey Mica. Delivered 03/17/2004. Link to my mod list in posts 7, 8 & 9 of this thread: http://www.toyota-4runner.org/showthread.php?t=21354
____________
[__/[_[_\____\,_
L---L-L-L--0=*=0
`(o)_---(o)_--)_)`.........
``````````````````````` The battle begins at the end of your driveway... Game On! "Car!"
Kmvreter is offline   Reply With QuoteReply With Quote
Old 01-20-2011, 10:45 AM #11
oblivionis's Avatar
oblivionis oblivionis is offline
Member

Join Date: Oct 2006
Location: Chicagoland
Posts: 165
oblivionis is on a distinguished road
oblivionis oblivionis is offline
Member
oblivionis's Avatar

Join Date: Oct 2006
Location: Chicagoland
Posts: 165
oblivionis is on a distinguished road
Quote:
Originally Posted by Kmvreter View Post
Mine hasn't failed (yet) but recently acted up twice in the same way you describe. I'm thinking it's on the way out.
So I have a silly question: how did you get the failed latch open in the first place to get the lift gate open to change the latch.
Good question, I was worried about that too before I started. If you look at the first picture, on the left side of the old part you can see two levers. Pulling on the smaller one opens the latch.

Also, I don't think slamming the gate causes the problem. The part looks and feels very sturdy and solid. I think dirt getting inside the assembly is the problem. And looks like Toyota knows that too because the new part has insulation around the bottom of the new part while the old one did not have that.
__________________
2013 Toyota 4Runner Limited, Magnetic Gray
2004 Toyota 4Runner SR5, Stratosphere Mica <-- SOLD

Last edited by oblivionis; 01-20-2011 at 10:58 AM.
oblivionis is offline   Reply With QuoteReply With Quote
Old 02-22-2011, 03:57 PM #12
97BlackAckCL's Avatar
97BlackAckCL 97BlackAckCL is offline
Senior Member

Join Date: Mar 2010
Location: Pittsburgh
Posts: 4,947
Real Name: Chris
97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold
97BlackAckCL 97BlackAckCL is offline
Senior Member
97BlackAckCL's Avatar

Join Date: Mar 2010
Location: Pittsburgh
Posts: 4,947
Real Name: Chris
97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold
I did this back in November or December, and had been driving around with the trunk locked but the new motor still wasn't working. I left it alone until last week, and finally crawled in the back and pulled the 2 wire sets from the bottom of the ECU on the tail gate, left them out for about 30 seconds, and then put them back in, and poof my motor started working. Just wanted to add that to this thread, since you don't need to pull your battery, just pull the plugs from the ECU and it should pick up your new motor.
97BlackAckCL is offline   Reply With QuoteReply With Quote
Old 04-27-2011, 02:55 PM #13
KG04SR5 KG04SR5 is offline
Member

Join Date: Dec 2009
Location: Cincinnati, OH
Posts: 37
KG04SR5 is on a distinguished road
KG04SR5 KG04SR5 is offline
Member

Join Date: Dec 2009
Location: Cincinnati, OH
Posts: 37
KG04SR5 is on a distinguished road
Quick question. Just got my replacement and it has a string taped to it. What am I supposed to be doing with this string???? Everything else looks pretty straight forward after you get the back panel off. Not looking forward to all of those clips.
KG04SR5 is offline   Reply With QuoteReply With Quote
Old 04-27-2011, 05:04 PM #14
97BlackAckCL's Avatar
97BlackAckCL 97BlackAckCL is offline
Senior Member

Join Date: Mar 2010
Location: Pittsburgh
Posts: 4,947
Real Name: Chris
97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold
97BlackAckCL 97BlackAckCL is offline
Senior Member
97BlackAckCL's Avatar

Join Date: Mar 2010
Location: Pittsburgh
Posts: 4,947
Real Name: Chris
97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold 97BlackAckCL is a splendid one to behold
Remove the string before install
97BlackAckCL is offline   Reply With QuoteReply With Quote
Old 04-27-2011, 05:08 PM #15
Trevloc's Avatar
Trevloc Trevloc is offline
Senior Member

Join Date: Dec 2010
Location: Tucson, AZ
Age: 30
Posts: 1,059
Trevloc is on a distinguished road
Trevloc Trevloc is offline
Senior Member
Trevloc's Avatar

Join Date: Dec 2010
Location: Tucson, AZ
Age: 30
Posts: 1,059
Trevloc is on a distinguished road
Quote:
Originally Posted by KG04SR5 View Post
Quick question. Just got my replacement and it has a string taped to it. What am I supposed to be doing with this string???? Everything else looks pretty straight forward after you get the back panel off. Not looking forward to all of those clips.
the clips are easy. just be careful of the one in the middle. that threw me off.
__________________
2004 4Runner SR5 V6 2wd
My Build/Mod/Repair Thread
My Beauty Shots

Trevloc is offline   Reply With QuoteReply With Quote
Reply

Thread Tools
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
Lift gate supports - where to buy? Qyota 3rd gen T4Rs 28 02-08-2011 01:55 PM
Inside the rear lift gate - Pics westwind77 5th gen T4Rs 9 07-17-2010 01:02 PM
Rear lift gate locking mechanism 2004 - 4Runner doug2004toyota Problems & Warranty Issues 3 06-12-2008 02:44 PM
4th Gen. Suspension Lift AlexJet 4th Gen T4Rs 14 04-11-2006 12:51 AM

Powered by vBadvanced CMPS v3.2.2

All times are GMT -4. The time now is 02:34 PM.

Powered by vBulletin® Version 3.8.11
Copyright ©2000 - 2020, vBulletin Solutions Inc.
Search Engine Optimisation provided by DragonByte SEO (Pro) - vBulletin Mods & Addons Copyright © 2020 DragonByte Technologies Ltd.
Feedback Buttons provided by Advanced Post Thanks / Like (Lite) - vBulletin Mods & Addons Copyright © 2020 DragonByte Technologies Ltd.
User Alert System provided by Advanced User Tagging (Lite) - vBulletin Mods & Addons Copyright © 2020 DragonByte Technologies Ltd.
***This site is an unofficial Toyota site, and is not officially endorsed, supported, authorized by or affiliated with Toyota. All company, product, or service names references in this web site are used for identification purposes only and may be trademarks of their respective owners. The Toyota name, marks, designs and logos, as well as Toyota model names, are registered trademarks of Toyota Motor Corporation***Ad Management plugin by RedTyger

Copyright © 2020
