Quote:
Originally Posted by Bimmer-Bob View Post
Did you end up doing this? It looks like it's $200-$300 in parts (for the light sensor and stalk switch), which I'm okay with. I also don't have a problem pulling parts of the dash, but I'd like to have some sense of how to do the wiring before I start.

Anyone have any diagrams or schematics or anything?
I'm also looking to do this. It seems like a lot of progress was made in this thread, but then it just died off. Surely someone got this working. I'd love to see an update.
trickinit is offline   Reply With QuoteReply With Quote
Old 07-17-2015, 12:50 PM #47
Jayhawk5G Jayhawk5G is offline
Member

Join Date: Aug 2012
Location: Chicago
Posts: 782
Jayhawk5G is on a distinguished road
Jayhawk5G Jayhawk5G is offline
Member

Join Date: Aug 2012
Location: Chicago
Posts: 782
Jayhawk5G is on a distinguished road
TL;DR

The thread for the 2016 TRD Pro listed auto headlights as one of the changes. Once released it seems like it might be easier to order the parts and install them than try and rig something up? I'm sure member's who work for Toyota will be able to pull diagrams at some point.
__________________
2013 MG SR5 4x4 - Stock
Jayhawk5G is offline   Reply With QuoteReply With Quote
Old 07-17-2015, 01:14 PM #48
Bevo's Avatar
Bevo Bevo is offline
Member

Join Date: Oct 2014
Location: Texas
Posts: 589
Bevo is on a distinguished road
Bevo Bevo is offline
Member
Bevo's Avatar

Join Date: Oct 2014
Location: Texas
Posts: 589
Bevo is on a distinguished road
Quote:
Originally Posted by Jayhawk5G View Post
TL;DR

The thread for the 2016 TRD Pro listed auto headlights as one of the changes. Once released it seems like it might be easier to order the parts and install them than try and rig something up? I'm sure member's who work for Toyota will be able to pull diagrams at some point.
Those were features that are included in the 2015 Pros as well. The only changes were the paint colors. My 2015 has the auto headlights. The Limiteds have them as well.
__________________
2015 Super White TRD Pro
Bevo is offline   Reply With QuoteReply With Quote
Old 07-17-2015, 01:20 PM #49
trickinit trickinit is offline
Junior Member

Join Date: Jul 2015
Location: USA
Posts: 8
trickinit is on a distinguished road
trickinit trickinit is offline
Junior Member

Join Date: Jul 2015
Location: USA
Posts: 8
trickinit is on a distinguished road
Quote:
Originally Posted by Jayhawk5G View Post
TL;DR

The thread for the 2016 TRD Pro listed auto headlights as one of the changes. Once released it seems like it might be easier to order the parts and install them than try and rig something up? I'm sure member's who work for Toyota will be able to pull diagrams at some point.
Quote:
Originally Posted by Bevo View Post
Those were features that are included in the 2015 Pros as well. The only changes were the paint colors. My 2015 has the auto headlights. The Limiteds have them as well.
Auto headlights have been around for a while, but only on select models. My 2014 SR5 doesn't have them, while the 2014 Limited does. I'd really just like to know what all it takes to install the Limited parts in my SR5. Several people have said it requires a different wiring harness. Does anyone know where I can find the right one?
trickinit is offline   Reply With QuoteReply With Quote
Old 07-17-2015, 01:28 PM #50
Jayhawk5G Jayhawk5G is offline
Member

Join Date: Aug 2012
Location: Chicago
Posts: 782
Jayhawk5G is on a distinguished road
Jayhawk5G Jayhawk5G is offline
Member

Join Date: Aug 2012
Location: Chicago
Posts: 782
Jayhawk5G is on a distinguished road
Quote:
Originally Posted by Bevo View Post
Those were features that are included in the 2015 Pros as well. The only changes were the paint colors. My 2015 has the auto headlights. The Limiteds have them as well.
I hadn't paid much attention to the feature changes as I have a 2013 SR5 and don't plan on upgrading anytime soon.

Quote:
Originally Posted by trickinit View Post
Auto headlights have been around for a while, but only on select models. My 2014 SR5 doesn't have them, while the 2014 Limited does. I'd really just like to know what all it takes to install the Limited parts in my SR5. Several people have said it requires a different wiring harness. Does anyone know where I can find the right one?
Seems like Toyota TIS should have diagrams for the Limited and TRD Pro. Just thinking about it doesn't seem like it should be too complicated, the auto lights have a sensor that plugs into a harness that detects light level, and then switches on the headlights while adjusting the gauges. My post was just to highlight that getting the factory parts from Toyota should lead to less headaches than trying to rig it up on your own.
__________________
2013 MG SR5 4x4 - Stock
Jayhawk5G is offline   Reply With QuoteReply With Quote
Old 07-17-2015, 02:57 PM #51
rigtec's Avatar
rigtec rigtec is offline
Senior Member

Join Date: May 2012
Location: Bergenfield NJ.
Posts: 2,433
Real Name: Greg
rigtec will become famous soon enough rigtec will become famous soon enough
rigtec rigtec is offline
Senior Member
rigtec's Avatar

Join Date: May 2012
Location: Bergenfield NJ.
Posts: 2,433
Real Name: Greg
rigtec will become famous soon enough rigtec will become famous soon enough
Quote:
Originally Posted by Bimmer-Bob View Post

"...Anyone have any diagrams or schematics or anything?"
Hi Bimmer-Bob,

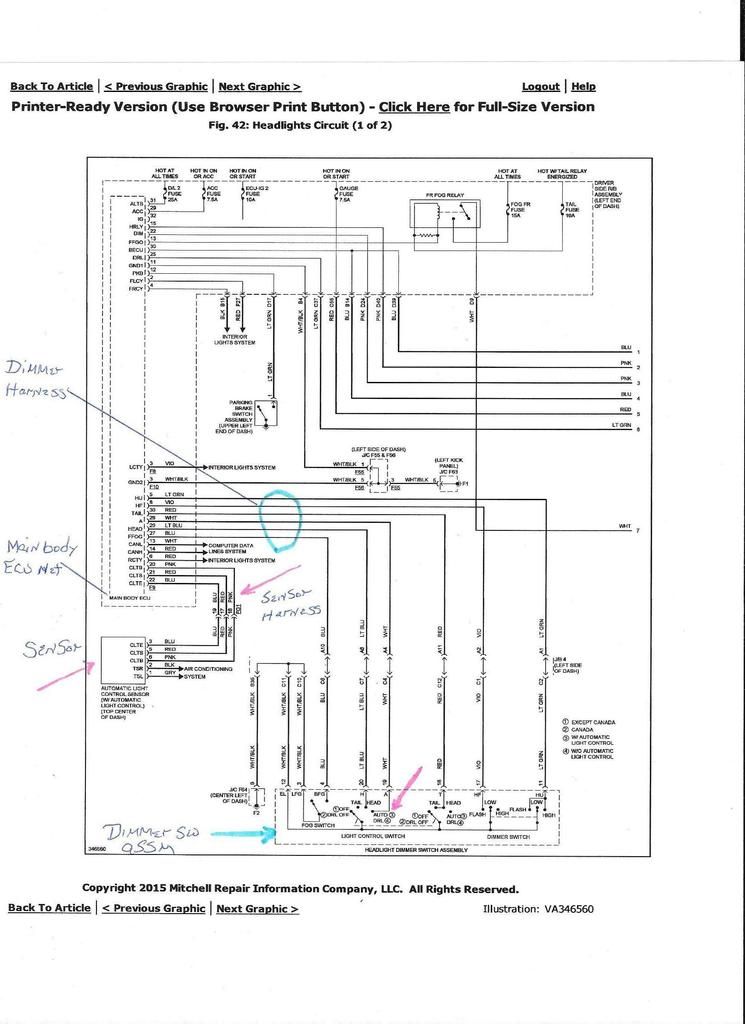

I'm leaving this 5'th gen 4Runner 'limited' Headlight circuit diagram here on this thread; hoping that you (everyone) will accomplish your goal. I took a quick look at the diagram and marked the essentials needed to make it work, "see below":
