Disable KDSS with toggle switch?

I have a friend with a trail edition 4runner and he spliced a toggle switch to his stabilizer control ECU.

I'm thinking about doing the same, but he recommended trying to do it as a plug and play solution instead of a slice by getting the matching plug for the control unit and making a harness.

He sent me this diagram (attached) of the plug and I have spent hours trying to Google and find it, but no luck.

The only relevant items I have found are the SCU part number...

2018 Toyota 4Runner REAR SUSPENSION Ride Control CONTROL MODULE - OEM Toyota Parts

... And some kind of diagnostic page.

Toyota 4Runner: Suspension Control ECU Communication Stop Mode - Can Communication System - Service Manual

Can anyone identify the plug itself or know where I can get one to make my own wire harness?

Sent from my SM-G950U1 using Tapatalk
LT Ambrose 26 is offline   Reply With QuoteReply With Quote
Old 06-11-2019, 09:56 AM #2
Mutant138 Mutant138 is offline
Banned

Join Date: Mar 2018
Location: Arizona
Posts: 1,621
Real Name: Tobias Fünke
Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future
Mutant138 Mutant138 is offline
Banned

Join Date: Mar 2018
Location: Arizona
Posts: 1,621
Real Name: Tobias Fünke
Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future
Add quick disconnects to that mod FTW.

I think quick disconnects would be a better use of time*

Last edited by Mutant138; 06-11-2019 at 12:01 PM.
Mutant138 is offline   Reply With QuoteReply With Quote
Old 06-11-2019, 12:14 PM #3
LT Ambrose 26's Avatar
LT Ambrose 26 LT Ambrose 26 is offline
Member

Join Date: Jan 2018
Location: Simi Valley, CA
Age: 28
Posts: 26
Real Name: Kurt
LT Ambrose 26 is on a distinguished road
LT Ambrose 26 LT Ambrose 26 is offline
Member
LT Ambrose 26's Avatar

Join Date: Jan 2018
Location: Simi Valley, CA
Age: 28
Posts: 26
Real Name: Kurt
LT Ambrose 26 is on a distinguished road
Quote:
Originally Posted by Mutant138 View Post
Add quick disconnects to that mod FTW.

I think quick disconnects would be a better use of time*
But adding quick disconnects, you're saying instead of a "hard" splice I could make it so the wires I splice to can reconnect back to themselves if I want to remove the switch?

Sent from my SM-G950U1 using Tapatalk
LT Ambrose 26 is offline   Reply With QuoteReply With Quote
Old 06-11-2019, 12:19 PM #4
euser euser is offline
Member

Join Date: Aug 2012
Location: Arizona
Posts: 213
euser will become famous soon enough euser will become famous soon enough
euser euser is offline
Member

Join Date: Aug 2012
Location: Arizona
Posts: 213
euser will become famous soon enough euser will become famous soon enough
Why? I never understood why people spend thousands extra for something they’re just going to remove or disable.
euser is offline   Reply With QuoteReply With Quote
Old 06-11-2019, 12:21 PM #5
mitchell.marsh mitchell.marsh is offline
Member

Join Date: Dec 2018
Location: New York
Posts: 40
mitchell.marsh is on a distinguished road
mitchell.marsh mitchell.marsh is offline
Member

Join Date: Dec 2018
Location: New York
Posts: 40
mitchell.marsh is on a distinguished road
I don't understand the use of the ect power button. cay anyone please clarify me?
mitchell.marsh is offline   Reply With QuoteReply With Quote
Old 06-11-2019, 12:32 PM #6
jrandom's Avatar
jrandom jrandom is offline
Senior Member

Join Date: Sep 2013
Location: YouTah
Age: 52
Posts: 3,304
jrandom is a name known to all jrandom is a name known to all jrandom is a name known to all jrandom is a name known to all jrandom is a name known to all jrandom is a name known to all
jrandom jrandom is offline
Senior Member
jrandom's Avatar

Join Date: Sep 2013
Location: YouTah
Age: 52
Posts: 3,304
jrandom is a name known to all jrandom is a name known to all jrandom is a name known to all jrandom is a name known to all jrandom is a name known to all jrandom is a name known to all
Quote:
Originally Posted by euser View Post
Why? I never understood why people spend thousands extra for something they’re just going to remove or disable.
Why? Why disable ATC or any other toggle-able feature. Why roll down your windows when you have climate control. Why use 85 octane when you can use the recommended 87?

I know what you are saying, this is completely different. You can enable OR disable when you want too. This isn't simply removing of permanently disabling something.

More akin to deactivating traction control so you can do donuts or simply practice driving in slick conditions. You have to lose control in order to predictably regain it.

IIRC KDSS only goes "limp" in low range and less that 12mph.
__________________
2013 TE w/ KDSS Nav

=-> Get yer Custom "Trail" Edition Emblem/Badge 3d Print here! or maybe you just want to go "Pro"
jrandom is offline   Reply With QuoteReply With Quote
Old 06-11-2019, 12:33 PM #7
Akkording's Avatar
Akkording Akkording is offline
Member

Join Date: Dec 2004
Location: Houston, TX
Posts: 876
Akkording is just really nice Akkording is just really nice Akkording is just really nice Akkording is just really nice
Akkording Akkording is offline
Member
Akkording's Avatar

Join Date: Dec 2004
Location: Houston, TX
Posts: 876
Akkording is just really nice Akkording is just really nice Akkording is just really nice Akkording is just really nice
Quote:
Originally Posted by mitchell.marsh View Post
I don't understand the use of the ect power button. cay anyone please clarify me?
ECT PWR button will adjust shift points so you can reach higher RPM levels before shifting into the next gear.

On the Tacoma it helps will pulling a load, it holds a higher rpm on the torque converter before shifting. It's like the Turbo button on 286/386 PC's, no it isn't.
__________________
2012 Blizzard Pearl SR5 | 285P Destination AT2 | Level 8 Slam | PC | X2Power w/ArcLightLeds V2 Booster | Borla 40665 | URD Y & MAF Cal TRD | C4 Center LP | X20 10k Factor55 | Shrockworks Armory | RCI LCA skids | TC Gusset | LFD Offroad 7/8 | TJM Airtec dry aFe HPS coupler w/TRD CAI tube | 6112 | 650# King | ICON Delta Joint | 5160 | SAW 1.5" | .5" Headstrong top plate |
| 03 Tacoma OME equipped, +300k Still Truckin|
Akkording is offline   Reply With QuoteReply With Quote
Old 06-11-2019, 12:40 PM #8
LT Ambrose 26's Avatar
LT Ambrose 26 LT Ambrose 26 is offline
Member

Join Date: Jan 2018
Location: Simi Valley, CA
Age: 28
Posts: 26
Real Name: Kurt
LT Ambrose 26 is on a distinguished road
LT Ambrose 26 LT Ambrose 26 is offline
Member
LT Ambrose 26's Avatar

Join Date: Jan 2018
Location: Simi Valley, CA
Age: 28
Posts: 26
Real Name: Kurt
LT Ambrose 26 is on a distinguished road
Quote:
Originally Posted by euser View Post
Why? I never understood why people spend thousands extra for something they’re just going to remove or disable.
Well the idea is that splicing a toggle switch allows me to select when to have it enabled or not.

My understanding of the KDSS system is that below a certain speed (something weird like 12mph) it allows the suspension to articulate more, such as when you're going through a technical section off road. And when you go above than speed it's assumed you're on pavement and it stiffens the suspension to give you better handling. The drawback is that if you're going down a relatively easy dirt road then you'll be exceeding the speed threshold and the suspension will behave stiffly. If you use a toggle to disable the KDSS then you can maintain a softer suspension above that threshold so that if you drive over a rut for example the whole vehicle is less likely to shutter as when the KDSS is enabled and the suspension isn't allowed to flex as much. This is more or less the explanation my friend gave me when he was describing why he did it.

So the goal isn't to remove the KDSS or permanantly disable it either. It's to enable the vehicle to have more give in the suspension when you doing something with some speed but with unexpected bumps and such.
LT Ambrose 26 is offline   Reply With QuoteReply With Quote
Old 06-11-2019, 12:48 PM #9
HanginInUtah's Avatar
HanginInUtah HanginInUtah is offline
Member

Join Date: Jan 2015
Location: West Jordan, UT
Posts: 311
Real Name: Ben
HanginInUtah will become famous soon enough HanginInUtah will become famous soon enough
HanginInUtah HanginInUtah is offline
Member
HanginInUtah's Avatar

Join Date: Jan 2015
Location: West Jordan, UT
Posts: 311
Real Name: Ben
HanginInUtah will become famous soon enough HanginInUtah will become famous soon enough
I think this would be a great idea.

I haven't done much research yet, tho, and I know there is at least one other thread about this. I think that thread has some testing with removing the fuse, and whether lights come on or not, etc. I'm wondering if it could be that easy? Instead of splicing into anything, connect into the fuse location with an inline fuse and a switch? That way it's a) not permanent, and b) not splicing into existing wiring, running the chance of introducing issues. A thought I just had: I wonder if turning the power back on would require a key cycle for the system to re-initiate...

Just my thought.

I agree with your purpose you have in mind.
__________________
1992 3.0 Auto - First Project -Sold-
1995 3.0 Manual - Second Project - Sold-
2018 TRD ORP Barcelona Red
HanginInUtah is offline   Reply With QuoteReply With Quote
Old 06-11-2019, 01:22 PM #10
Jetboy's Avatar
Jetboy Jetboy is offline
Senior Member

Join Date: Dec 2014
Location: Utah
Posts: 4,367
Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute
Jetboy Jetboy is offline
Senior Member
Jetboy's Avatar

Join Date: Dec 2014
Location: Utah
Posts: 4,367
Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute
Quote:
Originally Posted by LT Ambrose 26 View Post
Well the idea is that splicing a toggle switch allows me to select when to have it enabled or not.

My understanding of the KDSS system is that below a certain speed (something weird like 12mph) it allows the suspension to articulate more, such as when you're going through a technical section off road. And when you go above than speed it's assumed you're on pavement and it stiffens the suspension to give you better handling. The drawback is that if you're going down a relatively easy dirt road then you'll be exceeding the speed threshold and the suspension will behave stiffly. If you use a toggle to disable the KDSS then you can maintain a softer suspension above that threshold so that if you drive over a rut for example the whole vehicle is less likely to shutter as when the KDSS is enabled and the suspension isn't allowed to flex as much. This is more or less the explanation my friend gave me when he was describing why he did it.

So the goal isn't to remove the KDSS or permanantly disable it either. It's to enable the vehicle to have more give in the suspension when you doing something with some speed but with unexpected bumps and such.
This is correct. The shutter valves (solenoid valves) close over 12mph and the result is that the accumulators (reservoirs) are disconnected from the system. Opening the valves softens the sway bar effects.

I wish I knew more about the engineering decision to close off the accumulators. It could be that it was simply to firm up the suspension. That seems most likely. But it is also possible that it could be due to some part of the system generating too much heat. That's what concerns me and I wish I knew more.

Good luck. Let us know how you like it.
Jetboy is offline   Reply With QuoteReply With Quote
Old 06-11-2019, 01:40 PM #11
Mutant138 Mutant138 is offline
Banned

Join Date: Mar 2018
Location: Arizona
Posts: 1,621
Real Name: Tobias Fünke
Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future
Mutant138 Mutant138 is offline
Banned

Join Date: Mar 2018
Location: Arizona
Posts: 1,621
Real Name: Tobias Fünke
Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future Mutant138 has a brilliant future
Quote:
Originally Posted by LT Ambrose 26 View Post
But adding quick disconnects, you're saying instead of a "hard" splice I could make it so the wires I splice to can reconnect back to themselves if I want to remove the switch?

Sent from my SM-G950U1 using Tapatalk

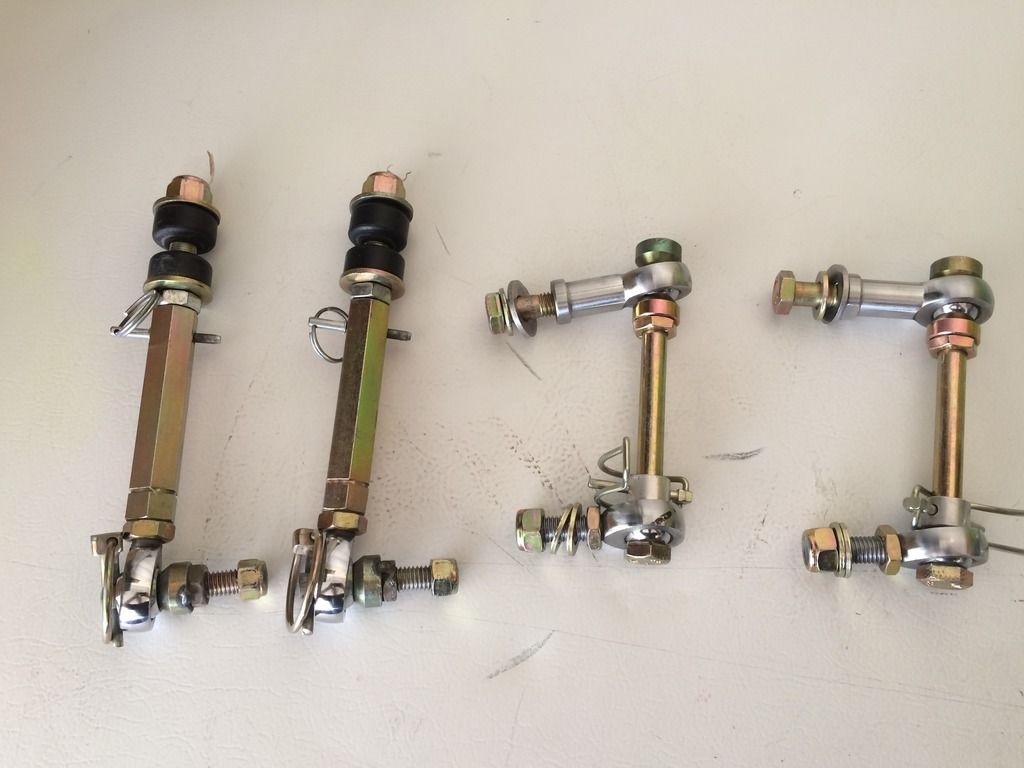

Negative ghostrider. Talking about where the sway bar is attached to the truck. Disconnects would allow you to get full articulation without being limited by the kdss system. Then when you want it back just hook em back up. Think certain jeeps come with electronic disconnects so you can just push a button. Old school way is literally something you unbolt or un pin.

Essentially you would negate the whole kdss LT issue (someone correct me if i'm wrong here). You would prob need the trac bar from sonoran steel and extended travel shocks to really take full advantage.

Would be something you could easily return to stock. However i don't think anyone has figured it out with kdss as the sway bars don't really have traditional endlinks.

Edit: I re read and realized your mostly talking about the high speed dirt road issue.... I'm game for an off button for that purpose. Disconnects like I'm talking about would be dope combo with the off button for whatever the road brings.


Last edited by Mutant138; 06-11-2019 at 01:55 PM.
Mutant138 is offline   Reply With QuoteReply With Quote
Old 06-11-2019, 02:03 PM #12
Bumbo's Avatar
Bumbo Bumbo is offline
Senior Member

Join Date: Aug 2016
Location: CA
Posts: 3,514
Bumbo has much to be proud of Bumbo has much to be proud of Bumbo has much to be proud of Bumbo has much to be proud of Bumbo has much to be proud of Bumbo has much to be proud of Bumbo has much to be proud of Bumbo has much to be proud of
Bumbo Bumbo is offline
Senior Member
Bumbo's Avatar

Join Date: Aug 2016
Location: CA
Posts: 3,514
Bumbo has much to be proud of Bumbo has much to be proud of Bumbo has much to be proud of Bumbo has much to be proud of Bumbo has much to be proud of Bumbo has much to be proud of Bumbo has much to be proud of Bumbo has much to be proud of
Quote:
Originally Posted by Jetboy View Post
This is correct. The shutter valves (solenoid valves) close over 12mph and the result is that the accumulators (reservoirs) are disconnected from the system. Opening the valves softens the sway bar effects.

I wish I knew more about the engineering decision to close off the accumulators. It could be that it was simply to firm up the suspension. That seems most likely. But it is also possible that it could be due to some part of the system generating too much heat. That's what concerns me and I wish I knew more.

Good luck. Let us know how you like it.
Now that you mention it… I am curious about the engineering decision behind it too.

12 mph isn’t very fast… my regular cruising speed on trails is probably anywhere between 15 to 35 mph with my current suspension and I can see why people would want the switch.

Just like a shock absorber, the more you work it, and the faster you work it, the more heat it will generate. Might be wise to monitor thermals.
Bumbo is offline   Reply With QuoteReply With Quote
Old 06-11-2019, 02:22 PM #13
Jetboy's Avatar
Jetboy Jetboy is offline
Senior Member

Join Date: Dec 2014
Location: Utah
Posts: 4,367
Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute
Jetboy Jetboy is offline
Senior Member
Jetboy's Avatar

Join Date: Dec 2014
Location: Utah
Posts: 4,367
Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute
Quote:
Originally Posted by Mutant138 View Post
Negative ghostrider. Talking about where the sway bar is attached to the truck. Disconnects would allow you to get full articulation without being limited by the kdss system. Then when you want it back just hook em back up. Think certain jeeps come with electronic disconnects so you can just push a button. Old school way is literally something you unbolt or un pin.

Essentially you would negate the whole kdss LT issue (someone correct me if i'm wrong here). You would prob need the trac bar from sonoran steel and extended travel shocks to really take full advantage.

Would be something you could easily return to stock. However i don't think anyone has figured it out with kdss as the sway bars don't really have traditional endlinks.

Edit: I re read and realized your mostly talking about the high speed dirt road issue.... I'm game for an off button for that purpose. Disconnects like I'm talking about would be dope combo with the off button for whatever the road brings.

The KDSS cylinders are the end links along with the two fixed linkages. So the way you could theoretically have full disconnects would be to have the fixed side links modified to have a disconnect. The KDSS cylinders are under pressure to extend - so getting the them back connected would require more than just aligning a push pin.

The main issue in most cases is simply the limited range of travel. I'd love to have a KDSS system like the LC200 that has much more range of travel. I think it could be done on the 4Runner. The rear would need a linkage with a longer travel lever arm. The front would need the brackets on the control arms moved inboard about 2 inches and a narrower sway bar made up to fit (basically just change the leverage on the control arm). But the suspension is limited by a lot of other factors anyway, so there's not a lot of benefit to be had unless you fix the other issues like adding longer links, new brackets, longer control arms up front, etc.
Jetboy is offline   Reply With QuoteReply With Quote
Old 06-11-2019, 02:25 PM #14
Jetboy's Avatar
Jetboy Jetboy is offline
Senior Member

Join Date: Dec 2014
Location: Utah
Posts: 4,367
Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute
Jetboy Jetboy is offline
Senior Member
Jetboy's Avatar

Join Date: Dec 2014
Location: Utah
Posts: 4,367
Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute Jetboy has a reputation beyond repute
Quote:
Originally Posted by Bumbo View Post
Now that you mention it… I am curious about the engineering decision behind it too.

12 mph isn’t very fast… my regular cruising speed on trails is probably anywhere between 15 to 35 mph with my current suspension and I can see why people would want the switch.

Just like a shock absorber, the more you work it, and the faster you work it, the more heat it will generate. Might be wise to monitor thermals.
The LC200 KDSS is always "open" and the LX570 uses accumulators for basically the entire suspension system operation as shock remote reservoirs. Assuming they share the same internal designs - I'd guess the real desire is more firm driving rather than heat - but we just don't know. There may be some restrictions in the system that generate a lot of heat. It would probably be worth running it that way for a bit and using a thermometer laser gun to check the temps of the components just to see.
Jetboy is offline   Reply With QuoteReply With Quote
Old 06-11-2019, 02:34 PM #15
Akkording's Avatar
Akkording Akkording is offline
Member

Join Date: Dec 2004
Location: Houston, TX
Posts: 876
Akkording is just really nice Akkording is just really nice Akkording is just really nice Akkording is just really nice
Akkording Akkording is offline
Member
Akkording's Avatar

Join Date: Dec 2004
Location: Houston, TX
Posts: 876
Akkording is just really nice Akkording is just really nice Akkording is just really nice Akkording is just really nice
How about disabling KDSS at the fuse box under the dash labeled #26. Is that an option? I have no clue what domino effect this might cause to the 4x4 system or traction controls


I don't know much about 4runners just basic SR5 PoorRunners and 1st gen Tacomas
__________________
2012 Blizzard Pearl SR5 | 285P Destination AT2 | Level 8 Slam | PC | X2Power w/ArcLightLeds V2 Booster | Borla 40665 | URD Y & MAF Cal TRD | C4 Center LP | X20 10k Factor55 | Shrockworks Armory | RCI LCA skids | TC Gusset | LFD Offroad 7/8 | TJM Airtec dry aFe HPS coupler w/TRD CAI tube | 6112 | 650# King | ICON Delta Joint | 5160 | SAW 1.5" | .5" Headstrong top plate |
| 03 Tacoma OME equipped, +300k Still Truckin|

Last edited by Akkording; 06-11-2019 at 02:44 PM.
Akkording is offline   Reply With QuoteReply With Quote
Reply

Tags
control , harness , plug , switch , toggle

Thread Tools
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
Map light toggle switch dakine_999 4th Gen T4Rs 3 06-19-2013 03:20 PM
Power antenna toggle switch zgensler31 3rd gen T4Rs 6 05-19-2013 11:46 PM
Toggle switch on a condenser fan? 4runner86 Classic T4Rs 4 10-22-2012 09:46 PM
Electric Fan question, about toggle switch. slipknoter106 Engines / Suspension / Wheels / Tires / Audio / Accessories 2 01-14-2012 03:43 PM
Adding toggle switch for DRL Cas5Id4 3rd gen T4Rs 17 07-05-2010 11:46 AM

Powered by vBadvanced CMPS v3.2.2

All times are GMT -4. The time now is 07:20 PM.

Powered by vBulletin® Version 3.8.11
Copyright ©2000 - 2021, vBulletin Solutions Inc.
Search Engine Optimisation provided by DragonByte SEO (Pro) - vBulletin Mods & Addons Copyright © 2021 DragonByte Technologies Ltd.
Feedback Buttons provided by Advanced Post Thanks / Like (Lite) - vBulletin Mods & Addons Copyright © 2021 DragonByte Technologies Ltd.
User Alert System provided by Advanced User Tagging (Lite) - vBulletin Mods & Addons Copyright © 2021 DragonByte Technologies Ltd.
***This site is an unofficial Toyota site, and is not officially endorsed, supported, authorized by or affiliated with Toyota. All company, product, or service names references in this web site are used for identification purposes only and may be trademarks of their respective owners. The Toyota name, marks, designs and logos, as well as Toyota model names, are registered trademarks of Toyota Motor Corporation***Ad Management plugin by RedTyger

Copyright © 2020
