Quote:
Originally Posted by xcalbr2 View Post
No lights etc.
Its all hydraulic. I removed my entire xreas lines and all and replaced with Eibach.
I have some wrenching experience but took my time and had it done in weekend working till I was tired of working on it.
NO oil leaks if you take xreas apart at the correct points.
I did have the springs installed on struts prior to starting the install.
X
My research shows No lights either.

Do you know which are the correct points to minimize leaking?
3s1kill is offline   Reply With QuoteReply With Quote
Old 06-19-2019, 05:07 PM #17
matoolie's Avatar
matoolie matoolie is offline
Member

Join Date: May 2005
Location: Virginia
Posts: 319
matoolie will become famous soon enough
matoolie matoolie is offline
Member
matoolie's Avatar

Join Date: May 2005
Location: Virginia
Posts: 319
matoolie will become famous soon enough

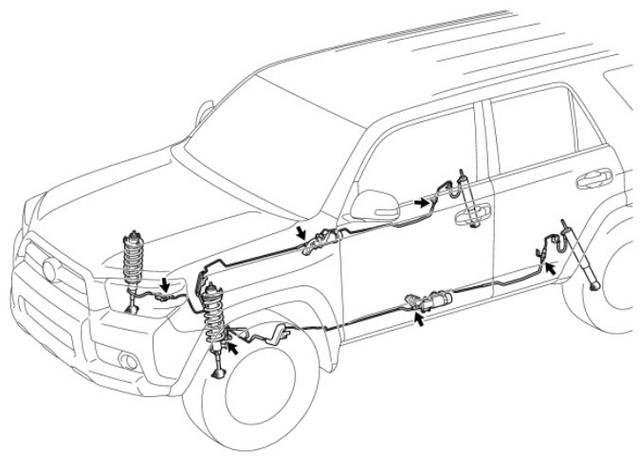

See arrows. But to properly dispose of the system you should drain the oil from all the shocks and lines, and eliminate the gas pressure in the central accumulators. Disconnect lines from shocks and extend and compress shocks a couple times by hand to push all oil out. Get a drill bit and drill a hole in the end of the accumulators. Gas will escape in a moderate blast for about 1-2 seconds.
