ICON 2.5 Bundle #1 -
Click Here
Part #Gen5-ICON-2.5-Bundle-1

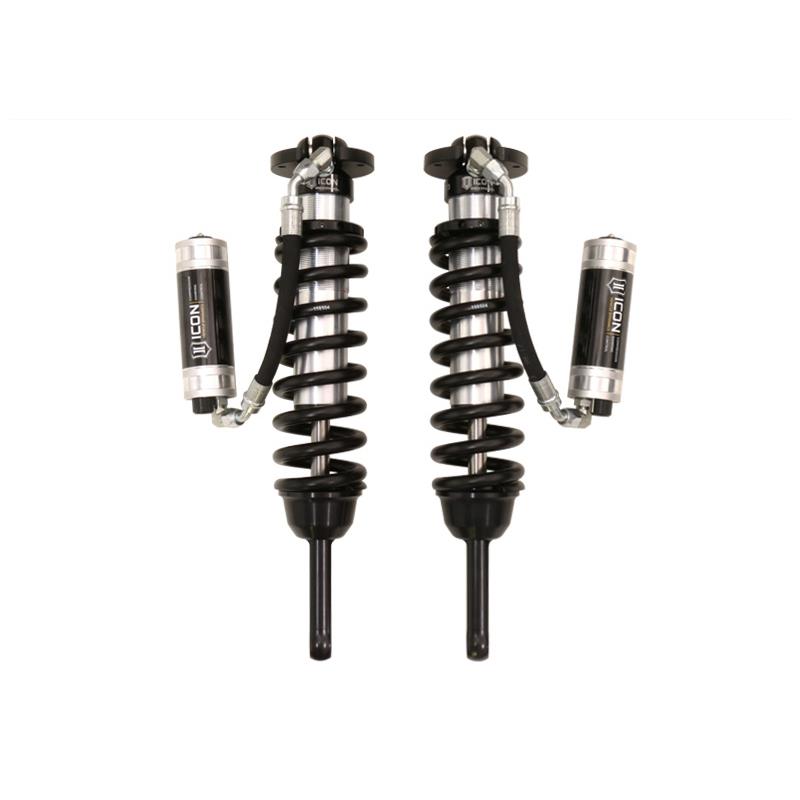

ICON 2.5 Standard Travel adjustable coil-over shocks have proven their strength and
longevity for years on end and they keep going.
These shocks offer the best ride quality and handling.
They increase suspension travel and dramatically increase the capabilities of your
4Runner's front suspension.
These coil-over’s come complete with all the hardware necessary to complete the
installation as well as a sway bar relocation bracket kit to adjust the location of the
sway bar to clear the larger shock.
Recommended tire size 285/75R16, wheel 16X8 with 5" back spacing.
Technical Specs:
- Adjustable ride height from 0" - 3.5"
- Race shock piston with flutter stack compression valving
- Kit Includes Sway bar relocation brackets
- Cad-plated threaded body / Extreme Weather Plating Option Available
- Billet aluminum upper mount
- 5/8" PTFE-lined spherical bearing
- Completely re-buildable
- 2.5" shock diameter to prevent overheating
- Chrome-silicon spring
- 250 PSI nitrogen-charged internal reservoir
- Made in the USA
- Nitro-steel shaft will not chip or rust like chrome shafts
ICON Vehicle Specific 2.5 Series shocks are designed and built to give your
vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length
and damping tune.
Like all ICON shock absorbers, 2.5 Series shocks are 100% rebuildable and
100% revalveable.
For piggyback and specific remote reservoir applications; ICON’s unique use
of a 6061 billet aluminum manifold a few inches below the top cap of the shock
creates an internal “Bump Zone” that when used creates an additional 20% of
damping force.
This additional force helps prevent harsh bottom outs and controls the suspension
when compressing at high velocity.
If you are looking for a more user defined tune, consider looking into the Compression
Damping Control Valve (CDCV) or the OMEGA Series bypass shocks.
KEY FEATURES:
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- Polyurethane bushings and forged steel mounting stems for OE factory type fitment
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
- 100% Rebuildable
- 100% Revalveable
- Made in the U.S.A.
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
