There are several threads on installing a spoiler but none with pictures. I decided to take some during my spoiler install my 2004 SR5.

Which spoiler? This thread has some good information and suggestions. I bought mine of eBay from AutoWingandSpoilerKing.

As I mentioned on another thread, the box was damaged but the spoiler arrived in perfect shape. I think the packaging could have been better.

Here are before and after pictures. The quality of the first picture isn't the best but I can't retake it

Attached Images



The install kit. What I didn't notice is that it was missing the 2 x 21"long strip gasket. The other problem is that the grommet is the wrong size (too big) for the hole they tell you to drill (1/4") in step 4 (3) for the LED wires. I ended up leaving it 1/4" and used a rubber grommet I had around. The #3 Unibit was purchased at Harbor Freight for $5. I have never used a unibit before but it is MUCH easier to use when drilling into sheet metal than a regular twist bit. I recommend you get one.

I ended up getting a roll of 3m Automotive Acrylic Plus Attachment Tape 06382 from a friend at a body shop. I did contact the eBay seller who offered to send the missing tape but I already had the holes in the truck and wanted to move forward.

The wire ties and light screws were not used.

Attached Images



I followed the instructions and used the locating strips to mark where I needed to drill the holes.

Attached Images



Next I drilled the holes. The two top holes (bottom when the hatch is open and your working on it) go exactly into the center where there are two plastic hole plugs installed by the factory. Easy.

Attached Images



The inside hole for the lower mount was the problem area.

You have to remove the hatch struts to drill this hole. The instructions indicate that you should drill a 1/2" hole. The problem is that there is another piece of metal between the outer and inner metal of the hatch. The screw hole you drilled outside the vehicle is blocked. You can't get the screw to go where you will need it.

First I drilled a pilot hole (pictured) in the middle of the 1/2 hole to make sure I had the angle right. Then I used a regular twist bit to drill a hole on the piece of metal in the middle. Using a twist bit reams out the 1/2 hole on the inside of the hatch. The included plastic plug will cover the hole but doesn't snap in. I used some silicone to glue it into place. You could probably drill between the two strut mounts but I didn't want to weaken the structure and was worried that there might be a thick piece of metal there. I also had the drill get away from me on the right side which put a nice dimple on the outside of the hatch. Fortunately it was covered by the spoiler.

Pilot hole and installed with plug.

Attached Images

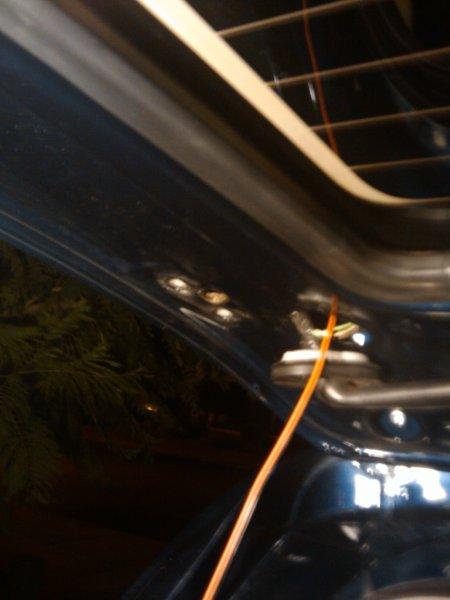

The electrical connecting was easy. Pull off the big rectangular square box on the left side and spice the red wire to the green wire and the black wire to the black wire.

I forced the wire loom into the hatch to the entry point and then let some extra inside the hatch just in case I needed the wire in the future. It tested and worked the first time.

Hope this helps somebody else thinking about taking the plunge. Probably took 4 hours of actual work to do.

Attached Images



looks good, Id be to scared to try a mod like this on my own, lol looks like you did a great job

Thanks for the Pics!

A body shop installed mine. I had a weak heart when I was holding the drill! I know its not a walk inthe park.. It took them 2 hrs to finish...maybe more than 2hrs, but they only charged me 2. So 4hrs is not bad if you do it the first time. Though those who installed mine are pros, I saw a puddle of sweat in the floor after its done LOL!.

Two hours is probably correct for a body shop. I had no idea what I was doing and there were no pics online, so I read the directions about 8 times (why I didn't realize the 21" strips were missing I have no idea). The directions are OK but a bit generic. I totally believe the puddle of sweat. Purposefully putting holes in your truck isn't natural. Mine was more like a pool than puddle.

Yes, the direction is generic. This write up would be a big help for 4th Gen 4Runner specific.

Here is also a generic DIY video: YouTube - Car Spoiler Installation on a 2007 Toyota Camry. www.elitespoilers.com

And when your at it, it will probably require more skills because its different in a 4runner,the thickness of the metal alone IMO is times 2. I remember my son said " dad are you kidding? we only have six drill bits! I can sacrifice a month without allowance lets have it installed..ha!ha!
But don't get discourage, as a 4runner owner you have better idea than a bodyshop, because out of 50..only one have experience installing it in a 4runner. I know after they installed mine 2 years ago, they have never done it again...and I have gone to many shops and they backout.

I actually bought that same spoiler from them on ebay. I'm having a little trouble understanding the 2 bottom holes. I understand removing the struts and that there is metal in between the outside and inside. But what did you do exactly did you do to the metal that is blocking the holes? You used a 1/2 uni bit on the outside/inside and then used a 1/2 twist bit to drill through the middle?

I looked through my old pictures for some clues and I don't have any other than the ones I posted. To the best of my recollection here is what I did.

When you attach the spoiler, you are really only attaching it to the outside layer of sheet metal. The inside hole that you are creating is just so that can access the screws to tighten down the spoiler. The top holes line up straight and easy. The bottom holes could as well, if you wanted to drill into the metal where they shocks mount.

I decided that I didn't want to do that and instead tried to drill the inside hole (really an access hole) a little bit offset.

I probably drilled the outside hole first. Then I used the step bit to drill a 1/2 hole on the inside for access and saw the metal piece blocking me. I drilled a pilot hole into the hidden piece between the outer and inner walls of the door and then finally used a 1/2 twist bit to drill it out so I could get the screw in there.

Hope this helps.

Just finished installing it the other day! Thank you for this write-up bc it was a life saver!

Hi, I just got my spoiler installed and havent had a chance to do the wiring yet, what do you mean the big rectangular box on the left side? Im not sure what you're referring to. Theres a black hose in the middle of hte lift gate, im assuming this is where the wires for the top brake light is placed, is this where im supposed to tap the wires to?

It has been a long time but I think I was actually referring to the oval rubber piece in the picture of that thread. Once you pop that off, you'll see the wires you need to tap into. The colors are off but in the picture you can see the red wire from the spoiler (looks orange on my screen) and the green wire inside the hatch near the oval rubber gasket.
