let me know if that email doesn't make any sense...but..it should!
__________________
2011 4Runner SR5 - Black
Stubby Antenna - 5% Tint - Weathertech Liners
Pioneer AVIC z130BT w/Camera feed in Nav
Ultra Gauntlet 20 X 9 - Nitto Terra Grappler G2 275/55r/20
H11 XTREME LED PRO Kit
Johnny Utah is offline   Reply With QuoteReply With Quote
Old 06-24-2011, 01:42 PM #17
sp8ball's Avatar
sp8ball sp8ball is offline
Member

Join Date: Jan 2010
Location: Bel Air, MD
Posts: 456
sp8ball is on a distinguished road
sp8ball sp8ball is offline
Member
sp8ball's Avatar

Join Date: Jan 2010
Location: Bel Air, MD
Posts: 456
sp8ball is on a distinguished road
Dude...this is awesome!

I've had my head so far up my own butt with the baby and work, and I've barely spoken to Antman (well, we text) or gotten on the forum.

And look at this! This thread rocks!
__________________
**2011 SR5 - Salsa Red Pearl** Backup Camera, Moonroof, Upgraded Stereo, Third Row, Remote Start, and Anti-Theft
Mods: Weathertech DigitalFit Floor Liners, Husky Weatherbeater Cargo Liner, Stubby Antenna, Black Steelcraft Nerf Bars, Interior & Puddle Lamp LEDs, 35% Window Tint, Vinyl Chrome Strip Blackout, Color-matched Door Handles, AVS Bugflector II, Toytec Front Plate Spacer Lift, Interior Accent Lighting, Backup Camera Switch, Cupholder & Door Handle LEDs, Infinity Kappa Speakers
My Build Thread: http://www.toyota-4runner.org/5th-ge...id-2010-a.html
sp8ball is offline   Reply With QuoteReply With Quote
Old 06-26-2011, 12:25 PM #18
Antman's Avatar
Antman Antman is offline
Elite Member

Join Date: Feb 2011
Location: Maryland
Age: 49
Posts: 6,887
Real Name: Jeff
Antman is just really nice Antman is just really nice Antman is just really nice Antman is just really nice
MY GARAGE
Antman Antman is offline
Elite Member
Antman's Avatar

Join Date: Feb 2011
Location: Maryland
Age: 49
Posts: 6,887
Real Name: Jeff
Antman is just really nice Antman is just really nice Antman is just really nice Antman is just really nice
MY GARAGE
New mod should be posted sometime tomorrow that allows independent fog light control using the factory switch. I've been hesitant to post this for a while because there is one small issue that bugs me...
That's all I'm sayin' for now(the great Nashman69g knows ).
__________________
HERE FISHY FISHY FISHY!

Last edited by Antman; 06-27-2011 at 09:18 PM.
Antman is offline   Reply With QuoteReply With Quote
Old 06-27-2011, 07:32 AM #19
sp8ball's Avatar
sp8ball sp8ball is offline
Member

Join Date: Jan 2010
Location: Bel Air, MD
Posts: 456
sp8ball is on a distinguished road
sp8ball sp8ball is offline
Member
sp8ball's Avatar

Join Date: Jan 2010
Location: Bel Air, MD
Posts: 456
sp8ball is on a distinguished road
Quote:
Originally Posted by Antman View Post
New mod should be posted sometime tomorrow that allows independent fog light control using the factory switch. I've been hesitant to post this for a while because there is one small issue that bugs me...
That's all I'm sayin' for now(the great Nashman69 knows ).
Building the drama...

__________________
**2011 SR5 - Salsa Red Pearl** Backup Camera, Moonroof, Upgraded Stereo, Third Row, Remote Start, and Anti-Theft
Mods: Weathertech DigitalFit Floor Liners, Husky Weatherbeater Cargo Liner, Stubby Antenna, Black Steelcraft Nerf Bars, Interior & Puddle Lamp LEDs, 35% Window Tint, Vinyl Chrome Strip Blackout, Color-matched Door Handles, AVS Bugflector II, Toytec Front Plate Spacer Lift, Interior Accent Lighting, Backup Camera Switch, Cupholder & Door Handle LEDs, Infinity Kappa Speakers
My Build Thread: http://www.toyota-4runner.org/5th-ge...id-2010-a.html
sp8ball is offline   Reply With QuoteReply With Quote
Old 06-27-2011, 10:18 AM #20
Turn_down's Avatar
Turn_down Turn_down is offline
Member

Join Date: May 2011
Location: DFW
Posts: 378
Turn_down is on a distinguished road
Turn_down Turn_down is offline
Member
Turn_down's Avatar

Join Date: May 2011
Location: DFW
Posts: 378
Turn_down is on a distinguished road
Quote:
Originally Posted by Antman View Post
New mod should be posted sometime tomorrow that allows independent fog light control using the factory switch. I've been hesitant to post this for a while because there is one small issue that bugs me...
That's all I'm sayin' for now(the great Nashman69 knows ).
It shocks his testicles every time he uses the fog lights. lol
Turn_down is offline   Reply With QuoteReply With Quote
Old 06-27-2011, 11:06 AM #21
Antman's Avatar
Antman Antman is offline
Elite Member

Join Date: Feb 2011
Location: Maryland
Age: 49
Posts: 6,887
Real Name: Jeff
Antman is just really nice Antman is just really nice Antman is just really nice Antman is just really nice
MY GARAGE
Antman Antman is offline
Elite Member
Antman's Avatar

Join Date: Feb 2011
Location: Maryland
Age: 49
Posts: 6,887
Real Name: Jeff
Antman is just really nice Antman is just really nice Antman is just really nice Antman is just really nice
MY GARAGE
Quote:
Originally Posted by Turn_down View Post
It shocks his testicles every time he uses the fog lights. lol
? ? ? ? ? You have some issues. Just completed the mod- doing the writeup now...
__________________
HERE FISHY FISHY FISHY!
Antman is offline   Reply With QuoteReply With Quote
Old 06-27-2011, 12:26 PM #22
Antman's Avatar
Antman Antman is offline
Elite Member

Join Date: Feb 2011
Location: Maryland
Age: 49
Posts: 6,887
Real Name: Jeff
Antman is just really nice Antman is just really nice Antman is just really nice Antman is just really nice
MY GARAGE
Antman Antman is offline
Elite Member
Antman's Avatar

Join Date: Feb 2011
Location: Maryland
Age: 49
Posts: 6,887
Real Name: Jeff
Antman is just really nice Antman is just really nice Antman is just really nice Antman is just really nice
MY GARAGE
ANTMAN MOD #4


Independent Fog-Light Mod- using the factory switch.

This mod allows you to turn on your fog-lights whenever you choose. You can have the fogs on by themselves, with the DRL, with the Hi-Beams- whenever you want- as long as the ignition is on. If you want to be able to control the fogs anytime, regardless of ignition, the mod is even easier- but- you will probably leave your fogs on and come out to a dead battery. Your choice.

Others have performed this mod, but I don’t think anyone has done it with the original, stalk-mounted fog switch. I tried to cut as few wires as possible (only 2), so more people may be willing to take the plunge(?)

I stated earlier that I wasn’t ready to post this mod. That’s because, to me, it’s not complete. Reason? The little green fog LED in your dash that illuminates whenever your fogs are on, will not work.The computer sends a signal to light this up (CAN circuit), thanks to Nashman69g for explaining that to me. Before doing this MOD, when you turn the factory fogs on, you will notice a very slight delay before the LED lights up. That’s because it’s waiting for the signal from CAN. I have no idea how to “trick” the computer into lighting this up. I have had the entire gauge cluster out and apart (minus removing the needles) to try and figure this part out. Maybe someone a lot smarter than me can figure it out?

So- Bottom line. Fogs work perfectly whenever you want! LED indicator in dash does not work at all. (EDIT= See Antman Mod #4.1)


Here’s the writeup:

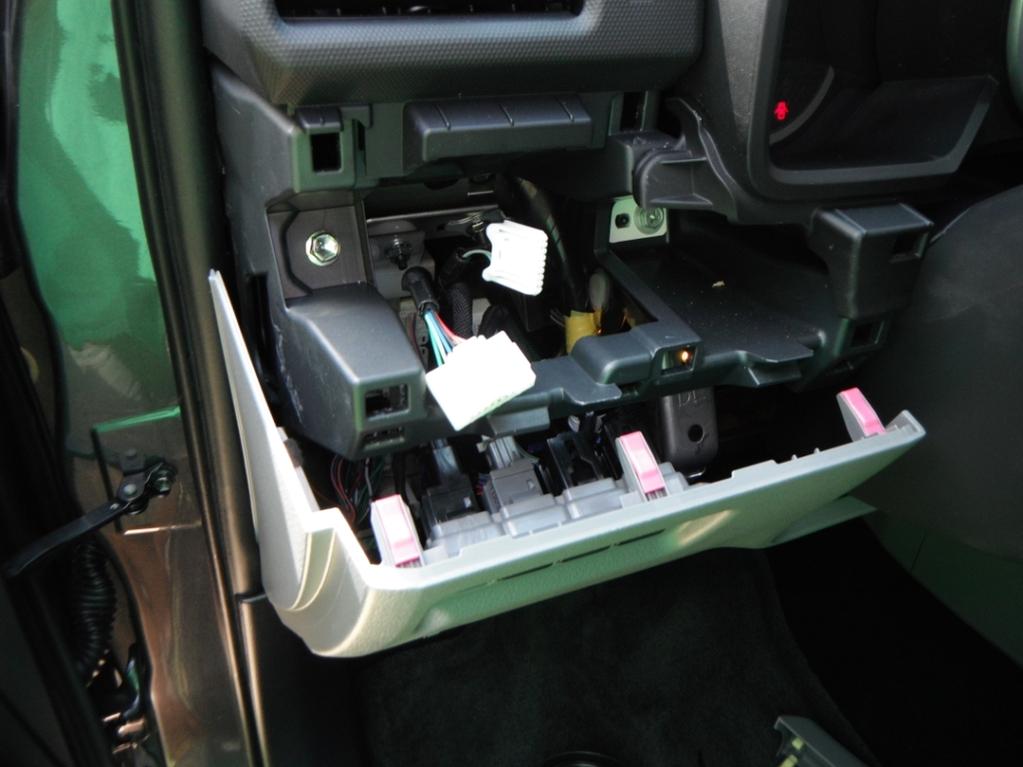

Pull apart your dash- and I mean that literally. The switch panel pulls towards you, and the lower dash just pulls away (you won’t need to remove this completely)

ANTMAN'S Thread-001-jpg

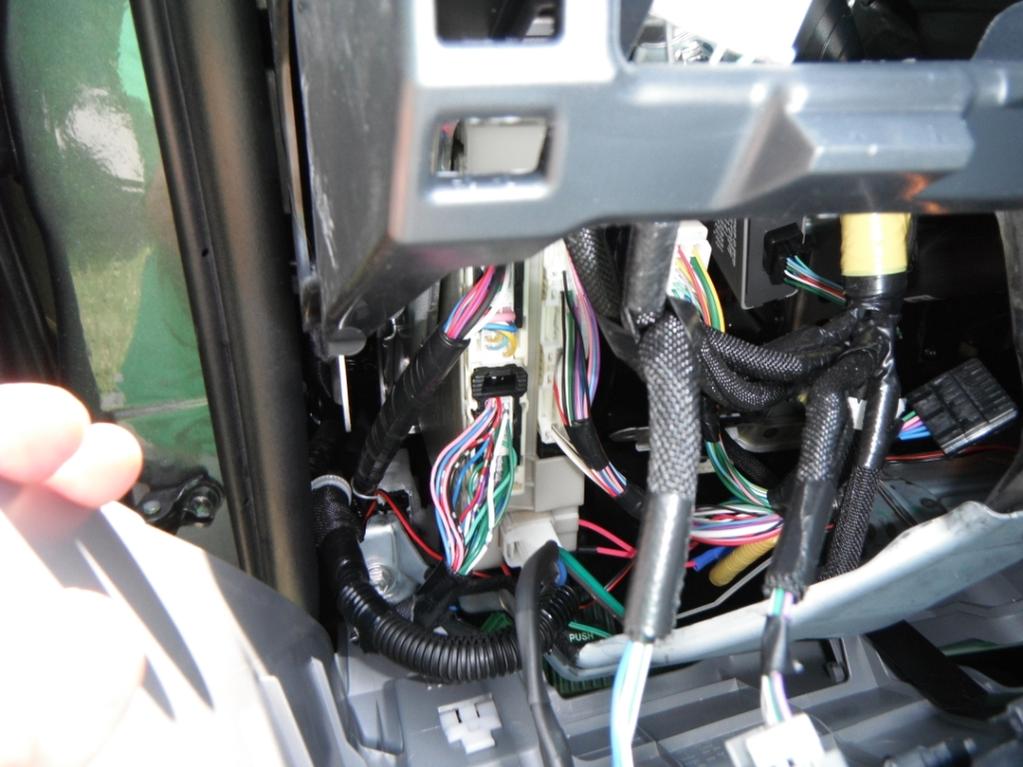

This is the location for the factory fog-light feed. PLUG 2D, PIN#9 from EWD

ANTMAN'S Thread-003-jpg

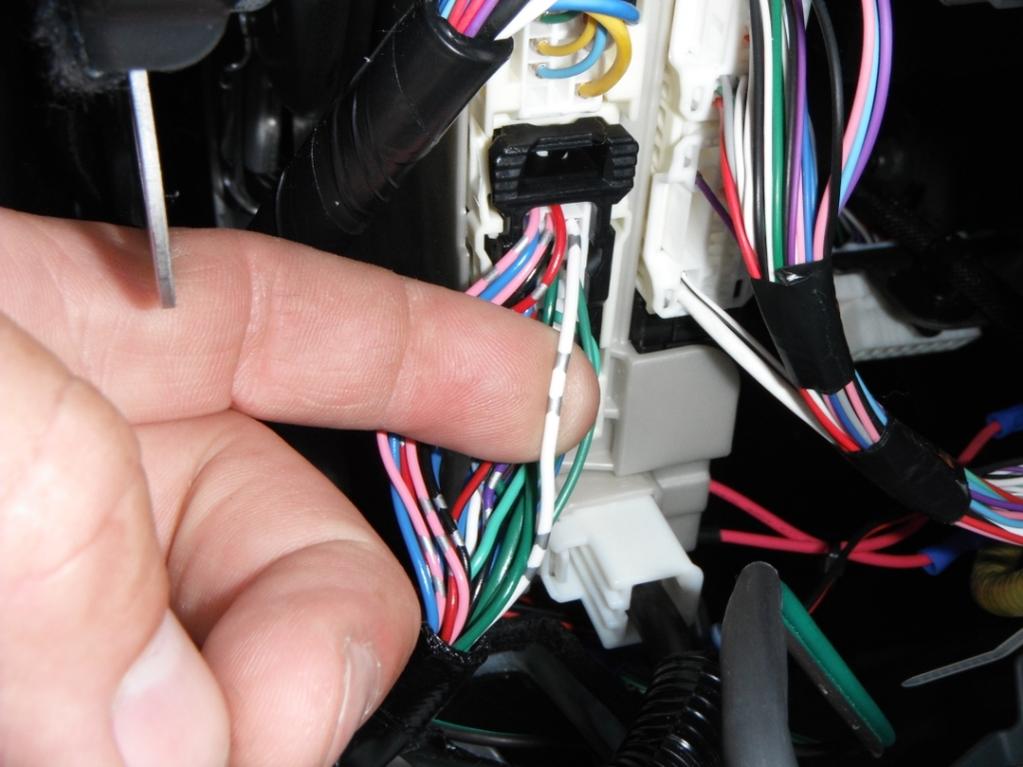

This is the wire- white with silver specs. This wire will “feed” the fog lamps.

ANTMAN'S Thread-005-jpg

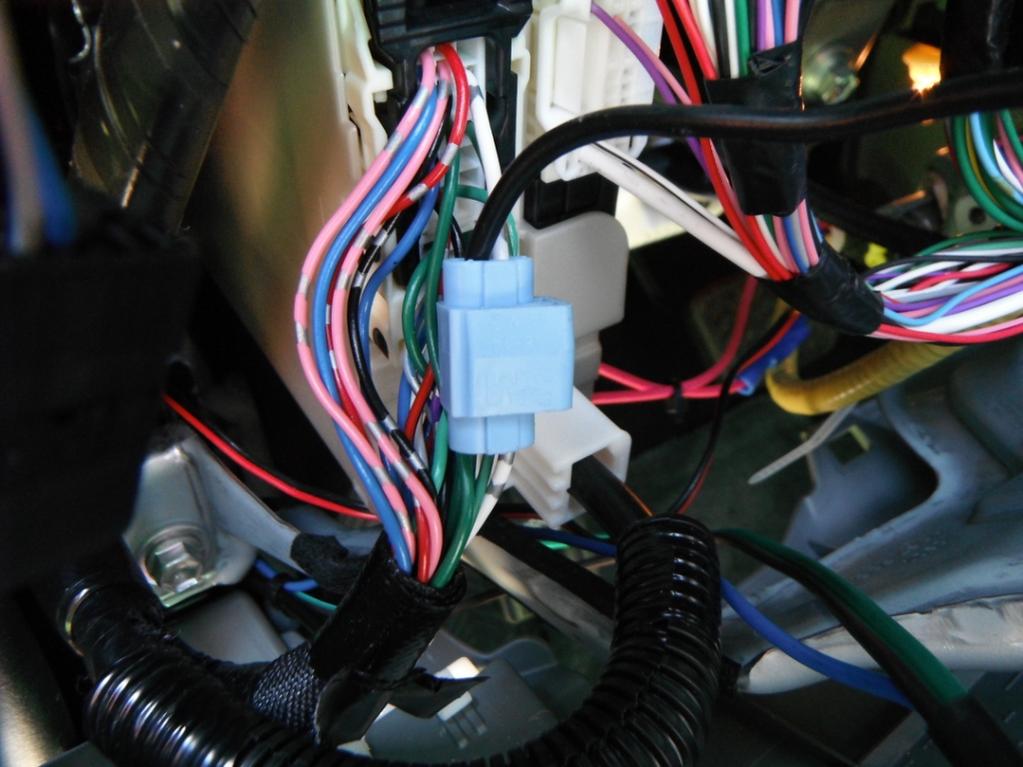

Tap into this wire with a 3M wire tap. We will connect this wire lead later.

ANTMAN'S Thread-008-jpg

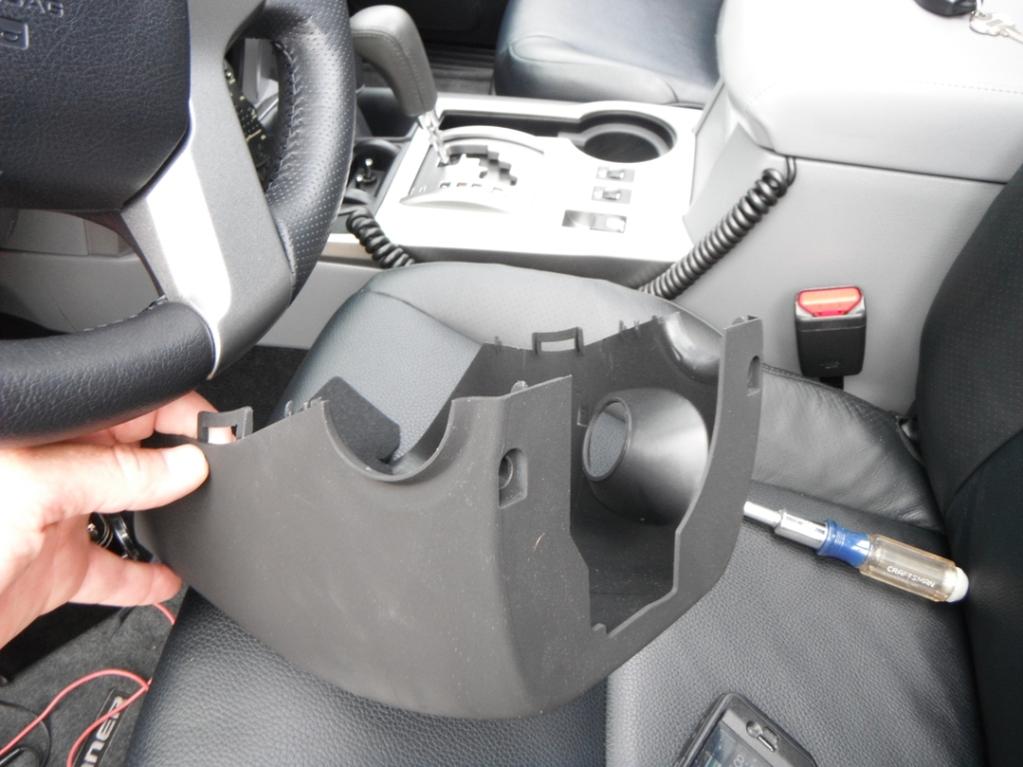

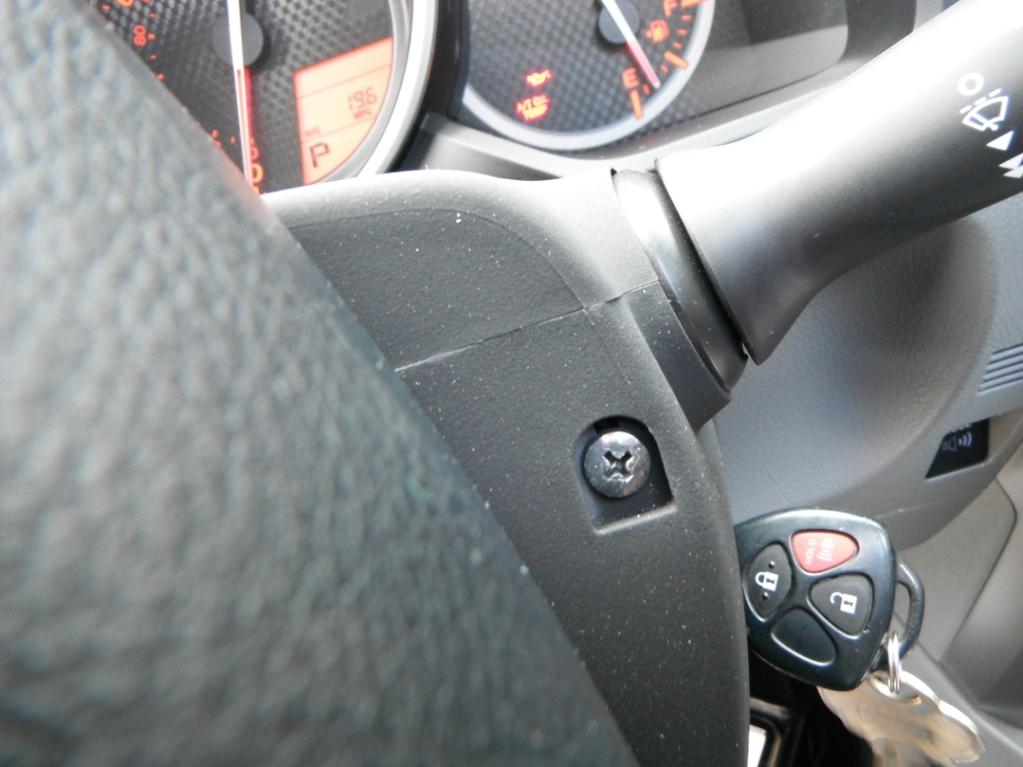

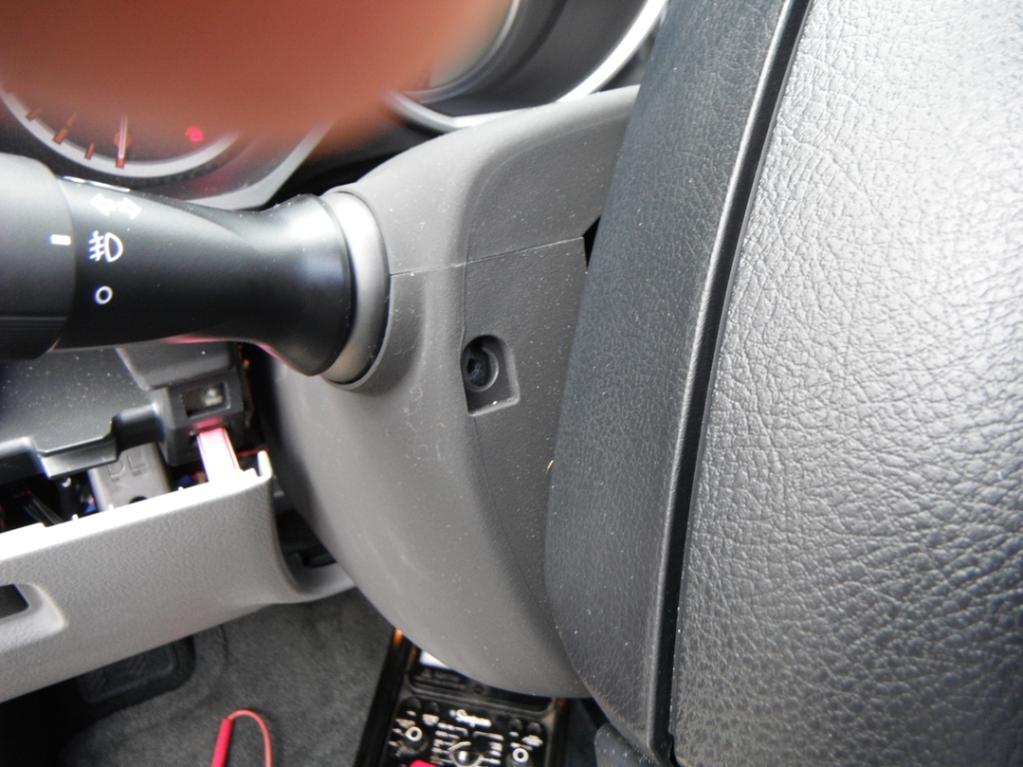

Time to take more apart! Remove the lower portion of your steering column with these 2 screws

ANTMAN'S Thread-012-jpg
ANTMAN'S Thread-013-jpg
ANTMAN'S Thread-014-jpg

**************(continued)
__________________
HERE FISHY FISHY FISHY!

Last edited by Antman; 07-16-2011 at 07:56 PM.
Antman is offline   Reply With QuoteReply With Quote
Old 06-27-2011, 12:36 PM #23
Antman's Avatar
Antman Antman is offline
Elite Member

Join Date: Feb 2011
Location: Maryland
Age: 49
Posts: 6,887
Real Name: Jeff
Antman is just really nice Antman is just really nice Antman is just really nice Antman is just really nice
MY GARAGE
Antman Antman is offline
Elite Member
Antman's Avatar

Join Date: Feb 2011
Location: Maryland
Age: 49
Posts: 6,887
Real Name: Jeff
Antman is just really nice Antman is just really nice Antman is just really nice Antman is just really nice
MY GARAGE

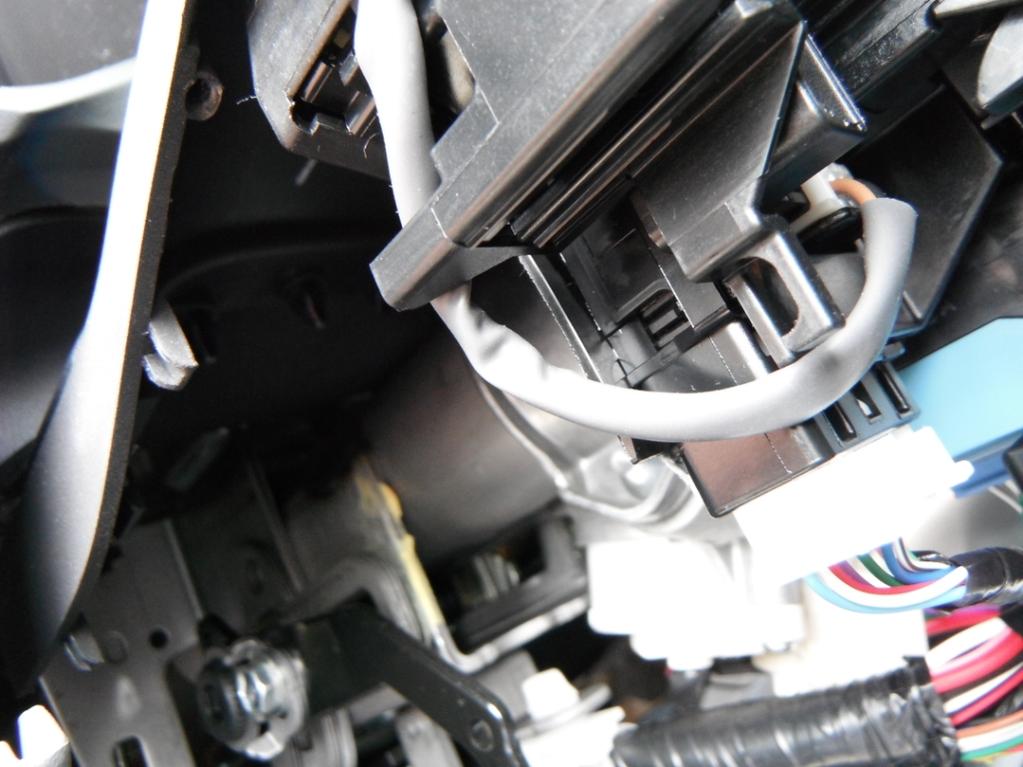

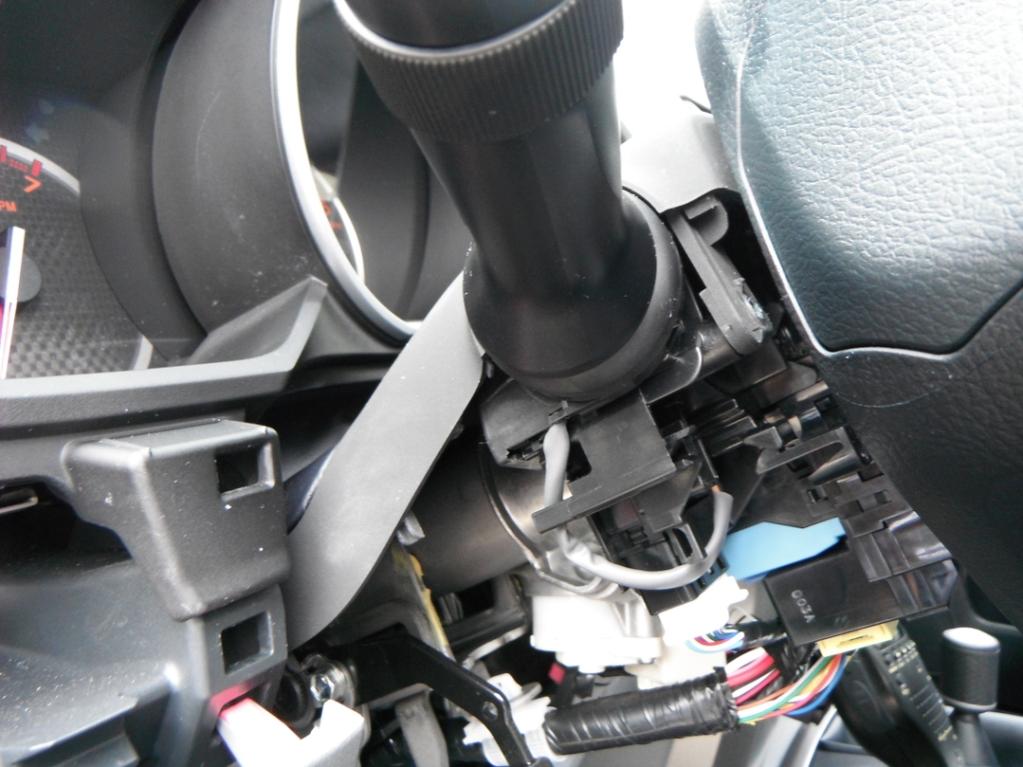

See this wire bundle? These are attached directly to the fog switch. Brown, and black under the shrinkwrap...


ANTMAN'S Thread-016-jpg
ANTMAN'S Thread-017-jpg

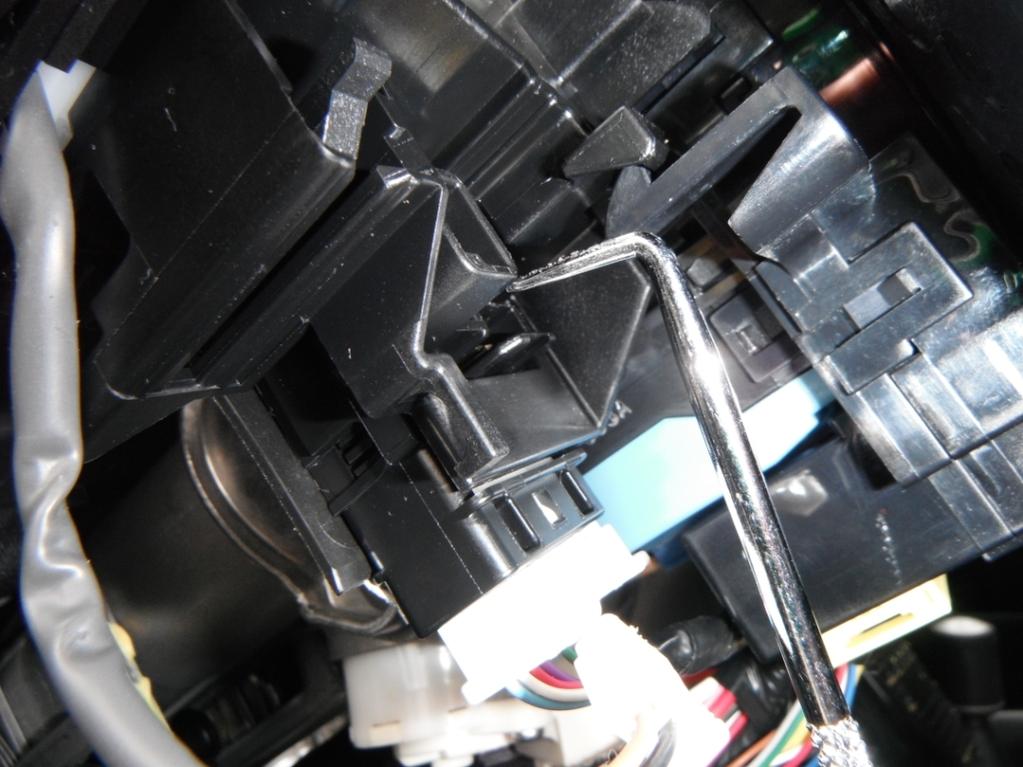

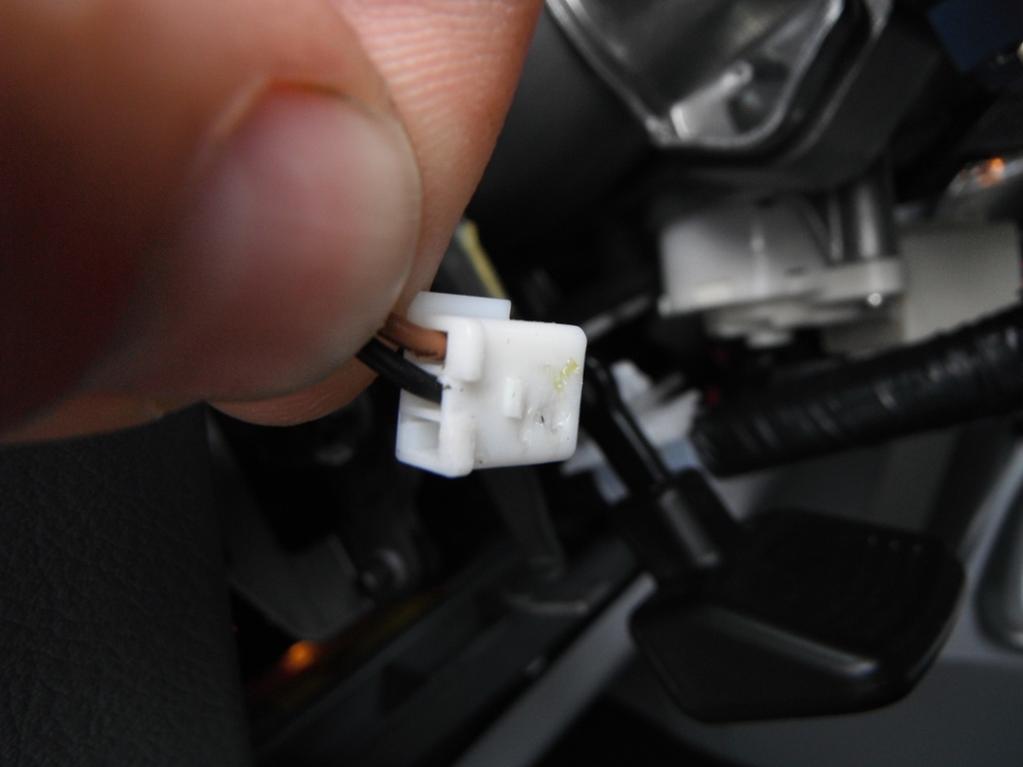

This plug is NOT easy to remove. I used a right angle pick on the top of the plug and pulled it out. Be patient here!


ANTMAN'S Thread-020-jpg

ANTMAN'S Thread-021-jpg

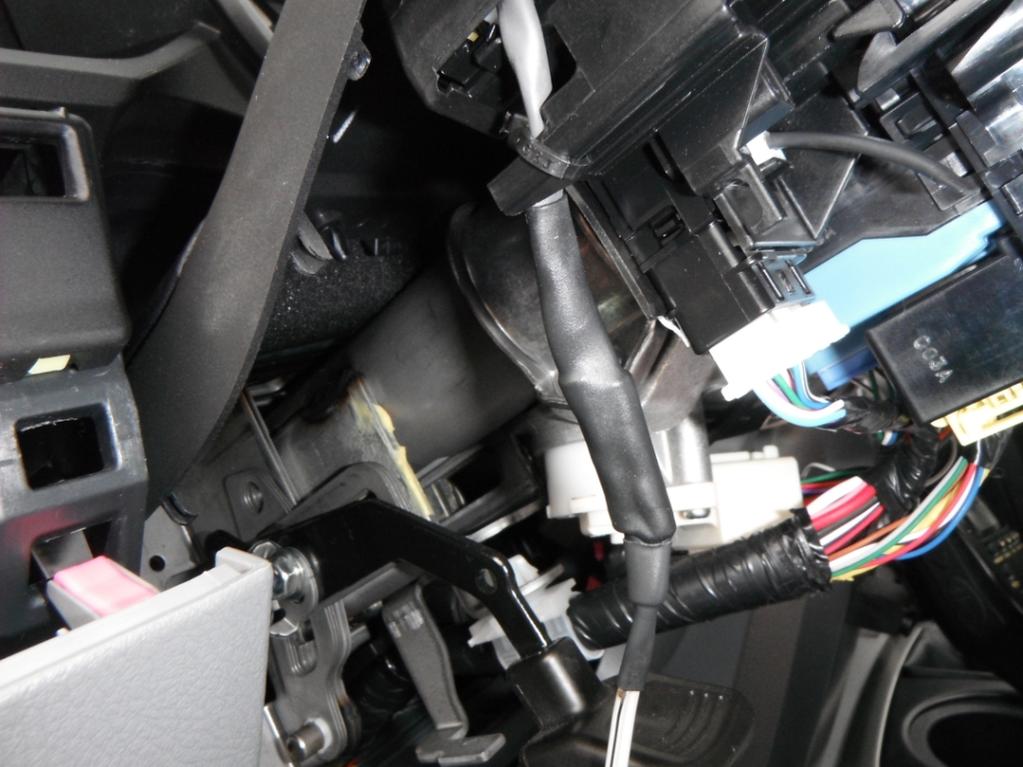

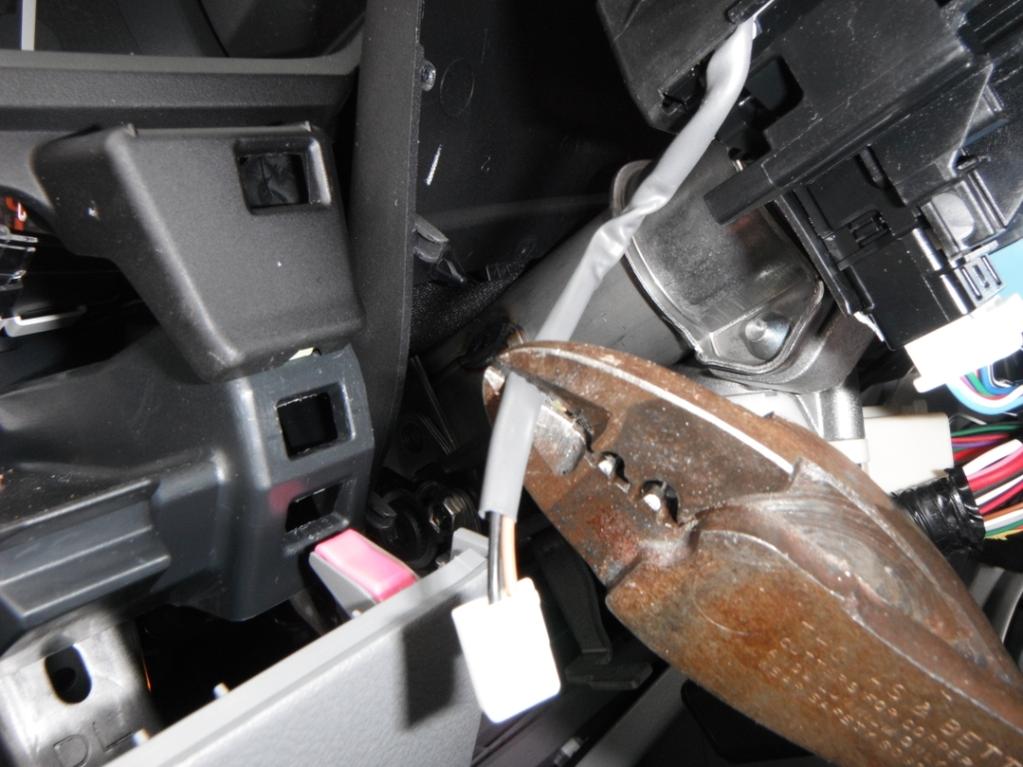

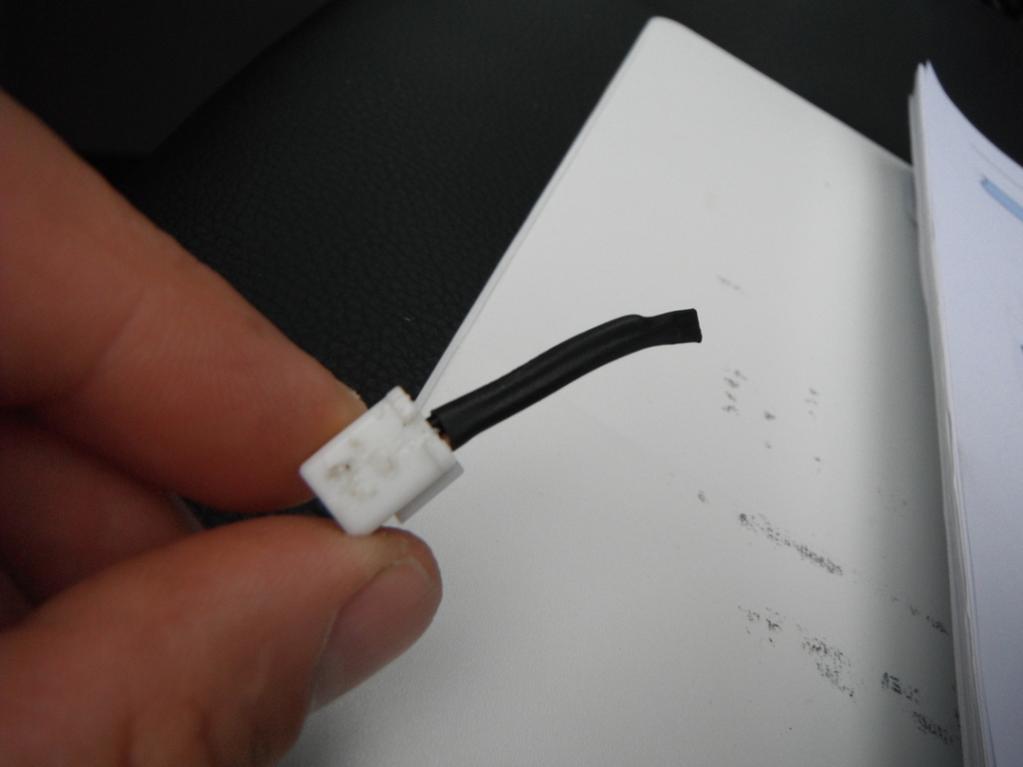

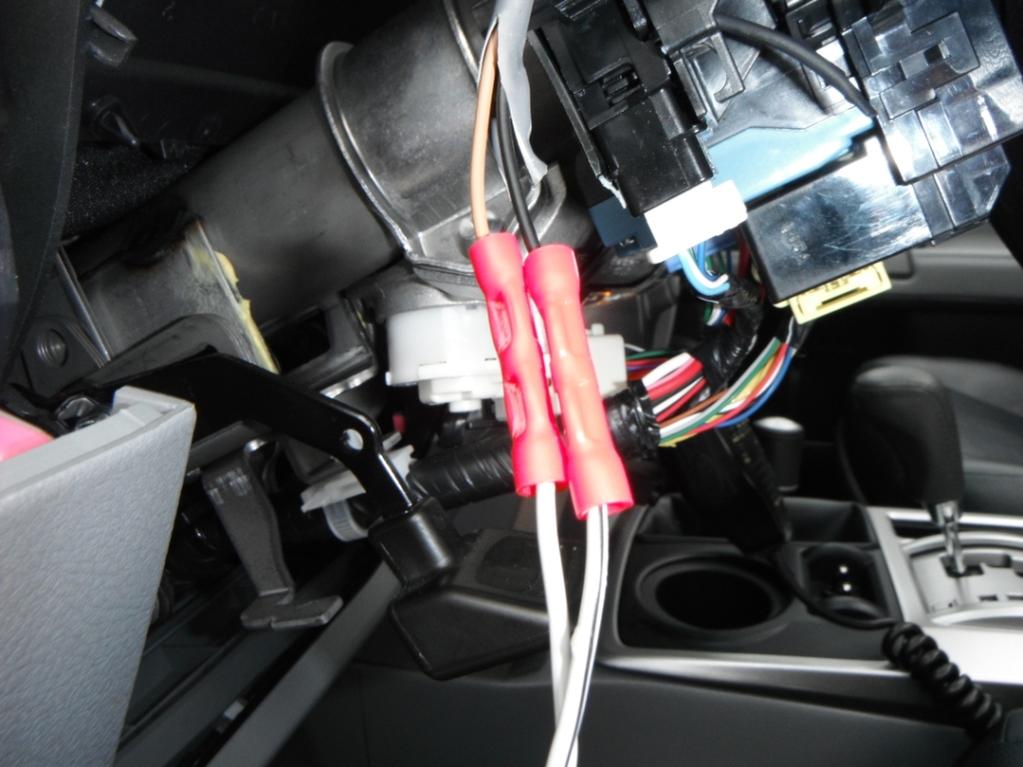

Cut the wires and connect each to a length of wire. I reinstalled the original plug (insulated), and shrinkwrapped the connections


ANTMAN'S Thread-022-jpg

ANTMAN'S Thread-023-jpg

ANTMAN'S Thread-024-jpg

ANTMAN'S Thread-025-jpg

******(continued)
__________________
HERE FISHY FISHY FISHY!

Last edited by Antman; 06-27-2011 at 01:36 PM.
Antman is offline   Reply With QuoteReply With Quote
Old 06-27-2011, 12:49 PM #24
Antman's Avatar
Antman Antman is offline
Elite Member

Join Date: Feb 2011
Location: Maryland
Age: 49
Posts: 6,887
Real Name: Jeff
Antman is just really nice Antman is just really nice Antman is just really nice Antman is just really nice
MY GARAGE
Antman Antman is offline
Elite Member
Antman's Avatar

Join Date: Feb 2011
Location: Maryland
Age: 49
Posts: 6,887
Real Name: Jeff
Antman is just really nice Antman is just really nice Antman is just really nice Antman is just really nice
MY GARAGE

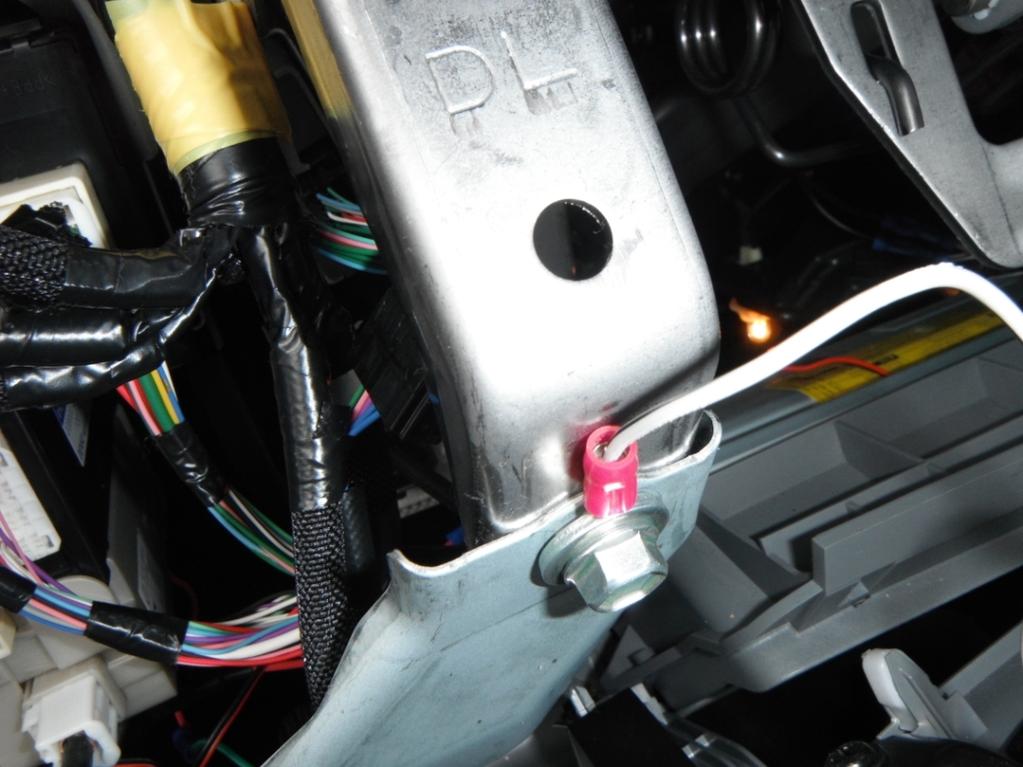

One wire will go to a ground (doesn't matter which, but I used the black one). Here is a good ground…This is a metal dash support behind the lower panel you have pulled off. This will be very evident when you have it apart...

ANTMAN'S Thread-026-jpg

The other wire (brown) will go to the relay you are about to mount. Attach a female spade terminal to the brown wire and connect it to relay terminal#86 (more on this in a minute)

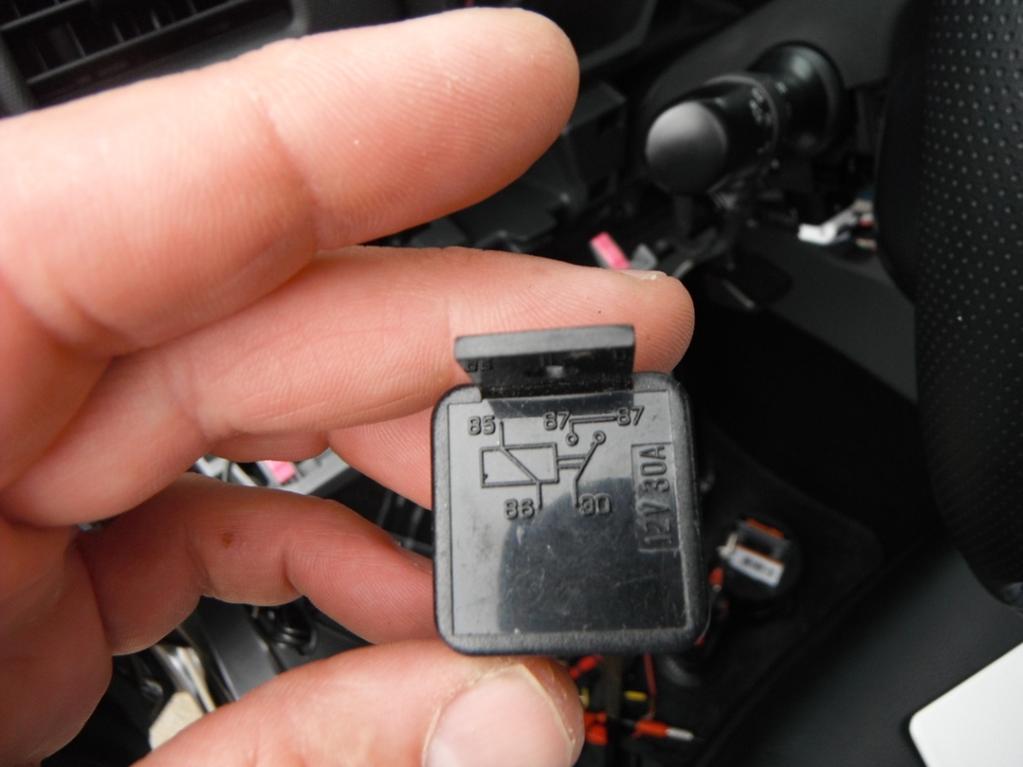

This is a standard relay – don’t get all worked up- it’s easy to hook this up. Relay's are like heavy duty switches that are controlled by, in this case, another switch. This will enable your lights to work without burning up your factory fog-light switch! The relay can mount here, right above the ground location.

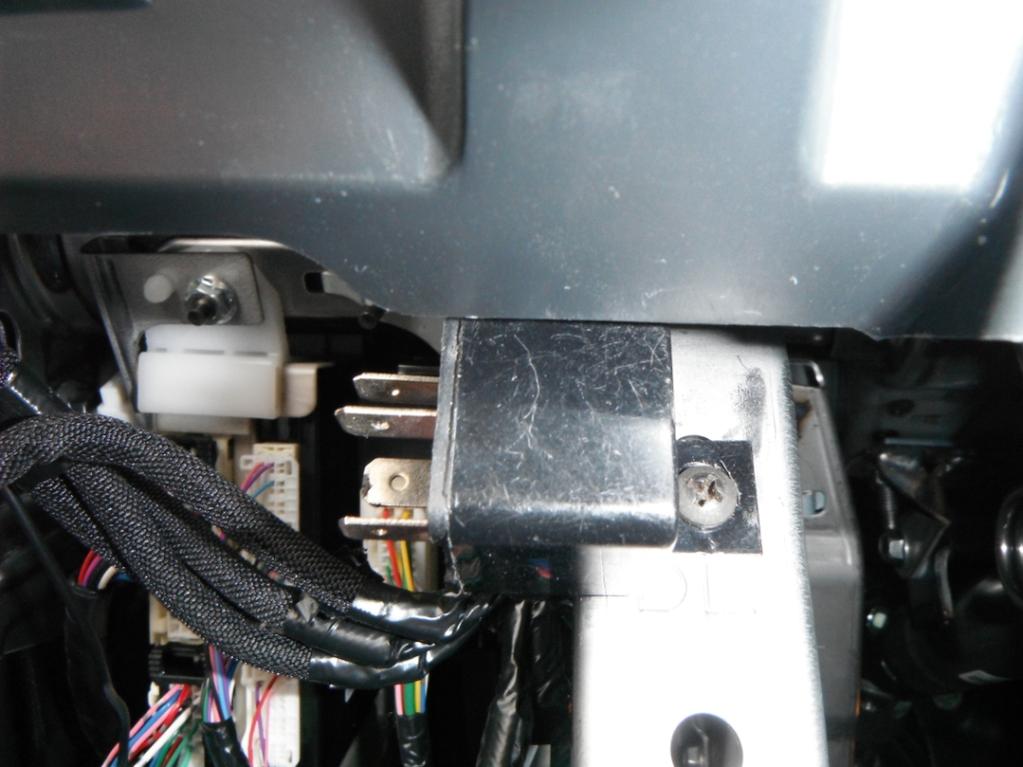

I used a j-nut behind the metal dash support, and a screw to secure the relay.

ANTMAN'S Thread-027-jpg
ANTMAN'S Thread-028-jpg

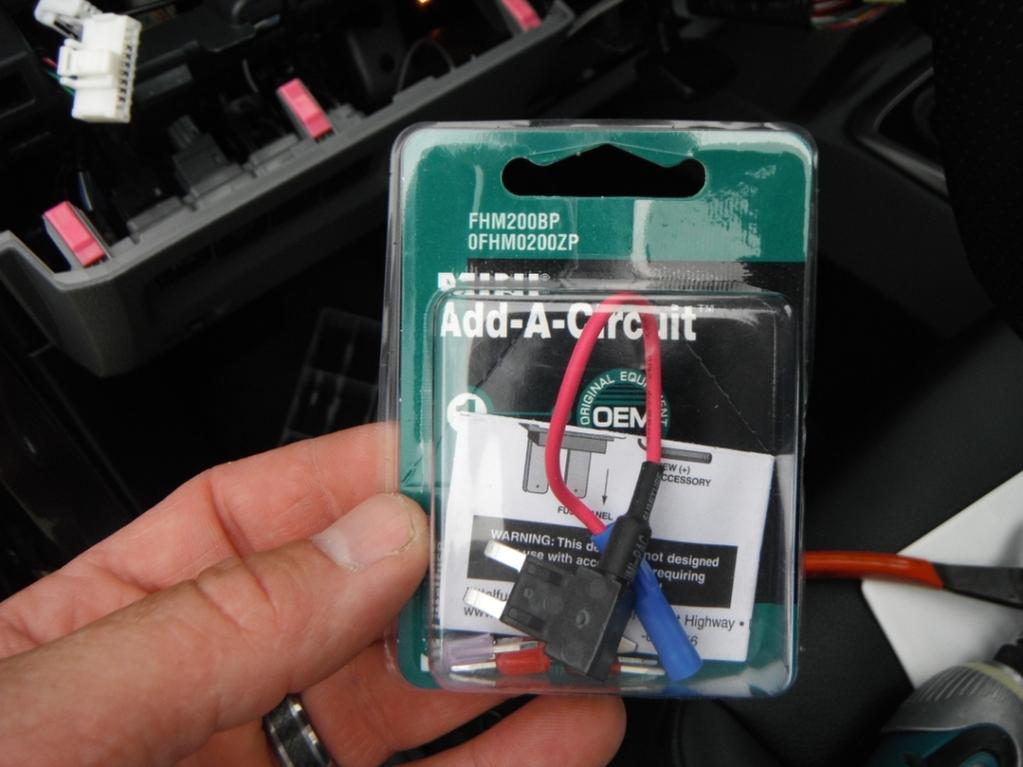

You will also need 2 mini-fuse taps (unless you want to cut more wires…). You can get these at any auto-parts store. Make sure you install two 15a fuses in each one! (buy fuses when you buy the taps, factory fuses won't fit!) Make sure you read the included instructions- these need to be installed correctly to properly protect the circuit. This is very important!


ANTMAN'S Thread-029-jpg

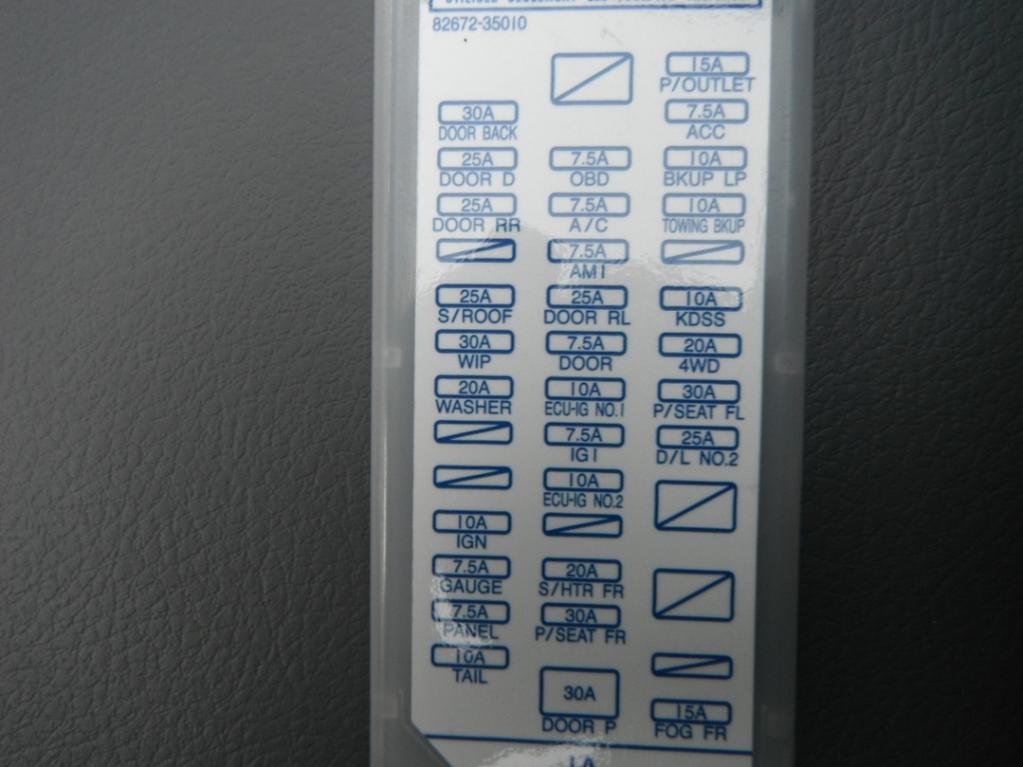

These minitaps will plug directly into your fusebox in the following locations: lower right (FOG FR 15A), and upper right (P/OUTLET 15A).

ANTMAN'S Thread-036-jpg


Attach some wire to each of the supplied connectors on the minitaps, and feed the wires to your relay location. Attach some female spade connectors and plug them into the relay:

Your relay will have numbered attachment terminals. The minitap from the FOG FR will plug into terminal #87. The minitap from the P/OUTLET will plug into terminal #85.

One more connection to make! The lead that you tapped into the White fog-light wire. Attach a female spade to this, and connect it to the relay terminal#30.

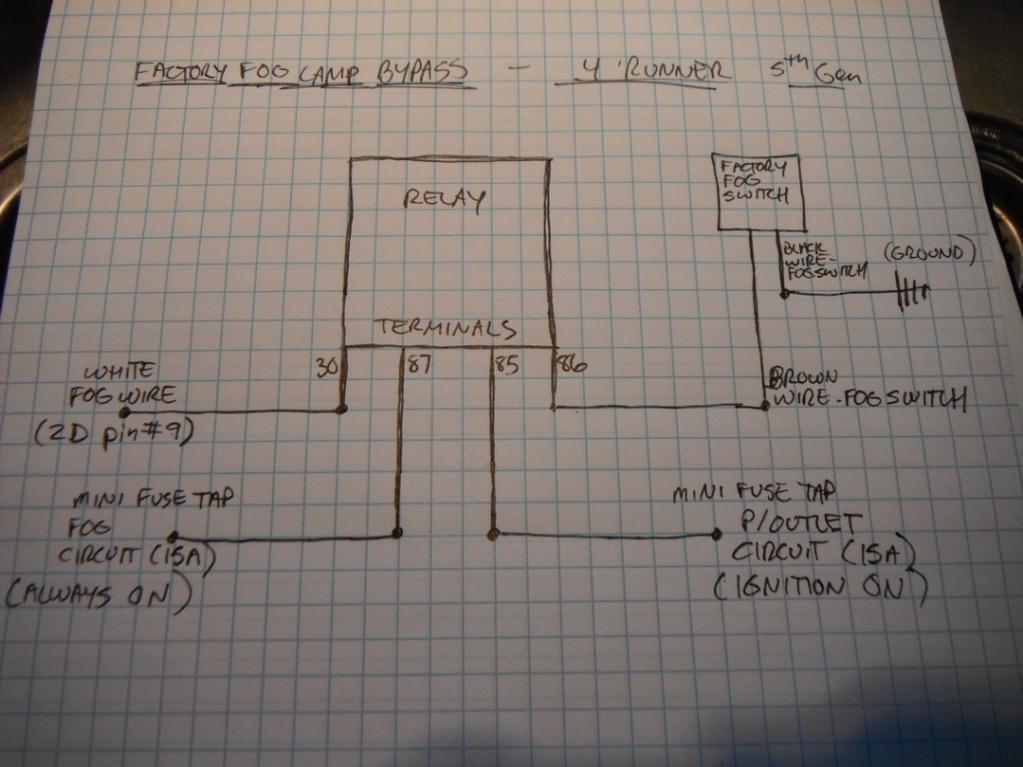

Sounds confusing- but very simple. Here is a wiring diagram I drew up for you guys (and girls!):


ANTMAN'S Thread-039-jpg



This is what you end up with.

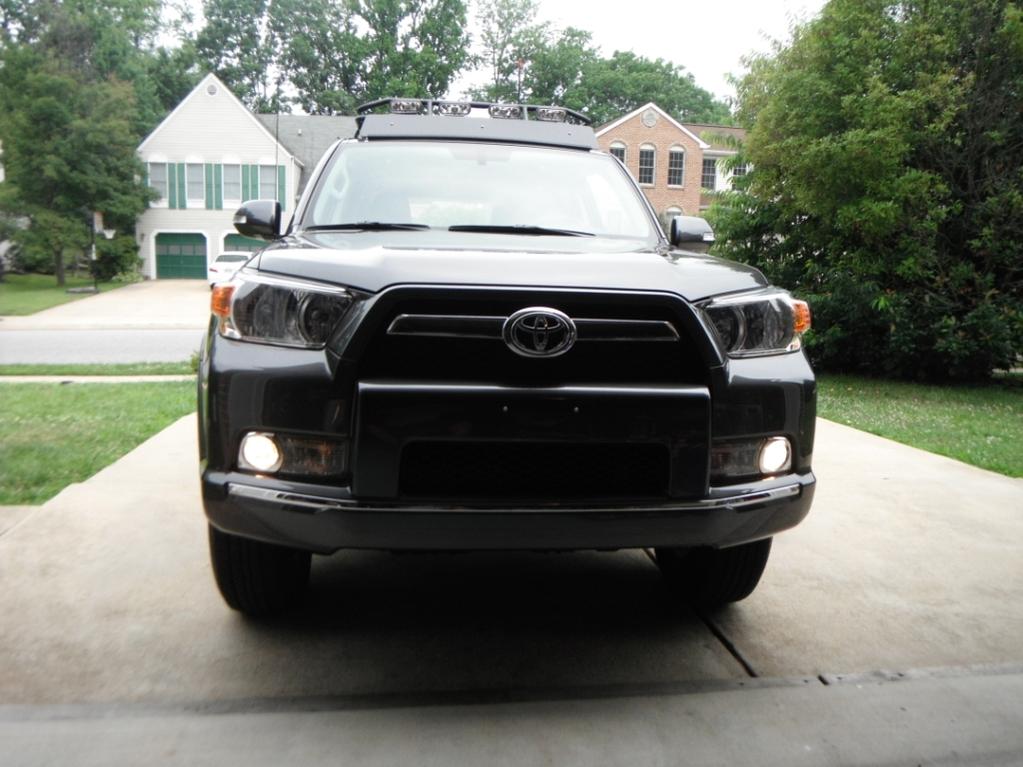

Fogs only

ANTMAN'S Thread-031-jpg

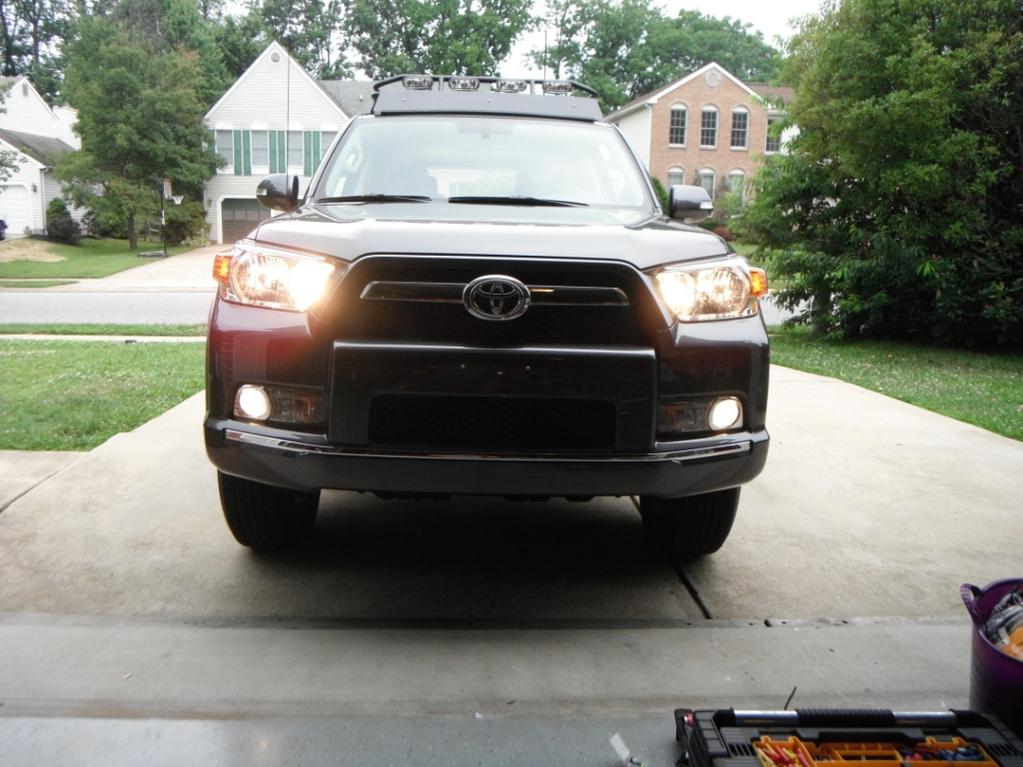

Hi-beams with fogs

ANTMAN'S Thread-032-jpg



Oh yeah- one other thing. If you want to control the fogs at any time, regardless of ignition “on”, only use 1 minitap connected to the FOG FR circuit, and connect this lead to both relay location #87, and #85. Don’t get mad at me if your battery dies… :)

****** KEEP READING TO SEE HOW I LIT UP THE FOG LED...
__________________
HERE FISHY FISHY FISHY!

Last edited by Antman; 12-09-2012 at 11:48 AM.
Antman is offline   Reply With QuoteReply With Quote
Old 06-27-2011, 01:50 PM #25
1engineer's Avatar
1engineer 1engineer is offline
Moderator

Join Date: Feb 2011
Location: Southern Appalachian Mountains
Age: 57
Posts: 9,959
Real Name: Greg
1engineer has a spectacular aura about 1engineer has a spectacular aura about 1engineer has a spectacular aura about
1engineer 1engineer is offline
Moderator
1engineer's Avatar

Join Date: Feb 2011
Location: Southern Appalachian Mountains
Age: 57
Posts: 9,959
Real Name: Greg
1engineer has a spectacular aura about 1engineer has a spectacular aura about 1engineer has a spectacular aura about
Very nice write up and mod! Since you can't trick the computer into lighting up the dash how about just tying a LED into the fog light power circuit and positioning it behind the dash fog light icon?
1engineer is offline   Reply With QuoteReply With Quote
Old 06-27-2011, 01:50 PM #26
Titanpat57's Avatar
Titanpat57 Titanpat57 is offline
Senior Member

Join Date: Nov 2009
Location: Beacon NY
Posts: 3,612
Real Name: Patrick
Titanpat57 has a spectacular aura about Titanpat57 has a spectacular aura about
Titanpat57 Titanpat57 is offline
Senior Member
Titanpat57's Avatar

Join Date: Nov 2009
Location: Beacon NY
Posts: 3,612
Real Name: Patrick
Titanpat57 has a spectacular aura about Titanpat57 has a spectacular aura about
You, sir, ......are the Man!


Great job on the write up!

Thanks for sharing
__________________

White 2016 TEP .....My ROAM Truck Build....... My ROAM trailer Build
Titanpat57 is offline   Reply With QuoteReply With Quote
Old 06-27-2011, 02:00 PM #27
Antman's Avatar
Antman Antman is offline
Elite Member

Join Date: Feb 2011
Location: Maryland
Age: 49
Posts: 6,887
Real Name: Jeff
Antman is just really nice Antman is just really nice Antman is just really nice Antman is just really nice
MY GARAGE
Antman Antman is offline
Elite Member
Antman's Avatar

Join Date: Feb 2011
Location: Maryland
Age: 49
Posts: 6,887
Real Name: Jeff
Antman is just really nice Antman is just really nice Antman is just really nice Antman is just really nice
MY GARAGE
Quote:
Originally Posted by 1engineer View Post
Very nice write up and mod! Since you can't trick the computer into lighting up the dash how about just tying a LED into the fog light power circuit and positioning it behind the dash fog light icon?

Thanks guys! That was an option I discussed with Nashman69g as well. Problem is, to really see the LED "tunnel" you need to take the dash overlay (the guage faces) off which means removing the needles. I have done it before on other vehicles, but at this point I'm not willing to go there.....yet? This will bug me enough to figure it out eventually!
__________________
HERE FISHY FISHY FISHY!

Last edited by Antman; 06-27-2011 at 09:17 PM.
Antman is offline   Reply With QuoteReply With Quote
Old 06-27-2011, 02:30 PM #28
Foques's Avatar
Foques Foques is offline
Senior Member

Join Date: Mar 2011
Location: Streamwood, IL
Posts: 1,115
Foques is on a distinguished road
Foques Foques is offline
Senior Member
Foques's Avatar

Join Date: Mar 2011
Location: Streamwood, IL
Posts: 1,115
Foques is on a distinguished road
sigh.. do I wish you lived closer to me... i'd pay you to do this on my truck. heh..
Foques is offline   Reply With QuoteReply With Quote
Old 06-27-2011, 02:38 PM #29
Antman's Avatar
Antman Antman is offline
Elite Member

Join Date: Feb 2011
Location: Maryland
Age: 49
Posts: 6,887
Real Name: Jeff
Antman is just really nice Antman is just really nice Antman is just really nice Antman is just really nice
MY GARAGE
Antman Antman is offline
Elite Member
Antman's Avatar

Join Date: Feb 2011
Location: Maryland
Age: 49
Posts: 6,887
Real Name: Jeff
Antman is just really nice Antman is just really nice Antman is just really nice Antman is just really nice
MY GARAGE
Quote:
Originally Posted by Foques View Post
sigh.. do I wish you lived closer to me... i'd pay you to do this on my truck. heh..
You can do it! PM me if you have issues...

Look- I am an idiot on this stupid computer, and a couple of PM's from Johnny Utah, Harper7, and 2 hrs with Sp8ball helped me document this lengthy (for me) post with no issues! If wiring is foreign to you- rely on others on the forum. We will get you through it!!
__________________
HERE FISHY FISHY FISHY!
Antman is offline   Reply With QuoteReply With Quote
Old 06-27-2011, 03:48 PM #30
Johnny Utah's Avatar
Johnny Utah Johnny Utah is offline
Senior Member

Join Date: Feb 2011
Location: Cape Coral, FL
Age: 37
Posts: 1,087
Real Name: Matt
Johnny Utah is on a distinguished road
Johnny Utah Johnny Utah is offline
Senior Member
Johnny Utah's Avatar

Join Date: Feb 2011
Location: Cape Coral, FL
Age: 37
Posts: 1,087
Real Name: Matt
Johnny Utah is on a distinguished road
Jackpot
__________________
2011 4Runner SR5 - Black
Stubby Antenna - 5% Tint - Weathertech Liners
Pioneer AVIC z130BT w/Camera feed in Nav
Ultra Gauntlet 20 X 9 - Nitto Terra Grappler G2 275/55r/20
H11 XTREME LED PRO Kit
Johnny Utah is offline   Reply With QuoteReply With Quote
Reply

Thread Tools
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
Thread of LOL Opi Off Topic 5 05-19-2011 12:59 PM
Another would you do it again thread ..... Falls 4th Gen T4Rs 21 01-03-2008 10:14 PM
Last Thread... It's between two... rmd0311 4th Gen T4Rs 4 10-13-2006 06:32 PM
Hi all!!!! first thread 4me here! bolt 4th Gen T4Rs 2 04-11-2006 12:49 AM

Powered by vBadvanced CMPS v3.2.2

All times are GMT -4. The time now is 09:37 AM.

Powered by vBulletin® Version 3.8.11
Copyright ©2000 - 2019, vBulletin Solutions Inc.
Search Engine Optimisation provided by DragonByte SEO (Pro) - vBulletin Mods & Addons Copyright © 2019 DragonByte Technologies Ltd.
Feedback Buttons provided by Advanced Post Thanks / Like (Lite) - vBulletin Mods & Addons Copyright © 2019 DragonByte Technologies Ltd.
User Alert System provided by Advanced User Tagging (Lite) - vBulletin Mods & Addons Copyright © 2019 DragonByte Technologies Ltd.
***This site is an unofficial Toyota site, and is not officially endorsed, supported, authorized by or affiliated with Toyota. All company, product, or service names references in this web site are used for identification purposes only and may be trademarks of their respective owners. The Toyota name, marks, designs and logos, as well as Toyota model names, are registered trademarks of Toyota Motor Corporation***Ad Management plugin by RedTyger

Copyright © 2019


Garage Plus vBulletin Plugins by Drive Thru Online, Inc.
