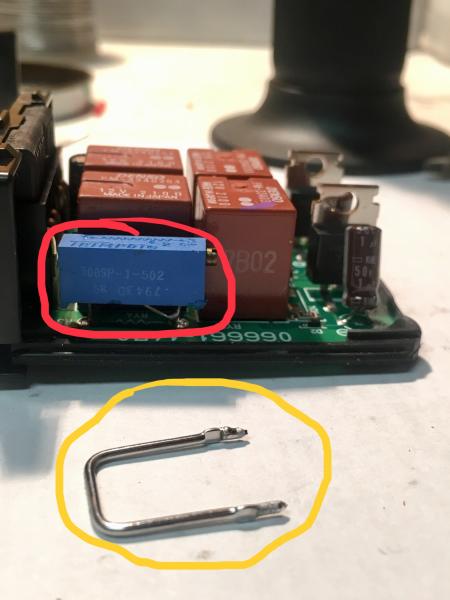

Yellow circle is the shunt resistor I removed. The red circle is the new trimpot resistor I added to fix hyper blink for LED blinkers.
Next
Prev
Yellow circle is the shunt resistor I removed. The red circle is the new trimpot resistor I added to fix hyper blink for LED blinkers.
This is the hazard/turn signal relay with 12 pins, with DRLs. They do not make an LED version so you need to modify the relay and increase the resista
Close up of installed trimpot.
Here I replaced the shunt, and soldered in the trimpot.
this is the small shunt resistor you need to remove, and replace with a trimpot resistor. I used a 5ohm trimpot, but you could use a 10ohm if want to.
Next
T

Yellow circle is the shunt resistor I removed. The red circle is the new trimpot resistor I added to fix hyper blink for LED blinkers.

  • Media owner Tater277
  • Date added
GJ675
Just did my LED upgrade and have the hyperflash. I will definitely do this! Way better solution than in line resistors. Thank you for taking the time to share this!
