Baja Designs Squadron SAE Lights

[TotalAutomotiveLV]

The Squadron SAE is the first street LED offering from Baja Designs.

This light retains the same form factor as the rest of the Squadron Series,
but the pattern and circuitry are optimized to give our SAE light a road
approved punch!

Baja Designs put this light through rigorous tests to ensure that it would be an
upgrade from common LED, HID, and Halogen factory fog lights.

If you want to upgrade your daily driver, while still enjoying great output off-road,
the Squadron SAE line is for you.

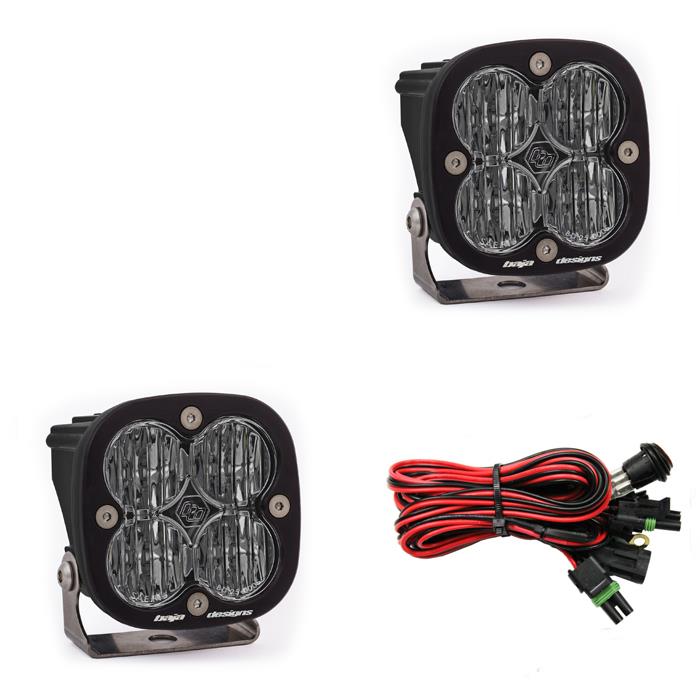

Squadron SAE White, Part #257805
Squadron SAE Amber, Part #257815

MSRP: $294.95

Baja Designs Features:

- Satisfactions Guarantee – 30 Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- ClearView® – All The Light, Right Where You Need It.
- MoistureBlock™ – Waterproof, Rain Proof, Submersible
- CopperDrive® – Only LED Driven At 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications (Per Light):

- Lumens: 2,480 Utilizing 4 Cree LEDs
- Wattage/Amps: 22W / 1.6A
- Dimensions: 3.07” x 2.77” x 3.07”
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)

Order Today - Click Here

_



[TotalAutomotiveLV]

Want to replace your Fog Lights with Baja Designs Squadron SAE White or Amber?

Look for the Squadron-R SAE Lights Coming Soon - ETA Mid July.

Squadron-R SAE White, Part #247805
Squadron-R SAE Amber, Part #247815

You will also need Part #447110...

5th Gen 4Runner Fog Pocket Kit allows you to mount 2 Squadron SAE lights in the
factory location.

This Plug and Play kit includes two vehicle specific mounting brackets and a wiring
adapter, allowing you to use your factory switch and mounting hardware.

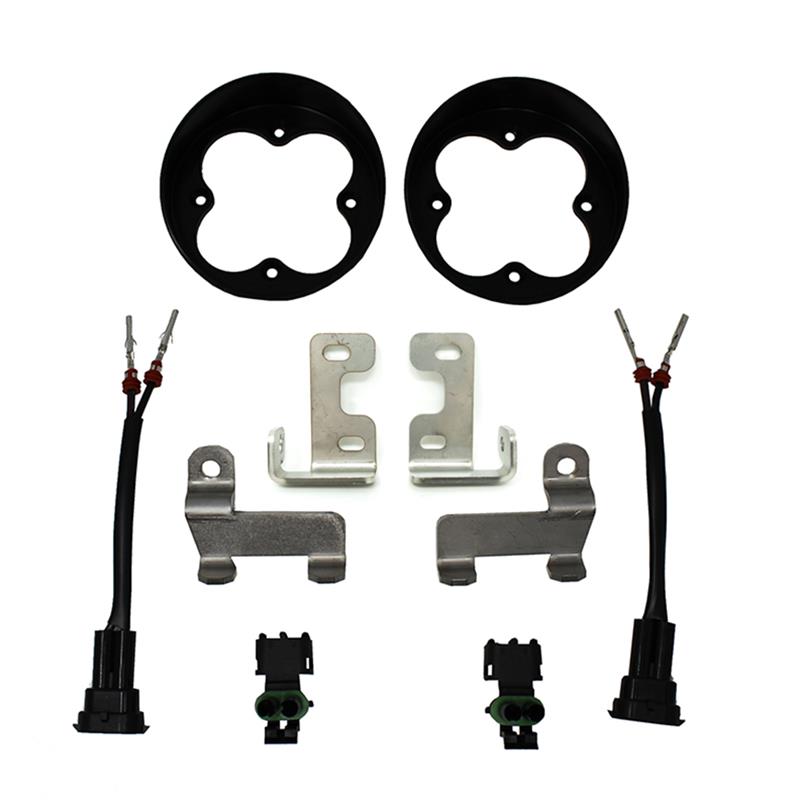

Includes:
• (2) 5th Gen 4Runner Fog Pocket Brackets
• Wiring Adapter
• (2) Squadron-R Series anti-glare / Filler Piece

_



[TotalAutomotiveLV]

We wanted to share a quick update on the Squadron SAE Fog Light Kit bundles.

We have received several orders for this combo - Thank you!

Our Customer Support Team has confirmed with Baja Designs that the Fog Light
Pocket Kit and Squadron SAE work great together.

No need to wait for the Squadron-R for a Fog Light Install.

If you are looking for SAE Amber, here is the build we have been receiving orders for;

Squadron SAE Amber, Part #257815
Fog Light Pocket Kit, Part #447110

Order Now - Click Here

The Squadron SAE Lights are scheduled to start shipping by end of next week.

_



[dell]

Is the only difference between the Squadron-R SAE and Squadron SAE the round bezel or is there a light output difference as well?



[The Waco Kid]

Is the only difference between the Squadron-R SAE and Squadron SAE the round bezel or is there a light output difference as well?

Lumen output is down per Baja's website, but its not much and they still put out more than enough light based on photos provided on their website.



[dell]

Lumen output is down per Baja's website, but its not much and they still put out more than enough light based on photos provided on their website.

I don't see any info about the Squadron-R SAE on their website yet, only the normal Squadron SAE. I'm asking about the differences between those two SAE versions and not the normal Squadrons (Sport or Pro) vs SAE



[TotalAutomotiveLV]

Is the only difference between the Squadron-R SAE and Squadron SAE the round bezel or is there a light output difference as well?

They have not yet released any Technical Specs on the Squadron-R SAE.

We will share any details received Baja Designs as soon as possible.

_



[Shadytype]

Will these lights and brackets fit Limited Models?

Would like to upgrade the foggies



[TotalAutomotiveLV]

They have not yet released any Technical Specs on the Squadron-R SAE.

We will share any details received Baja Designs as soon as possible.

_

Baja Designs has confirmed that the Tech Specs are the same for both Squadron SAE and Squadron-R SAE.

Specifications (Per Light):

- Lumens: 2,480 Utilizing 4 Cree LEDs
- Wattage/Amps: 22W / 1.6A
- Dimensions: 3.07” x 2.77” x 3.07”
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)

_



[TotalAutomotiveLV]

We have seen a great response to these NEW SAE Lights.

Baja Designs is working hard to get these Lights Ready to Ship -> Hoping for tomorrow.

Amber, Part #257815, is by far the Popular Choice - Click Here

_



[TotalAutomotiveLV]



[IanB]

We have seen a great response to these NEW SAE Lights.

Baja Designs is working hard to get these Lights Ready to Ship -> Hoping for tomorrow.

Amber, Part #257815, is by far the Popular Choice - Click Here

_

Does the kit for the '10+ 4Runners fit a '15 Limited as well, or just the other trim levels? I ask as the front bumpers on the LTD are different than the rest.



[TotalAutomotiveLV]

Does the kit for the '10+ 4Runners fit a '15 Limited as well, or just the other trim levels? I ask as the front bumpers on the LTD are different than the rest.

Baja Designs does not list that it will not fit.

We have not heard of any install issues with Limited models. This is the
case with some fit kits out there for sure.

We will reach out to their Tech Support next week and look on the forum to
see if any members have installed these Fog Light Pocket Kits on a Limited.

_



[TotalAutomotiveLV]

We appreciated all the orders and patience during fulfillment.

Baja Designs has been able to catch-up on back-orders.

All our SAE orders have shipped!

_



[TotalAutomotiveLV]

Baja Designs is doing a great getting SAE Lights processed and shipped quickly.

_



[TotalAutomotiveLV]

When ordering online, use Promo Code "T4R" for added savings on most brands.

_



[TRDORP4Runner]

What's the difference between the Squadron-R SAE and Squadron SAE?



[TotalAutomotiveLV]

What's the difference between the Squadron-R SAE and Squadron SAE?

The "R" stands for round, which is a better fit for Fog Light area and most aftermarket bumpers.

The standard is more of a square look.

_



[TRDORP4Runner]

The "R" stands for round, which is a better fit for Fog Light area and most aftermarket bumpers.

The standard is more of a square look.

_

Thanks, are the round a better fit for 5th gen 4Runner or does it not matter as you need 447110 for both?



[TotalAutomotiveLV]

Thanks, are the round a better fit for 5th gen 4Runner or does it not matter as you need 447110 for both?

Most people do prefer the "R" for a better look on the 4Runner.

The Fog Light Fit Kit is great, as it does provide the round filler piece and wire harness.

Here are a list of premade bundles for easier ordering - Click Here

Please let us know if you have any questions.

_
