Rigd Supply Ultraswing Tire Carrier

[Kenn]

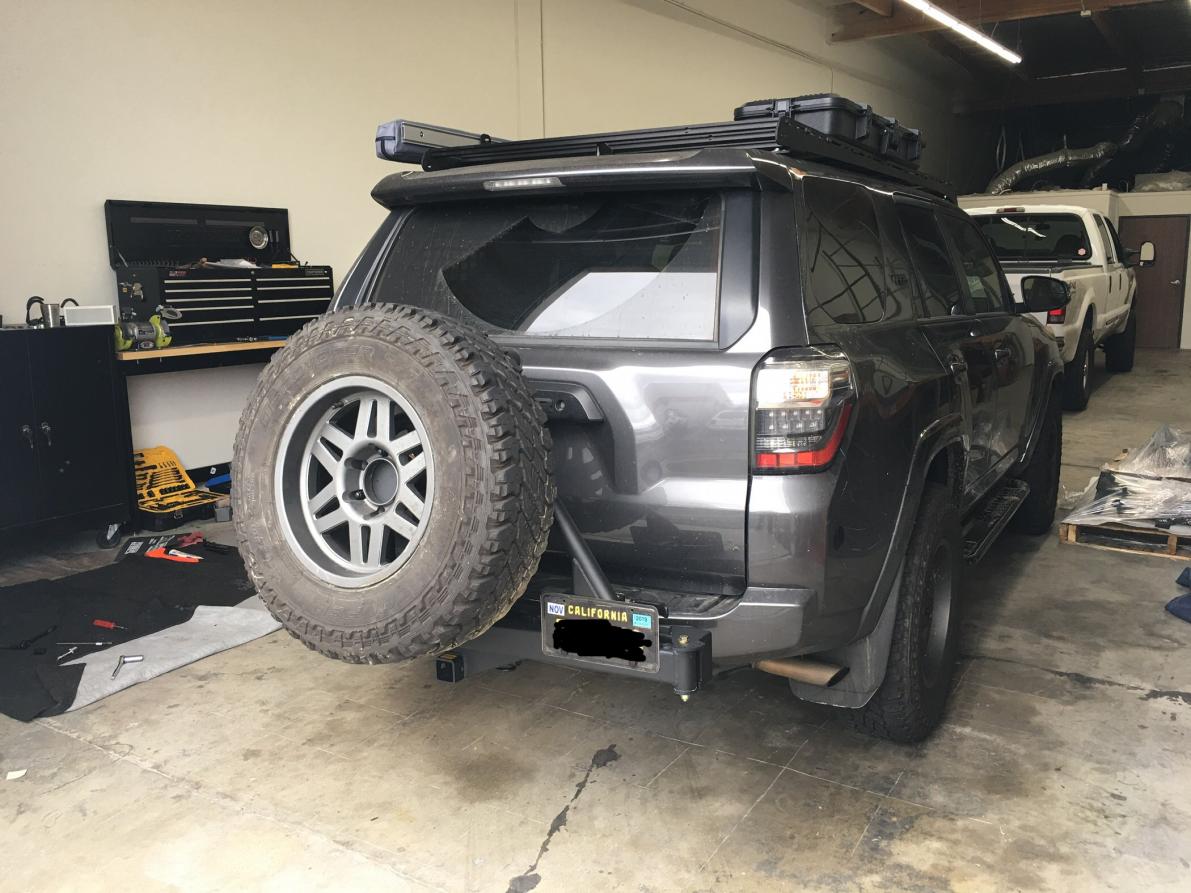

Pre-ordered the Rigd Ultraswing Tire Carrier for $888(pre-ordered price) shipped at the end of November. But I was able to pick it up today. Luke was awesome to deal with and he came in early on Saturday so I could pick it up and install at their shop.

Key features:
Black powdercoat
Fits 5th gen and 4th gen V6 only for now. Universal one coming soon.
Built in threaded holes for license plate
Built in holes for hilift jack
Built in holes for front or rear rotopax mounts

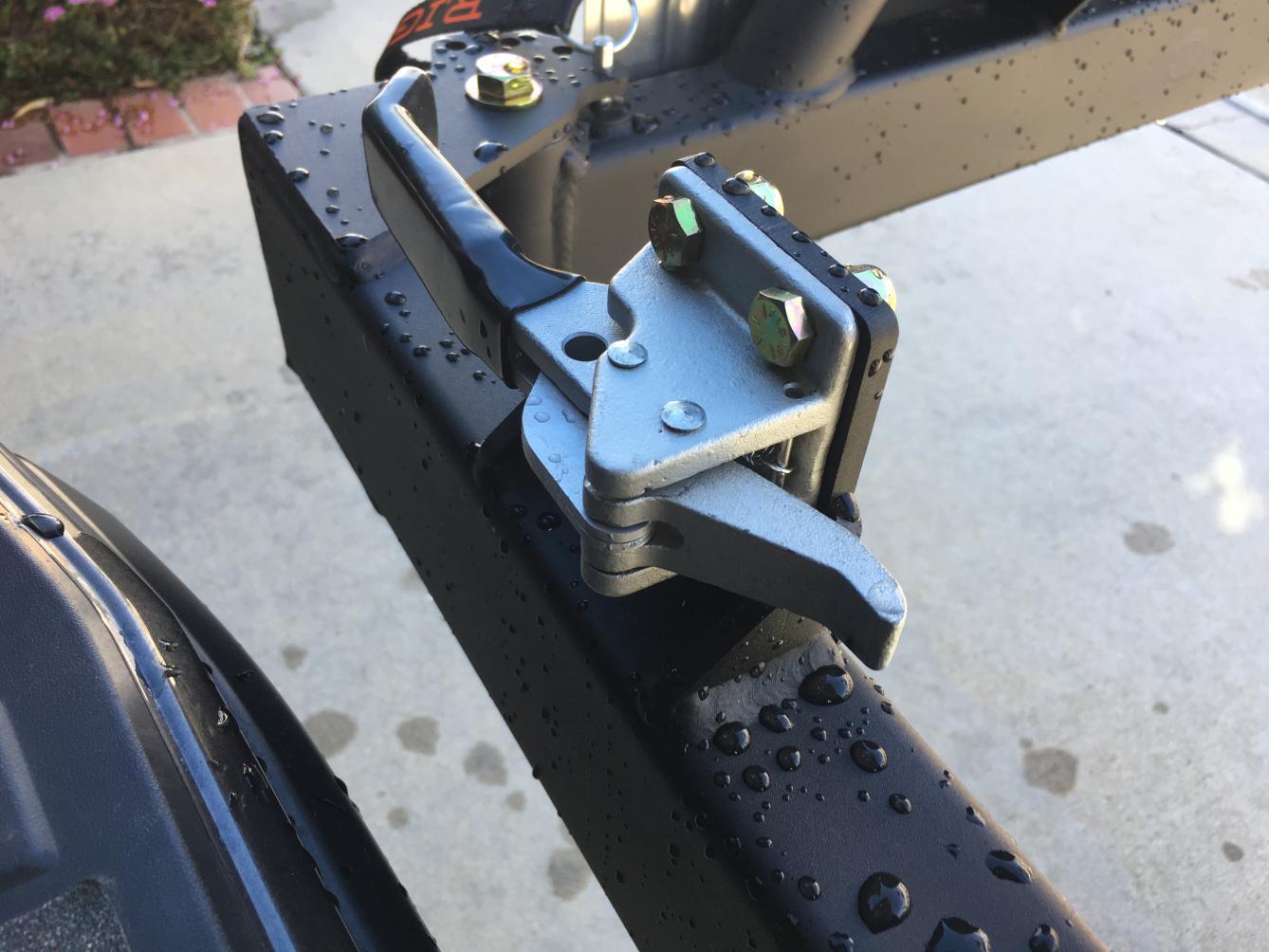

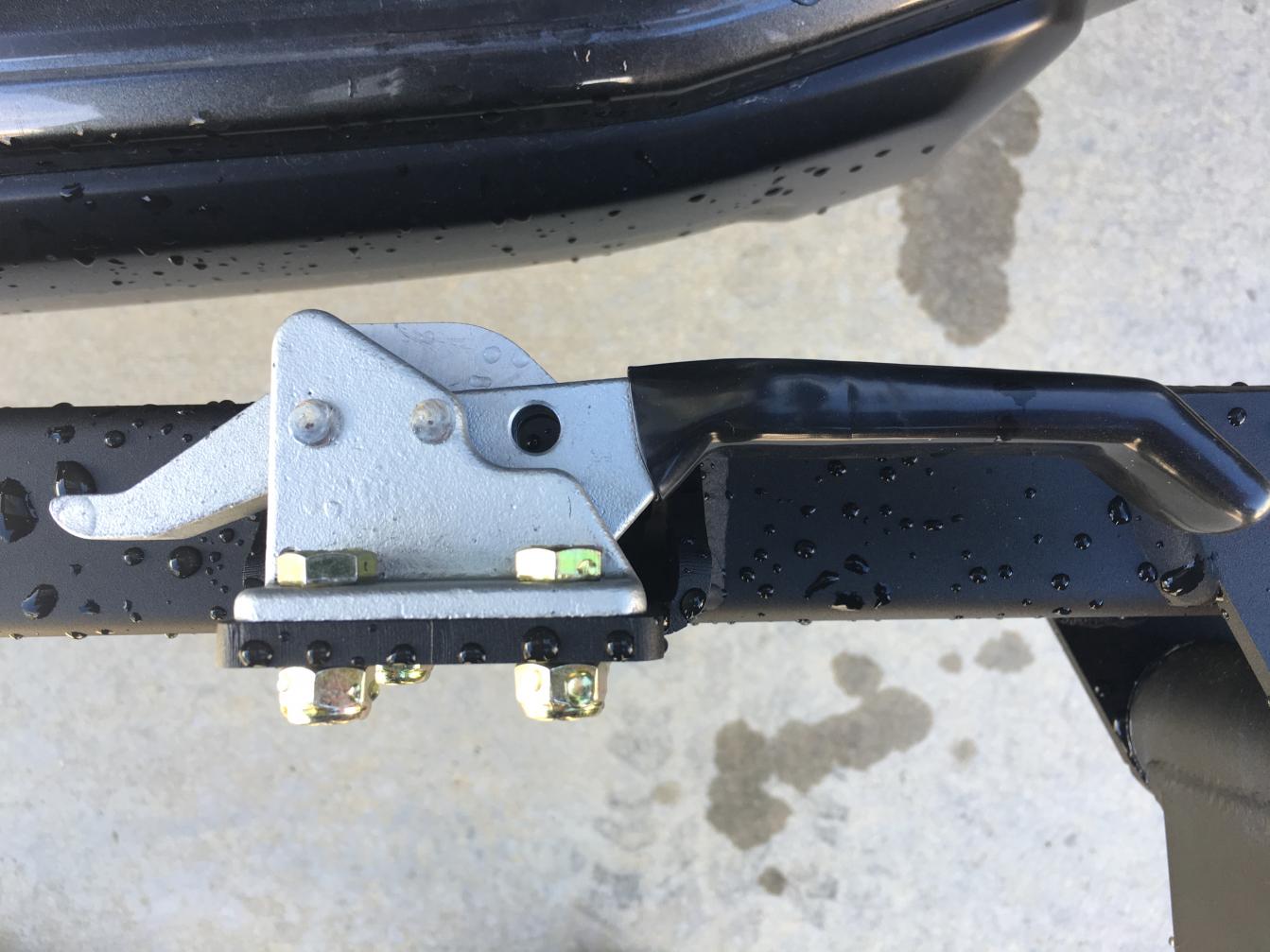

Lockable latch

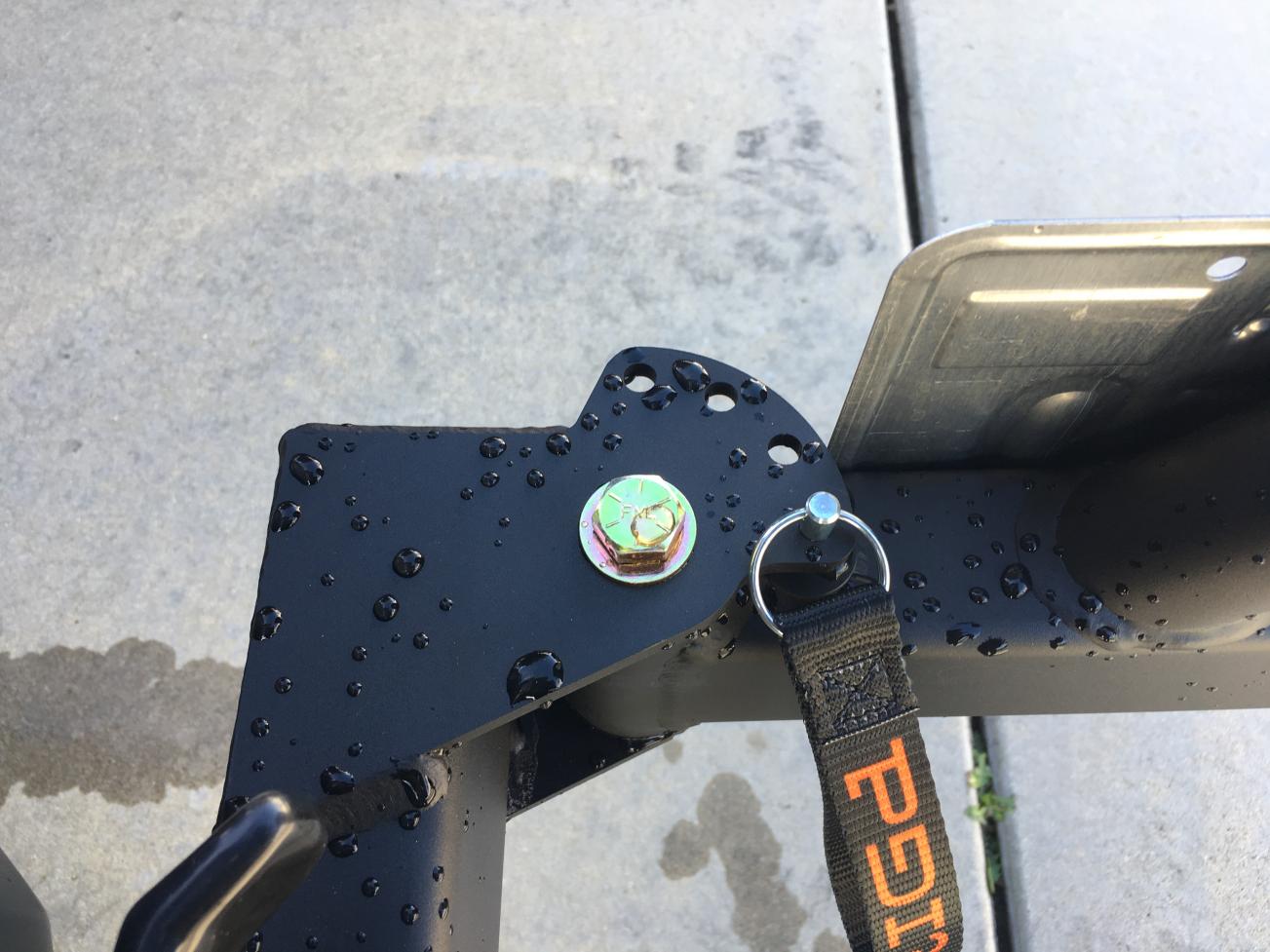

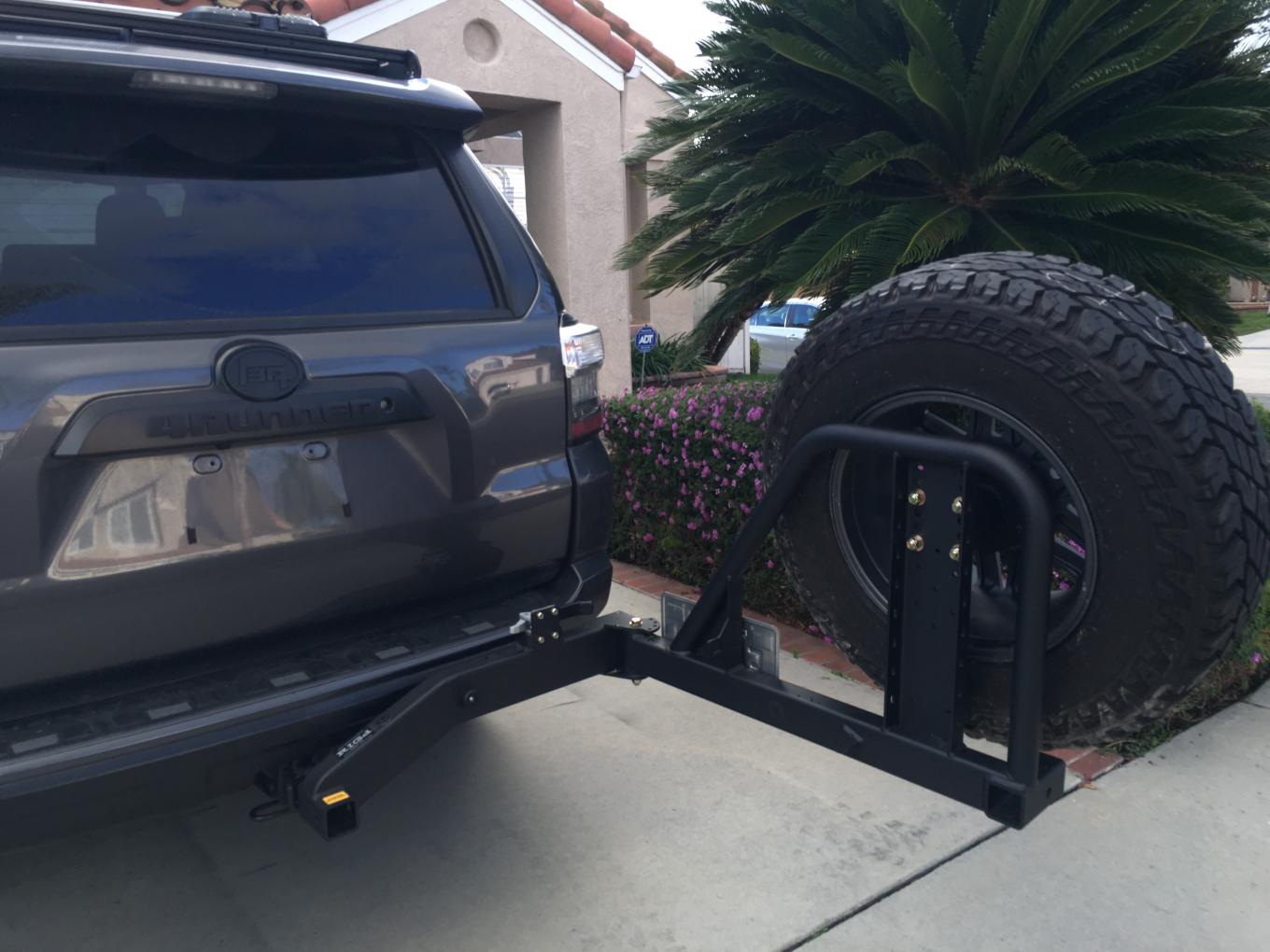

4 locked pin locations when open

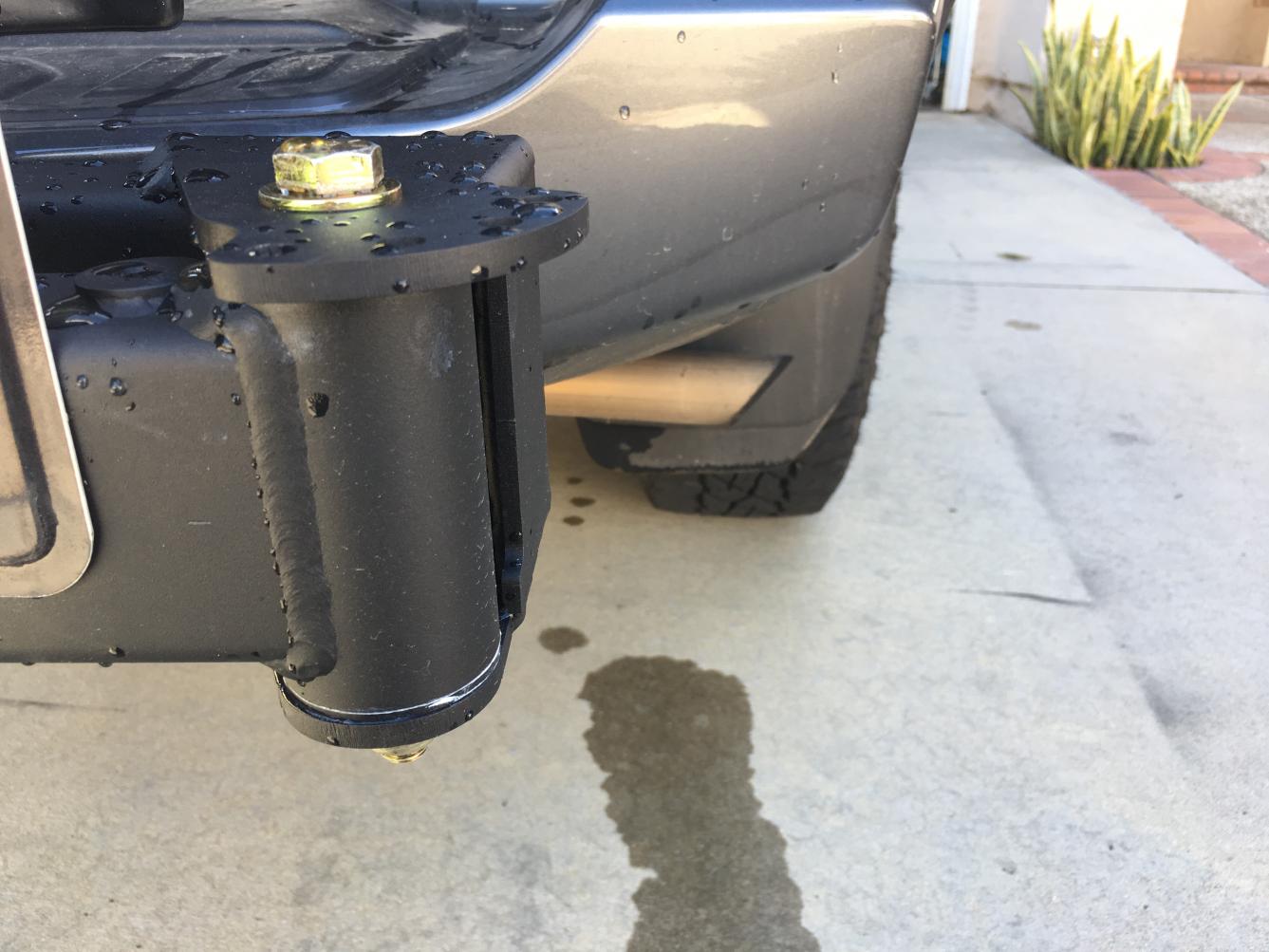

Adjustable rubber bump stop. Screw holds it in place. Just need to add spacers to bring out bump stop for more tension on arm when closed
Secondary pin security when closed
2in round tube to mount accessories with tube clamp

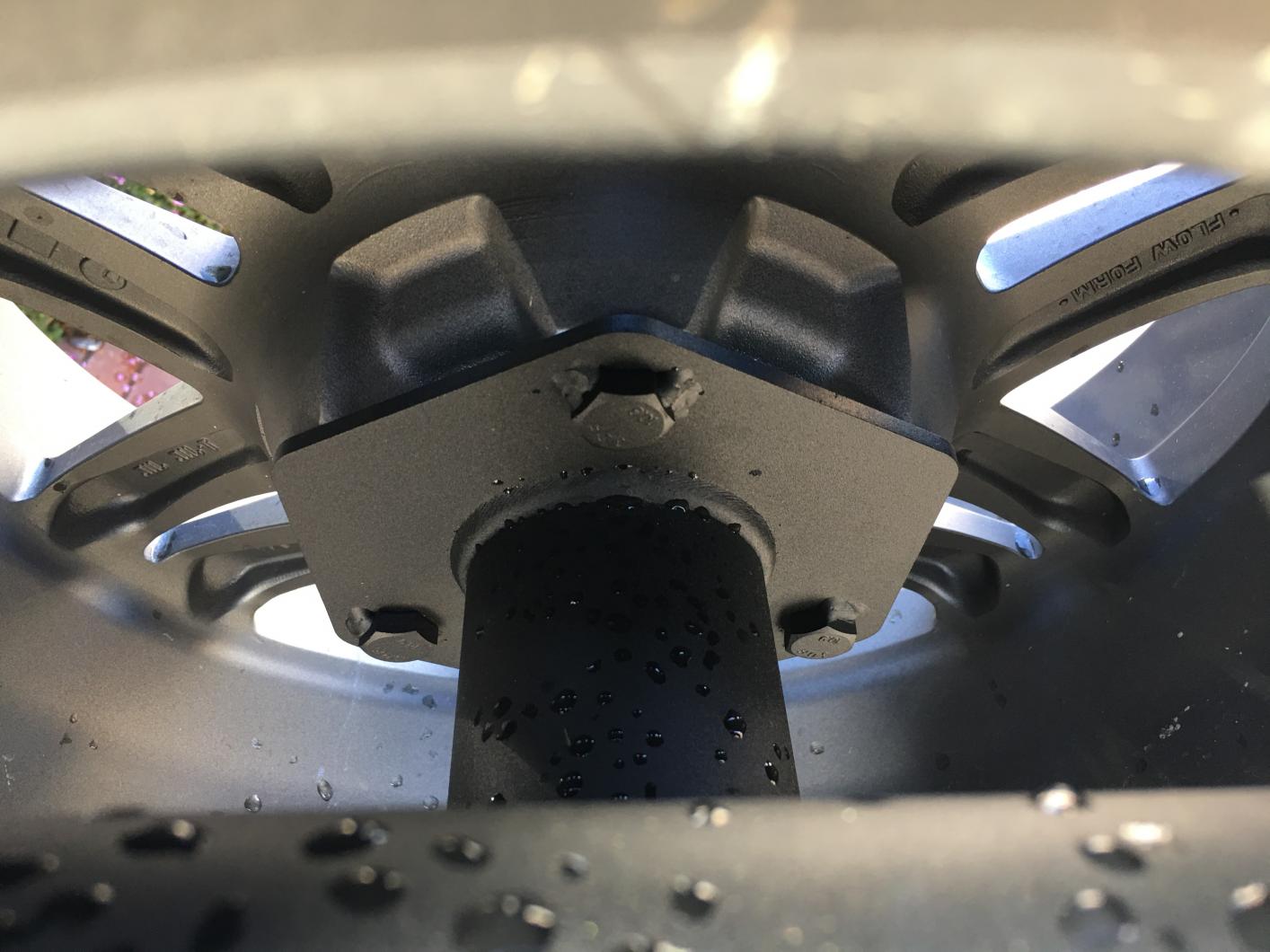

Adjustable tire carrier plate with 3 welded bolts for larger tires or increased rear visibility. Mounted by Grade 8 bolts

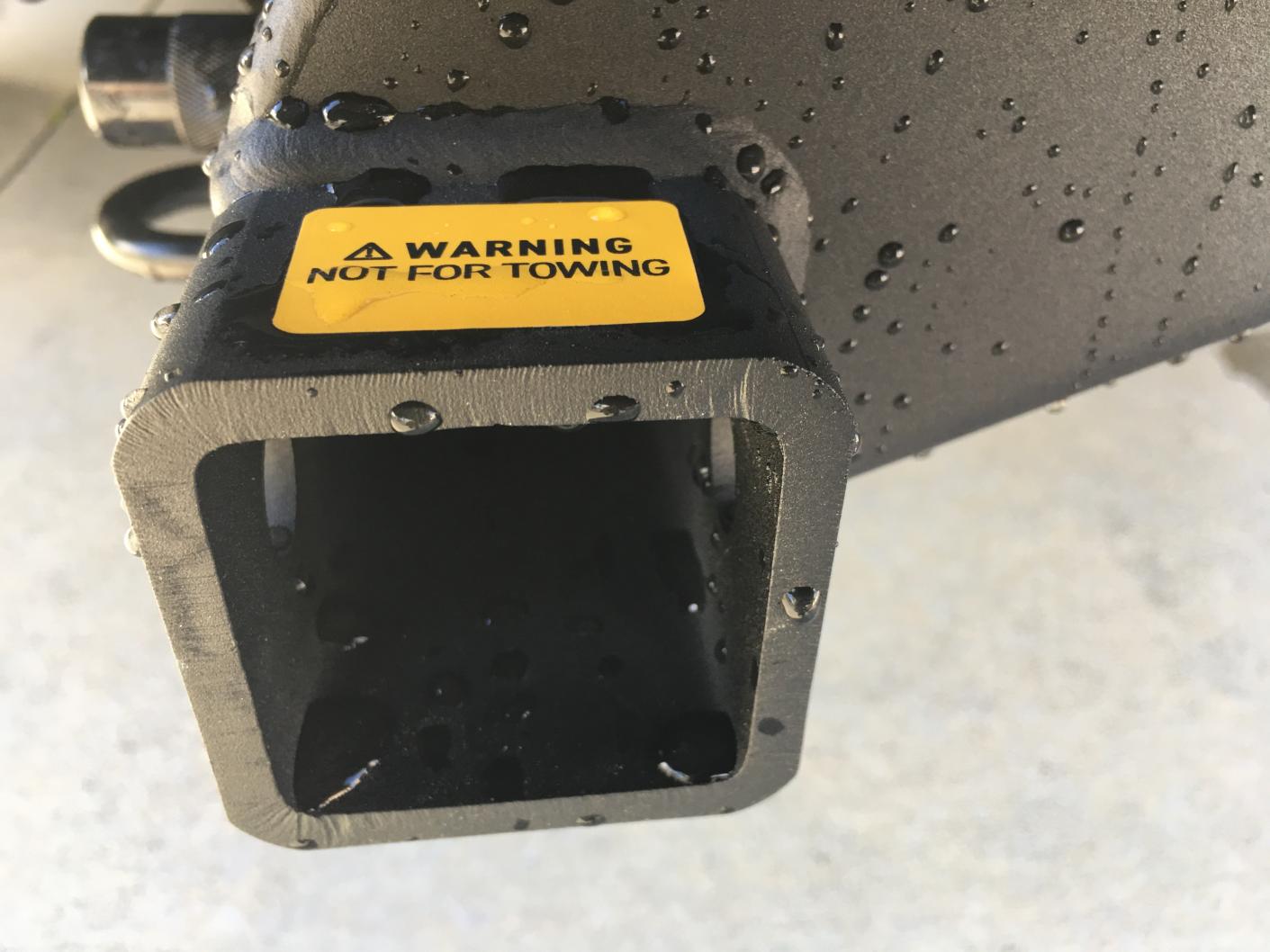

Secondary offset hitch for bike carrier or hitch accessory
Weighs ~60lbs w/o tire
250lbs weight capacity

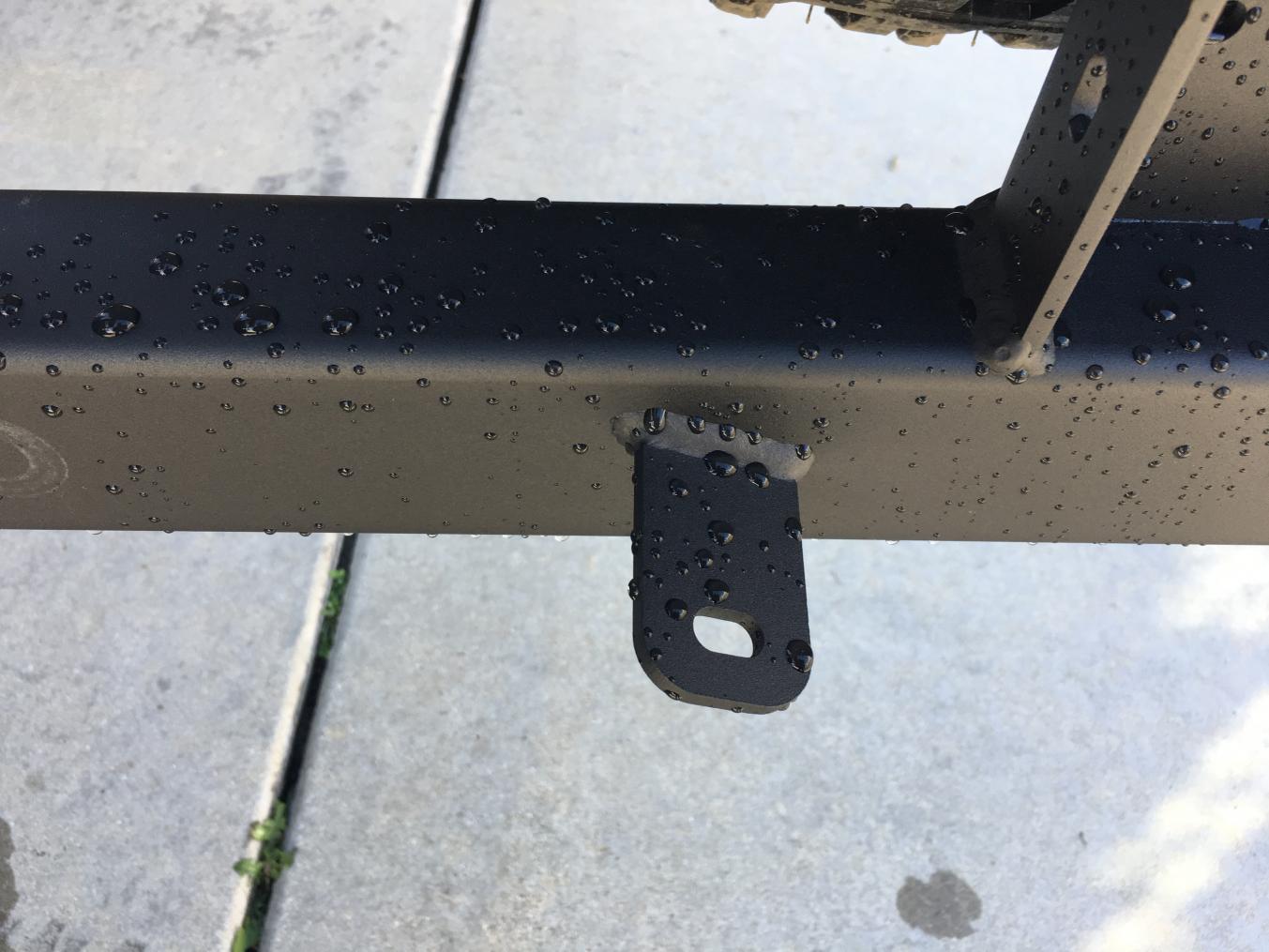

Not tow rated, but can use d shackle for recovery location
Had to use my slimline lug nuts for my SCS Stealth 6 spare. The included lug nuts have a slight collar that did not work with the Stealth 6 holes.


Planned mods on tire carrier:
Rago Ultraplate - Molle style plate for the back
DIY folding camp table/work surface.
Add reflective tape
Mount Trasharoo
Mount shovel on molle panel using quick fist.



[Kenn]

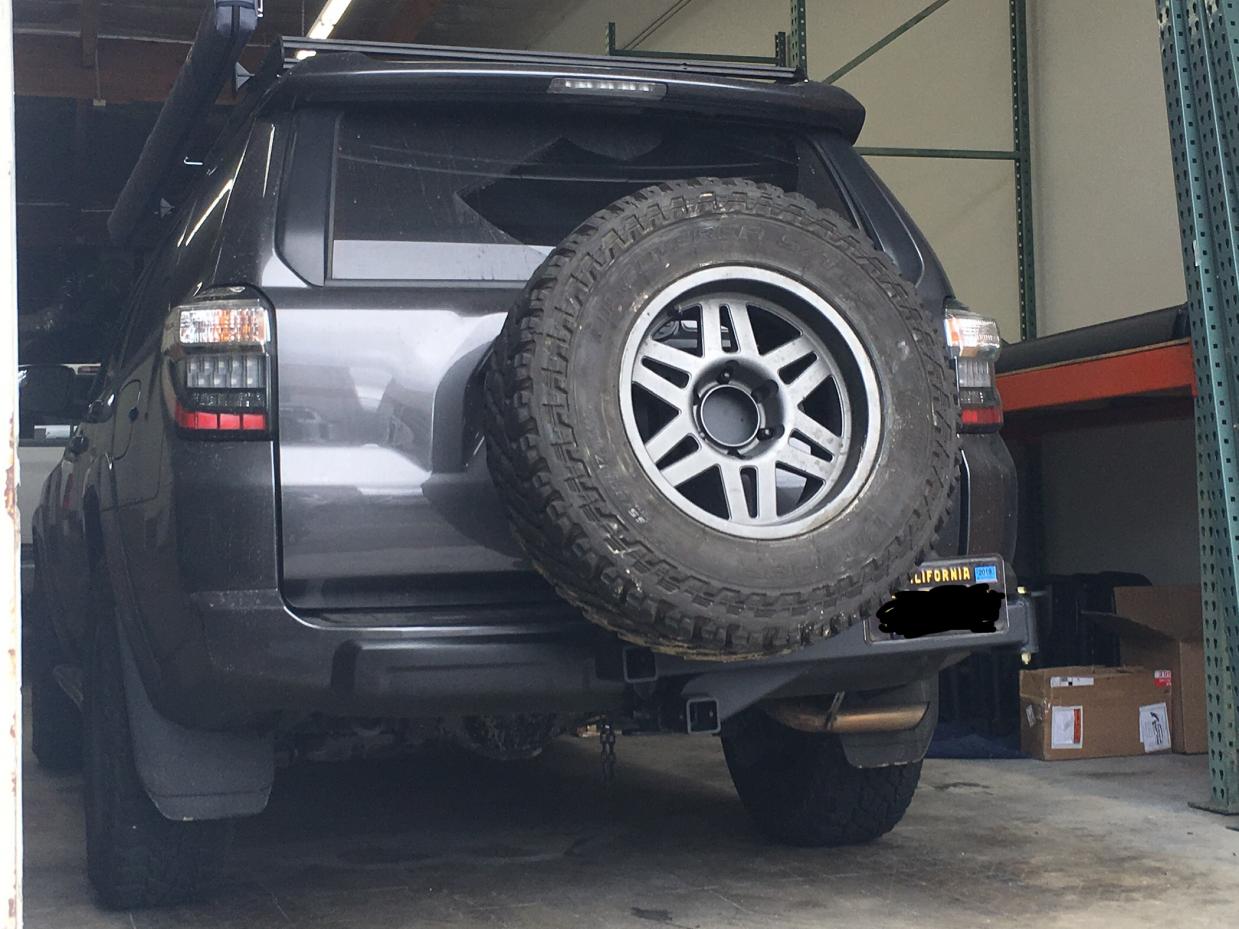

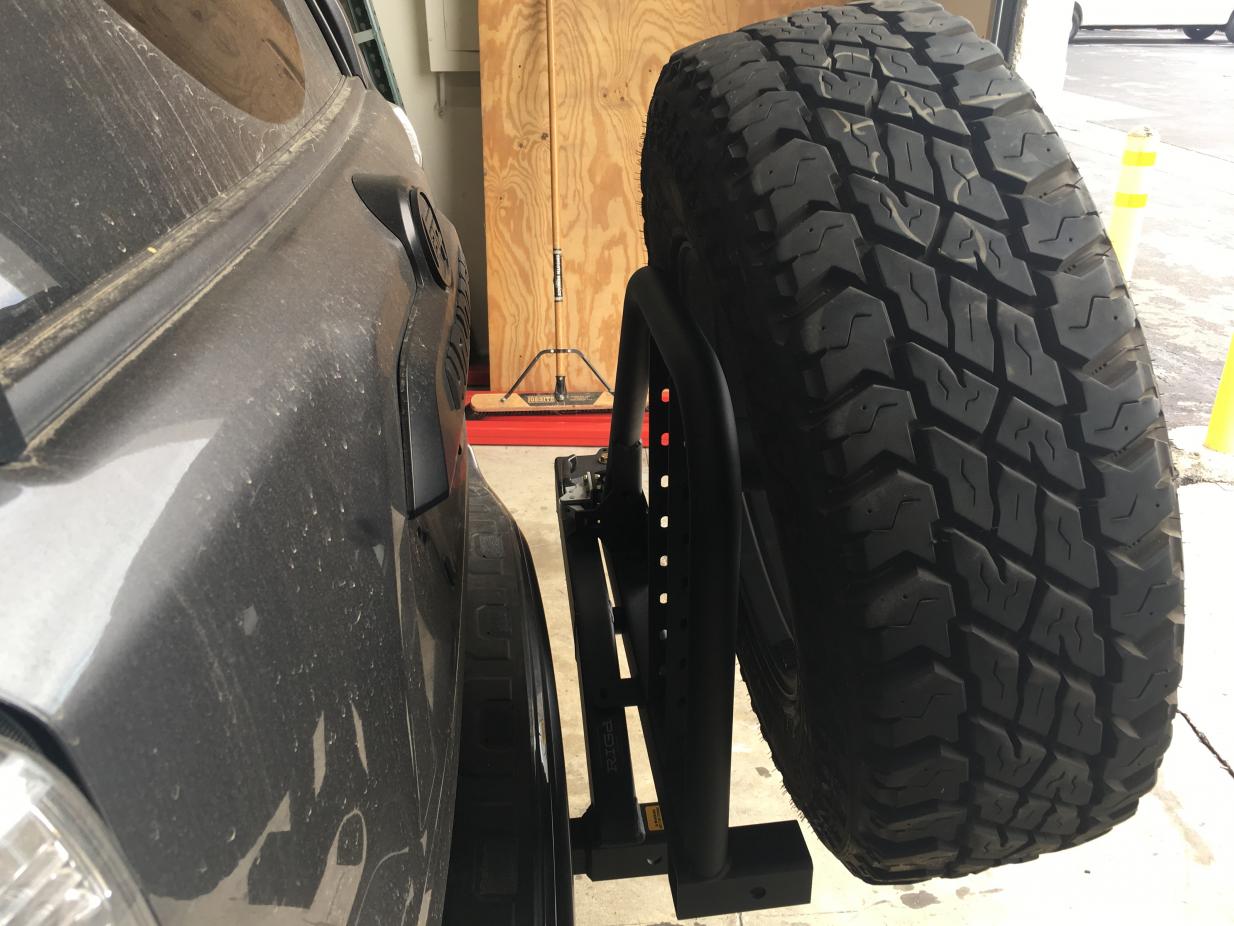

More pics

More pics



[Kenn]

More



[TomsPro]

I'm interested. I like the low tire mounting so the rear visibility is not drastically effected. Do they have a website?



[Kenn]

RIGd Supply



[YellowSnow]

Almost a grand just to carry a spare...definitely looks well built, but using the stock spare location or on top of a rack for the same price, that can be used to carry several other things in addition to the spare is significantly more pragmatic IMO....Pass!



[57buick]

My tire carrier just shipped this week in the form of a C4 fab bumper lol



[YellowSnow]

My tire carrier just shipped this week in the form of a C4 fab bumper lol

Now we’re talking...



[honda250xtitan]

Almost a grand just to carry a spare...definitely looks well built, but using the stock spare location or on top of a rack for the same price, that can be used to carry several other things in addition to the spare is significantly more pragmatic IMO....Pass!

I like the idea of them... I think...But i've seen videos and a couple in action in high speed off road, wobble almost as bad as the bump steer on my stock f250:usa2::usa2:



[YellowSnow]

I like the idea of them... I think...But i've seen videos and a couple in action in high speed off road, wobble almost as bad as the bump steer on my stock f250:usa2::usa2:

Yep, which is why you don’t see anyone running them. It’s like adding a wrecking ball to the rear end of your vehicle.



[KingTaco]

I like it. If the only negative is the possibility of wobbling during "high speed off road" then I'm excited to get one. I don't think most of us are taking our DDs to go run Baja. Nice setup, OP. Build it for how you use it :thumb:



[pDubs]

Almost a grand just to carry a spare...definitely looks well built, but using the stock spare location or on top of a rack for the same price, that can be used to carry several other things in addition to the spare is significantly more pragmatic IMO....Pass!

A big plus is also being able to swing out the hitch. If you mountain bike and always have the bike rack on the hitch, it's a pain in the butt getting my dogs in the 4runner (2 ~75lb labs).

I got the Kuat Pivot so I can swing my 1up rack out, but this would do the same and be able to hold and swing out my spare, hi-lift, rotopax, table, etc. too.

My big thing is not having the rear camera function anymore too, but that's with all the bumpers and spare carriers.



[unsub1]

I clicked on this thread with minimal interest but am now somewhat sold. Wow. I have similar thoughts as [MENTION=138974]pDubs[/MENTION]. My Kuat Pivot bike rack swingout has certainly clunkily served its purpose over the last year but this thing takes that idea to the next level.

I was pretty dead-set on an LFD or CBI rear bumper with an accessory 2" receiver added to one of the swingouts and I love the look of those bumpers, but DAMN this makes a lot of sense and solves some problems. I love the idea of simply being able to pull this off whenever I'd like to and the ability to endlessly reconfigure.

I was 100% willing to do it, but not cutting my bumper, grinding down welds, and re-angling my exhaust would be great too. I'm a mountain bike race camper and mountain explorer more than a rock-crawler anyway.

Bummed I missed the sale!!



[Drillzzz]

Listen, the 1UP rack is the most bad ass bike rack that I have owned. Made in America! Lets me pivot bikes and open the rear hatch. Its got a modular design just in case something needs to be replaced. You can add additional racks is needed. Just wanted to give this rack some love.



[KingTaco]

Listen, the 1UP rack is the most bad ass bike rack that I have owned. Made in America! Lets me pivot bikes and open the rear hatch. Its got a modular design just in case something needs to be replaced. You can add additional racks is needed. Just wanted to give this rack some love.

I keep waiting for my Rocky Mounts rack to break so I can buy a 1UP haha. My Kuat got hit and run in a parking lot, but I didn't want to shell out the $$ for a 1UP. Once I used one that a friend owned, I wished I had sucked it up and got it.

My rack pivots down to open the lift gate also, but it's still a PITA when I'm trying to load something in the back. I also camp/bike as often as I can, and I have table space that slides out the back from a set of drawers I built. I love the idea of swinging the bike rack out of the way and being able to use that space without dismantling everything. Hoping to be able to mount water/fuel cans to it also.



[pDubs]

I have absolutely loved the 1 up heavy duty double paired with the Kuat Pivot. The back of my 4runner is where we all hang and drink beers after riding. I always have camp chairs in the trunk, swing the rack out of the way and 2 of us sit on the rear bumper. I also did the cupholder mod (https://www.toyota-4runner.org/868556-post186.html)

The only con I have is it adds like 10 inches to how far the rack sits away from the truck which just doesn't look as good as just the 1up stored vertical with no bikes on.



[sn_85]

I got in on the pre-order as well. TBH it's an imperfect solution and it might not work for everybody. I think there are certain sacrifices you make with a hitch mounted tire carrier but it may outweigh the certain downsides associated with a full rear bumper replacement. With a full bumper replacement cost, weight, cutting/grinding can be a concern. You'll likely have to get heavy duty rear springs and perhaps regear as well depending on the rest of your setup. With a hitch mounted tire carrier you sacrifice departure angle and it sticks out a bit but the weight is negligible and should it not be your cup of tea it's entirely removable. Those that got in on the pre-order price probably won't lose out much on price if you decide to sell it down the road.

I'm willing to give it a try and it's quite possible it's a stop gap solution before I get a full rear bumper replacement but again that's gonna come with more of a cost, HD rear springs, and a regear. I still think it's a better option than putting a spare tire on your roof which throws off your center of gravity and I can only imagine lugging a spare tire/wheel weighing 70+ lbs on/off your roof. As well of all the hitch mounted spare tire carriers this one seems to most thought out and feature packed.



[unsub1]

Man, you guys are my people. Sounds like you are using your trucks really similarly and are needing the same things.

I already invested in heavy duty springs but I'm thinking they'll be beneficial with this setup or a bumper. It's a lot of weight hanging off the back no matter what it's attached to. Wheel, rack, 2 bikes, and Rotopax add up that far off the back.

But I was thinking the same thing about this being a stop-gap that might just fit the bill permanently.



[KingTaco]

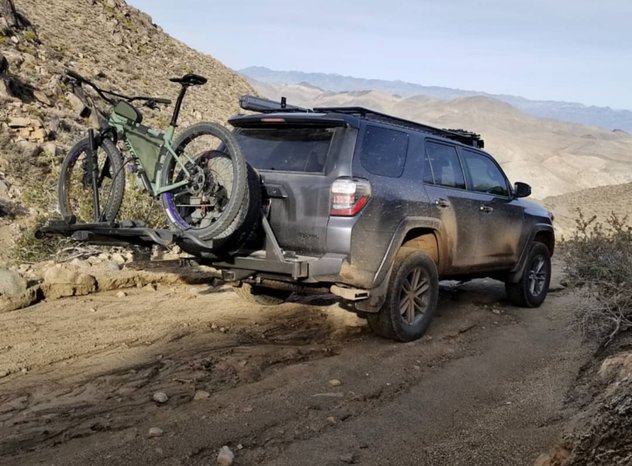

I was able to meet up with Luke from [MENTION=270549]rigdsupply[/MENTION] (photo credit) this weekend in Death Valley and grab my UltraSwing. Certainly gave it a solid breaking in with 50+ miles of dirt & rock and another almost 1000 miles on the road. We did Lippincott Pass while I had a full size spare, bike rack, bike, and 20L fuel can on the UltraSwing, and I couldn't hurt it. The wedge system that tightens it in the receiver is stout. It feels like it's welded on. Happy :hat:



[unsub1]

I was able to meet up with Luke from [MENTION=270549]rigdsupply[/MENTION] (photo credit) this weekend in Death Valley and grab my UltraSwing. Certainly gave it a solid breaking in with 50+ miles of dirt & rock and another almost 1000 miles on the road. We did Lippincott Pass while I had a full size spare, bike rack, bike, and 20L fuel can on the UltraSwing, and I couldn't hurt it. The wedge system that tightens it in the receiver is stout. It feels like it's welded on. Happy :hat:

how centered were you able to get your bike relative to the vehicle?
