Roof Rack Files/Parts

[MStudt]

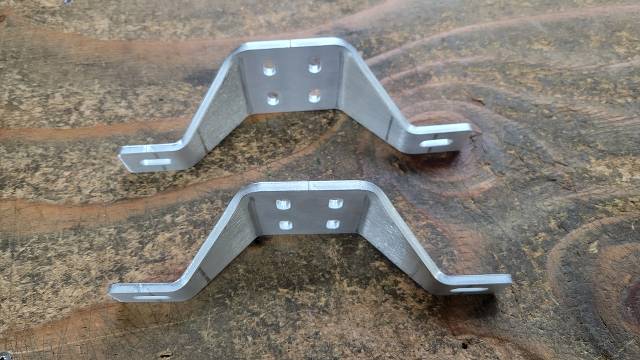

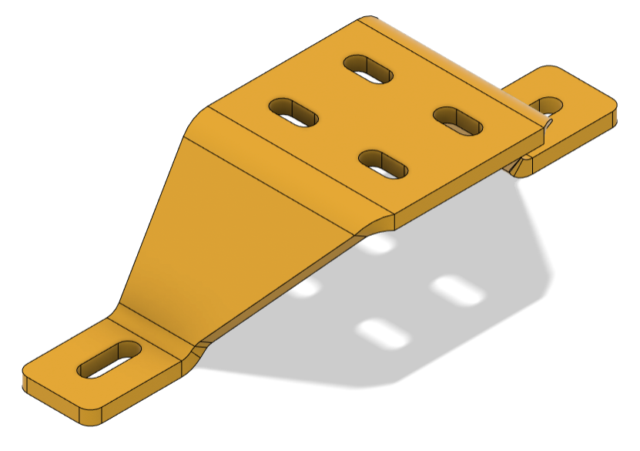

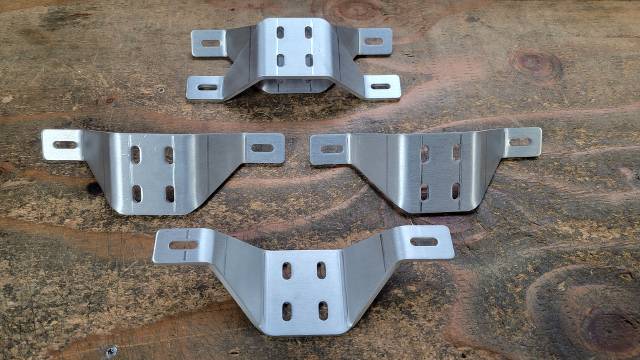

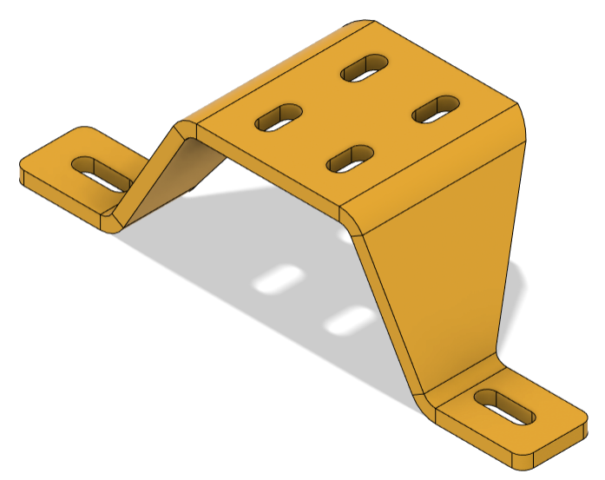

I have an old thread somewhere with some roof rack mounting feet that people have been interested in purchasing for a while. I recently redesigned some of these items, and now have them in good files that are laser and press brake ready. Both laser cut and bent parts are very easy to obtain now online from company's like SendCutSend and Oshcut.

I'm trying to find out if the interest in still there for these items. I might be willing to stock the mounting feet and various small pieces. While the side rails I would be willing to sell dxf files for you can have them laser cut or water jetted.



[MStudt]

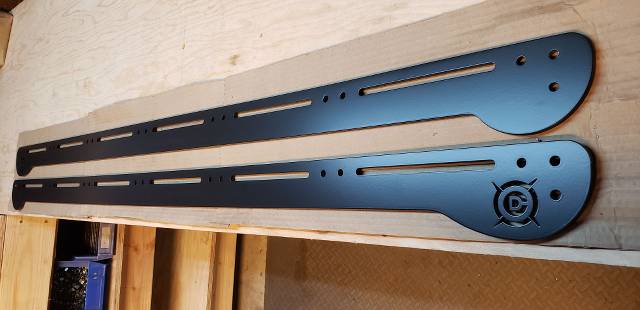

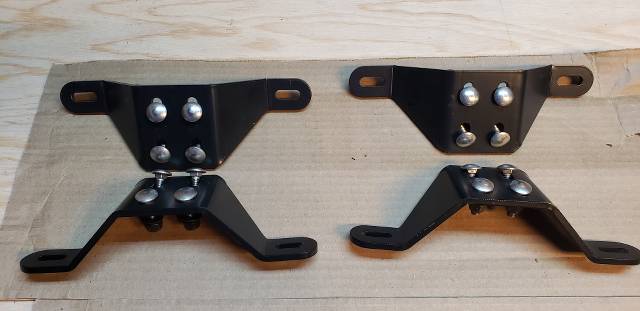

Here are some finished pictures.



[Mzs14]

I am interested in this for sure!

I have a saved 80/20 extrusion cart with everything else waiting for something like this. Is the length of the side rails meant for the stock rail length?



[MStudt]

I am interested in this for sure!

I have a saved 80/20 extrusion cart with everything else waiting for something like this. Is the length of the side rails meant for the stock rail length?

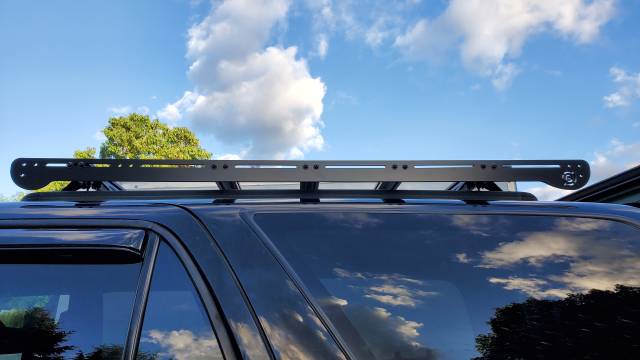

Pretty close to the length of the stock side rails. Here's a picture of the one installed on my 3rd Gen.



[Mzs14]

Thanks for the picture, that looks perfect for my needs.



[MStudt]

Thanks for the picture, that looks perfect for my needs.

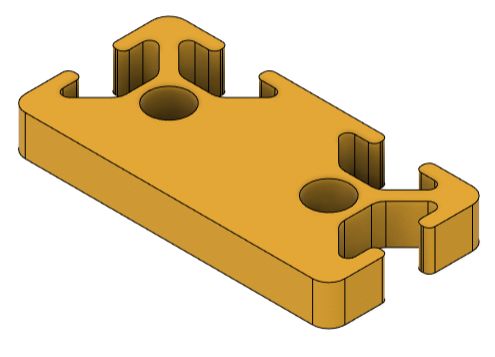

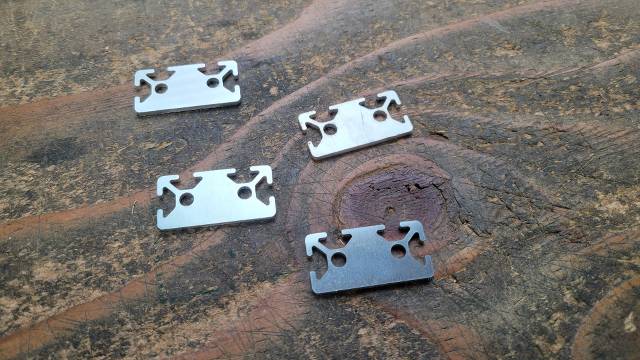

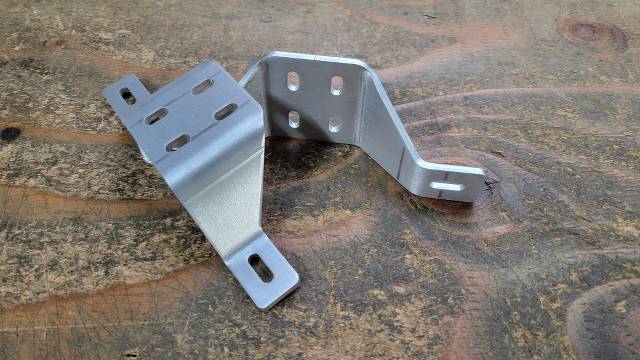

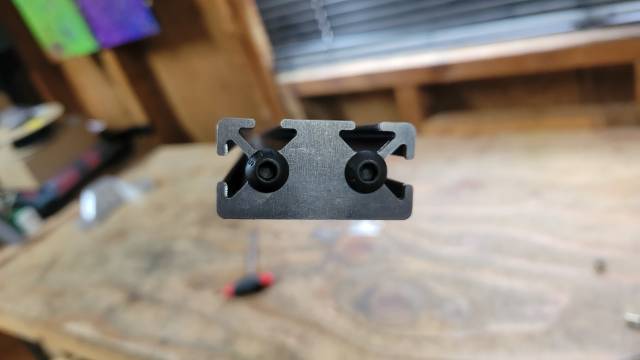

Getting closer to releasing this. I just ran a few bases, and they're just how I want them. I also made some rail end caps for people that might only want crossbars. I just need to decide how I want to sell everything. I'm leaning towards selling 2 kits; 1 with mounting feet & side rail plans, and the other with mounting feet & rail end caps.



[MStudt]

Complete roof rack plans on up for sale at this link. I have 3 items to choose from since some people might only want crossbars, and other might want the rack.

Mike
