What's the proper welded frame repair method?

[RidingDirty]

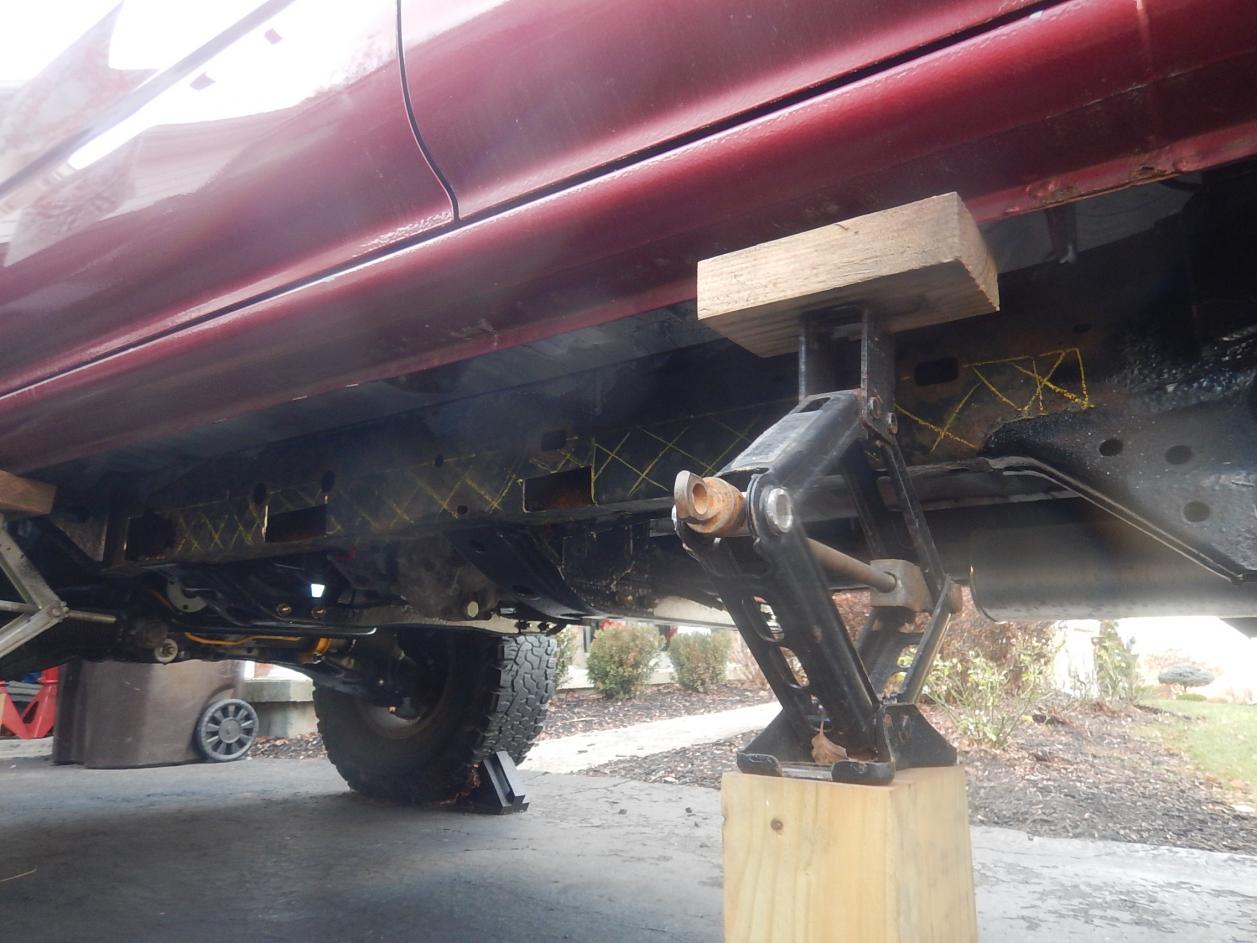

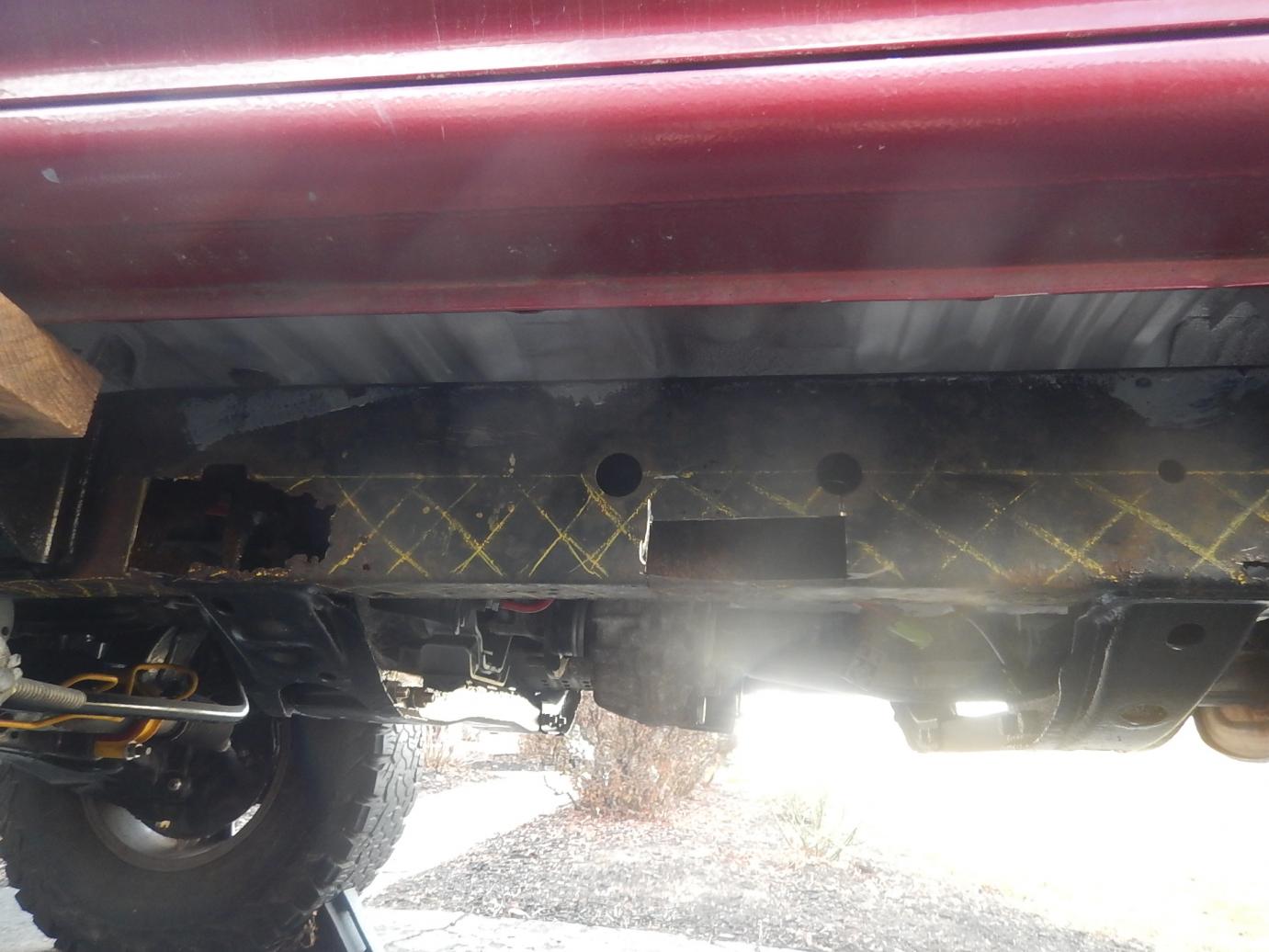

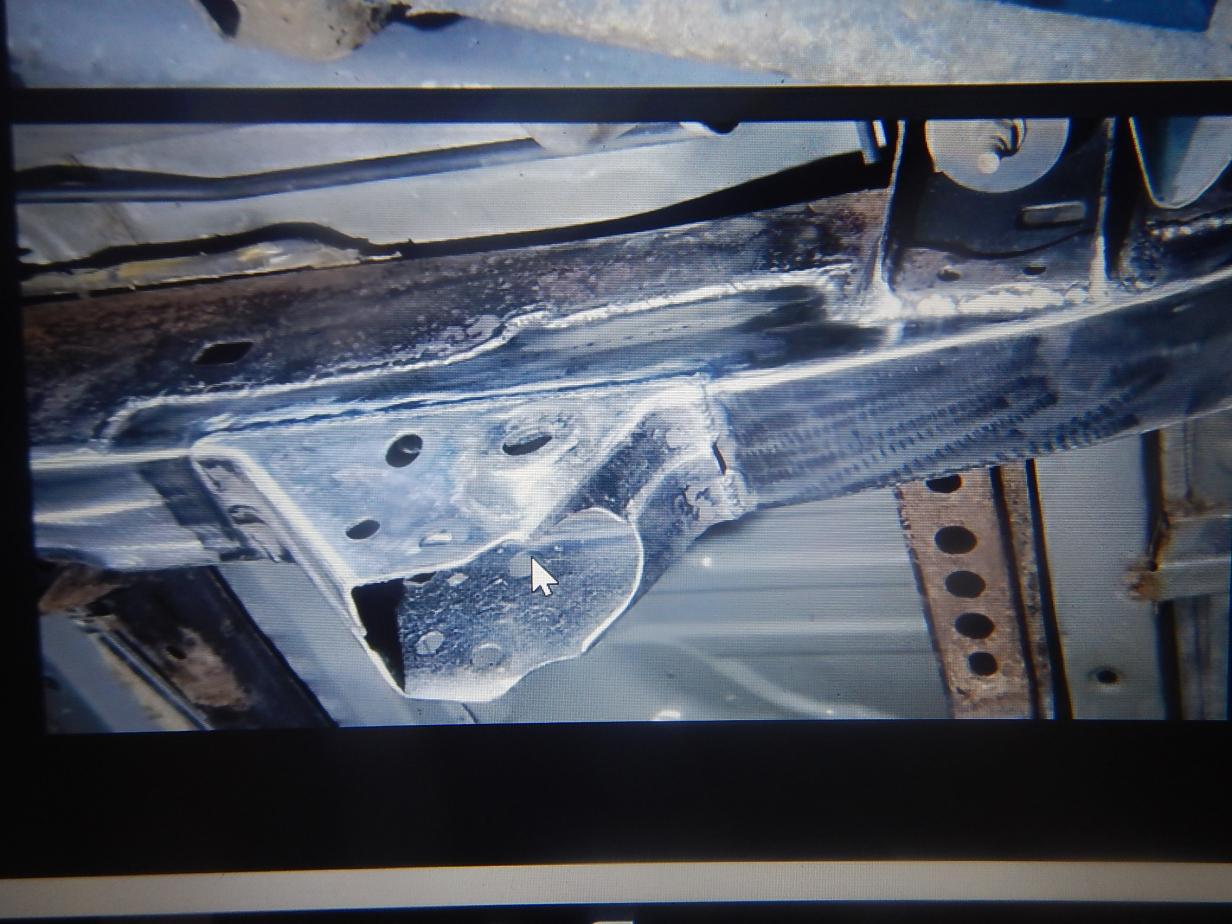

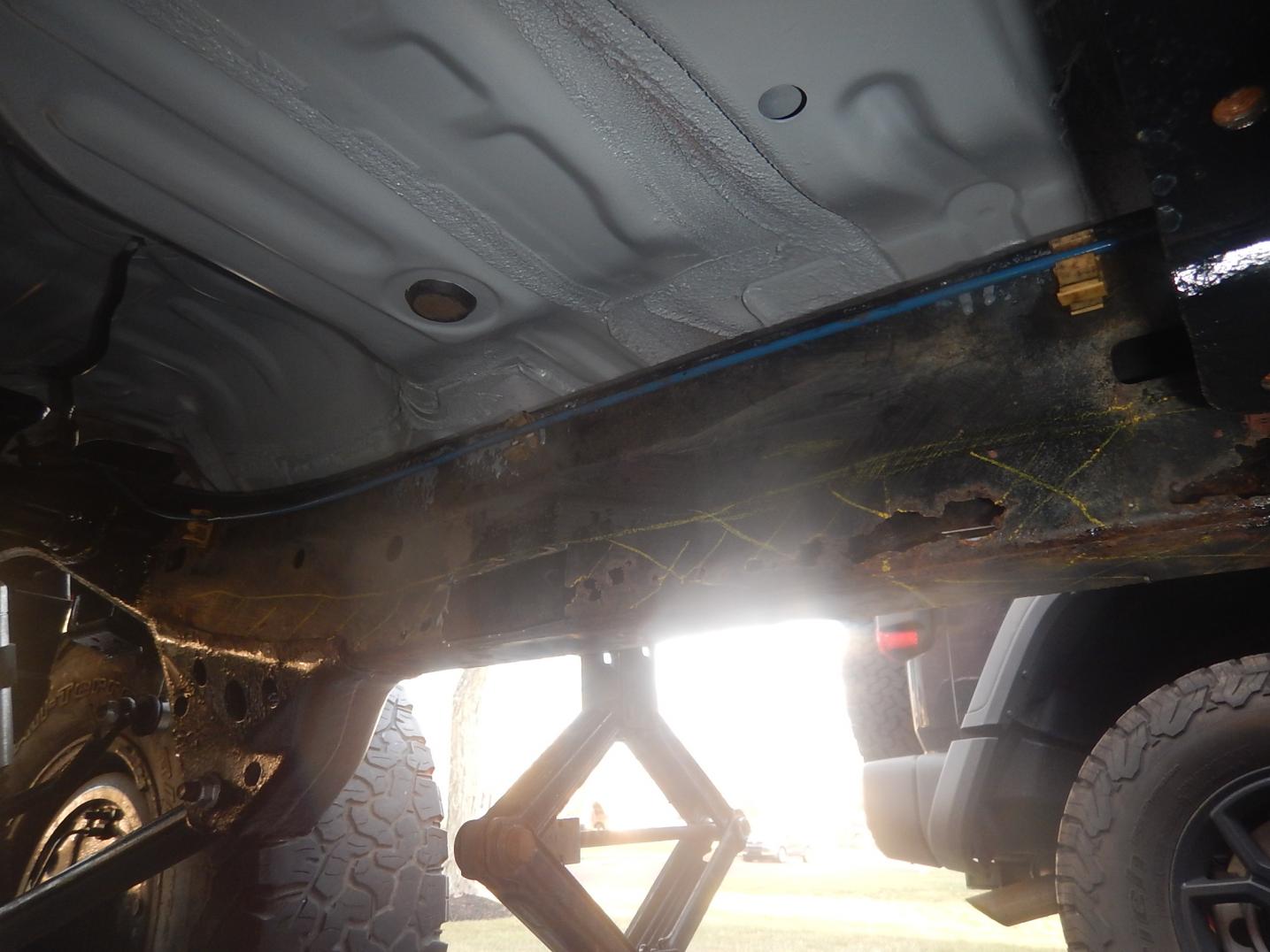

Hey I'm about to start repairing my frame because there are severely rusted portions along the bottom and overall the bottom 2.5" height is pretty thin. The rusted areas are located under the front and rear doors. I will be cutting out the bottom portion of the frame which is severely rusted (marked in yellow in the photos). The top portion of the frame is all good steel, so the repairs should weld in nice. I will clean the remaining inside of the frame and paint over it with a weldable primer and top coat when everything is complete. I bought a 4x4 sheet of 11 gauge (1/8") and will cut out some repair plates. Here are some photos of the left frame rail to give you an idea of what's going on. But both frame rails have similar rust and will be repaired almost exactly the same. My only question is do I replace just the yellow marked portions with new steel? Or do I cut out the yellow marked portions and overlap the remaining frame full height with new steel? I'm going to weld on some rock sliders so I figure I should extend the new steel full height. But I found some photos online that show people only replacing the cut out portions (as shown in the last photo). So what is the correct method? Thanks.



[NachesPass4x4]

Have you seen safe T caps? Might give you some ideas. 4-Runner 1996-2002 3rd Gen Archives - autorust.com
I used them to fix up my buddy jeep. We cut out the rust and the caps overlap the frame all the way to the top. welded them in and used Eastwood internal frame coating.



[brillo_76]

I have welded patched and used all kinds of methods of dealing with frame rot in 3rd gen and Tocomas frames. 1/8 plate is fine it will work and your doing the correct think by cutting out the cancer metal. You need to get all the rot though and then coat the inside of the frame with rust inhibiting solutions so that you slow it down. You never stop it completely no matter what you do. You can however so it to the point that its almost stopped. My build thread can show you all the methods I have done. I mostly cut out the bottom and plated from the inside. Granted, 10 years later from some of the early patches.. Its best to cut out all the rot and get rid of all the oxidation you can with good metal. Then coat the inside and paint the outside. The paint is used as an indicator, Mostly it will start falling off or flaking if there is an issue. It will also flake if the metal wasn't clean enough and scuffed up when painted too. ( I found that out the hard way too).


I did safety T caps on a tocuma frame. They are pricey and you still have to clean up all the rot coat the inside and then weld them on. They used cold rolled steel and are very good product. I just did this a year or 2 ago so I wont be able to report how they work or hold up for many more years yet.



[RidingDirty]

Yeah I was trying to avoid paying for the Safe T caps because of the price. Buying a sheet of 11 gauge is much cheaper. But after calling around to some local mobile welders, nobody wants to re-box the frame with sheet metal. They would rather use the Safe T caps. So while I might save money in steel, I would spend much more money in fabrication time. Looks like I will be buying the Safe T caps to save on fabrication time and technically it will be easier. My main lesson learned here is that Time = Money and also I need to learn how to weld. Thanks everyone for the info.
