Building, Driving and Adventuring the MTN4RNR
Things are noticeably more fun in thin air. It's where I tend to go to get away from everything. To help get me there, I picked up a 2016 4Runner Trail Premium on a recent trip to Bend, OR. I hadn't intended on buying a truck on the trip, but when the numbers add up sometimes its best to pull the trigger and enjoy it! The overall goal with this build is based on function. I want to make sure that everything added on to the vehicle has an intended purpose or use. This will not only keep my budget in check for the build, but really create something that works well for my intended purpose. Yes, it takes longer to "get there" but in the interim, I am still getting out and enjoying the adventures that the rig can handle under it's given build condition. So follow me on my adventures and take a look at some of the modifications that I do along the way. I'm in it for the long game!
In affiliation with:
Click here for special pricing on your Gaia GPS membership
As it sits: March 2019
Stock
Suspension:
- King Shocks 2.5 OEM Performance Series, sans compression adjusters
- Total Chaos uniball upper control arms
- Dobinsons C59-725 KDSS specific rear springs
Armor:
- 4x4 Labs Sliders
Wheels/Tires:
- OEM Trail Edition wheels, Cooper Discoverer AT3 XLT 285/70R17
Vehicle Additions/Modifications:
- 1Up USA bike rack
- The MTN4RNR hatch mod
- Blue Ridge Overland Gear visor organizer
- RAM dash mount for iPad [Nav, weather, topos, etc.]
- Thule rack [transfer from old truck]
- Ruff Tough Kennel (home of the Maeve)
- Custom CA license plate
- LED back-up/license plate lights from
@XenonDepot
- HID low beam headlights from
@XenonDepot
- LED rear hatch lights from
@XenonDepot
- LED fog lamps from
@XenonDepot
- LED interior & puddle lamp upgrade from
@XenonDepot
- Gobi Ladder
- Differential/E-locker breather mod
- Baja Designs 20" s8 LED bar
- Ellis Precision aluminum transfer case shifter knob
- Baja Designs S2 Pro LED light - The "who needs a hand hold" ...mod
- ARB compressor
- The MTN4RNR 4Runner Platform
- The Blue Ridge Overland Gear Attic
- The Kenwood HAM Radio Installation
- Baja Designs Squadron Pro Fog Light Upgrade
- Baja Designs Hatch Dome Light Upgrade
- Baja Designs S2 Pro Rear Dust Light Upgrade
Communications:
- Amateur Radio License - Technician
- Kenwood TM-V71A Mobile Transreciever
- Kenwood KES-3S External Speaker
- Diamond K400SNMO Antenna Mount
- Comet 18" NMO Antenna
- Yaesu FT-60r (X2)
- Diamond SRH77CA 15" antenna (X2)
- Yaesu MH-34B4B Speaker/Microphone
Mapping/GPS:
- Gaia GPS Pro
Maintenance History:
- 20k --- Air filter (Toyota OEM)
- 25k --- Tire rotation
- 30k --- Tire rotation, engine oil (Toyota 0w-20), cab filter (Toyota OEM), FR/RR diff gear oil (Redline 75W-90), transfer case gear oil (Redline 75W-90)
- 35k --- Driveline lube
- 37k --- Lift installation, alignment, rotation
- 39k --- Engine oil (Toyota 0w-20), driveline lube, air filter (Toyota OEM)
- 40k --- UCA lube
- 43k --- Tire rotation
- 45k --- Needle bearing TSB (new FR gear oil, Redline 75w-90), engine oil (Toyota 0w-20), UCA lube
- 52k --- New battery (Batteries Plus X2), lower link lube, engine oil (Toyota 0w-20), rotation, rear brake pad replacement (OEM)
- 55k --- Suspension / driveline lube
- 57k --- Engine oil (Toyota 0w-20), air filter (OEM), cabin air filter (Lexus charcoal OEM), FR/RR diff gear oil (Redline 75w-85), transfer case gear oil (OEM 75w)
- 58k --- New tires/alignment, Cooper Discoverer AT3 XLT 285/70R17
- 60k --- Removed Metal Tech lower links, replaced with OEM
Bucket List:
Trip Reports:
- West Camino Cielo Road, Santa Barbara, CA - November 2015
- Crawl to the Top - January 2016
- Big Sur, CA - March 2016
- Hollister Hills SVRA - April 2016
- Big Sur, CA - May 2016
- Stanislaus NF, Highway 4 to 88 Adventure - May 2016
- Rattlesnake Road exploring - June 2016
- Ellis Peak/Tahoe National Forest - June 2016
- Lola Montez/Fordyce Creek - July 2016
- Downieville to Sloat - July 2016
- Slick Rock / Corral Hollow - August 2016
- Bald Mountain OHV - August 2016
- Labor Day Adventures in the Sierras - September 2016
- Niagra Rim/Eagle Peak - October 2016
*NOTE: All new trip reports located HERE*
The day after I bought it:
I will be putting it to good use, and trying to keep up with additions and mods here as I can!
More to be added...
Last edited by MTN4RNR; 03-13-2019 at 11:09 AM.
Reason: Things change
|
|
 Reply With Quote
|
|
11-19-2015, 03:51 AM
|
#2
|
|
Senior Member
|
|
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
|
|
Senior Member
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|

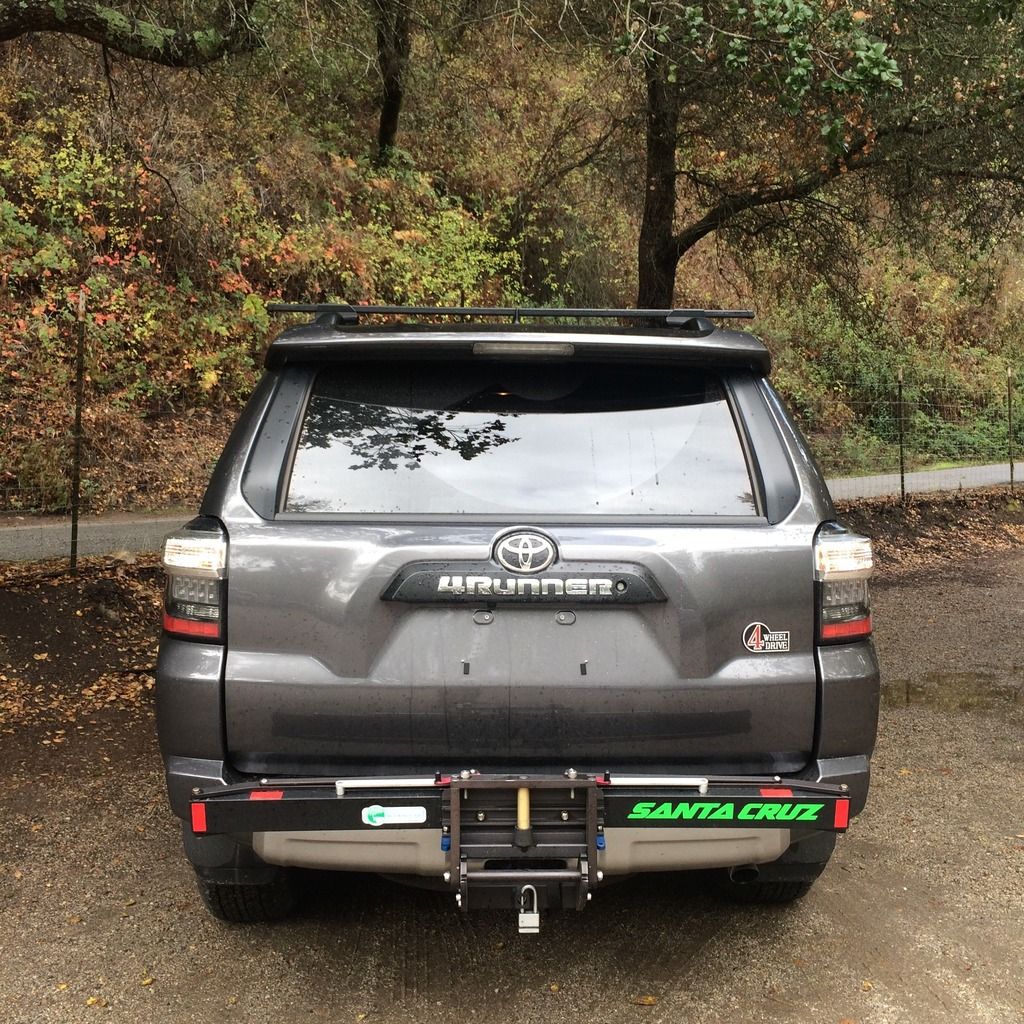

A closer look at the 1up rack I have for my bike. I have really liked this rack since I got it earlier this year. Very functional, simple and well built. I would highly recommend it to anyone in the market. I have the single, and one add on that I use as needed. The single makes parking easy, and allows for the lift gate to open without lowering the rack.
Last edited by MTN4RNR; 06-29-2017 at 01:33 AM.
|
|
|
Reply With Quote
|
|
11-19-2015, 03:54 AM
|
#3
|
|
Senior Member
|
|
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
|
|
Senior Member
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|

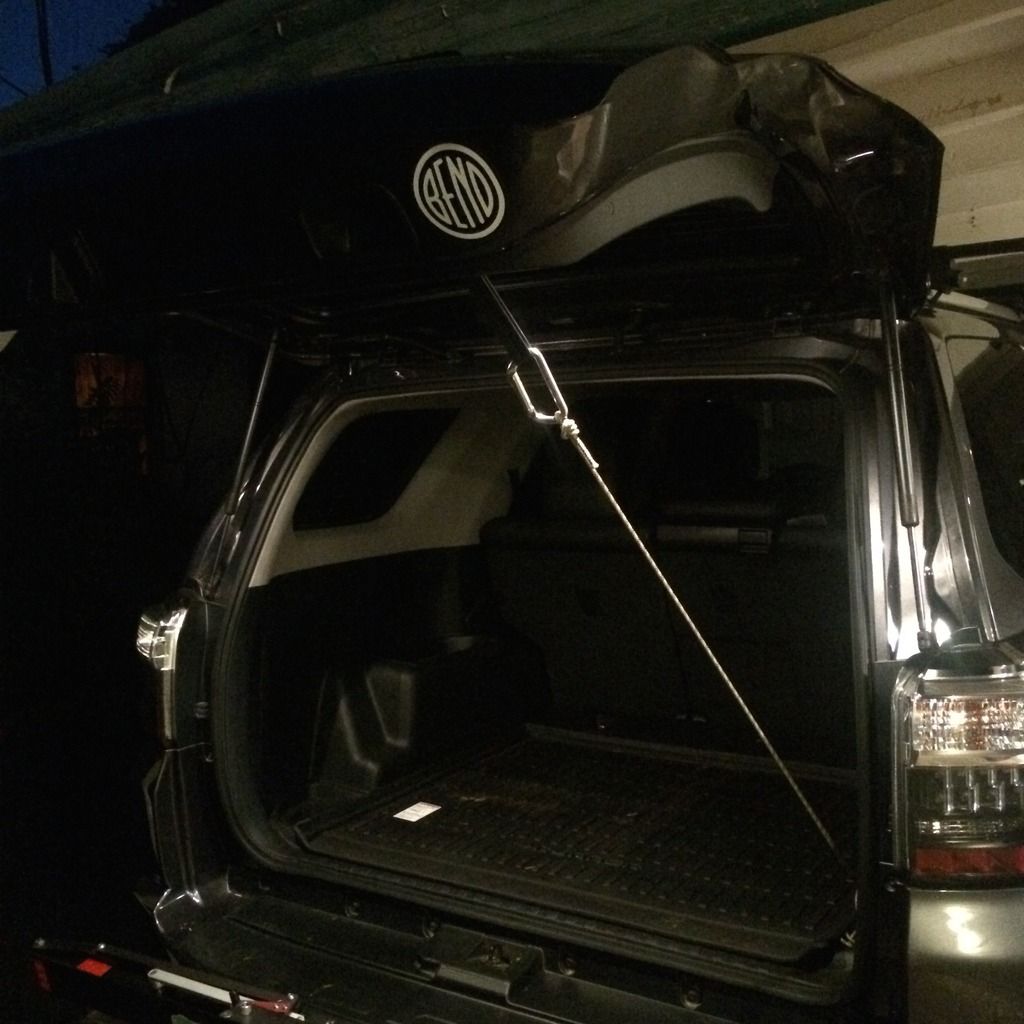

MTN4RNR Hatch Mod
When you bring the new truck home, and the lift gate doesn't clear the overhang... Custom limiting strap, installed. Uses a Nite-Ize CamJam XT on the d-ring in the corner, and a carabiner attached to the lift gate strap.
Function>Form
Last edited by MTN4RNR; 06-29-2017 at 01:35 AM.
Reason: Got a better title from @momo.75
|
|
|
Reply With Quote
|
|
11-19-2015, 10:37 AM
|
#4
|
 |
Registered User
|
|
Join Date: May 2003
Location: Birmingham, AL
Age: 53
Posts: 8,445
Real Name: Morris
|
|
|
Registered User
Join Date: May 2003
Location: Birmingham, AL
Age: 53
Posts: 8,445
Real Name: Morris
|
Quote:
Originally Posted by MTN4RNR
When you bring the new truck home, and the lift gate doesn't clear the overhang... Custom limiting strap, installed. Uses a Nite-Ize CamJam XT on the d-ring in the corner, and a carabiner attached to the lift gate strap.
Function>Form
 |
That is a great idea! I have had my truck for 13 years and have always had a towel in the back so that when I open the hatch in my garage I could put it between the hatch and garage door......why couldn't you have posted this 13 years ago.....lol.
|
|
|
Reply With Quote
|
|
11-19-2015, 08:02 PM
|
#5
|
|
Senior Member
|
|
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
|
|
Senior Member
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
Quote:
Originally Posted by momo.75
That is a great idea! I have had my truck for 13 years and have always had a towel in the back so that when I open the hatch in my garage I could put it between the hatch and garage door......why couldn't you have posted this 13 years ago.....lol.
|
Haha, wish I could have helped sooner! It works double time when I need to tie my dog to the car, I just lengthen the rope with the clamp, and ta da, dog leash.
|
|
|
Reply With Quote
|
|
11-19-2015, 09:06 PM
|
#6
|
|
Registered User
|
|
Join Date: May 2003
Location: Birmingham, AL
Age: 53
Posts: 8,445
Real Name: Morris
|
|
|
Registered User
Join Date: May 2003
Location: Birmingham, AL
Age: 53
Posts: 8,445
Real Name: Morris
|
Going to be doing the "MTN4RNR Mod" this weekend. Thanks again.
|
|
|
Reply With Quote
|
|
11-19-2015, 09:35 PM
|
#7
|
 |
Member
|
|
Join Date: Sep 2015
Location: Black Hills of South Dakota
Age: 38
Posts: 806
Real Name: Caleb
|
|
|
Member
Join Date: Sep 2015
Location: Black Hills of South Dakota
Age: 38
Posts: 806
Real Name: Caleb
|
nice 4Runner, its going to look great with the 275's on it!
__________________
Owner/Operator of C4 Fabrication. specializing in custom built Toyota off-road products. www.c4fabrication.com
|
|
|
Reply With Quote
|
|
11-22-2015, 09:02 PM
|
#8
|
|
Senior Member
|
|
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
|
|
Senior Member
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
Quote:
Originally Posted by momo.75
Going to be doing the "MTN4RNR Mod" this weekend. Thanks again.
|
I like it! Here is the Nite Ize product I used: CamJam XT - Aluminum Rope & Cord Tighteners
It's aluminum, takes up to a 6mm paracord, and allows for an adjustable fit. Plus you can adjust it and use it for tying a dog up or your cooler down so give yourself a few extra feet of paracord.
|
|
|
Reply With Quote
|
|
11-22-2015, 09:03 PM
|
#9
|
|
Senior Member
|
|
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
|
|
Senior Member
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
Quote:
Originally Posted by C4 Fabrication
nice 4Runner, its going to look great with the 275's on it!
|
Thanks! Just got them put on yesterday, and am in the process of build updating... Pictures to come soon!
|
|
|
Reply With Quote
|
|
11-22-2015, 09:11 PM
|
#10
|
|
Senior Member
|
|
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
|
|
Senior Member
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
BROG Visor Organizer
Quick to add to the truck was this visor organizer from Blue Ridge Overland Gear. It has Molle paneling on one side, velcro on the other and a zipped compartment for vehicle documents, cash, etc. The velcro works perfectly with their pouches they sell, which I am soon to order for being able to zip small items into. Very well made in the USA. You'll get a tag on any/all of their products with the cutter and the sewer's name on it. Little details like that from products and manufacturer make me very happy and very brand loyal. I also have one of their Hydroflask sleeves, and have a list going for a bigger order from them in the future. If you like to organize your stuff in a very cool way, give these guys a look.
Visor Organizer
Blue Ridge Overland Gear
Last edited by MTN4RNR; 06-29-2017 at 01:37 AM.
|
|
|
Reply With Quote
|
|
11-23-2015, 12:24 AM
|
#11
|
|
Senior Member
|
|
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
|
|
Senior Member
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
FJ style emblem
I picked this piece up from
@ bhicks22
on his website: Products | BH3D Printing
Fought for a while on where to put it, and settled on the lift gate, passenger side, FJ40 style. Backed with 3M adhesive in CNC "channels" to make the emblem as flush as can be, this aluminum emblem is a well built piece.
@ bhicks22
also makes the forum infamous TEQ replacement emblems featured on this thread: Interest in TEQ badges for the 5th Gen?
I am hoping to work out something a little more custom in the coming months to stay tuned!
Last edited by MTN4RNR; 06-29-2017 at 01:40 AM.
|
|
|
Reply With Quote
|
|
11-23-2015, 12:42 AM
|
#12
|
|
Member
|
|
Join Date: Dec 2014
Location: Portsmouth, NH
Posts: 108
|
|
|
Member
Join Date: Dec 2014
Location: Portsmouth, NH
Posts: 108
|
Quote:
Originally Posted by MTN4RNR
I picked this piece up from
@ bhicks22
on his website: Products | BH3D Printing
Fought for a while on where to put it, and settled on the lift gate, passenger side, FJ40 style. Backed with 3M adhesive in CNC "channels" to make the emblem as flush as can be, this aluminum emblem is a well built piece.
@ bhicks22
also makes the forum infamous TEQ replacement emblems featured on this thread: Interest in TEQ badges for the 5th Gen?
I am hoping to work out something a little more custom in the coming months to stay tuned!
 |
Same truck and same bike, different rack. Didn't know much about the 1up USA before I bought my Kuat, but I've been seeing them around more and more. I like the flexibility of only have a single bike tray vs the two fixed on all the other hitch mounts.
Cheers!
__________________
5th Gen Trail Premium - This forum has blessed me with the knowledge and cursed me with an empty wallet.
Husky floor mats - Canvasback trunk liner - HID Xtreme w/4300k - TRDPoser grille - Cooper AT3 255/75/17 - 6112/5160 w/2" Icon spring. WTB: Gobi rack and ladder, TRD Pro wheels...
|
|
|
Reply With Quote
|
|
11-23-2015, 01:01 AM
|
#13
|
|
Senior Member
|
|
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
|
|
Senior Member
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
RAM dash iPad mini mount
Parts used:
RAM 2.43" x 1.31" Diamond Ball Base with 1" Ball Unpackaged - RAM-B-238U | RAM Mounts
RAM Long Double Socket Arm for 1" Balls (Overall Length: 6") - RAM-B-201U-C | RAM Mounts
RAM 2.5" Round Ball Base with the AMPs Hole Pattern & 1" Ball Unpackaged - RAM-B-202U | RAM Mounts
iPad mini Car Mount & Cradle from LifeProof | LifeProof
Nuts, bolts, backing plate, loctite, beer.
1. Open your beer of choice, IPA for me
2. Remove passenger panel around the climate control knob using a bit of encouragement
3. Line up and drill holes in both the plastic and on the metal backing plate (mine was a piece from a hangar bracket I had laying around)
4. Install the ball mount with cap socket bolts, loctite and backing plate.
5. Throw 'er back together
6. Finish said beer
I didn't take any progress photos this time, but I will for upcoming additions. The mount holds up really well day to day, doesn't rattle or show signs of stress from the plastic panel it is mounted to. Now I can run nav, music, topos, and radar conveniently!
Last edited by MTN4RNR; 06-29-2017 at 01:55 AM.
Reason: Added photo
|
|
|
Reply With Quote
|
|
11-23-2015, 01:28 AM
|
#14
|
|
Senior Member
|
|
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
|
|
Senior Member
Join Date: Aug 2015
Location: Central Oregon
Posts: 1,641
Real Name: Max
|
Cooper Discoverer ST MAXX - 275/70R17
I had a set of Coopers installed yesterday. I have the same set on my work truck, and have really liked them. I have 33k miles on them on the work truck with 9/32" remaining out of the original 18.5/32". Not bad for a full size GMC truck that tows a few times a week. Needless to say, I was impressed. Load range E with a 10ply tread. These tires are heavy as a mother weighing in at 58lbs a piece. After debating C vs. E rating, I went with the E rated mostly because if you are going to add some weight, having a heavier tire that is more resistant to pesky roots and rocks might help down the road. After driving home with them, I can't say that they are much "rougher" than the Dunlops that came off. But when you drive a work truck during the week, it doesn't take much to be comfy on the road, the 4R with the new tires is still mighty smooth. I will update the tire review as I put more miles on them in different conditions. Thanks
@ 1engineer
for the tire fitment guide! Spot on with no rubbing on the 275/70R17 thus far.
Last edited by MTN4RNR; 06-29-2017 at 02:04 AM.
|
|
|
Reply With Quote
|
|
11-23-2015, 11:21 AM
|
#15
|
|
Member
|
|
Join Date: Sep 2015
Location: Black Hills of South Dakota
Age: 38
Posts: 806
Real Name: Caleb
|
|
|
Member
Join Date: Sep 2015
Location: Black Hills of South Dakota
Age: 38
Posts: 806
Real Name: Caleb
|
Tires look great, I like the vintage 4wd emblem!
