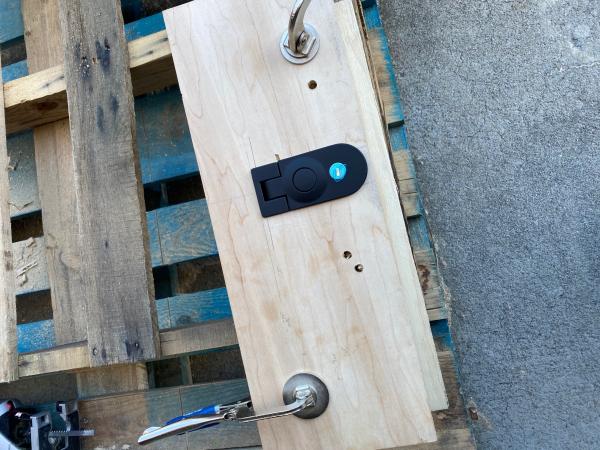

Built a mock drawer front to practice before the final product, huge help as it allowed me to shift and adjust spacing
Next
Prev
I opted to use framing L brackets to mount the drawer system. I like this as it s strong than turnbuckles but I can still remove the drawer if needed
Taped off the drawer front to prevent splintering when cutting. 3/4 blatic on front of 1/2 drawers for strength and depth.
Final drawer front aligned and braced for cut. Once cut, i glued and secured after final test fit in drawer
Built a mock drawer front to practice before the final product, huge help as it allowed me to shift and adjust spacing
measuring depth of the compression latch
measurement for bracket to allow compression latch to secure to top of drawer.
simple drawers with 1/2 inch baltic all around. No fancy joints here.
Next
K

Built a mock drawer front to practice before the final product, huge help as it allowed me to shift and adjust spacing
