2006 v6 4x2 SE Rear Axle

[IbrahimGTSR]

i bought the 06 4Runner SE V6 4X2 on October, 2008 from the auction 28k for steal price, it meant for my business to haul and load. I loved it next my 1997 4Runner 4X4.

a mouth and half later the tries were going bad fast, so it ended up at the dealership next day. They start checking the alignment first and turn to be the rear axle from left side the Toe is in by (+0.77). They said the hosing is damage.

which it will cost a lot damage to my bank!!!

Now i found couple use axle (a complete one) on eBay but is not v6 4x2 air ride what i found:
v8 4x2 air ride
v6 4x4 no air ride
v6 4x2 no air ride
the question dose it fit or not or it have to be v6 4x2 air ride
Thanks!



[CJ3Flyr]

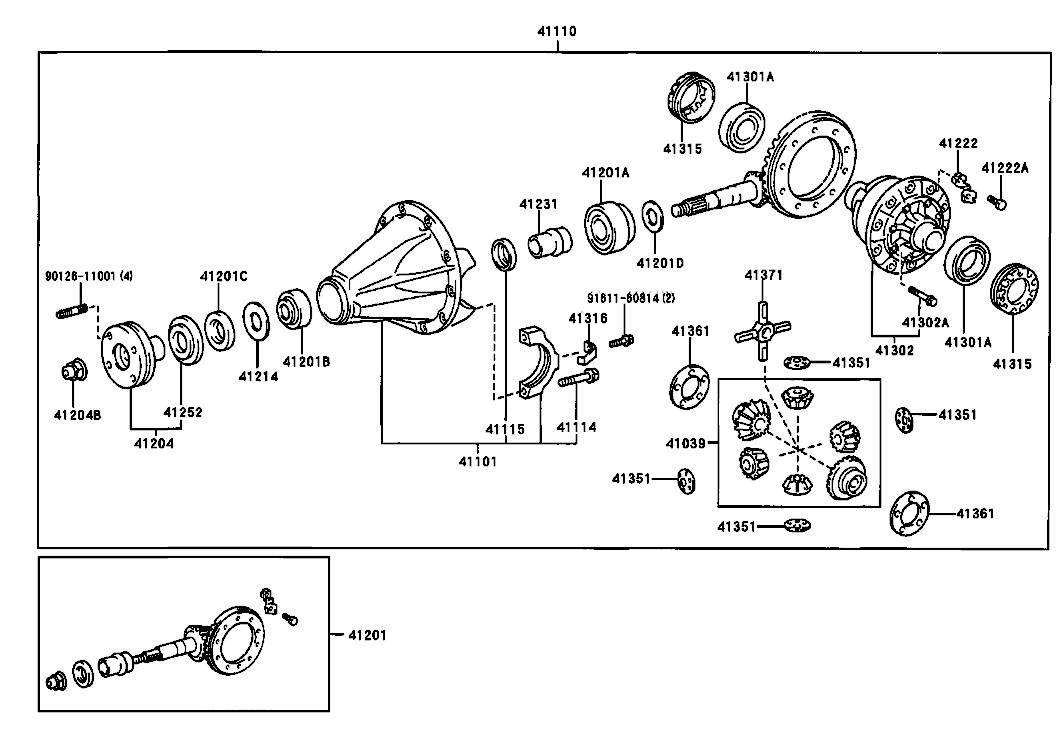

Poke around here: http://www.toyodiy.com/parts/p_U_2006_TOYOTA_4RUNNER_GRN210L-GKAZKA_4101.3.html You can figure out quite a bit with part #'s.

It looks like all the housings are the same and they're all 3.727 ratio so I'd think they are interchangable.

Good luck!


:cheers:



[IbrahimGTSR]

i think so too

seem the parts number are the same just for one extra part on v8 4x2 SE
{90126-11001 (4)} but every axle need the part which doesn't show on 4x2 v6 SE
thanks!



[IbrahimGTSR]

ooh wait!

The air control ride 4R should have different part then the standard SR5 BUT

the SE model
1. V8 4X2 AIR RIDE
V6 4X2 AIR RIDE THE 4R with VIN (JTEZU14)
The part #42110-60820

2. V8 4X2 STANDER SR5
V6 4X2 STANDER SR5 THE 4R with VIN (JTEZU14)
The part #42110-60820

but i thank it gose down the VIN. their is 2 of them i know JTEZU14 & JTEZU17 the 2nd one have 3 differnent :wtf:

42110-60820 GRN21*, UZN210
42110-60830 UZN21*..LIMD; W/AIR SUSPENSION
42110-60830 UZN210..LIMD; REAR AIR SUSPENSION
42110-60860 UZN210; MEXICO SPEC

under my VIN it show 2 TOO :wtf:
42110-60820 GRN21*, UZN210
42110-60860 GRN210..SR5; MEXICO SPEC


does anyone know it? HELP PLZ!



[CJ3Flyr]

You should have this one... 42110-60820. UZN 210 is V8 w/ 2wd.

:cheers:
