2014 Scion Pioneer Bespoke Touchscreen Radio

[acronin2]

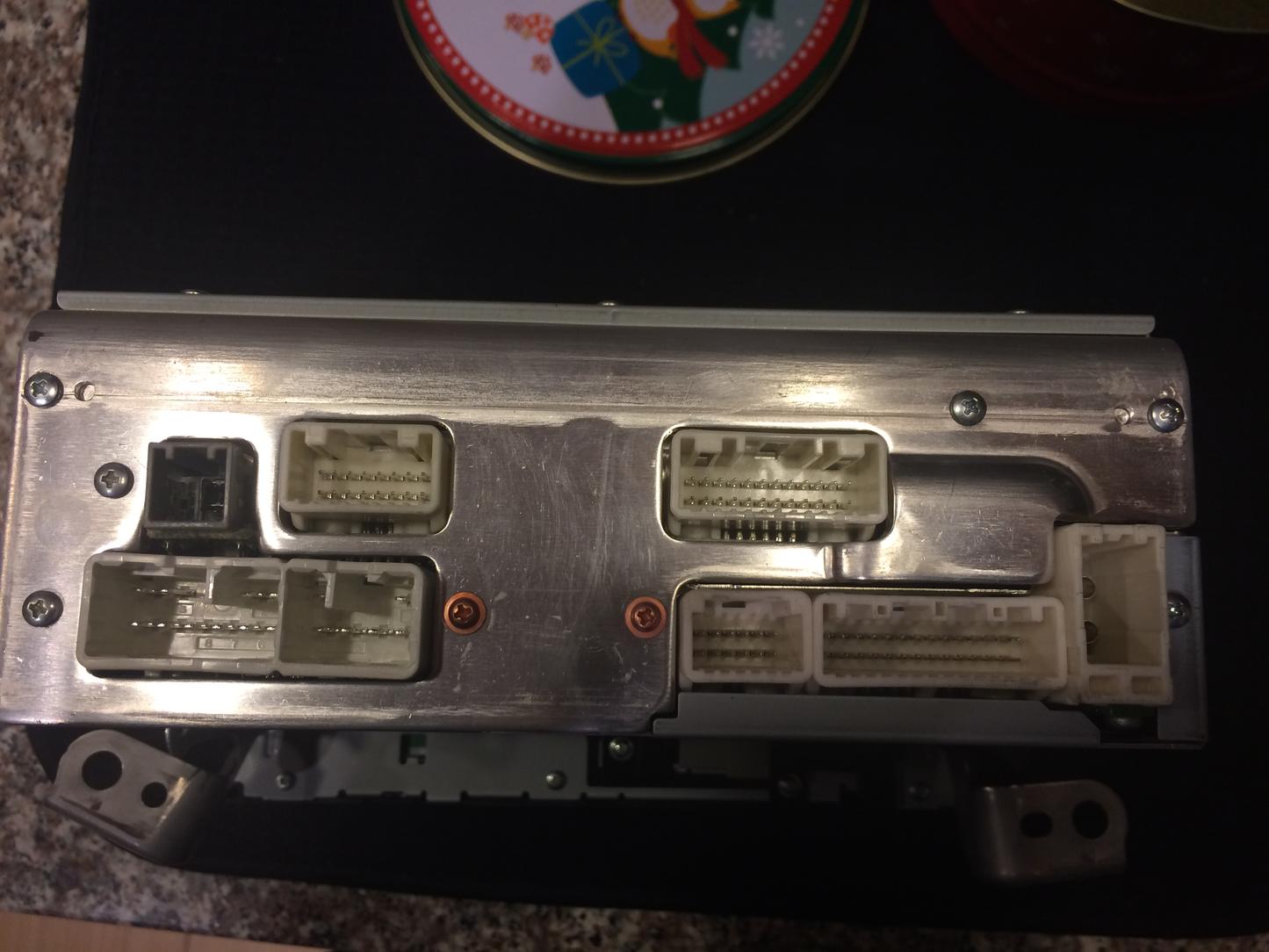

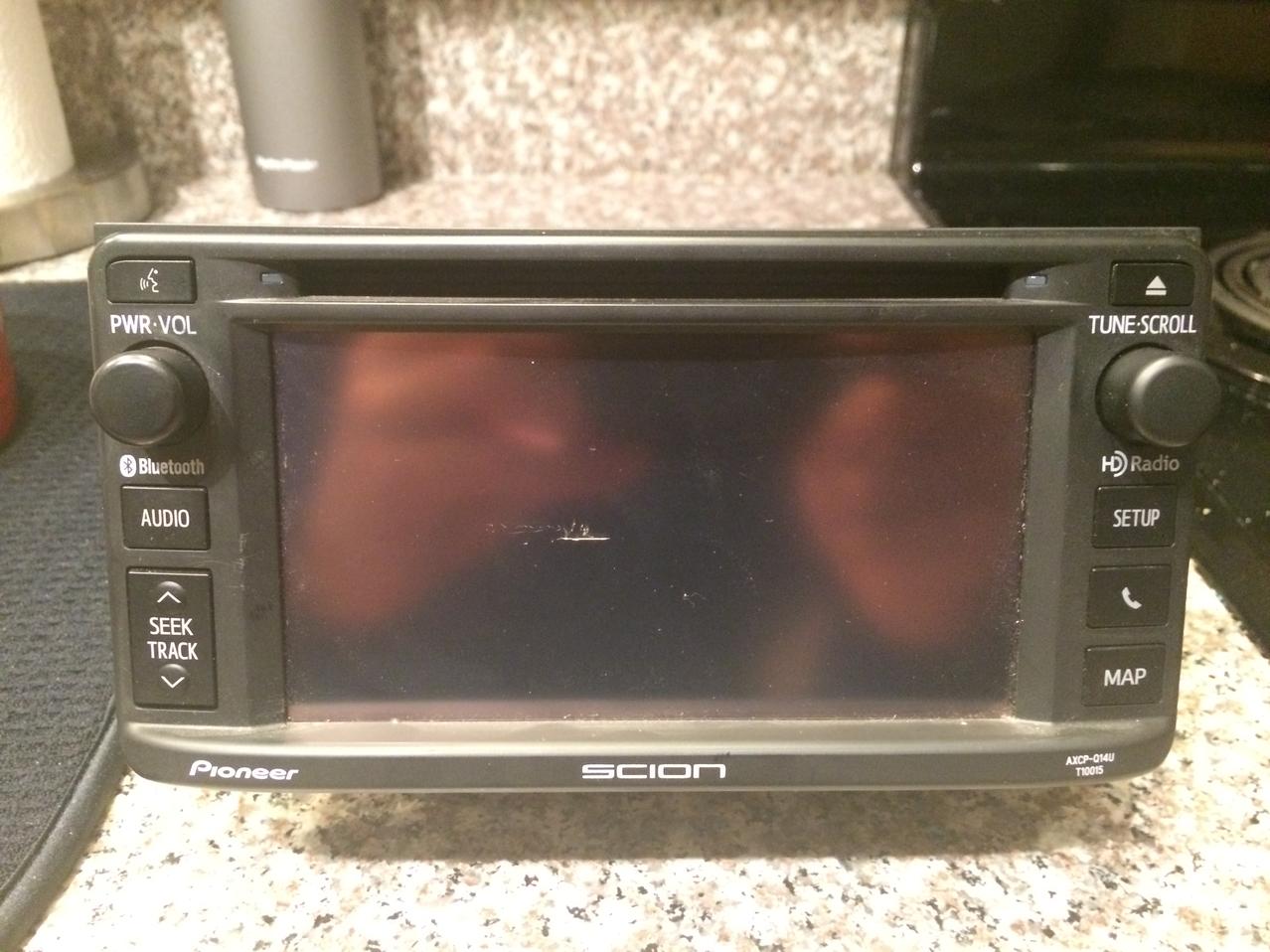

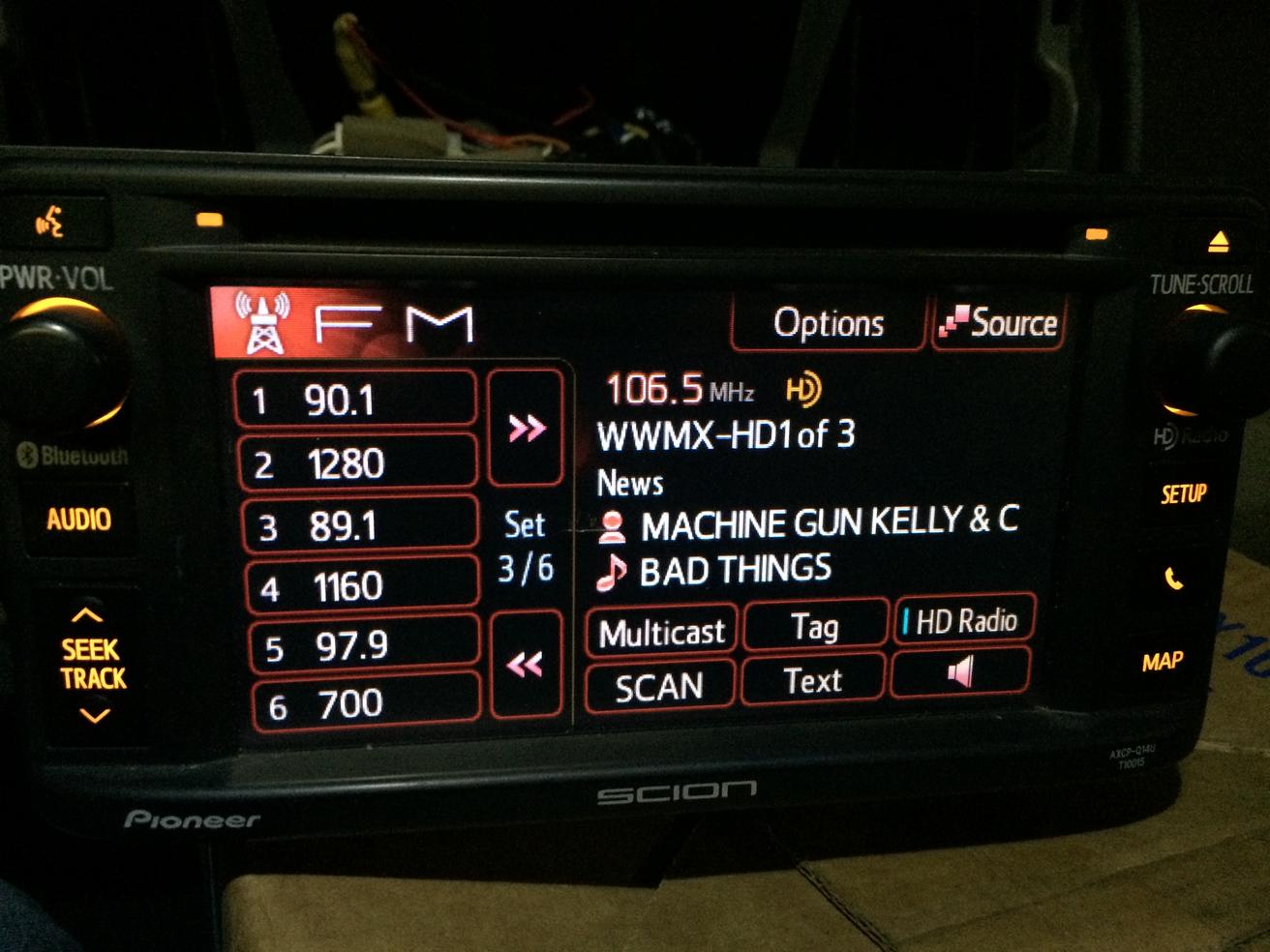

For sale is a 2014 Scion Pioneer Bespoke Touchscreen radio (PT546-00140). There is a small blemish on the display (see photos) however it does not effect the functionality of the touchscreen and is not noticeable when the radio is powered on. These units are plug and play with the correct harnesses on Non-JBL 4th gens. Bluetooth compatible, HD Radio, UBS/iPod/iPhone compatible, CD/MP3 compatible, navigation compatible with the nav extension box (not included).

I am asking $225 shipped or $200 local pick up. I live in the Baltimore area and would be willing to meet within reasonable distance.

Thanks for looking



[2blu4u]

I have a non-JBL system. What other harness(es) would I need to plug and play, outside of the navigation extension box? Thanks in advance.


Sent from my iPhone using Tapatalk



[acronin2]

You need the following harnesses. The last two harnesses are optional depending on if you want Bluetooth and USB functionality.

pt546-00120-ad -antenna adapter

pt546-00120-ch -this is the main harness, 20 to 28 pin adapter

pt546-74120-mc -this is the bluetooth mic kit.

pt546-00120-us -USB adapter



[sigepbiker]

pt546-74120-mc -this is the bluetooth mic kit.

Free bump! I had this in my 4th Gen and loved it!:drummer: A great upgrade from the stock radio and it still "looks stock".

You actually don't need the mic kit to use bluetooth for music. Your phone/iPad/etc. will connect without it.

You will however need this kit for phone calls.



[acronin2]

Thanks for the clarification :rockon:



[2blu4u]

Thanks everyone! Just PM'ed the OP.


Sent from my iPhone using Tapatalk



[acronin2]

Sold



[Jagerzel]

So these work on JBL set ups? (2003)



[acronin2]

It's possible but much more complicated. I ended up installing it with and Line Output Converter with an aftermarket amp. You could also use PAC-TATO adapter that would bypass the factory JBL amp but the sound quality varies in my opinion. Check at this thread for more info.
