96-00 Multimode TCase diagram

[Cree]

Who has it? I've searched everywhere. I can't find a P/N or model number of the case to reference, nor any images. I wanna know how this thing is setup inside without having to yank it from the truck for reasons. Surely someone has some info and can enlighten me, please and thank you!



[Cree]

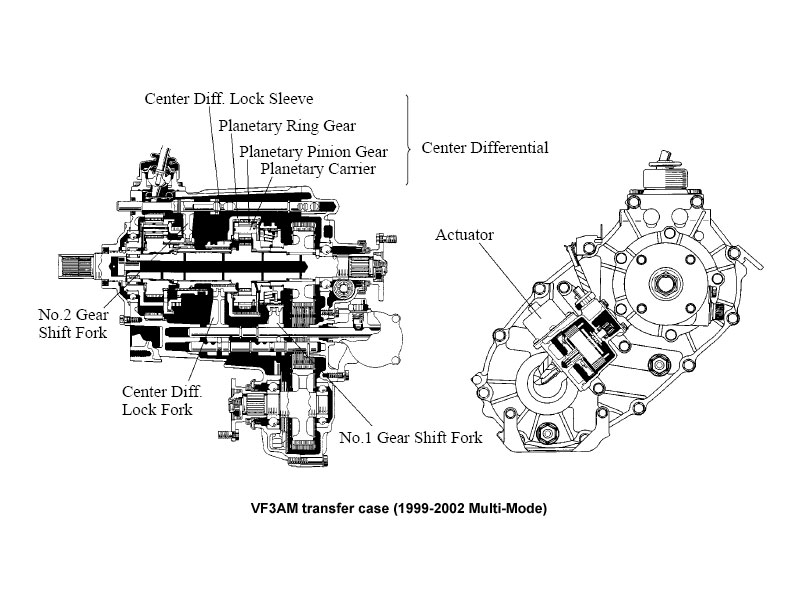

Found it! I'm incorrect on years. 96-99 used the VF2A, the 99-02 was the VF3AM. Diagram below. Trying to figure which side of the case the differential is on, IE forward or rear output side. Any input?



[Tinigunner11]

Here’s a link to the factory service manual with all the diagrams and info on the multi mode transfercase. This is what I used to disgnose my stuck in 4x4 issue on my 2000 limited

2000 4Runner FSM - Printable - Google Drive



[Cree]

Here’s a link to the factory service manual with all the diagrams and info on the multi mode transfercase. This is what I used to disgnose my stuck in 4x4 issue on my 2000 limited

2000 4Runner FSM - Printable - Google Drive

Dude, that's awesome! So, looks like it's on the main output shaft. Suspected as much, wanted to verify.



[1000X]

Do you have a picture or diagram of which switch on the actuator should be farthest rear ward and which is forward? Want to confirm mine are installed in the correct position
02 4runner vf3am



[pavelvoivoda]

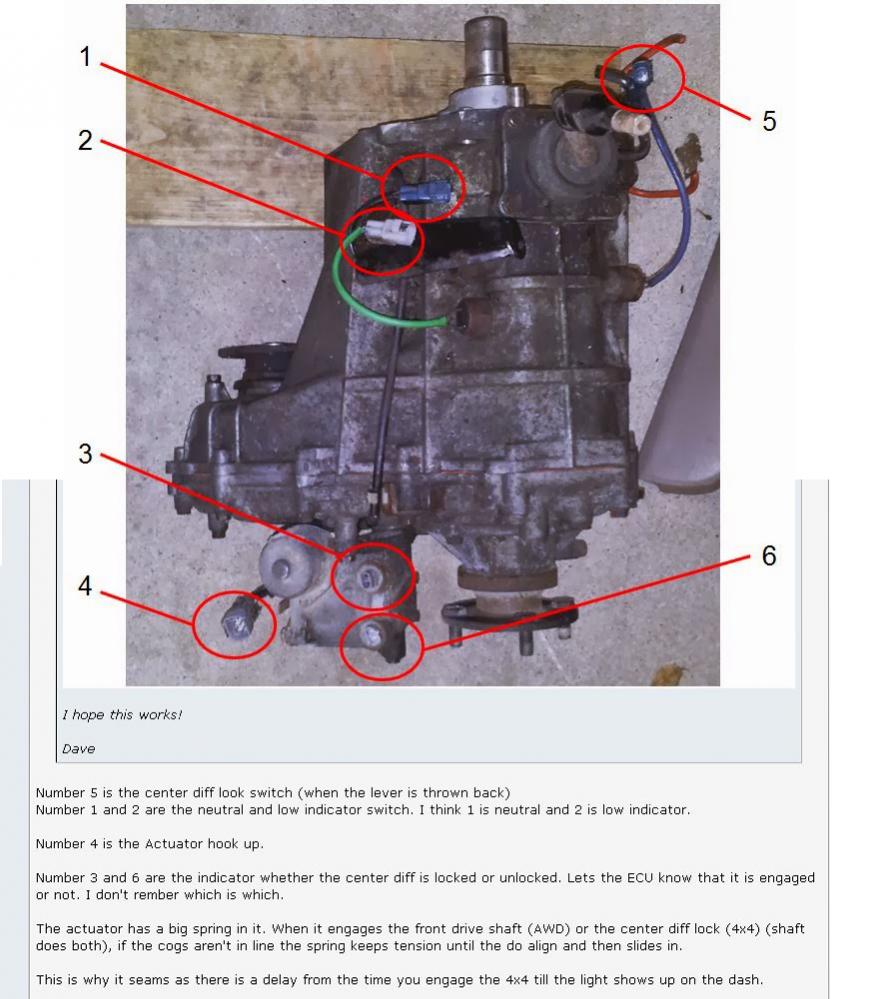

here is an old pic
similar transfer case, this is the J-shift case with the center diff on the lever, not on a dash button, as the vf3am, which is an i-shift case

the rest of the detection switches are the same as the vf3am except the one on the passenger side (5) is not available on the vf3am, there should be a plug

the rest is the same
