Hi all,

I've been looking at winches lately and pretty much decided that the Smittybilt XRC 9.5k is the winch I want with it's features and price point. I plan to get the synthetic version for the weight savings and the fact that it won't rust. The only thing I am unsure of is if it will fit in my AOR bumper without me having to cut my grill. I plan to make my own wires to remote mount the solenoid box in the engine bay so that isn't a problem, but I'm wondering about the actual winch and clutch lever, if that will clear when mounted in the AOR bumper.
[MENTION=17736]AddictedOffroad[/MENTION] Maybe you guys would know?

Anyone have this bumper and winch combo?

Any other thoughts on this?

Thanks!

Register to hide this ad
I would be surprised if you didn't have to do any grille trimming at all. I have the Warn M8000 which is a pretty tight little package and it just fit in there and that's with trimming. See if you can find XRC dimensions and compare it to the M8000, if it's any bigger then I would get hard confirmation that it fits before you buy it.

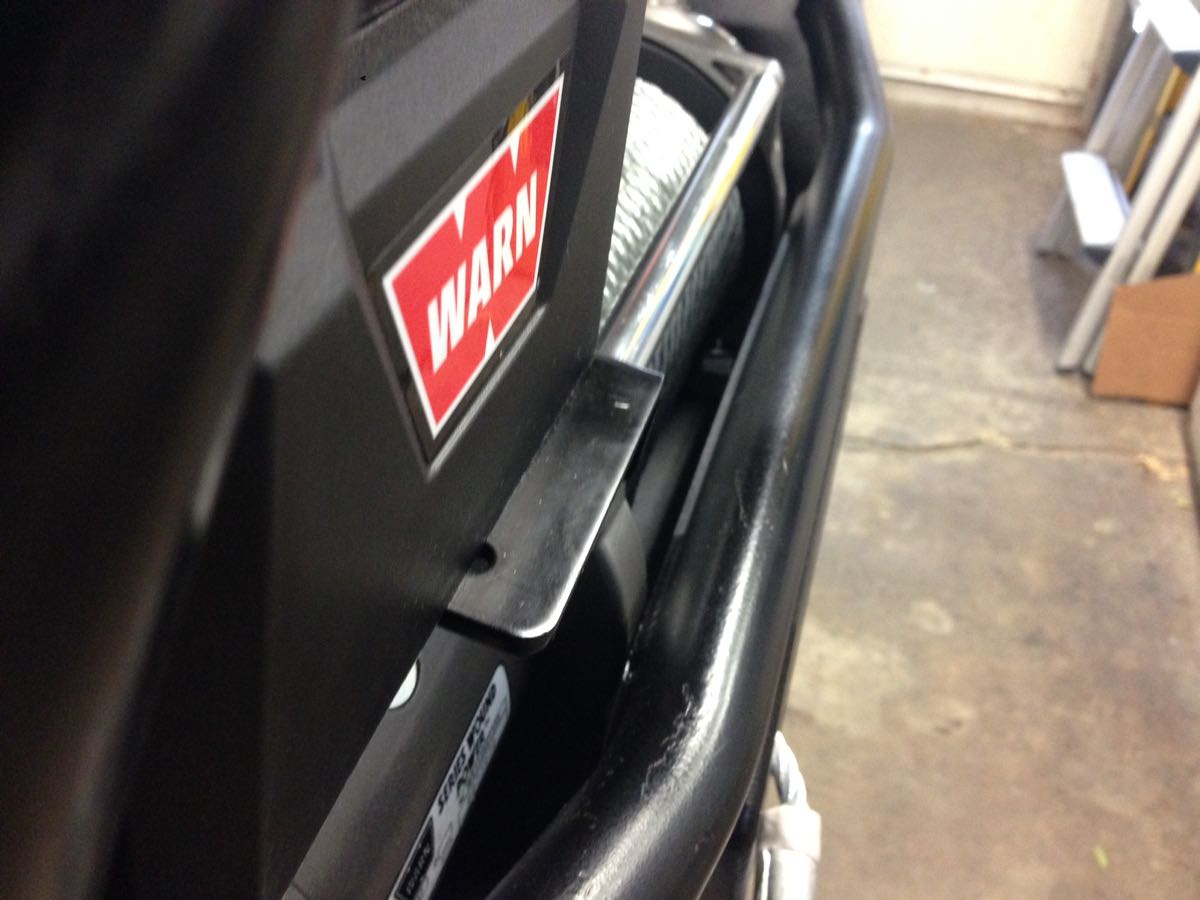

Check out how tight the front of the winch is with the bumper - almost a custom fit.



Attachments

  • image.jpeg
    99.6 KB · Views: 1,046
GVL said:
I would be surprised if you didn't have to do any grille trimming at all. I have the Warn M8000 which is a pretty tight little package and it just fit in there and that's with trimming. See if you can find XRC dimensions and compare it to the M8000, if it's any bigger then I would get hard confirmation that it fits before you buy it.

Check out how tight the front of the winch is with the bumper - almost a custom fit.

View attachment 198216
Click to expand...

Warns put the solenoid box in a spot where you need to trim. Reason I avoided them.

Last edited:
Unner said:
Hi all,

I've been looking at winches lately and pretty much decided that the Smittybilt XRC 9.5k is the winch I want with it's features and price point. I plan to get the synthetic version for the weight savings and the fact that it won't rust. The only thing I am unsure of is if it will fit in my AOR bumper without me having to cut my grill. I plan to make my own wires to remote mount the solenoid box in the engine bay so that isn't a problem, but I'm wondering about the actual winch and clutch lever, if that will clear when mounted in the AOR bumper.

[MENTION=17736]AddictedOffroad[/MENTION] Maybe you guys would know?

Anyone have this bumper and winch combo?

Any other thoughts on this?

Thanks!
Click to expand...

My buddy runs the Smittybilt and he had to notch grill but I think it was the solenoid box. If you move that you may be okay. I went with the superwinch tiger on my AOR. No modification at all but my body lift helps clear the winch also.

GVL said:
I would be surprised if you didn't have to do any grille trimming at all. I have the Warn M8000 which is a pretty tight little package and it just fit in there and that's with trimming. See if you can find XRC dimensions and compare it to the M8000, if it's any bigger then I would get hard confirmation that it fits before you buy it.

Check out how tight the front of the winch is with the bumper - almost a custom fit.

View attachment 198216
Click to expand...

Yeah I saw your posts about having to trim the grill for the Warn. I'm hoping I won't have to trim, but if I do then I guess it's not too bad if it's done properly. I'm hoping to find a confirmation about the smittybilt though before buying.

JayRolla said:
My buddy runs the Smittybilt and he had to notch grill but I think it was the solenoid box. If you move that you may be okay. I went with the superwinch tiger on my AOR. No modification at all but my body lift helps clear the winch also.
Click to expand...

That's good to hear. Any chance you could confirm with your buddy?

That's the problem I'm having is most people seem to have at least a half inch body lift with this bumper, but I'm trying to avoid a body lift as I like how flush the bumper sits now.

If you get the Warn made, "L" bracket for the solenoid-you won't need to trim for that at least. I trimmed a tiny bit to clear the winch body on drivers side - mostly so I could flip the engage/disengage lever with no issues.

Unless you have the ability to fab the original bracket. If so, then you can cut, reposition, then weld. You will still have to bend the bracket a little.

Thanks to a heads up from GVL, I spent about $25 shipped for the new L bracket from Amazon MUCH easier!!

Trailblazer said:
If you get the Warn made, "L" bracket for the solenoid-you won't need to trim for that at least. I trimmed a tiny bit to clear the winch body on drivers side - mostly so I could flip the engage/disengage lever with no issues.

Unless you have the ability to fab the original bracket. If so, then you can cut, reposition, then weld. You will still have to bend the bracket a little.

Thanks to a heads up from GVL, I spent about $25 shipped for the new L bracket from Amazon MUCH easier!!
Click to expand...

I like the Warn's but they're so expensive. Plus I plan to mount the solenoid box in the engine bay so it's not sticking out upfront, I like the cleaner look of it hidden.

Anyone have this winch and would be willing to take a couple measurement's of it?

I may have to start a thread in the general section with a different title to get more hits on that subject.

Unner said:
I like the Warn's but they're so expensive. Plus I plan to mount the solenoid box in the engine bay so it's not sticking out upfront, I like the cleaner look of it hidden.

Anyone have this winch and would be willing to take a couple measurement's of it?

I may have to start a thread in the general section with a different title to get more hits on that subject.
Click to expand...

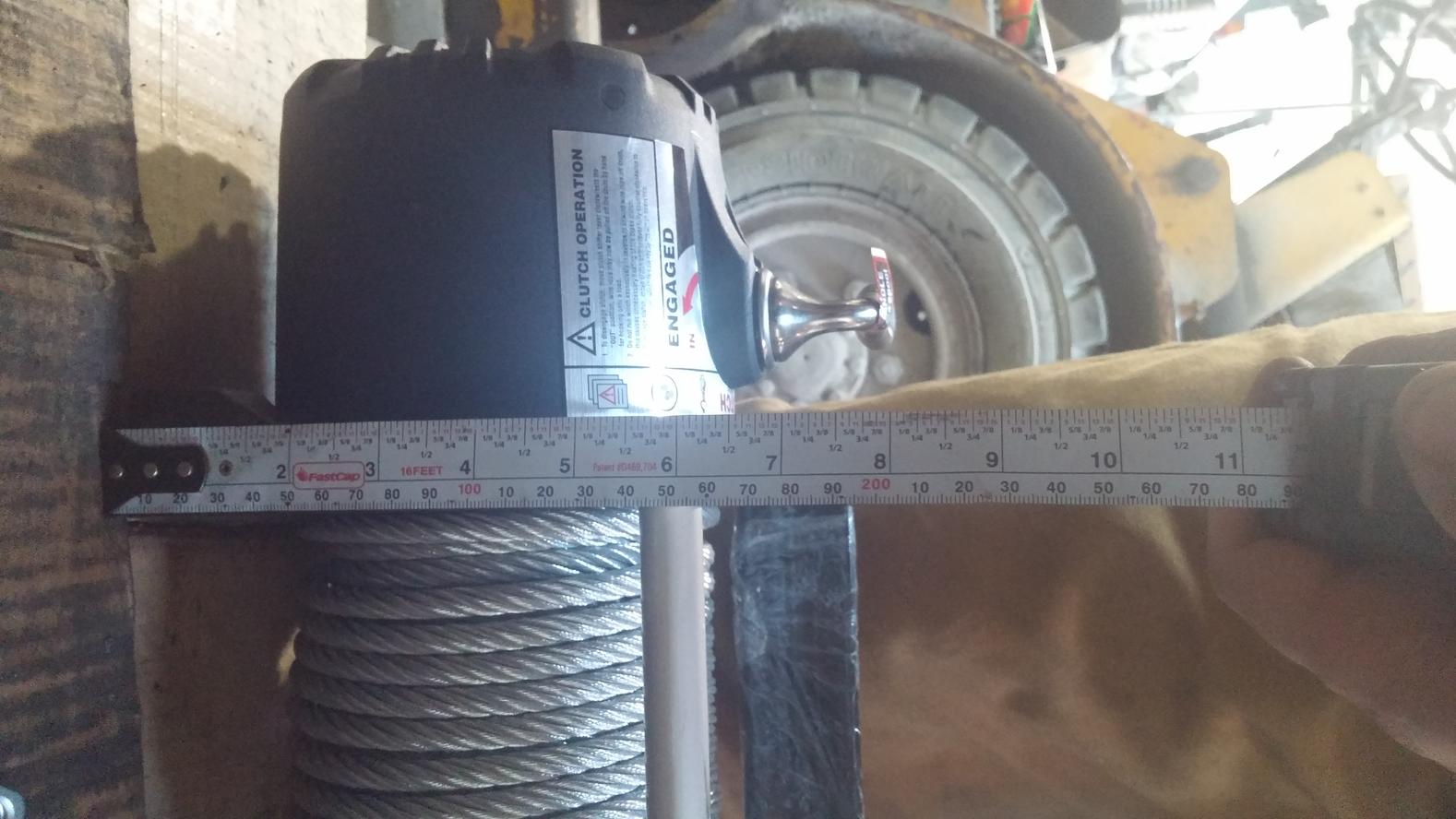

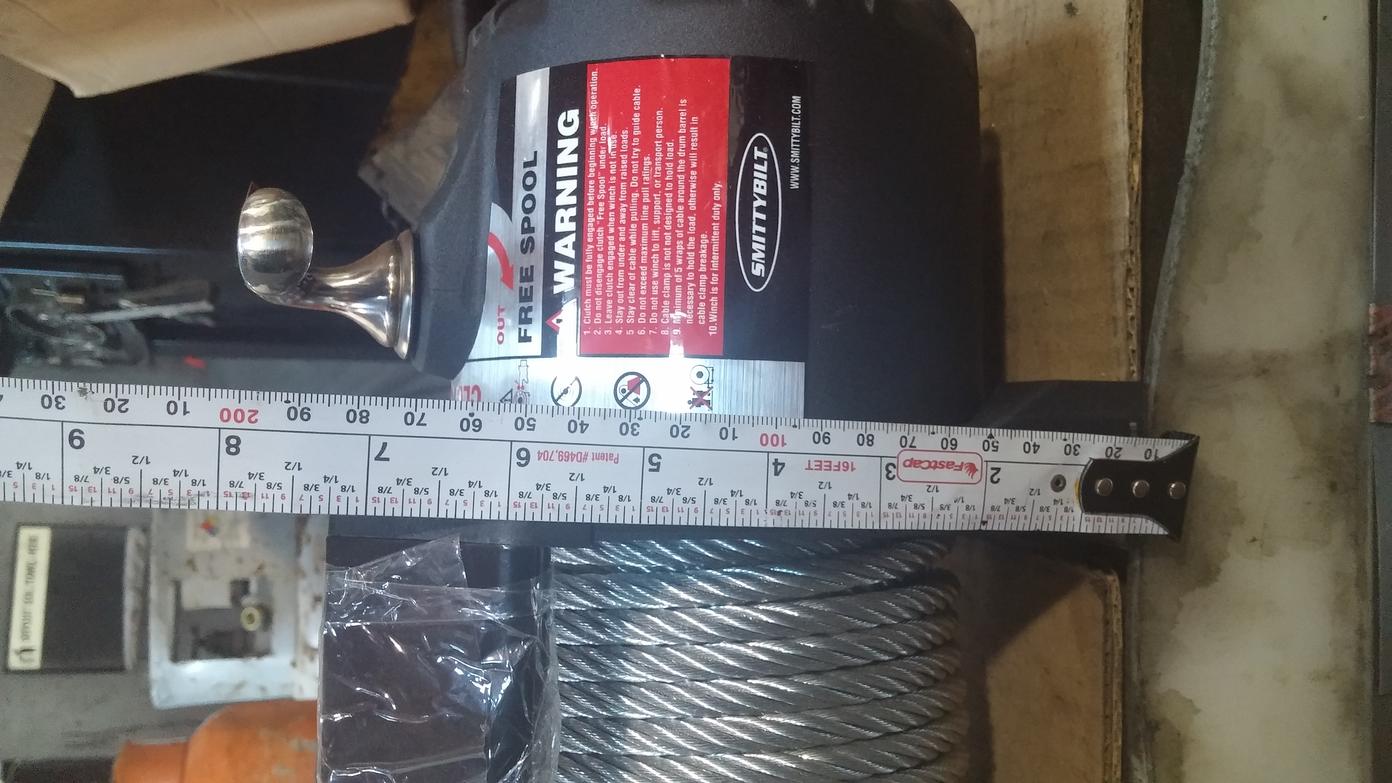

I have this winch, uninstalled as of yet. What measurements would you like, or just all of them?

Konkordmusk said:
I have this winch, uninstalled as of yet. What measurements would you like, or just all of them?
Click to expand...

Sweet!

Could I get the height of the winch to the highest point that isn't the solenoid box? I assume this would be to the clutch lever most likely.

Could I also get the height of the winch if you were to draw an imaginary line straight up from the rear bolt holes?

And the height in the center of the winch that is in line with those rear bolt holes?

I think that should give me a clearer idea of how it will fit in the bumper.

Unner said:
Yeah I saw your posts about having to trim the grill for the Warn. I'm hoping I won't have to trim, but if I do then I guess it's not too bad if it's done properly. I'm hoping to find a confirmation about the smittybilt though before buying.



That's good to hear. Any chance you could confirm with your buddy?

That's the problem I'm having is most people seem to have at least a half inch body lift with this bumper, but I'm trying to avoid a body lift as I like how flush the bumper sits now.
Click to expand...

I never did reply to this. I know he only had to notch for the box. He had to cut a pretty hefty amount out and one of the reasons I avoided buying it. Thats with his 2" body lift. If you move the box Im sure you will be fine. Either way its a price to pay to have a winch.

I have this exact pairing and I had to trim my grill. Its not a huge issue to me as I planned to anyway but if you are wanting to keep the grill in tact you will need to get a little creative on it. I honestly don't know if it's doable. I should note that if you relocate the box trimming would be very minimal. I am also not running a body lift at all so a body lift might help a bit as well.

Unner said:
Sweet!

Could I get the height of the winch to the highest point that isn't the solenoid box? I assume this would be to the clutch lever most likely.

Could I also get the height of the winch if you were to draw an imaginary line straight up from the rear bolt holes?

And the height in the center of the winch that is in line with those rear bolt holes?

I think that should give me a clearer idea of how it will fit in the bumper.
Click to expand...
Sorry for late reply, I'll get these in just a few hours after work.

I have the XRC 10 Comp and an AOR bumper - no issues.
Solenoid box is the highest point - I had to notch my grill

JayRolla said:
I never did reply to this. I know he only had to notch for the box. He had to cut a pretty hefty amount out and one of the reasons I avoided buying it. Thats with his 2" body lift. If you move the box Im sure you will be fine. Either way its a price to pay to have a winch.
Click to expand...

If it's just a little trimming I would be OK with that, I just want to try and maintain a clean look up front.

Mr.Rick said:
I have this exact pairing and I had to trim my grill. Its not a huge issue to me as I planned to anyway but if you are wanting to keep the grill in tact you will need to get a little creative on it. I honestly don't know if it's doable. I should note that if you relocate the box trimming would be very minimal. I am also not running a body lift at all so a body lift might help a bit as well.
Click to expand...

Would you be able to post up a pic showing what had to be trimmed? That would be great if you could.

Konkordmusk said:
Sorry for late reply, I'll get these in just a few hours after work.
Click to expand...

No worries, thanks!

kregg said:
I have the XRC 10 Comp and an AOR bumper - no issues.
Solenoid box is the highest point - I had to notch my grill
Click to expand...

kregg said:
_DSC0510 by Chris Hallmark, on Flickr
Click to expand...

Interesting. I wonder if the tube bumper has a different mounting point for the winch or something?

I got a Badlands 12k winch (more than I needed/wanted, but it was essentially free, so...) that fits snugly against my grill. I relocated the solenoid pack, cause it wouldn't have fit otherwise. Not sure if that really helps ya, but maybe?
