LionsDen2100
New member
ARB Compressor, Winches, Wheels, Hi-Lift Eastern NC
ARBs are sold

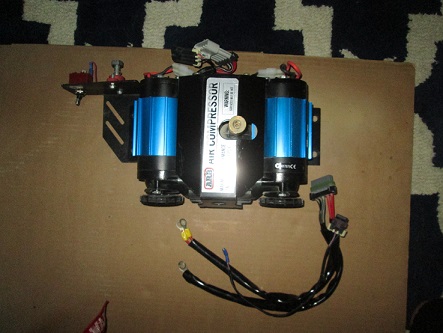

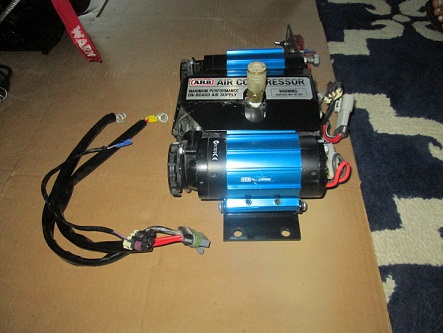

ARB:I have three ARB compressors for sell. No use time, only mounted.
They will come with the quick connect air chuck, wiring harness and custom fabbed mounting plate with switch installed. This is a great deal. Looking to get $390 a piece or $1000 for all three.
Providing optimum power, the twin motor design will deliver superior air flow for fast inflation purposes and comes with all the necessary hardware required. Constructed of lightweight, high strength engineering grade materials, it incorporates quality components for quiet operation and extended durability.
Features:
High flow, twin motor, dual cylinder, 12V DC air compressor
Designed for inflating tyres and air locker activation when used in conjunction with optional accessories
Suitable for many air tools when used in conjunction with optional air tank kit
100% duty cycle
Sealed for moisture and dust resistance
Hard anodised cylinder bores for reduced friction
Teflon impregnated carbon fibre piston seals for maximum trouble free life
Anodised mounting bracket dissipates heat
Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
Quality components for quiet operation and extra long life
Constructed of lightweight, high strength engineering grade materials
Over-pressure safety valve equipped
Motors are internally thermal protected against extreme heat damage
Full wiring loom included for simplified installation and plug-in connectivity to Air Locker control solenoids
Heavy duty in-line maxi fuse for each motor provides professional circuit protection
Options available separately: Tyre inflation hose kit
Air tank kit
Air Locker solenoid manifold kit
WARN:
I have three warn winches:

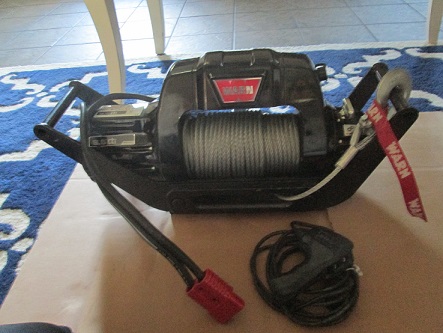

-WARN 9500 CTi Thermometric with multi-mount plate, cable and remote - $950 OBO

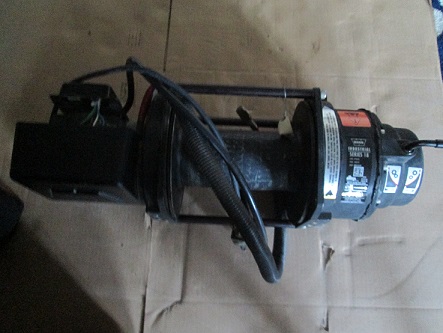

-WARN Industrial 18000 with remote, no cable $1000 OBO

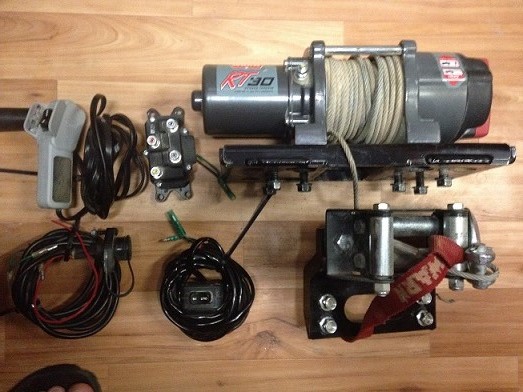

-WARN RT 30 ATV/UTV with all accessories $250 OBO
WARN 9.5cti Multi-Mount
Ultimate performance, thermometric winch
The 9.5cti is the newest addition to the WARN Ultimate Performance winch lineup. A massive protective structure combined with sophisticated operator feedback delivers fast line speeds, and long duty cycles. The perfect winch for the serious off-roader. •Massive protective structure combined with sophisticated operator feedback
•Contactor control features exceptional durability, extra long life, and superior weather sealing
•Series Wound motor and 3-stage planetary gear train deliver 9,500 lbs. of pulling capacity, fast line speeds, and long duty cycles
•Extreme duty winch sealing system
•Motor-mounted thermal sensor relays temperature information to winch operator by way of the hand-held remote control with LED indicator
•Remote control with thermometric indicator light
•High gloss, chip-resistant black powder coat finish over a massive cast-aluminum alloy housing
•Includes 9.5cti winch, multi-mount carrier, and quick connect wiring for front of vehicle. Winch comes with 125 ft. of 5/16" wire rope, hook, remote control on 12' lead, and hawse fairlead
9.5cti MULTI-MOUNT SPECS
Winch model: 9.5cti Multi-Mount
Part number: PN 85760 (9.5cti Multi-Mount with wire rope)
Rated line pull: 9,500 lbs., (4310 kgs.) single-line
Motor: Series Wound
Electrical controls: Contactor
Remote Control: Remote switch, LED indicator, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 156:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic mechanical cone brake
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Wire rope: 125', 5/16"diameter (38m, 8mm diam.)
Fairlead: Hawse
Finish: High-gloss powder coat over primer undercoating
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Series 18 DC
Heavy Pulling Power of up to 18,000 lbf. (single line)
•Dependable high-torque series-wound 24V DC electric motor
•Weatherproof industrial contactor control pack
•Rugged 32' (10 m) industrial remote control
•Disc brake designed for extended power-out use
•Thermal overload switch protects motor from overheating
•Wire rope, roller fairlead, and tensioner sold separately
18 DC SPECS/PART NUMBERS
Part Number: 72005 - 24 Volt
Rated Pulling Force: 18000 lbf (8165 kgf)
Drum Barrel Diameter: 4.0 in (102 mm)
Drum Flange Diameter: 8.24 in (209 mm)
Distance Between Flanges: 9.95 in (253 mm)
Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)
Recommended Minimum Wire Rope Breaking Strength: 26600 lbf (12066 kgf)
Approximate Shipping Weight: 103.0 lbs (46.7 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 40 ft (12.2 m)
Mounting Bolt Torque: 35 - 40 ft*lbf (47 - 54 N*m)
Maximum Layers of Wire Rope: 3 (with 1/2" dia. rope)
Gear Reduction: 315:1
Brake Type: Disk
Contactor / Remote Type: Industrial contactor with 33' (10m) heavy duty remote
Standards Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC

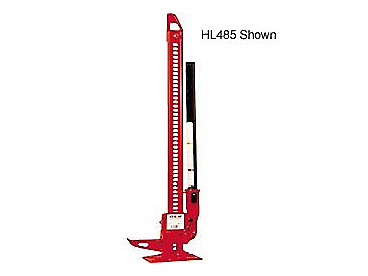

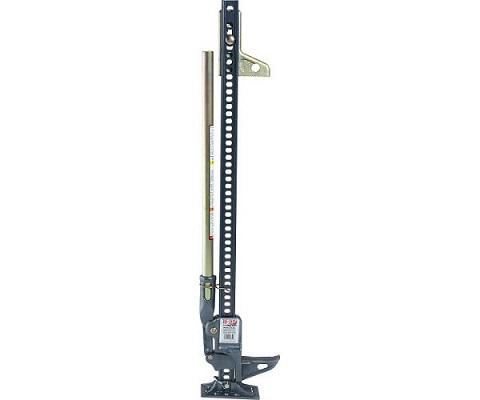

Two Hi-Lift Jacks never used:
-One Extreme $80
-One all cast $60

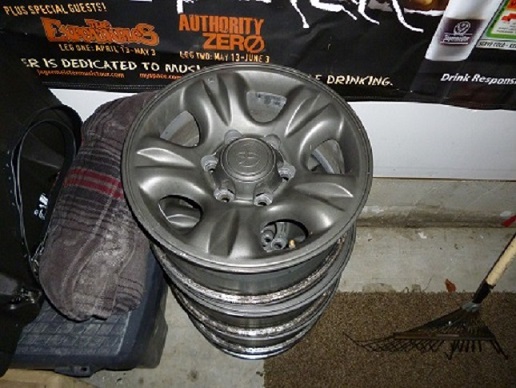

Four 2002 4runner Sport wheels, great shape powder coated metallic gray $150
ARBs are sold
ARB:I have three ARB compressors for sell. No use time, only mounted.
They will come with the quick connect air chuck, wiring harness and custom fabbed mounting plate with switch installed. This is a great deal. Looking to get $390 a piece or $1000 for all three.
Providing optimum power, the twin motor design will deliver superior air flow for fast inflation purposes and comes with all the necessary hardware required. Constructed of lightweight, high strength engineering grade materials, it incorporates quality components for quiet operation and extended durability.
Features:
High flow, twin motor, dual cylinder, 12V DC air compressor
Designed for inflating tyres and air locker activation when used in conjunction with optional accessories
Suitable for many air tools when used in conjunction with optional air tank kit
100% duty cycle
Sealed for moisture and dust resistance
Hard anodised cylinder bores for reduced friction
Teflon impregnated carbon fibre piston seals for maximum trouble free life
Anodised mounting bracket dissipates heat
Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
Quality components for quiet operation and extra long life
Constructed of lightweight, high strength engineering grade materials
Over-pressure safety valve equipped
Motors are internally thermal protected against extreme heat damage
Full wiring loom included for simplified installation and plug-in connectivity to Air Locker control solenoids
Heavy duty in-line maxi fuse for each motor provides professional circuit protection
Options available separately: Tyre inflation hose kit
Air tank kit
Air Locker solenoid manifold kit
WARN:
I have three warn winches:
-WARN 9500 CTi Thermometric with multi-mount plate, cable and remote - $950 OBO
-WARN Industrial 18000 with remote, no cable $1000 OBO
-WARN RT 30 ATV/UTV with all accessories $250 OBO
WARN 9.5cti Multi-Mount
Ultimate performance, thermometric winch
The 9.5cti is the newest addition to the WARN Ultimate Performance winch lineup. A massive protective structure combined with sophisticated operator feedback delivers fast line speeds, and long duty cycles. The perfect winch for the serious off-roader. •Massive protective structure combined with sophisticated operator feedback
•Contactor control features exceptional durability, extra long life, and superior weather sealing
•Series Wound motor and 3-stage planetary gear train deliver 9,500 lbs. of pulling capacity, fast line speeds, and long duty cycles
•Extreme duty winch sealing system
•Motor-mounted thermal sensor relays temperature information to winch operator by way of the hand-held remote control with LED indicator
•Remote control with thermometric indicator light
•High gloss, chip-resistant black powder coat finish over a massive cast-aluminum alloy housing
•Includes 9.5cti winch, multi-mount carrier, and quick connect wiring for front of vehicle. Winch comes with 125 ft. of 5/16" wire rope, hook, remote control on 12' lead, and hawse fairlead
9.5cti MULTI-MOUNT SPECS
Winch model: 9.5cti Multi-Mount
Part number: PN 85760 (9.5cti Multi-Mount with wire rope)
Rated line pull: 9,500 lbs., (4310 kgs.) single-line
Motor: Series Wound
Electrical controls: Contactor
Remote Control: Remote switch, LED indicator, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 156:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic mechanical cone brake
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Wire rope: 125', 5/16"diameter (38m, 8mm diam.)
Fairlead: Hawse
Finish: High-gloss powder coat over primer undercoating
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Series 18 DC
Heavy Pulling Power of up to 18,000 lbf. (single line)
•Dependable high-torque series-wound 24V DC electric motor
•Weatherproof industrial contactor control pack
•Rugged 32' (10 m) industrial remote control
•Disc brake designed for extended power-out use
•Thermal overload switch protects motor from overheating
•Wire rope, roller fairlead, and tensioner sold separately
18 DC SPECS/PART NUMBERS
Part Number: 72005 - 24 Volt
Rated Pulling Force: 18000 lbf (8165 kgf)
Drum Barrel Diameter: 4.0 in (102 mm)
Drum Flange Diameter: 8.24 in (209 mm)
Distance Between Flanges: 9.95 in (253 mm)
Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)
Recommended Minimum Wire Rope Breaking Strength: 26600 lbf (12066 kgf)
Approximate Shipping Weight: 103.0 lbs (46.7 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 40 ft (12.2 m)
Mounting Bolt Torque: 35 - 40 ft*lbf (47 - 54 N*m)
Maximum Layers of Wire Rope: 3 (with 1/2" dia. rope)
Gear Reduction: 315:1
Brake Type: Disk
Contactor / Remote Type: Industrial contactor with 33' (10m) heavy duty remote
Standards Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC
Two Hi-Lift Jacks never used:
-One Extreme $80
-One all cast $60
Four 2002 4runner Sport wheels, great shape powder coated metallic gray $150
Attachments
![hl705[1].jpg](/data/attachments/112/112439-21ee7ecfe7e77187c15e200fa44d8460.jpg?hash=g3VpBXMvHH)
![J12779[1].jpg](/data/attachments/112/112442-48e746a5eb72fa9045f3ab86955262cb.jpg?hash=frO-ZM-Zwo)
