Belt diagram for 2002 4runner?

[dat5574]

Can someone help with a drive belt diagram for a 2002 4runner 3.4 V6?

I want to adjust the tension on the belts due to a chirpping sound to see if that fixes it. Specificially, I think it's the one closest to the ground. I'm guessing I'd have to take off the skid plate to get to it easier from below.

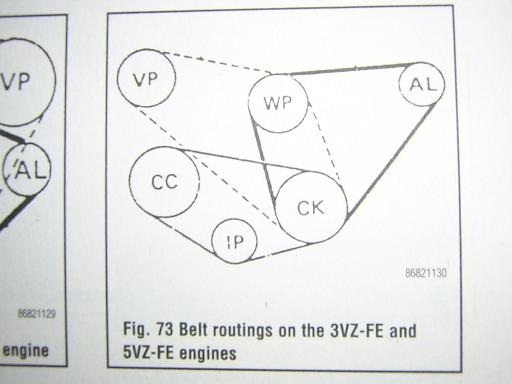

Attached is a photo I found from another post. From my research this engine would be the 5VZ-FE shown. However I'm trying to figure out the rest....

WP – Water Pump
AL – Alternator
IP – Idler pulley
VP – ?
CC – ?
CK – Crankshaft?

Also, which component above adjusts the tension on each belt?

Just starting to do as much as I can myself...thanks for any help. Dave.



[cfranck1]

Can someone help with a drive belt diagram for a 2002 4runner 3.4 V6?

I want to adjust the tension on the belts due to a chirpping sound to see if that fixes it. Specificially, I think it's the one closest to the ground. I'm guessing I'd have to take off the skid plate to get to it easier from below.

Attached is a photo I found from another post. From my research this engine would be the 5VZ-FE shown. However I'm trying to figure out the rest....

WP – Water Pump
AL – Alternator
IP – Idler pulley
VP – ?
CC – ?
CK – Crankshaft?

Also, which component above adjusts the tension on each belt?

Just starting to do as much as I can myself...thanks for any help. Dave.

Yes
CK = Crankshaft
CC = is A/C Compressor
and VP = P/S pump. Toyota calls it a "V"ane "P"ump?

The Alt has its own adjuster.
The P/S has and idler pulley you can adjust and the so does the A/C compressor.

I included a few pictures for reference of the adjusters..



[Acidmeld]

CC would be Compressor Clutch to be over technical...
