Big shout out to Bandit Runner...bumper design!

[owyheerat]

For anyone considering a rear bumper, I can highly recommend 'Bandit Runner' bumper design. I purchased his rear bumper plan with dual swing outs, and consider it money very well spent. The time and effort he poured into his design, saved me countless hours and headaches. Also, he is very easy to work with, and answered all my questions in a very timely manner. My biggest concern with the swing outs, was that they were quiet and secure. The bumper has been installed for a little over a month and I can testify that they are both, quiet and secure. No rattles, squeakes or vibrations.

This was my first fab project, and the step by step instructions with drawings, made the process go very smooth. Even for a novice. Thanks, [MENTION=55891]Bandit Runner[/MENTION]

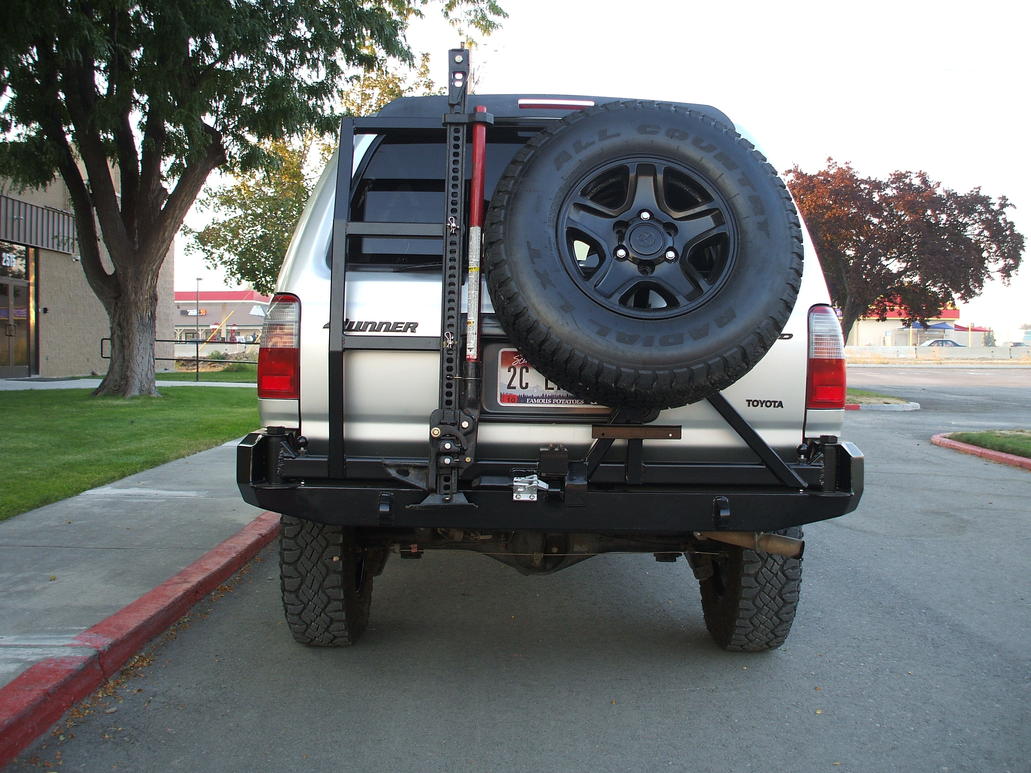

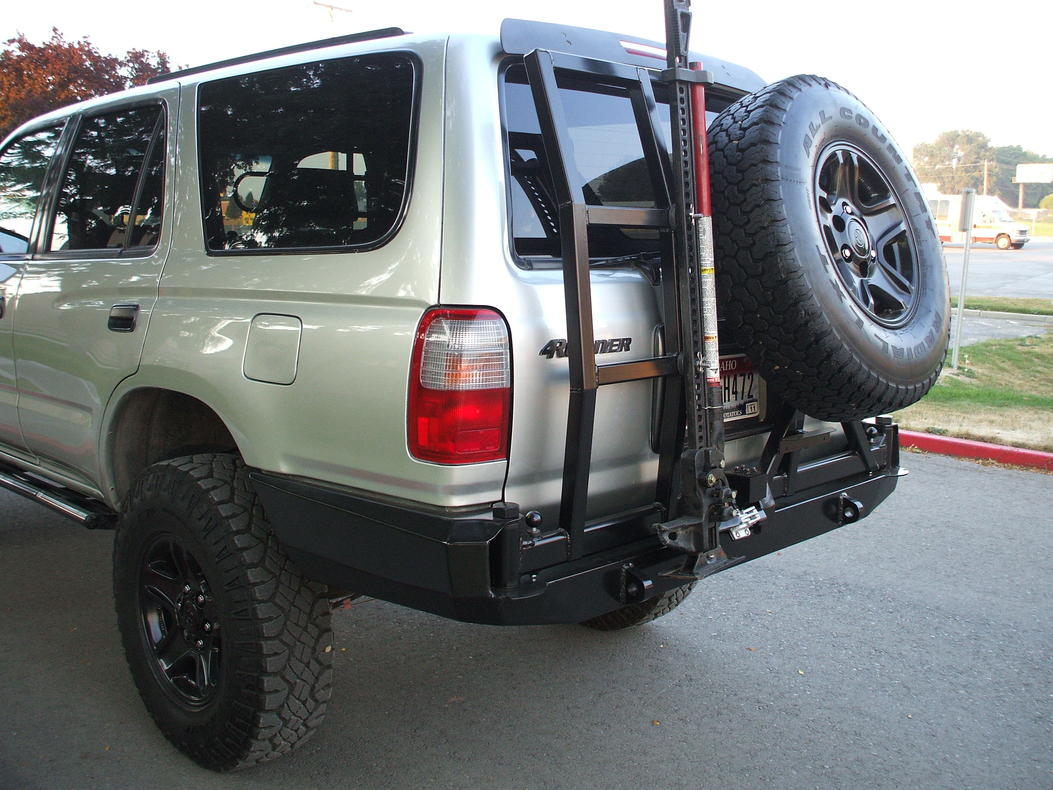

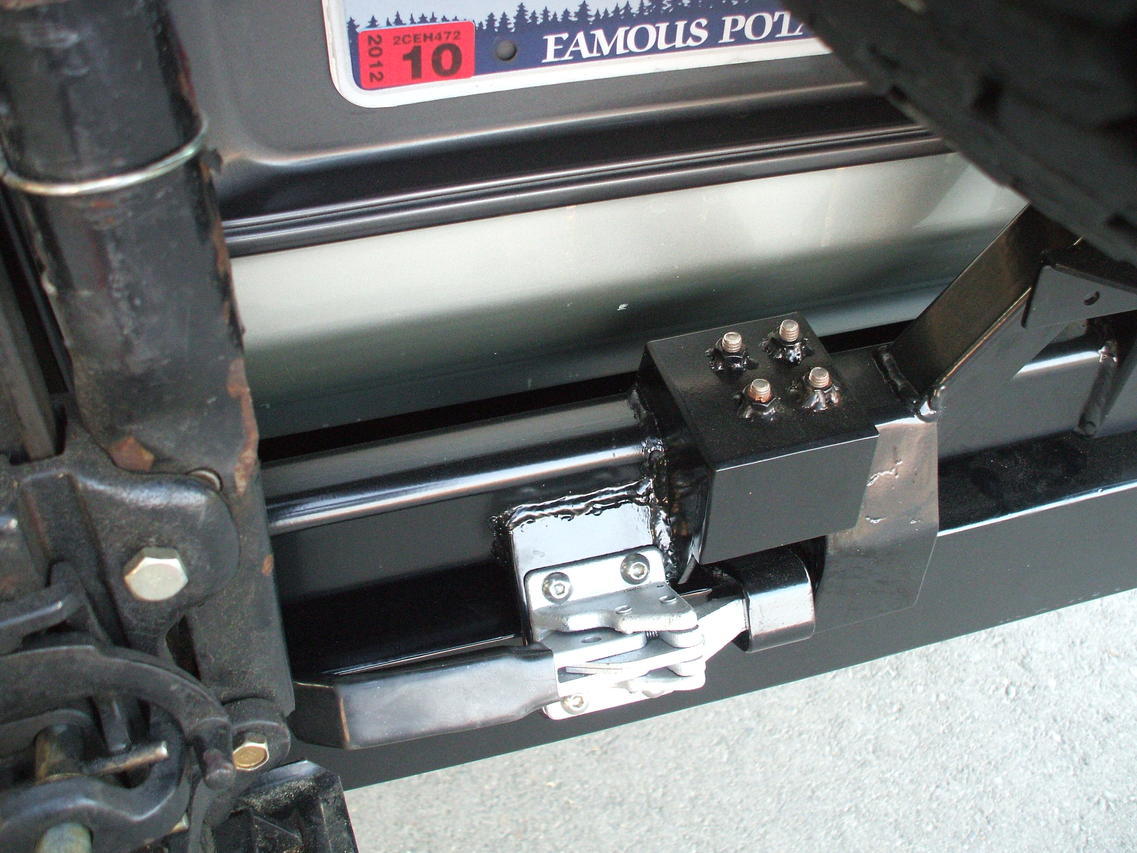

Here are few pics.



[SlayTank]

Awesome man thats real slick



[SlayTank]

What thickness square tubing is that? Looks good you did a good job



[owyheerat]

What thickness square tubing is that? Looks good you did a good job

Thanks. 1 1/2" x 1 1/2" x 3/16" wall tubing. Bumper is all 3/16", except for frame mount brackets and main bumper frame are 1/4" thick.



[CdaleR4000si]

That looks great! You really did a nice job!



[HiLife]

Im liking the design of it. Good job!



[Red October]

That looks awesome! :guitar3:



[SFsquared]

Looks like you've found your calling



[owyheerat]

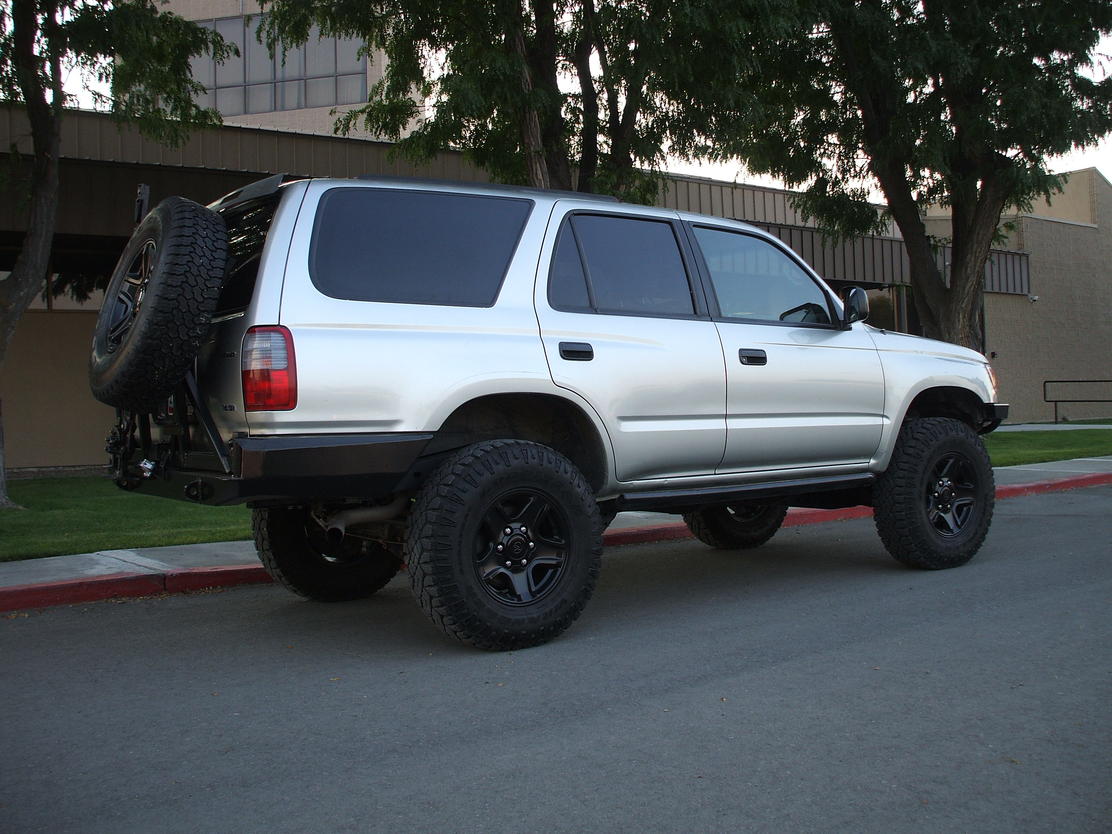

Some more pics

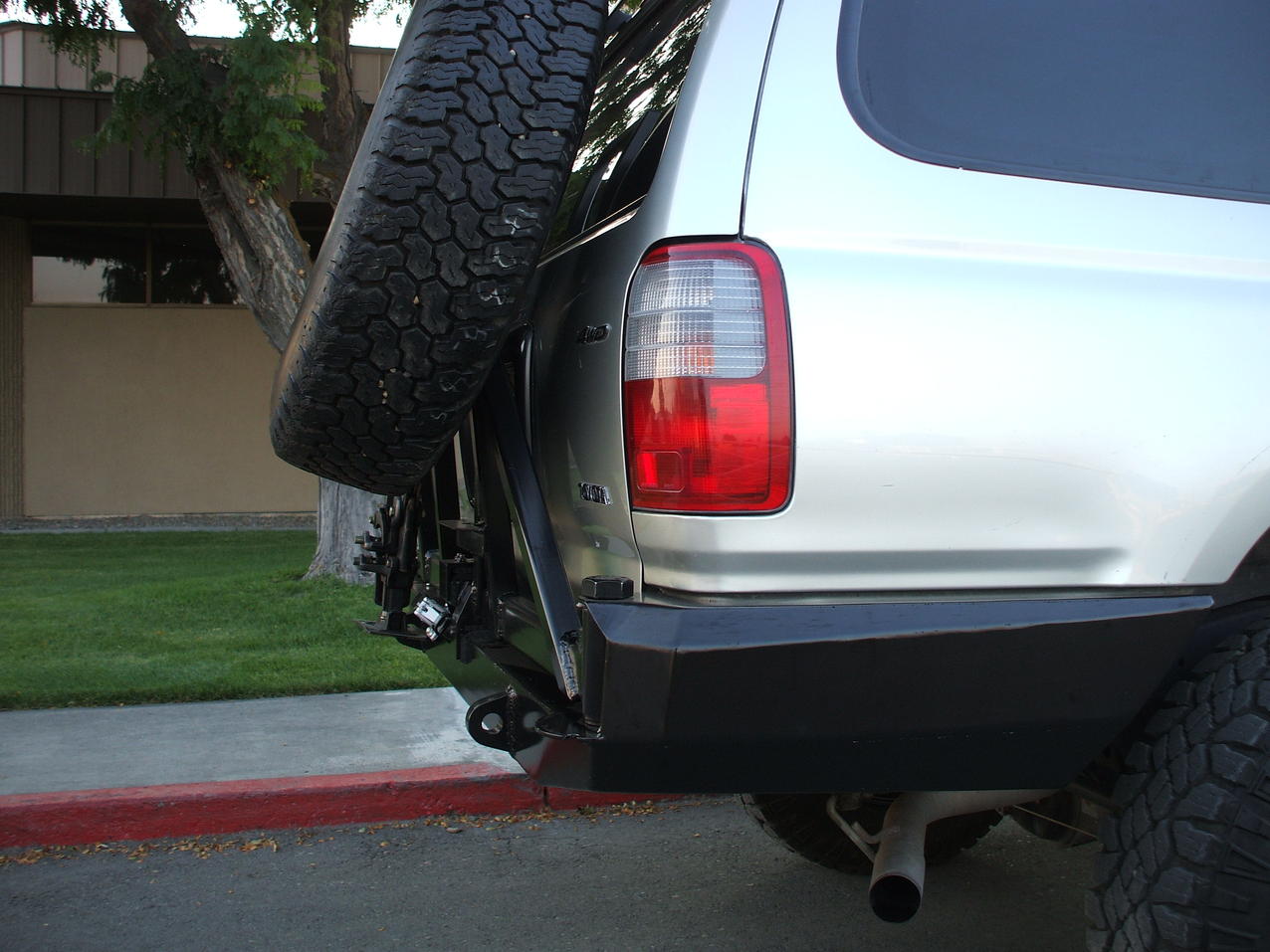

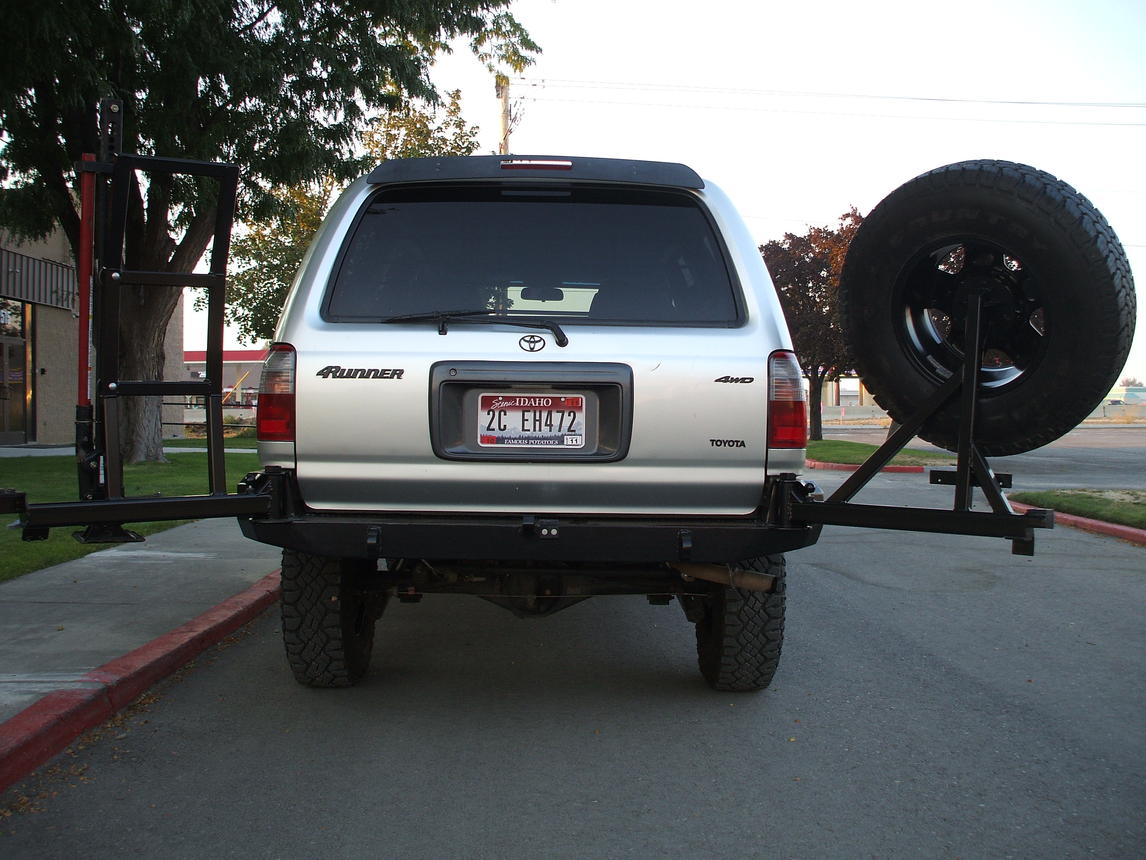

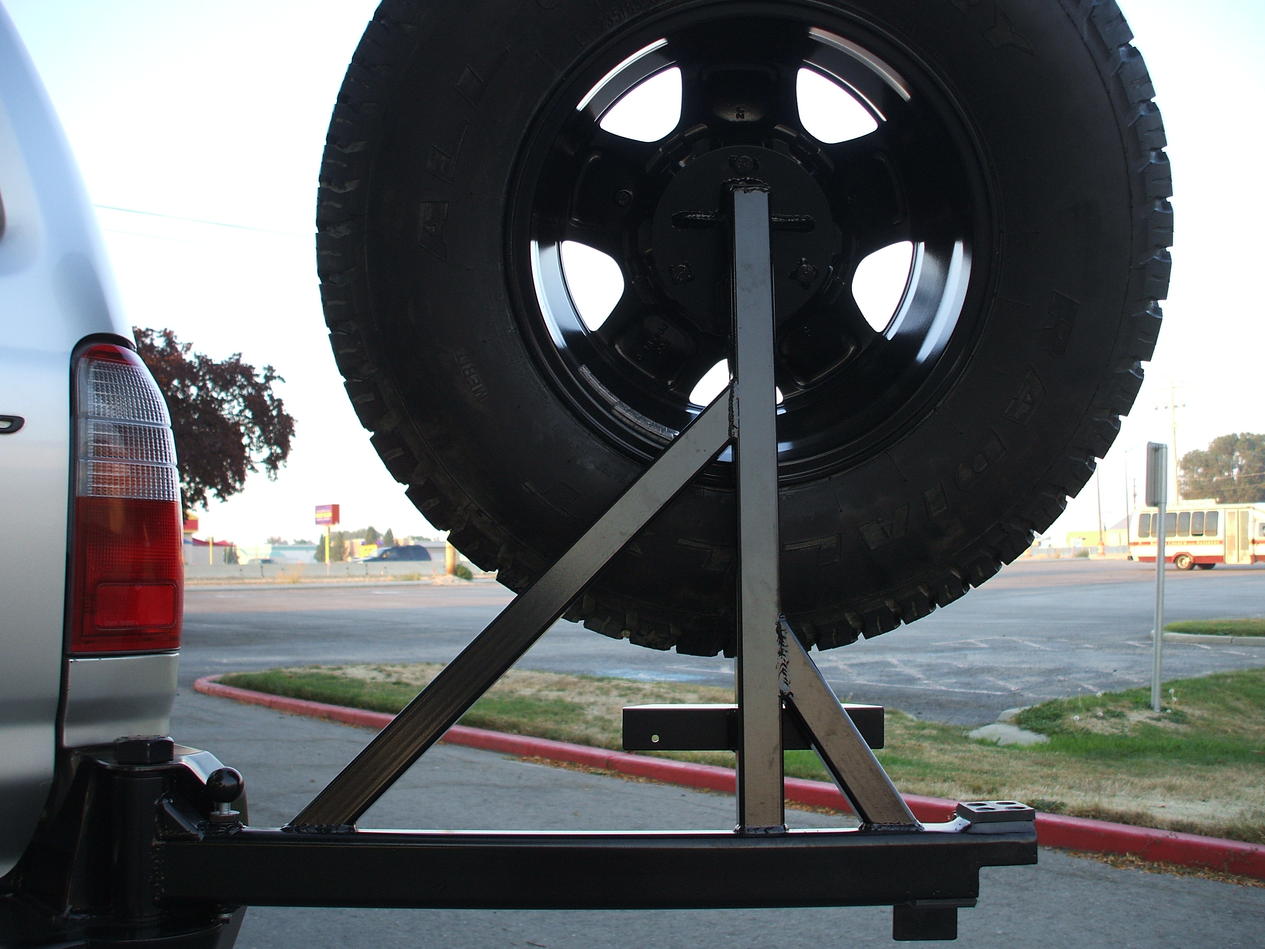

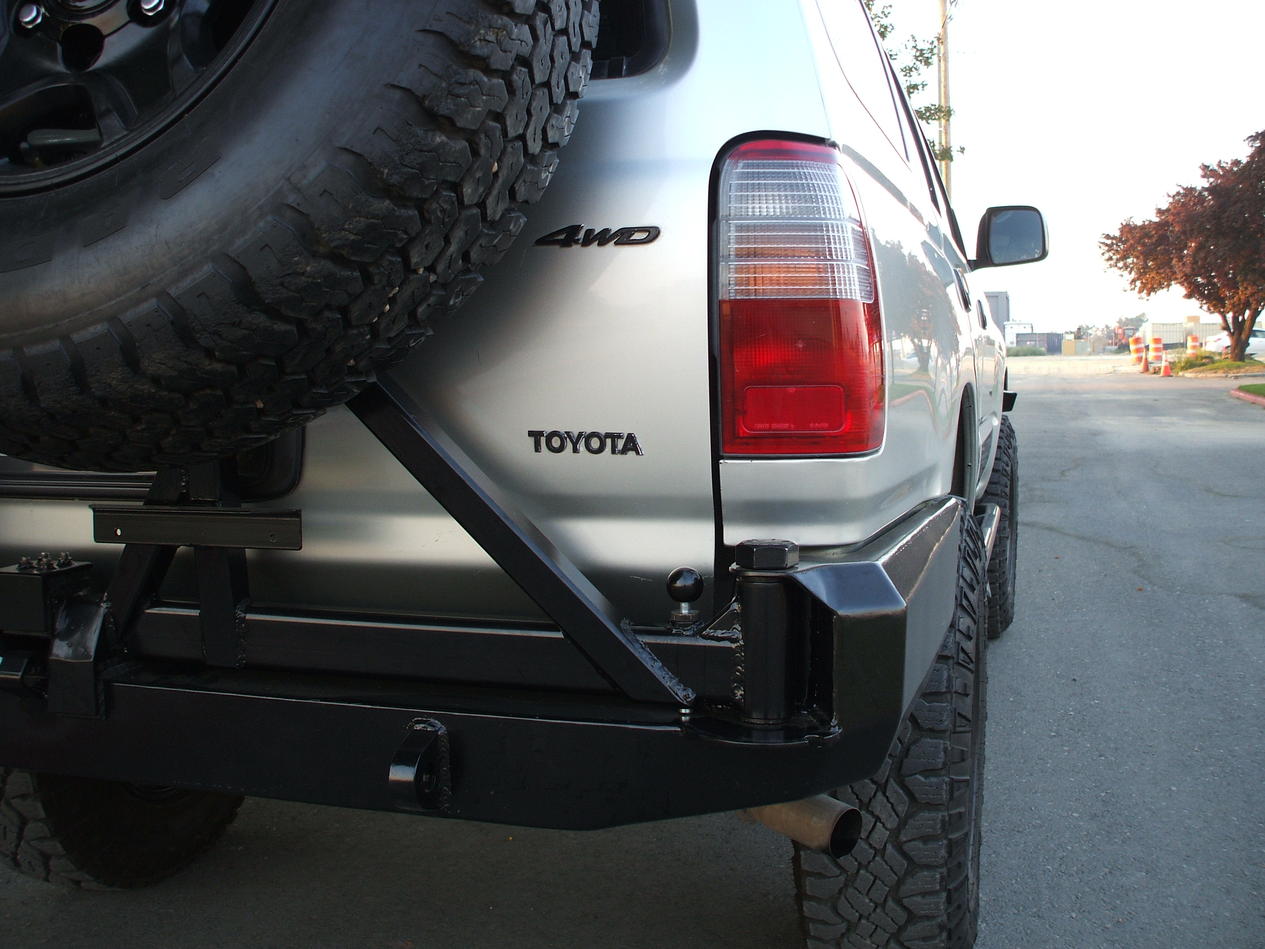

Here are a few more pics of the finished bumper.


I did all the welding myself, and there is a lot of room for improvement, but overall I am very happy with the outcome. Fortunately for me, I have a generous bro-in-law with a very well equipped shop. He let me use his shop and all its tools for this build.



[owyheerat]

That looks great! You really did a nice job!

Thanks. It was a very fun project.

Im liking the design of it. Good job!

Thanks. I can't take any credit for the design. That praise goes to Bandit Runner.

That looks awesome! :guitar3:

Thanks Red. The lil 2.7l is getting heavy :loco:

Looks like you've found your calling

Ha ha, I would starve to death. I have too much time into it. Thanks for the kind words though.



[Bandit Runner]

Man, that turned out fantastic! Did you get it powder coated?



[BigFishAllDay]

Thanks. 1 1/2" x 1 1/2" x 3/16" wall tubing. Bumper is all 3/16", except for frame mount brackets and main bumper frame are 1/4" thick.

Dang... I bet that sucker is heavy.

Great work on the fabrication! That's a pretty complicated build, and I can imagine the time you must have into it.

I'm also impressed with the fact that Bandit can put together a set of plans and instructions that a guy halfway across the country can interpret well enough to build something that intricate from scratch. I'm sure that a great set of instructions is a game changer on a project like that.



[owyheerat]

Man, that turned out fantastic! Did you get it powder coated?

Thanks so much. There are some flaws in my welds if you look close, but I have a great sense of accomplishment. Yes, I had it powdercoated.

Dang... I bet that sucker is heavy.

Great work on the fabrication! That's a pretty complicated build, and I can imagine the time you must have into it.

I'm also impressed with the fact that Bandit can put together a set of plans and instructions that a guy halfway across the country can interpret well enough to build something that intricate from scratch. I'm sure that a great set of instructions is a game changer on a project like that.

Thanks BFAD. Means a lot coming from you. 'I found the one' has been a great inspriration to me, and one of my fav's on here.
IIR, BR said the 3/16" added about 15lbs total, versus using 1/8'. I don't really have a way to weigh it (@Bandit Runner may chime in), but guess the whole thing weighs 115 -120lbs. The fact that it doesn't vibrate and is quiet, is worth the extra weight to me.



[KainDrag]

Damn I really need to get myself into welding, this amount of shit people have created on here is crazy. What kind of welder do you have?



[owyheerat]

Damn I really need to get myself into welding, this amount of shit people have created on here is crazy. What kind of welder do you have?

Do it! I borrowed my bro-in law's Miller 210 mig welder. Very rewarding.



[KainDrag]

Do it! I borrowed my bro-in law's Miller 210 mig welder. Very rewarding.

That's a pretty expensive mig welder haha for starting out, are those tubes steel?



[7echo]

nice job man.

did you plasma torch the parts from plate or get it water jet cut, or how?



[Kryptoroxx]

You got lucky with a great welder to borrow man. That's my dream welder right there.

I am content with my hobart 140 though.

Bumper looks fantastic btw. Excellent and interesting design credit to [MENTION=55891]Bandit Runner[/MENTION].....and good job fabricating it [MENTION=102168]owyheerat[/MENTION]!



[owyheerat]

That's a pretty expensive mig welder haha for starting out, are those tubes steel?

Yes I'm lucky. He has a shop full of nice tools. Yes all steel. I don't know the first thing about welding aluminum.

nice job man.

did you plasma torch the parts from plate or get it water jet cut, or how?

Thanks man. I had a local steel supply co. cut all the flat stock on their plasma table. Very accurate, well worth the little extra cost. That is also another advantage to buying plans from BR, he provides a DXF file for every 'flat' part. So all I had to do is send the files to steel co. and they send that dirrectly to CNC plasma table. No mis-cut or incorrectly sized parts...all were perfect.

You got lucky with a great welder to borrow man. That's my dream welder right there

I am content with my hobart 140 though.

Bumper looks fantastic btw. Excellent and interesting design credit to [MENTION=55891]Bandit Runner[/MENTION].....and good job fabricating it [MENTION=102168]owyheerat[/MENTION]!

Thanks Krypto. Yes I know, I'm spoiled now. Good tools make the job soooo much easier.



[hounddogman]

Looks good man. A very nice looking 4Runner all
around . How much $ do you think you have invested ( besides your own valuable labor ) ? By the way, love your choice of tire size ( 235/85R16 ).
