Custom Garmin GPS mount

[Kmvreter]

I finally got around to making a custom mount for the GPS because the OEM suction cup would usually let go from the dash location (under the hazard button.)

I went through several iterations to come up with the final product. It's still not perfect because it wants to pull down and back. It may be possible to do this without the scrap steel and magnets, relying on just the bent tab to hold it, but I'm done with it because it's close enough.

The materials required are:

Glue.
A 2x2" piece of scrap steel.
Thin cardboard and a pen (to make a template.)
A piece of custom sheet metal (local shop.)
Paint.
Strong magnets (Home Depot.)
Felt protector pads.
Krazy Glue.
A spare suction mount (Arkon brand from Ebay; cheaper and better than Garmin's.)

Start by taking the dash trim apart (search other threads for a link on how to do this.)
Glue the scrap steel to the back of the trim at the proper location.
Reinstall trim.
(Sorry, no pics of these steps.)

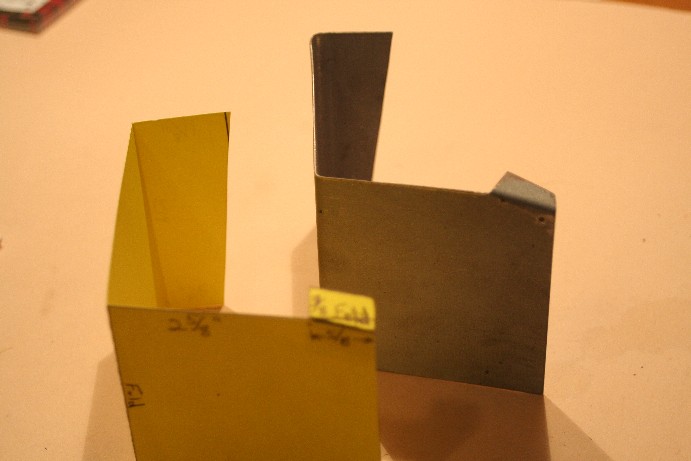

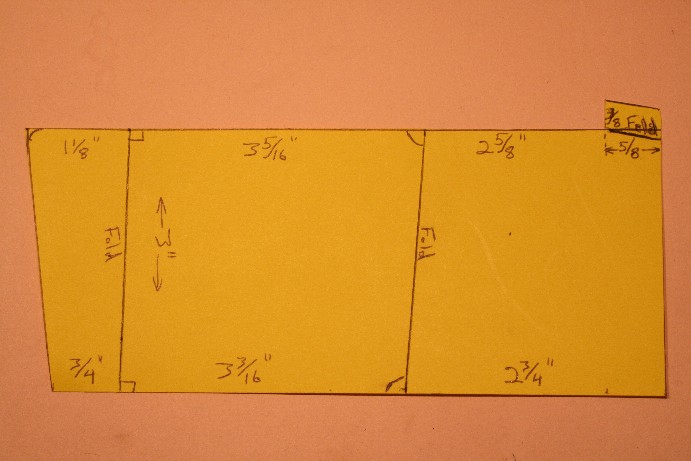

Make a template for the sheet metal:



[Kmvreter]

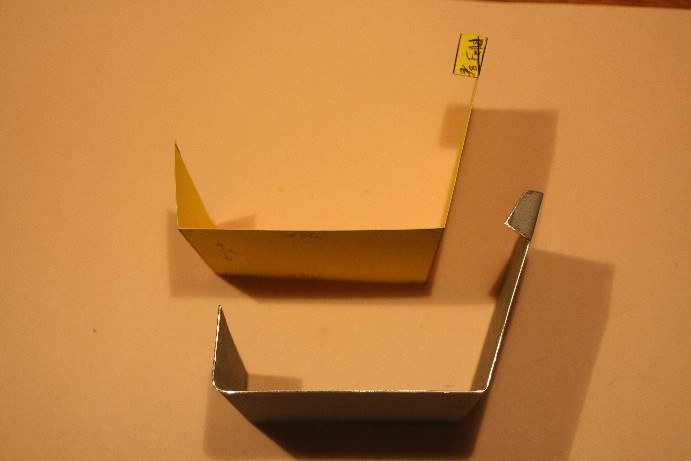

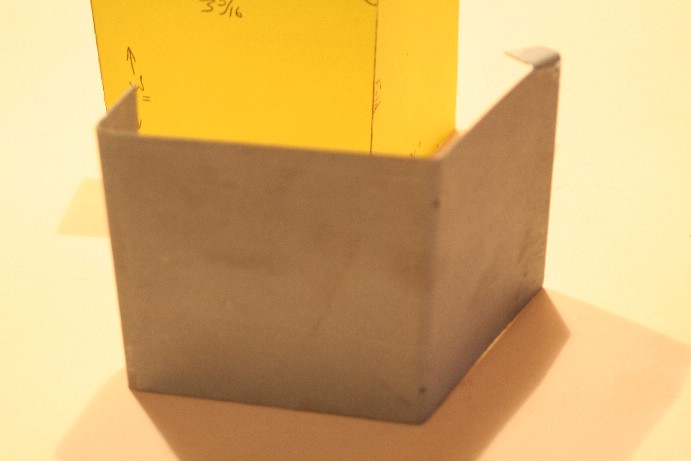

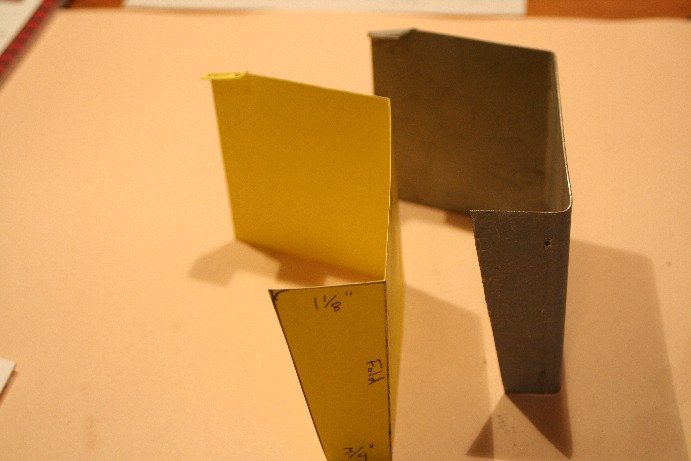

Have a local shop cut a piece of sheet metal and bend the folds.
(The left fold is a 90deg. The right fold is more open.)
Grind off the sharps and round out the corners.



[Kmvreter]

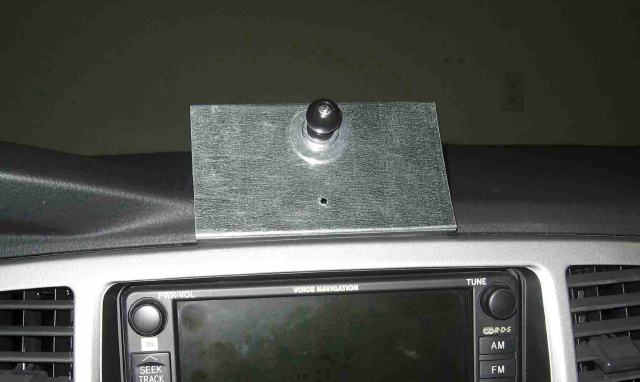

Top view.



[Kmvreter]

Right side view.



[Kmvreter]

Left side view.



[Kmvreter]

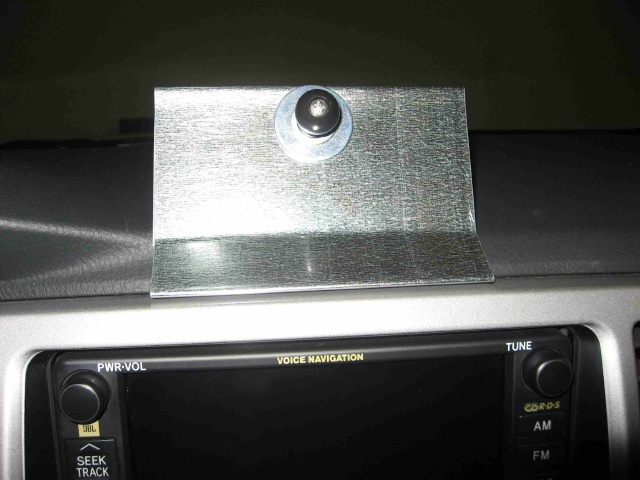

Spray paint it (couldn't find the dash trim colour.) Add magnets. Add felt protectors. Krazy glue the spare suction mount to the front (I put it at a 45deg angle to get closer to the driver.

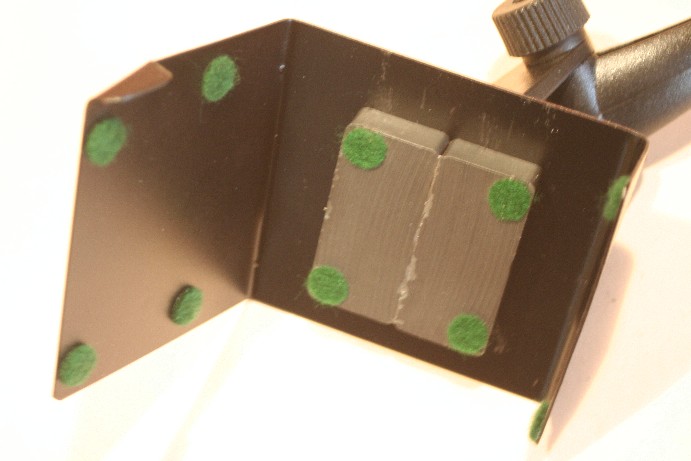

Back view.



[Kmvreter]

Voila!

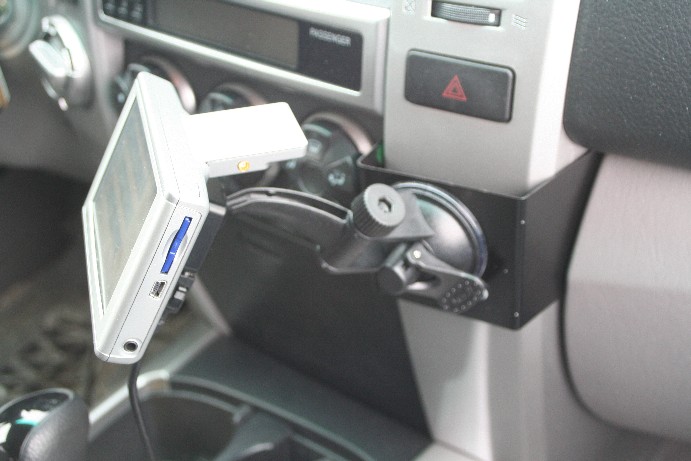

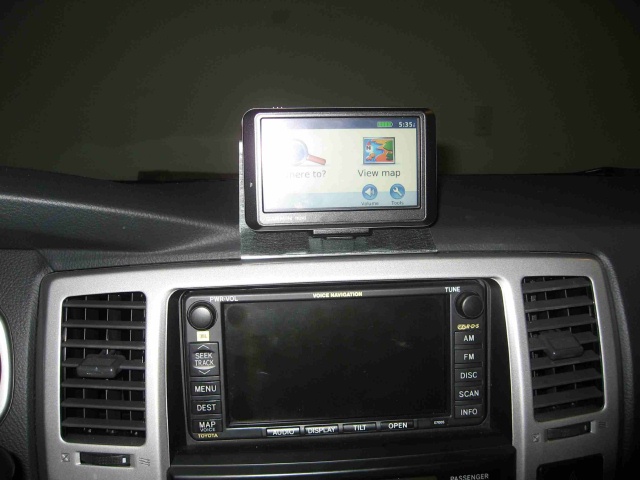

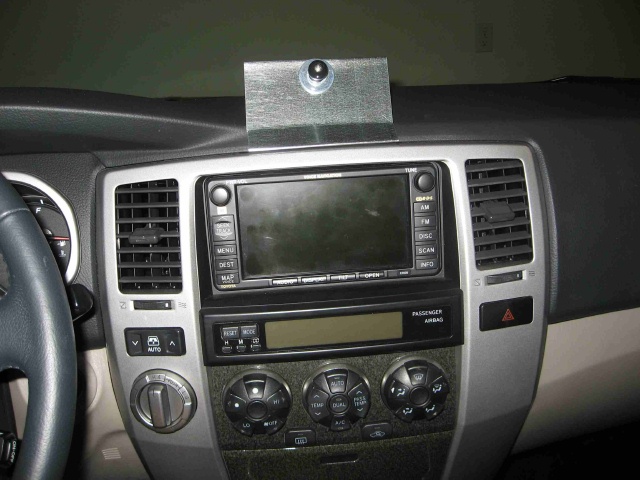

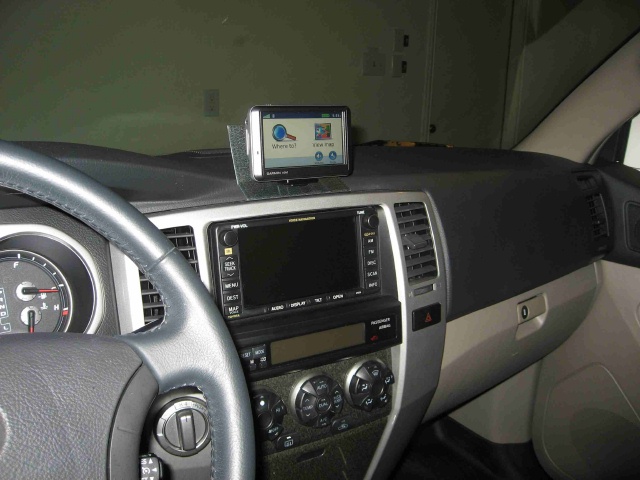

The final product in position.



[Kmvreter]

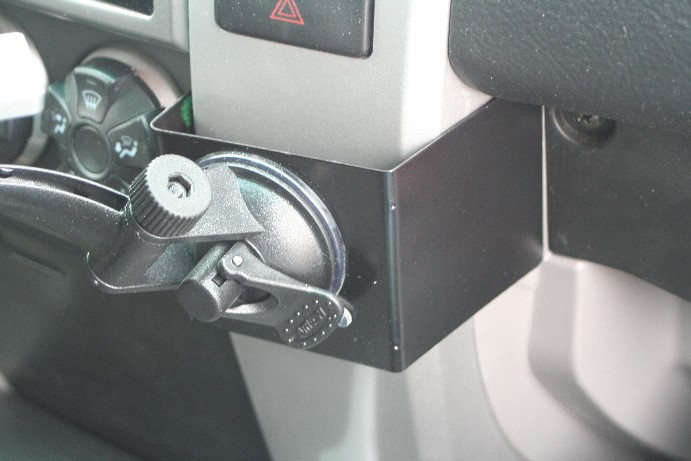

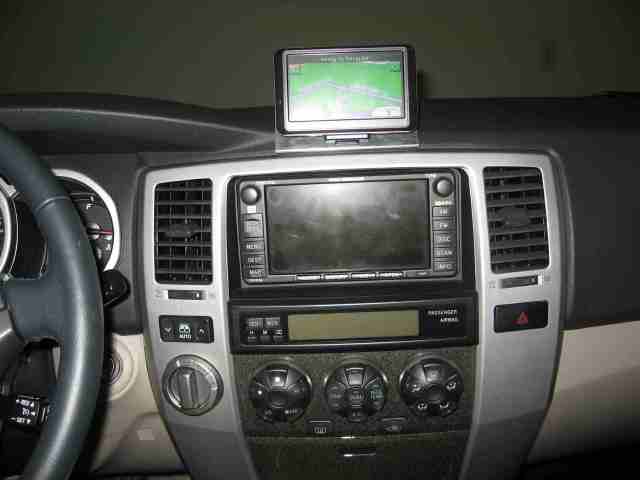

Close-up pic. The right side "tab" hangs over the small hidden opening in the trim to the left of the top corner of the glove box door. It's easy to install and remove to store in the glove box.
