Eibach Load-Leveling System - 5th Gen 4Runner

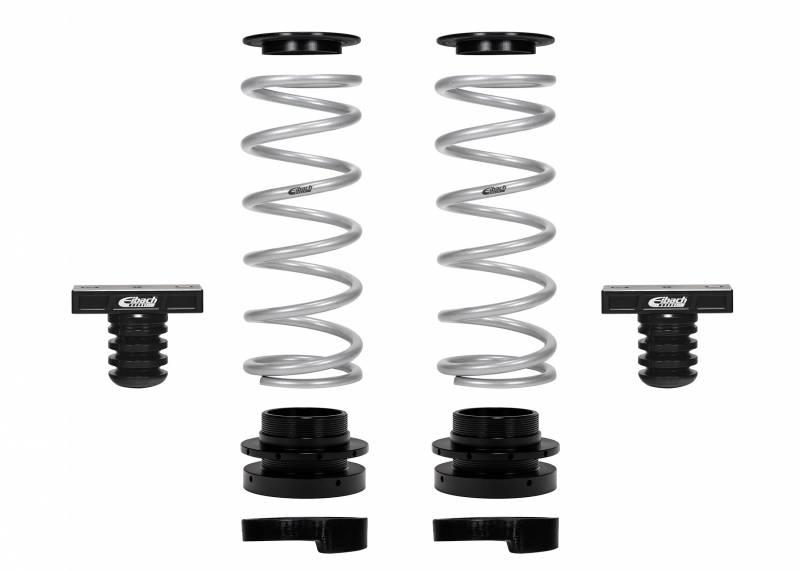

Developed for vehicles equipped with solid-axle coil spring suspension,
the Eibach Load-Leveling-System uses a combination of readily available
Eibach Race Springs, adjustable threaded spring seat and bump stops to
allow fine tuning of load capacity and ride height.
Engineered and tested for each application, the Load-Leveling-System is
available in three different load ranges to achieve up to 2.0" of lift for
maximum travel and tire clearance off-road.
Features:
The Eibach Load-Leveling-System is designed to eliminate the need for air bags, spring spacers,
or excessive spring rate to maintain ride height while carrying heavy loads.
This system allows you to run the appropriate spring rate for your vehicle while maintaining a lift
whether the vehicle is loaded or unloaded. This translates to improved ride quality and compliance,
on and off-road while maintaining necessary tire and ground clearances. In addition, readily available
Eibach Race Springs make this system adaptable as you continue to add modifications or weight to
the 5th Gen 4Runner.
Each load range had been tested to deliver up to 2.0" of rear lift while still working within range of
the Eibach PRO-TRUCK Shocks.
The Eibach LOAD-LEVELING-System is optimal for vehicles which are frequently loaded and unloaded
for towing, camping trips, or overland
expeditions.
Armor, roof-top tents, storage shelving, full size spares and tire carriers increase weight ultimately
effecting static ride height of your vehicle.
The addition of the height adjustable perch allows fine tuning of rear ride heights, keeping your
chassis clear from the trail, and tires clear from fenders.

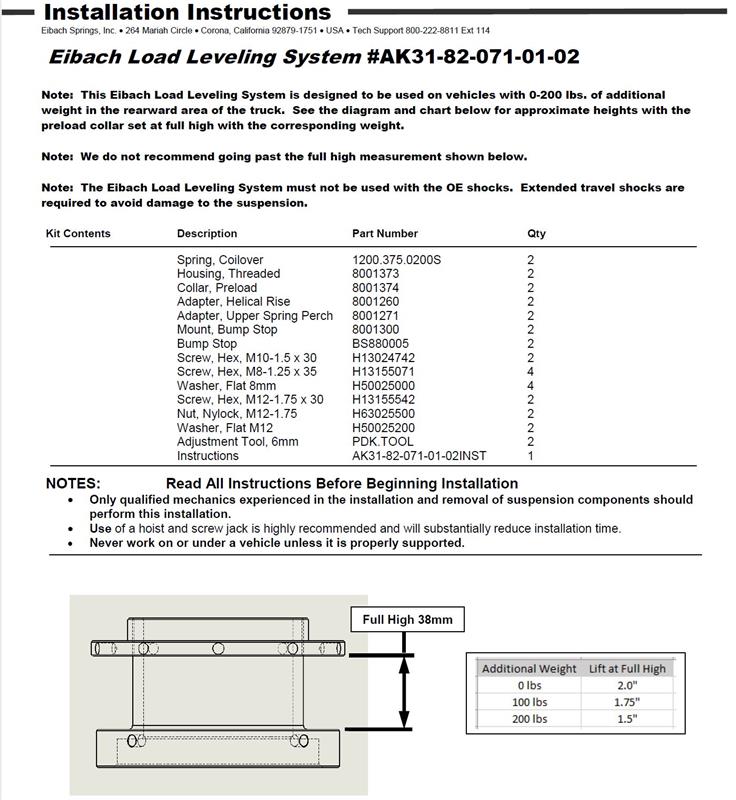

Load-Leveling Kit 200, Part #AK31-82-071-01-02
Load-Leveling Kit 200, Part #AK31-82-071-02-02
Load-Leveling Kit 200, Part #AK31-82-071-03-02
Retail: $530.83
Online: $495.00
To review all 3 kits, Click Here
_
Developed for vehicles equipped with solid-axle coil spring suspension,
the Eibach Load-Leveling-System uses a combination of readily available
Eibach Race Springs, adjustable threaded spring seat and bump stops to
allow fine tuning of load capacity and ride height.
Engineered and tested for each application, the Load-Leveling-System is
available in three different load ranges to achieve up to 2.0" of lift for
maximum travel and tire clearance off-road.
Features:

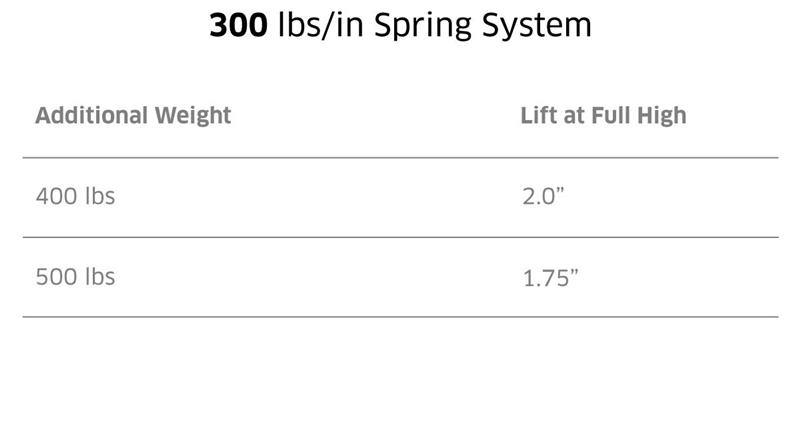

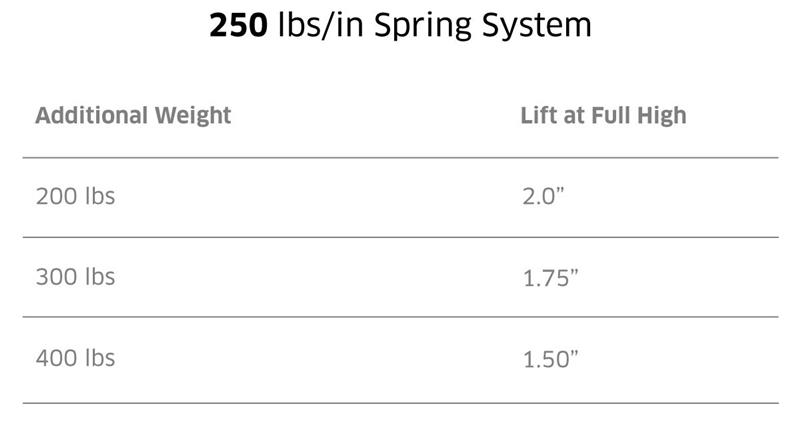

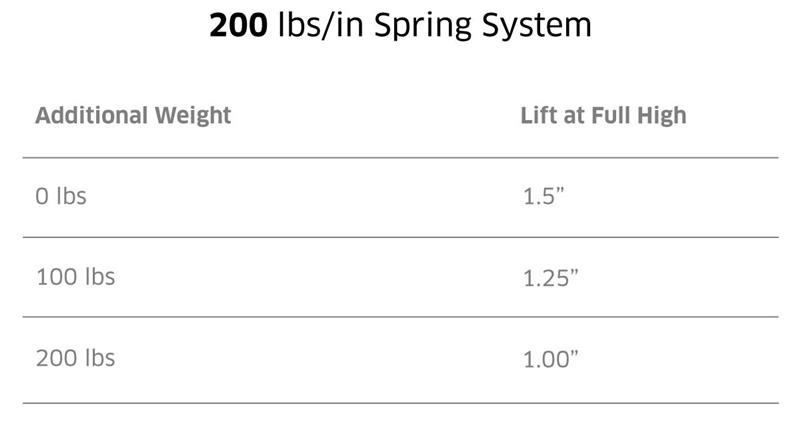

- Available in 3 load ratings: 0-200 lbs. / 200-400 lbs. / 400+ lbs.
- Eibach ERO compatible using our commonly found 3.75”ID Off-Road Race Springs
- 6061-T6 billet aluminum threaded spring seat for corrosion resistance and easy adjustment
- Hi-Durometer polyurethane spring seat isolator reduces NVH through axle
- Progressive polyurethane bump stop system improves control over large bumps
- Spring seat, bump-stop relocating adapters and hardware included for easy installation
- Made by Eibach in the USA
The Eibach Load-Leveling-System is designed to eliminate the need for air bags, spring spacers,
or excessive spring rate to maintain ride height while carrying heavy loads.
This system allows you to run the appropriate spring rate for your vehicle while maintaining a lift
whether the vehicle is loaded or unloaded. This translates to improved ride quality and compliance,
on and off-road while maintaining necessary tire and ground clearances. In addition, readily available
Eibach Race Springs make this system adaptable as you continue to add modifications or weight to
the 5th Gen 4Runner.
Each load range had been tested to deliver up to 2.0" of rear lift while still working within range of
the Eibach PRO-TRUCK Shocks.
The Eibach LOAD-LEVELING-System is optimal for vehicles which are frequently loaded and unloaded
for towing, camping trips, or overland
expeditions.
Armor, roof-top tents, storage shelving, full size spares and tire carriers increase weight ultimately
effecting static ride height of your vehicle.
The addition of the height adjustable perch allows fine tuning of rear ride heights, keeping your
chassis clear from the trail, and tires clear from fenders.
Load-Leveling Kit 200, Part #AK31-82-071-01-02
Load-Leveling Kit 200, Part #AK31-82-071-02-02
Load-Leveling Kit 200, Part #AK31-82-071-03-02
Retail: $530.83
Online: $495.00
To review all 3 kits, Click Here
_
