Expeditionary box build

[Rich84sr]

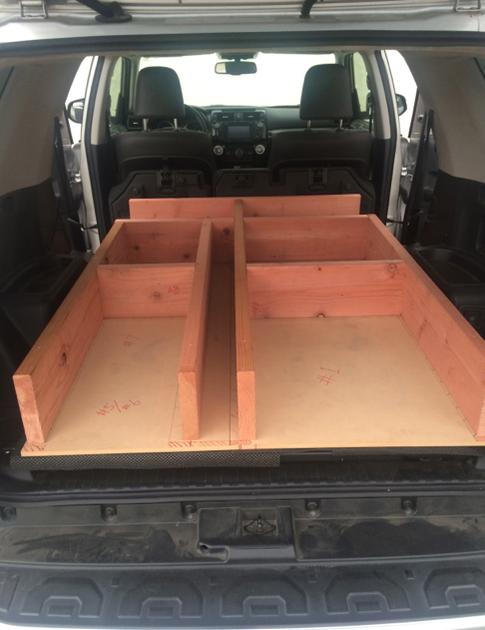

So after a while of camping in the back of my 4Runner on a old futon, I decided I wanted to go the expeditionary box route. Instead of going the custom fabricated route that costs $2500+, I decided to design and build my own.
1. I figured out what I would need and drew out a design.

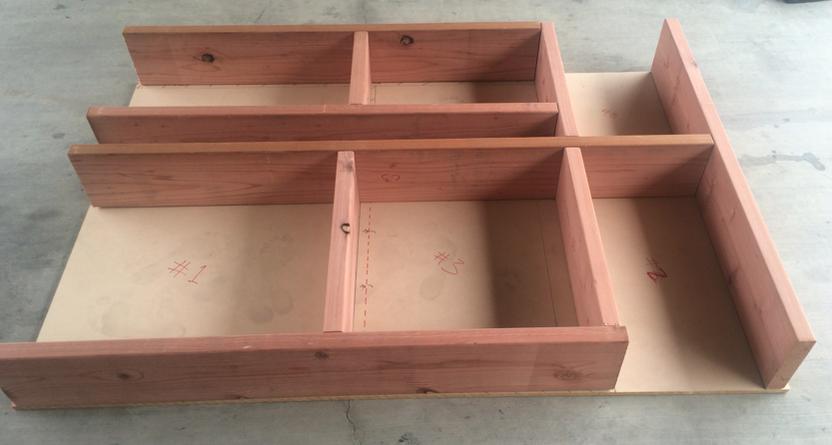

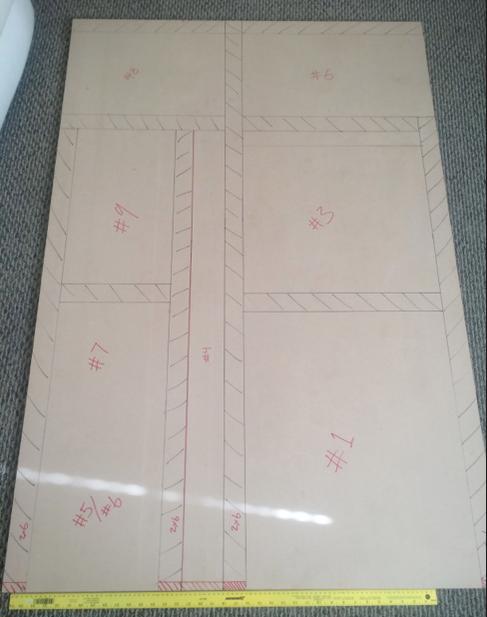

2. Laid that design onto 1/2" MDF

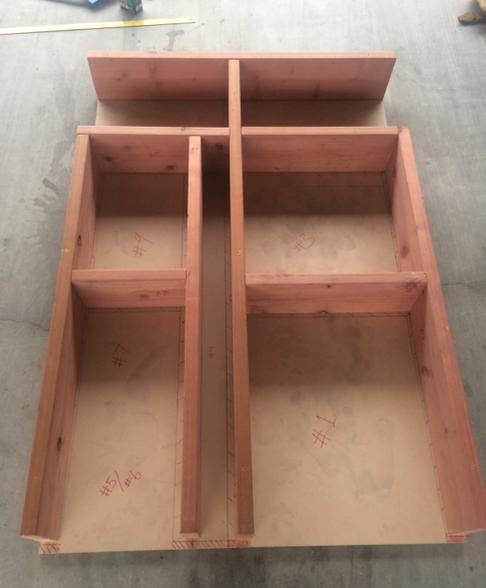

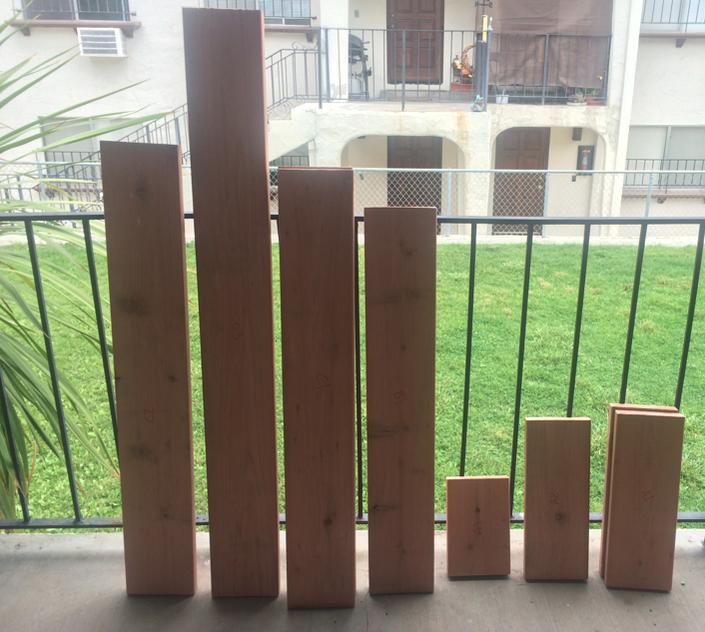

3. I used Redwood for the framing ($ but very light)

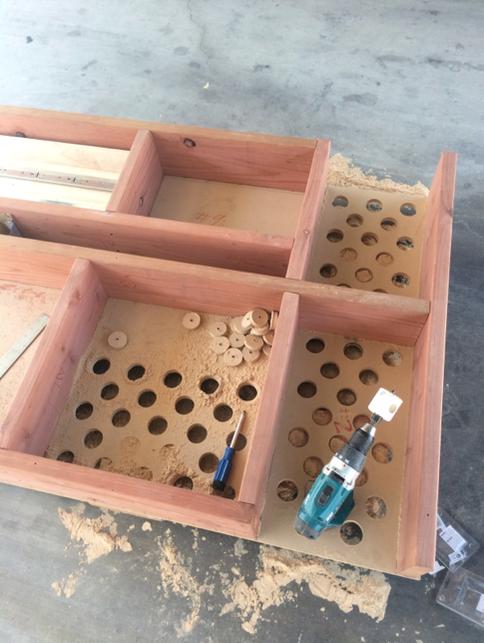

4. With a 2" hole saw, I drilled out a grid to maintain structural integrity but lighten as much as possible. This shed about 12lbs.

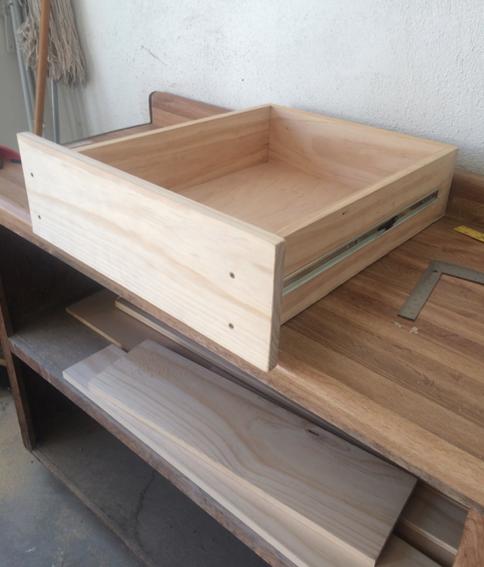

5. Made drawers for bins #1 and #5. Used Pine for this.

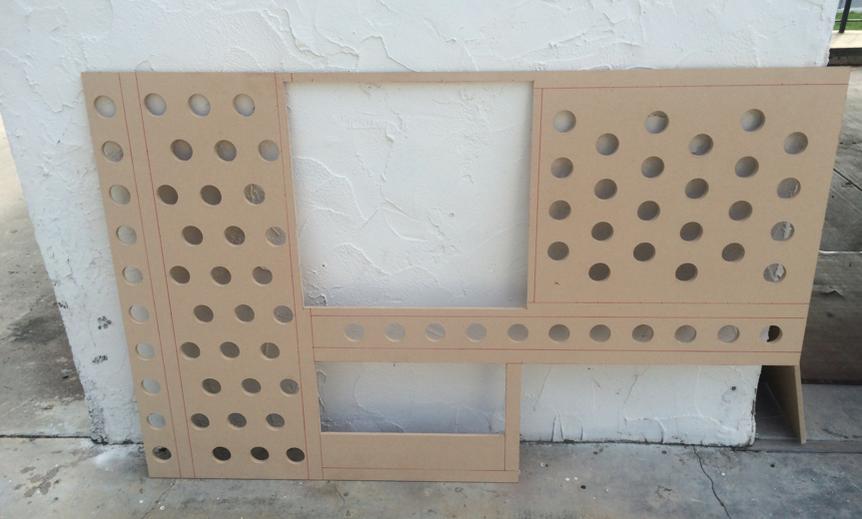

6. Cut out the top board. Once again used MDF but because of the weight drilled holes and removed certain un-needed sections which removed around 30lbs off.

More to come!



[Rich84sr]

Additional Pics

Continuing on with the build.

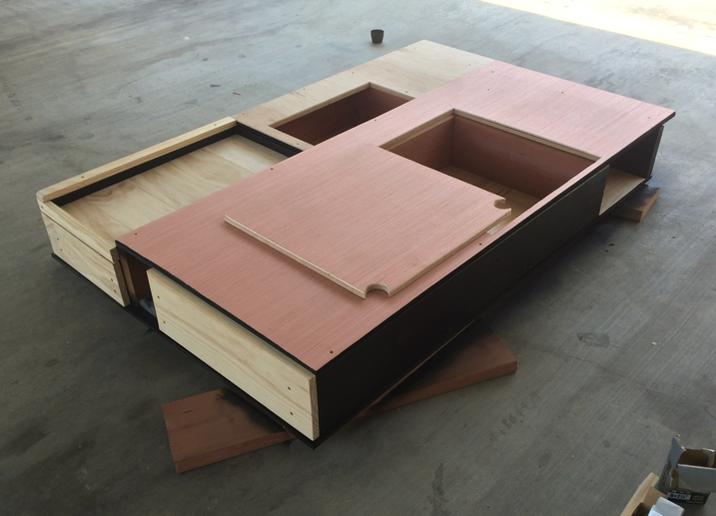

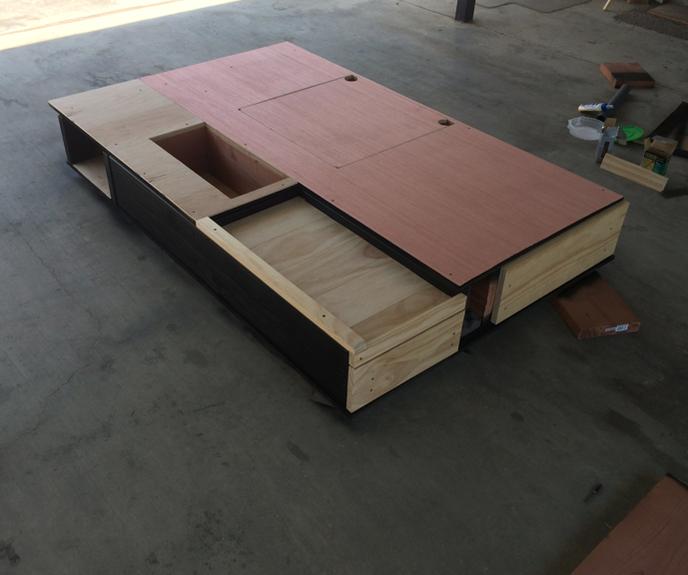

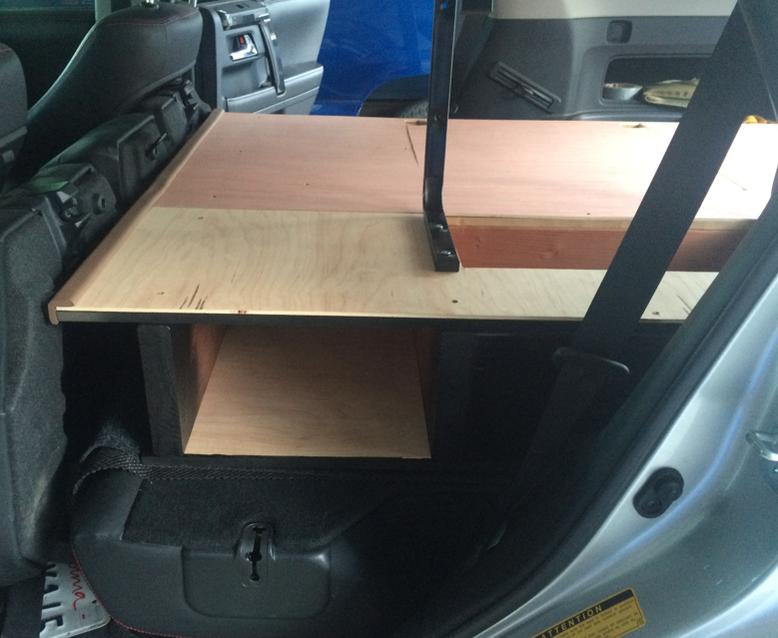

Completing the build I used maple ply to cover all the holed out sections, but then ran out. Went back to Lowes and they had apparently run out too. So I settled for redwood ply for the bed section which is why it looks different.

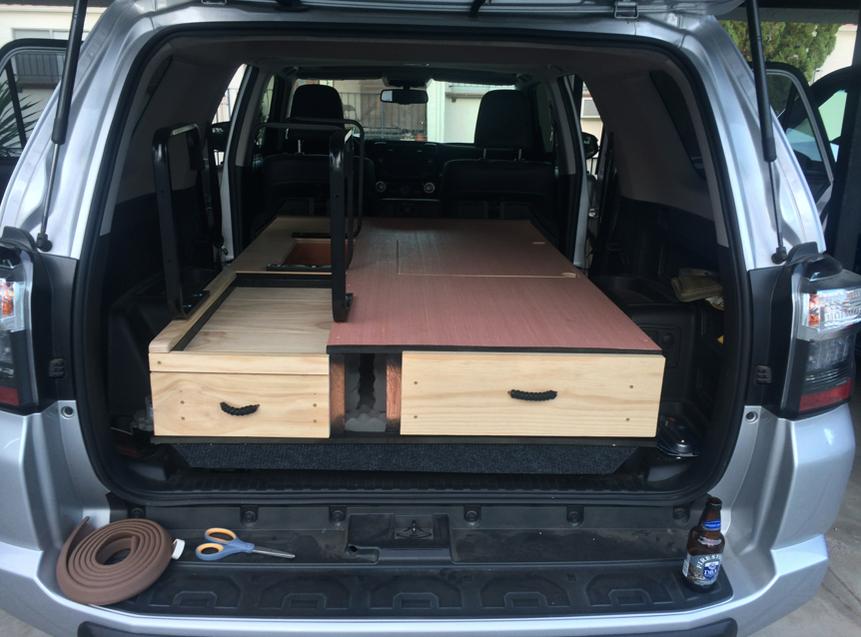

Then I installed brackets for some shelving I'm going to install later. The center between the two drawers in this picture is also still uncapped. It is lined with foam all around and will contain an object that is about the same size and dimensions as an AR-15
Will get pics posted once all is complete.
