Front Bumper & Fender Help

[maulwoof]

Hello
I found a service manual diagram of front bumper (from techno in 3rd gen forum) to be very helpful and wondered if anyone might have a similar front bumper & front fender(L) diagram for a 2008 4Runner/SR5. Was suggested I try 4th gen forum-(oops) Tagged a parking pole backing out and broke the bumper bracket and splash guard, and bent the bumper backwards leaving a kink or two. Have OEM parts to replace, yet it is not all there for me to see the original configuration, plus the little black pop-rivets are different for the bumper and for the inner fender well/splash guard. The splash guard rivets(black plastic) are giving me grief on removal (break-em & buy new ones ?) They don't seem to even want break.?.

I have also heard that heat from a blow dryer can help smooth kinks out of the plastic bumper? Any thoughts or advice on that. The 1 kink is small, 1/2 inch wide, top to bottom of 3 inches, in only one location.

Thanks for any help,



[maulwoof]

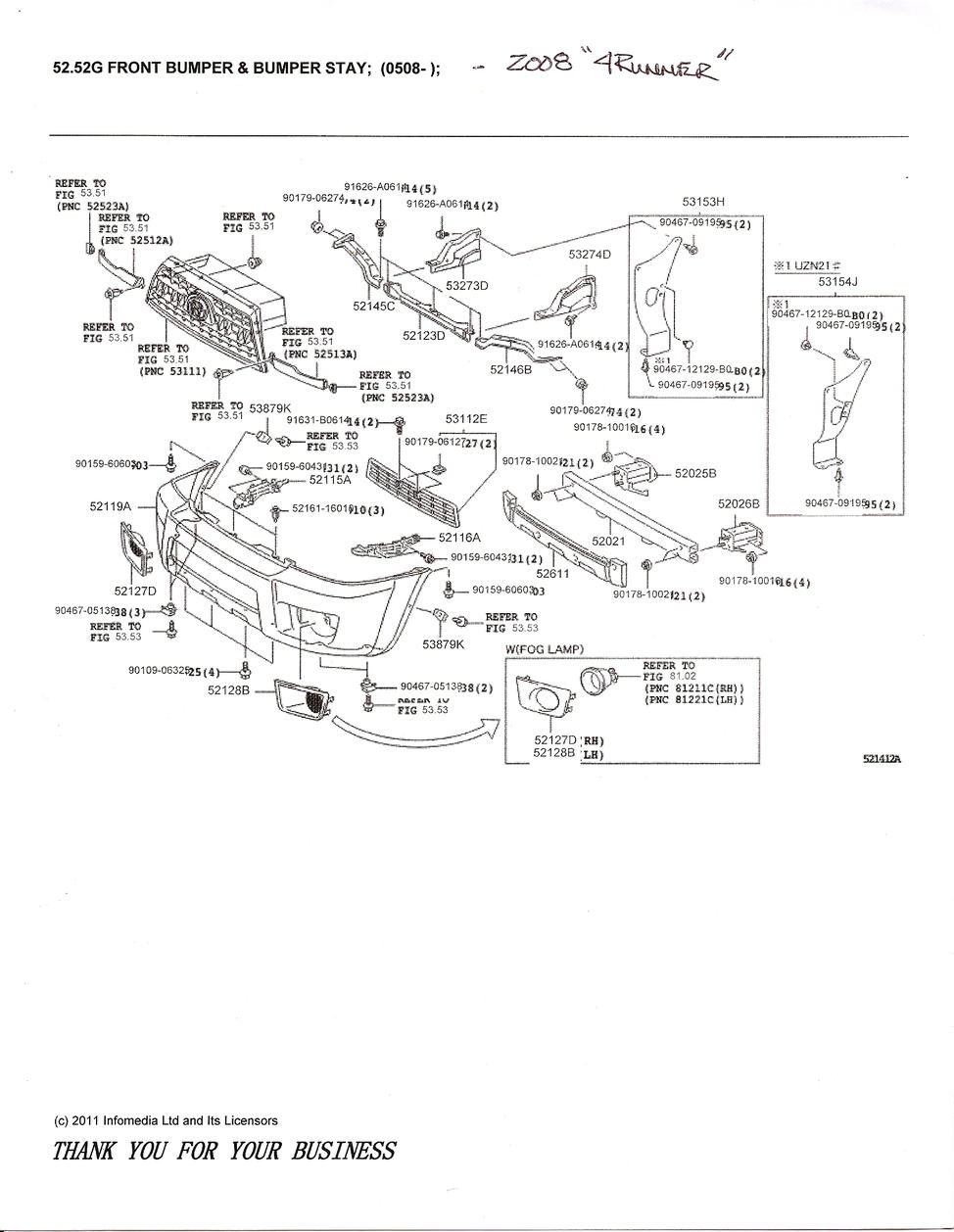

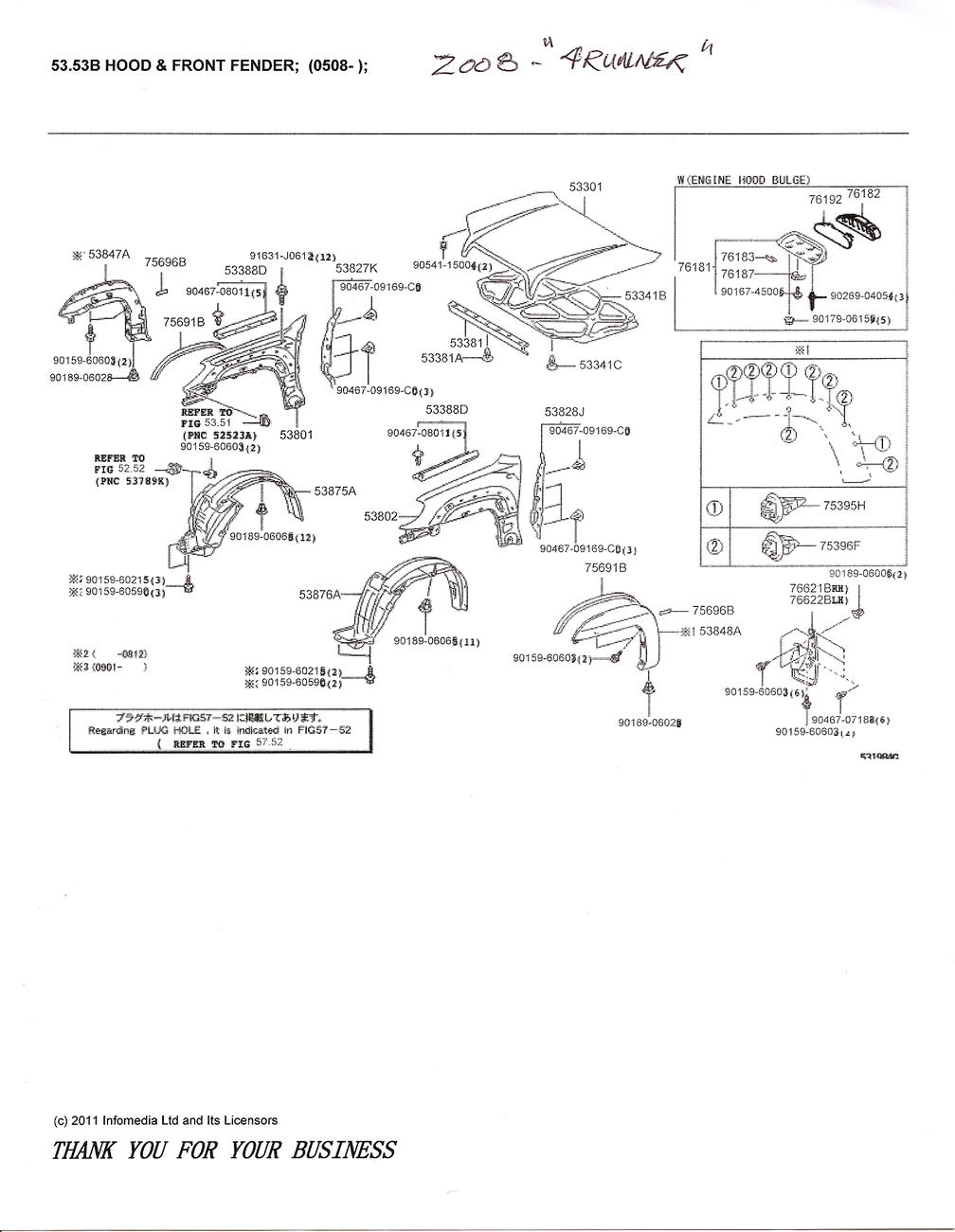

Here are the 2008 Front Bumper and Fender diagrams mentioned in previous post. They may be useful to someone else in the future. The parts manager at my local Toyota dealer printed them out.



[[email protected]]

Inner fender details

Can anyone provide a more detailed assembly diagram for the inner fender attaching bolts/screws and those specialty nuts?
