Has anyone retrofitted heated seat elements?

D

diamondplate

New member
Has anyone retrofitted heated seats elements into their T4R (cloth or leather)? I imagine it would not be that bad to do, plus you could buy the factory switches for a real OEM look.
I was just curious.

Register to hide this ad
I looked into it. The switches are ridiculously expensive, but worth it for the oe look.

I thought about the aftermarket heat off ebay, no further along than you in the decision though!

diamondplate said:
Has anyone retrofitted heated seats elements into their T4R (cloth or leather)? I imagine it would not be that bad to do, plus you could buy the factory switches for a real OEM look.
I was just curious.
Click to expand...

Pilotmatt said:
I looked into it. The switches are ridiculously expensive, but worth it for the oe look.

I thought about the aftermarket heat off ebay, no further along than you in the decision though!
Click to expand...

I installed seat warmers in my 4Runner along with leather seats. You are able to install them with cloth but i don't remember anybody doing it though.

Regarding the aftermarket warmer and stock switch idea i found out a few things a while back:
1. yes the switches are expensive (however I found used ones on ebay for $12)
2. most aftermarket seat warmers have 1-2 heat settings while the stocks are a stepper type switch that is not direct plug and play
3. A few people in the blue room tried to make the two work and IIRC blew fuse, burned switches and one heating element got fried without making it work easily.
4. now one manufacturer does sell a stepper type switch with the kit but i don't know of anybody who has tried to retrofit our stock switches.

Not trying to deter you guys, just wanted to share what i found when i was doing research.

Kevin

I installed rostra seat heaters and then used factory switches for the OEM look. Unfortunately I didn't take any pics of how I got it to work. But yes, it took a lot fo work to get the switch to work with the setup. I had to swap in a amber led and lay new circuit tracking as well. All in the name of OEM, ahhaha

I'm replacing my cloth seats with leather on my 06 SR5 and would like to add heated seats also. I've found the OEM heated seat switches and am now trying to determine if the OEM switches can be used with aftermarket heating elements. From the above thread and through searching, it appears Rostra might work with the OEM switches, but I can't seem to find any definitive answer on this and, if so, how to get them to work since they are stepper type switches. The switches that are shown with installed Rostra kits look similar to OEM, but are not.

Anybody know if it's possible and what kit to buy? Doesn't look like you can get the heating elements from Toyota unless you buy the limited seat cover too and it's extremely expensive. Any way to find out who the supplier is for the heating elements when they are port installed?

The Rostra kits came with switches that look OEM. But not sure that MNR sells the kits anymore since they are not on the web site. You can call them to find out for sure.

4runnerlabr said:
Can anyone with the OEM heated seat switches tell me if the OEM switches have 6 levels (0,1,2,3,4,5) like the aftermarket switch in this link:
Seat Heater for Cars and Trucks from HeatedSeatKits.com

I know the levels aren't numbered on the OEM switch, but does it feel like 5 different levels of heat are provided for??

If so, I may try this kit with the OEM switches. Thanks.
Click to expand...

It has 5 or 6 positions including off.

Yes, the temperature varies with switch position, getting hotter faster on max.

T4RUSAF said:
I installed rostra seat heaters and then used factory switches for the OEM look. Unfortunately I didn't take any pics of how I got it to work. But yes, it took a lot fo work to get the switch to work with the setup. I had to swap in a amber led and lay new circuit tracking as well. All in the name of OEM, ahhaha
Click to expand...

T4RUSAF,
I am interested in using teh stock switches to control aftermarket heated seats. My sport edition did not come with heated seats.

When you say you had to "lay new circuit tracking", can you elaborate on that?

Thanks.

randy88fj62 said:
T4RUSAF,
I am interested in using teh stock switches to control aftermarket heated seats. My sport edition did not come with heated seats.

When you say you had to "lay new circuit tracking", can you elaborate on that?

Thanks.
Click to expand...

I've added heated seats with aftermarket switches. For power I used one of these and ran it to a fuse that only had power when the car was on. Hopefully that makes sense.

I have the Limited OEM factory switches and the center console panel where the switches go. I was 'hoping' to wire in seat heaters to the OEM switches. From different posts this seems some what complicated given the design of the switches.

The Rostra kit looks as if the switches are for the newer 4Runner and not ours.

Is T4RUSAF active on this board?

Last edited:
Heated seats are easily installed. I want to use the OEM switches in the OEM limited center console.

Can anyone comment on that specitically?

randy88fj62 said:
Heated seats are easily installed. I want to use the OEM switches in the OEM limited center console.

Can anyone comment on that specitically?
Click to expand...

I did this on my 2008 Sport Edition.

Fun fact: If you install the missing ignition relay, the pre-wired seat heater fuse and corresponding wiring becomes live. I forget what color wire it uses, but I was successfully able to tap into the factory seat heater wiring. However, the actual seat heater plugs wiring going to the switches (maybe to the seats as well?) are missing so I had to tap into the wire to the left of the steering wheel.

I tried using the OEM seat heater dials, but I couldn't figure out how it worked. My guess was that Toyota had some special module to get more than just a hi-lo function.

I just installed a new seat heater kit that was just hi-off-lo, and used some OEM switches from a 100 series Land Cruiser and/or LX 470. Got a pair of switches (luckily also came with the plug with wires that goes into the switch) off eBay for $30. Then with some LC wiring diagrams and a multimeter, I was able to figure out which wires did what. (Technically this isn't 4runner OEM, but it is still Toyota OEM )

Here's what the colors do
Larger guage wire (for heating elements):
black-red: Lo
red-green:hi
lavendar-white: positive
white-black: negative
Smaller guage wire (for picture illumination):
white-green: positive
green: negative

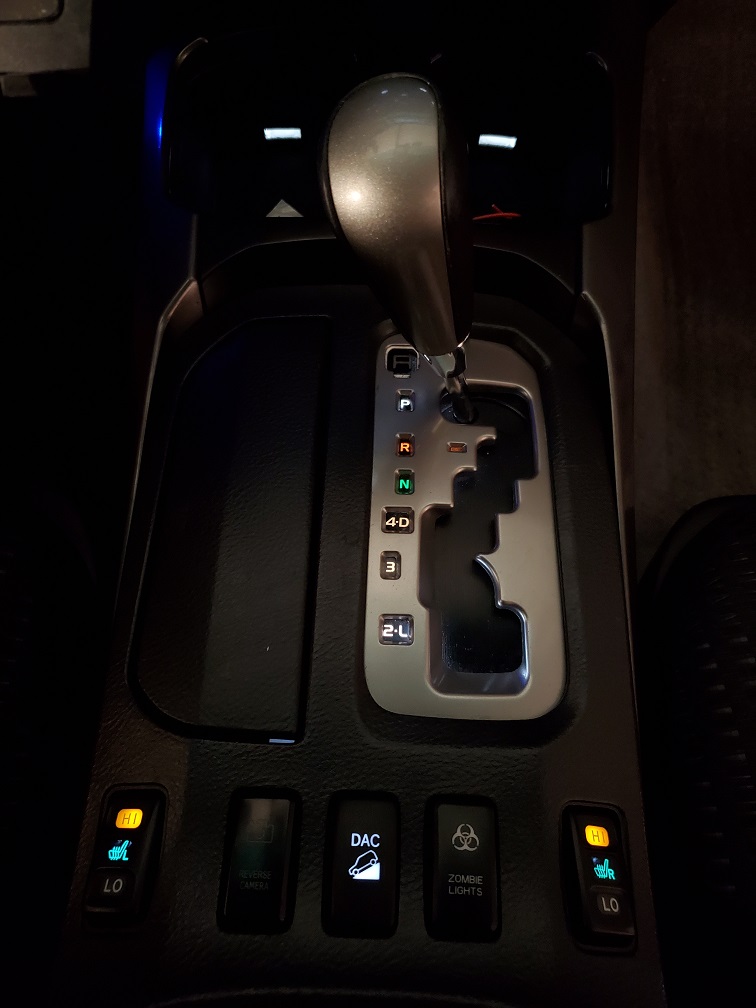

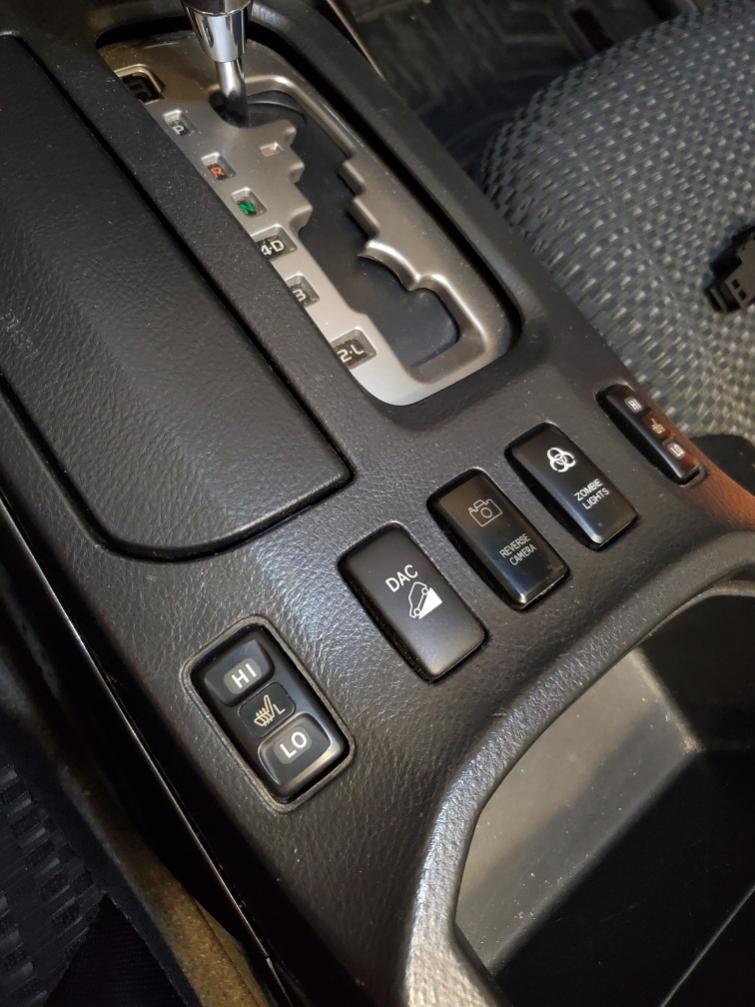

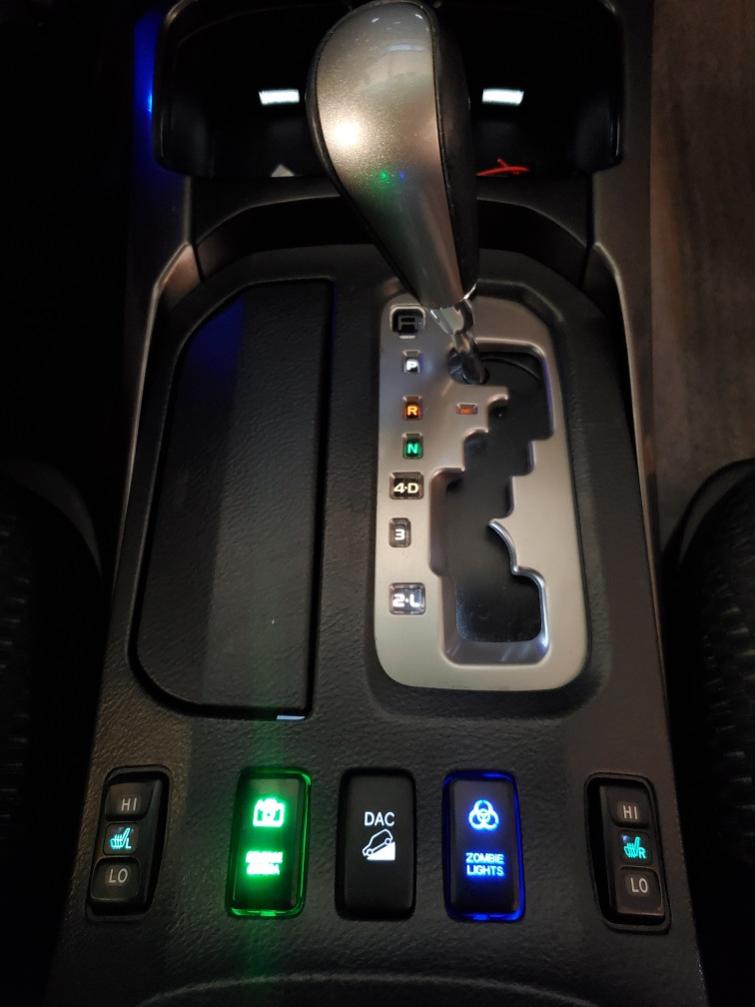

Attachments

  • 20201113_195009_.25smaller.jpg
    58.7 KB · Views: 275
  • 20201109_181157_.25smaller.jpg
    93.8 KB · Views: 265
  • 20201113_195038.jpg
    127 KB · Views: 264
