Help me, I am looking these fron mudflaps....

az4runner02

New member

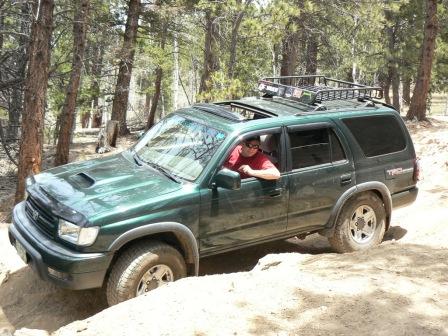

I pulled the running boards of my 2000 SR5 and I am looking for the front mudflapes to match with the black fender flares. Below is a picture of RonMaiden's truck (Yours is the only pic I could find, thanks for letting me borrow it), notice they come up and line up with the flares. It has an unfinished look without them and I haven't been able to find any so far. Anyone have any they want to sell or any helpful information? Thanks


Attachments

  • ronmaiden.jpg
    56.1 KB · Views: 1,053
Register to hide this ad
I can tell you a few things.

When I ordered those flaps the part numbers were:
00547-35966DF
00547-35961PF

Those part numbers were then superceded by these:
PT413-35966DF
PT413-35966PF

Last I heard those flaps were discontinued and no one in the US had any stock left. Good Luck.






Did you pull your running boards as well?

Did you end up pulling the running boards as well? I have found these things are elusive so thats why I turned to this board. I don't want to put the running boards on so I am hopeful...

Re: Did you pull your running boards as well?

az4runner02 said:
Did you end up pulling the running boards as well? I have found these things are elusive so thats why I turned to this board. I don't want to put the running boards on so I am hopeful...

Yes, running boards are permenantly removed replaced with front flaps as pictured.

Thanks for the info...........

.....I think I may have located a pair online but I have to be sure they have them in stock.There is a thread on this site about these flares, and most poeple think the painted ones look better. I'm surely not one of them, the black ones are by far more appealing.

When I first took off the running boards on mine I had ordered them and put them on. They are HARD and will also fill with snow, ice and mud. They fillled so bad that it would create a pack of snow or mud in between the mudflap and the tire. Then grind as you drove. I would have to get out of the car and kick the snow and ice that had built up between the tire and mudflap. I tried to alter them to provide tire coverage but not hang below the car but they never looked right , kept filling with snow and mud, and then went in the garbage. I replaced them with inexpensive, flexible nylon ones (smooth on both sides) and mounted them in the stock location using stock bolts. I found these to be superior.

Those stock flaps worked great in most conditions, but they filled with snow or mud easily. They are shaped like a bucket on the tire side of the flaps. They also are not flexible so they can bend and damage the mounting points when they drag on the ground like mine did.

But it does give a clean look if that's what you are after.

riverrat44 said:
Has anyone located any of these mudflaps recently? If not, what is a good brand of aftermarket ones?

Bump and additional question: did these flaps ever come stock on 4runners or were they only an option for people who wanted to remove the running boards? I might try checking with junkyards, but not if it will be like looking for a needle in haystack...

I don't know how the same flap could work for base and sr5.

Didn't the base have no flares and use one mudflap that didn't extend out from the side of the car?

The sr5 with flares uses a toyota mudguard that sticks out from the side of the vehicle and blends with the flare.

Maybe I am missing something but those don't look like they extend to blend with the sr5 flares.

I was the one who told J.A. that they were discontinued. I got the last pair in the US . I had to call 12 different places and ended up calling a parts dealer in Maine for them. Good luck looking for them, I don't have any complaints about them.

Evan

The only mudflpas Toyota offered on the 3rd gens for the front was the ones that fit the skinny black flares which won't work with any other combo.

I'm am partial to the skinny black flares as opposed to the widebody Limited version which just invite scrapes and scratches when off road.

RonMAIDEN said:
The only mudflpas Toyota offered on the 3rd gens for the front was the ones that fit the skinny black flares which won't work with any other combo.

I'm am partial to the skinny black flares as opposed to the widebody Limited version which just invite scrapes and scratches when off road.

These are the part #'s I found.
The part # for the front mudflaps with NO flares or running boards is 76621-39395

The part # for the rear mudflaps with NO running boards or flares is 76625-39475

I just know that they made these for a fact because I have been looking into getting some since I took my flares off. I have the cheapo flaps right know but wanted to get the oem ones.

I have included some pics of 3rd gens with these mudflaps on. They are the same ones that they put on the front in the factory on the 4runners with the little chrome wheel well trim with no running boards or 4runners without any wheel well trim.
~original[/IMG]
~original[/IMG]

Last edited:
Wow! I think the T4R looks better without the running boards. The boards do offer some amount of protection for the rocker panels though.

Let me know how the new mud flaps protect the lower part of the body. I may just remove mine as well.

Thanks for the pictures.

greyghost4x4 said:
I was the one who told J.A. that they were discontinued. I got the last pair in the US . I had to call 12 different places and ended up calling a saturn parts dealer in Maine for them. Good luck looking for them, I don't have any complaints about them.

Evan


Aww, too bad for J.A. Actually, mudflaps isn't a big deal for me until I read these posts in this thread. I used to have some cheap flaps too and I think I need to look for something that can really do something for my ride.
