HID retro help!
- Thread starter Eastcoastrunner
- Start date
Register to hide this ad
Eastcoastrunner
New member

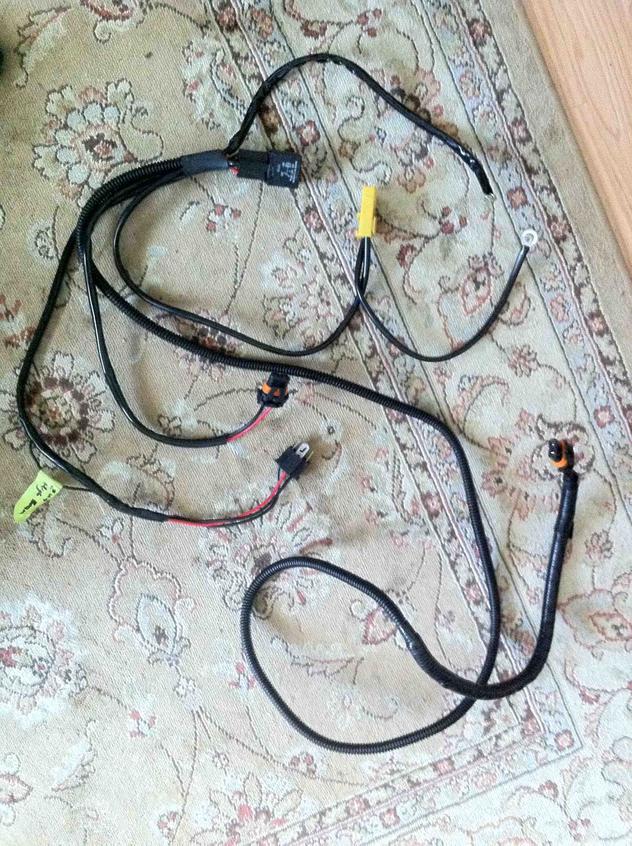

i believe this is a 9006 converting harness....the orange/black clips go to the ballasts, and i assume the two top 'ring' ended ones go to pos/neg battery terminal.
My question is, which is which, and where does the high beam tagged (green tape) go?
My question is, which is which, and where does the high beam tagged (green tape) go?
atra_m0rs
New member
would should have:
positive wire to battery - should be long lead with fuse
neg to ground - short lead from relay
wire to each balast - orange and black
wire to one low beam plug
and wire to high beam plug
do you have bi-xenon lights? what year do you have, current projector lights or reflector?
most peope just run a single xenon setup with the 4r and just replace low beam.
positive wire to battery - should be long lead with fuse
neg to ground - short lead from relay
wire to each balast - orange and black
wire to one low beam plug
and wire to high beam plug
do you have bi-xenon lights? what year do you have, current projector lights or reflector?
most peope just run a single xenon setup with the 4r and just replace low beam.
Eastcoastrunner
New member
hey, thanks for the quick response.
I have an 03 runner, and am going to retro fit tsx projectors for low beam xenon only. the yellow box is a fuse, and there is a black relay there too. So that clears up everything but the one that says '2nd high beam' green tag in the pic.
It has a |_| three pronged end.
I have an 03 runner, and am going to retro fit tsx projectors for low beam xenon only. the yellow box is a fuse, and there is a black relay there too. So that clears up everything but the one that says '2nd high beam' green tag in the pic.
It has a |_| three pronged end.
Eastcoastrunner
New member
how come there is only one plug to the high beam?? shouldnt there by 2?
riceandpho
Elite Member
u have a h4 harness, u need a 9006 harness, or connect the ballast directly to factory wires.
Eastcoastrunner
New member
ok, thank you very much Riceandpho. Clears that up!
riceandpho
Elite Member
u should have some pigtails if u use the aftermarket ballast, just plug it in the factory wires, and get the harness later, other wise to make that h4 harness u have to work, u have to put the pin that is mark L to the pos of the stock plug, and one of the neg to neg on stock plug, shouldnt take alot of work to figure out , but use a dmm to figure out the wires on the harness.
Relay Diagrams - Weak Positive Output to High Current Positive Output
use that diagram and trace the wires on the relay and the h4 plug. u dont need to connect the wire that says high.
Relay Diagrams - Weak Positive Output to High Current Positive Output
use that diagram and trace the wires on the relay and the h4 plug. u dont need to connect the wire that says high.
