HVAC cluster LED replacement

[zerowkul98]

I posted this in "accessories", but i see more people frequent THIS thread, so im posting here as well.

Ive become a victim of a burnt-out LED!

I need to replace the bulb that illuminates the fan-speed control cluster.

In this picture, it's the cluster that is above the guy's hand.

To be more specific, i am NOT looking for the one individual LED's that illuminate on the specific fan speeds,...just the one that lights-up the entire "dial".

Can anyone help?



[MikeInNH]

Well just pull the cluster...The bulbs are attached to the back of the cluster.

Not really sure what you're asking???



[chaz]

Center Console Lights



[zerowkul98]

I know how to pull the dash apart. I just wanna know where to get a new bulb!



[apb2148]

LED Lights, Bulbs & Accessories - SUPER BRIGHT LEDS



[zerowkul98]

So, im going to have to break out the soldering iron to do this?

Ugh...i'll just go to the bone yard and hunt for a few.



[BluSkies]

Here are the part numbers for all the bulbs behind the HVAC:
90010-09015 long yellow
90010-09017 short clear
90010-09019 long green

Hope this helps, I believe I paid like $2.50 a piece when I did mine.



[Trevloc]

12V Microlamps (2-Pack) - RadioShack.com

its not led (none of your hvac is), but if you just want to replace it, thats what i used.

some say its not as bright as stock... but i dont see a difference.
they sell them at the store as well, you dont have to buy em online.

its 12v, thus direct replacement. no soldering.



[Roadstar01]

So, im going to have to break out the soldering iron to do this?

Ugh...i'll just go to the bone yard and hunt for a few.

Go to the stealer. They are not that bad I just paid $3.25 for the bulb. It is a 15 minute job at best.



[TRDCal]

Go to the stealer. They are not that bad I just paid $3.25 for the bulb.

$3.25....WTF, my dealer said $10 for just one, he tried to justify the price by saying the socket came with it, but jeez...I wish I had your dealer!



[bobbarker]

I ordered mine from Toyota Parts East...

The bulbs were very inexpensive to purchase, and need no modification. I pulled the whole cluster out and replaced them all while I was in there.

The Toyota Parts East had a parts diagram so I knew how many of each to buy.

Pretty simple job.



[freydaddy]

I ordered mine from Toyota Parts East...

The bulbs were very inexpensive to purchase, and need no modification. I pulled the whole cluster out and replaced them all while I was in there.

The Toyota Parts East had a parts diagram so I knew how many of each to buy.

Pretty simple job.

FNG here, and loving all of the info available on this forum. I just bought a 2005 V6 SE and found a couple bulbs are out on the LCD/Climate control panel. I just ordered the 8 bulbs to replace them all for $29.98 delivered from Toyota Online Parts | toyotaonlineparts.com | Toyota Parts Online. This was the best deal I found without spending a day researching prices.

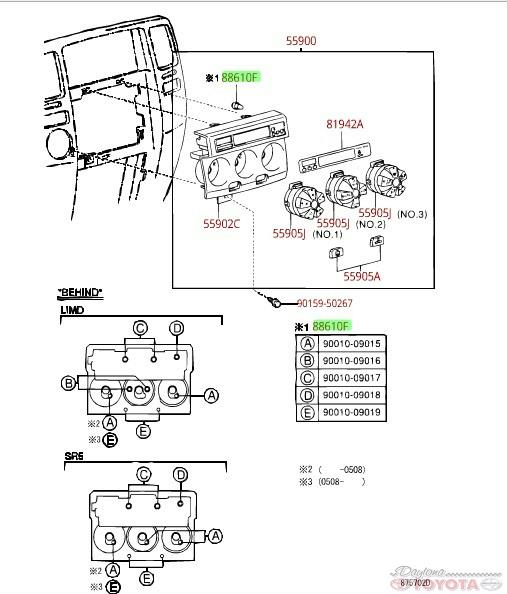

I am attaching a handy diagram found elsewhere that provides the OEM bulb part numbers and the differences between the two versions of Climate Panels. The Limited and those trucks with Dual Climate Control option take 9 bulbs and SR5 and trucks without the DCC option take 8.

The other thing I need is a missing Air Intake Selector (55905-A, Fresh Air Button - Lower Right), which I haven't yet been able to source. If anyone has a cannibalized panel and would sell me that button, please PM me.

Thanks!



[AuSeeker]

FNG here, and loving all of the info available on this forum. I just bought a 2005 V6 SE and found a couple bulbs are out on the LCD/Climate control panel. I just ordered the 8 bulbs to replace them all for $29.98 delivered from Toyota Online Parts | toyotaonlineparts.com | Toyota Parts Online. This was the best deal I found without spending a day researching prices.

I am attaching a handy diagram found elsewhere that provides the OEM bulb part numbers and the differences between the two versions of Climate Panels. The Limited and those trucks with Dual Climate Control option take 9 bulbs and SR5 and trucks without the DCC option take 8.

The other thing I need is a missing Air Intake Selector (55905-A, Fresh Air Button - Lower Right), which I haven't yet been able to source. If anyone has a cannibalized panel and would sell me that button, please PM me.

Thanks!

Welcome to the forum!

Try a local savage yard for the missing button.



[freydaddy]

Welcome to the forum!

Try a local savage yard for the missing button.

Found it under the passenger seat. Must have been a clumsy detailer. Luckily they vacuumed before wiping down the dash.



[Moultrip]

2007 T4R Climate Control Backlights - Specifics?

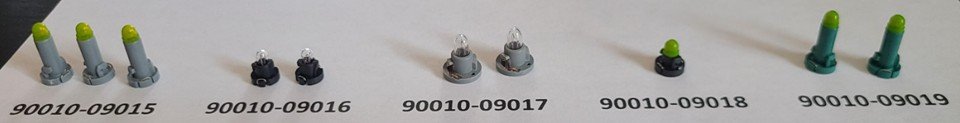

I am attempting to specifically identify LED replacements for the OEM incandescent bulbs in the climate control panel in a 2007 Toyota 4Runner SR5. Attached photo reflects those OEM bulbs and bulb numbers.

I've seen in other posts that the Samsung 5630(t4); 5630(t3); and 5628(t3) bulbs will work but details are lacking on specific sources and specifically which of these bulbs replace which of the OEM incandescent bulbs.

Also, when trying to identify LEDs, I don't see addressed anywhere the varying height/length of the bulbs.

Finally, I have scoured internet sources and the 5628 is not to be found anywhere. Can someone identify where the 5628 can be purchased? Or is this supposed to be 3528 instead?

In summary, I just need very specific LED identities (item or part #) and sources for each of the bulbs in the climate control panel:

90010-09015
90010-09016
90010-09017
90010-09018
90010-09019

Can someone assist with this detail? Much thanks!
