Info on these TRD wheels

[flying fuzz]

In this thread http://www.toyota-4runner.org/5th-gen-t4rs/119896-2010-trd-supercharger-5.html

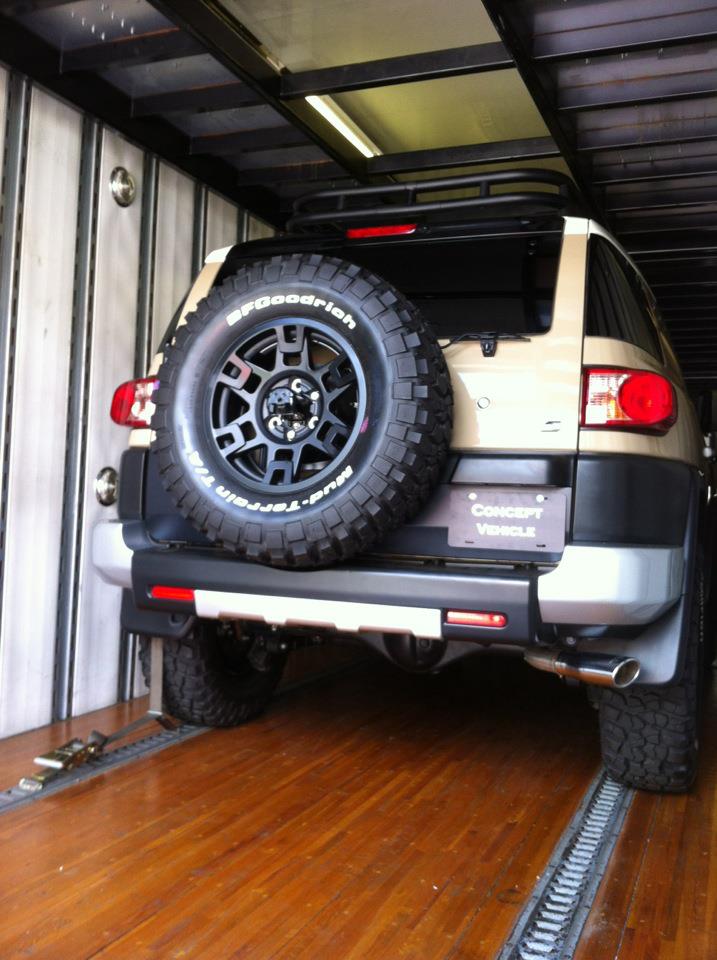

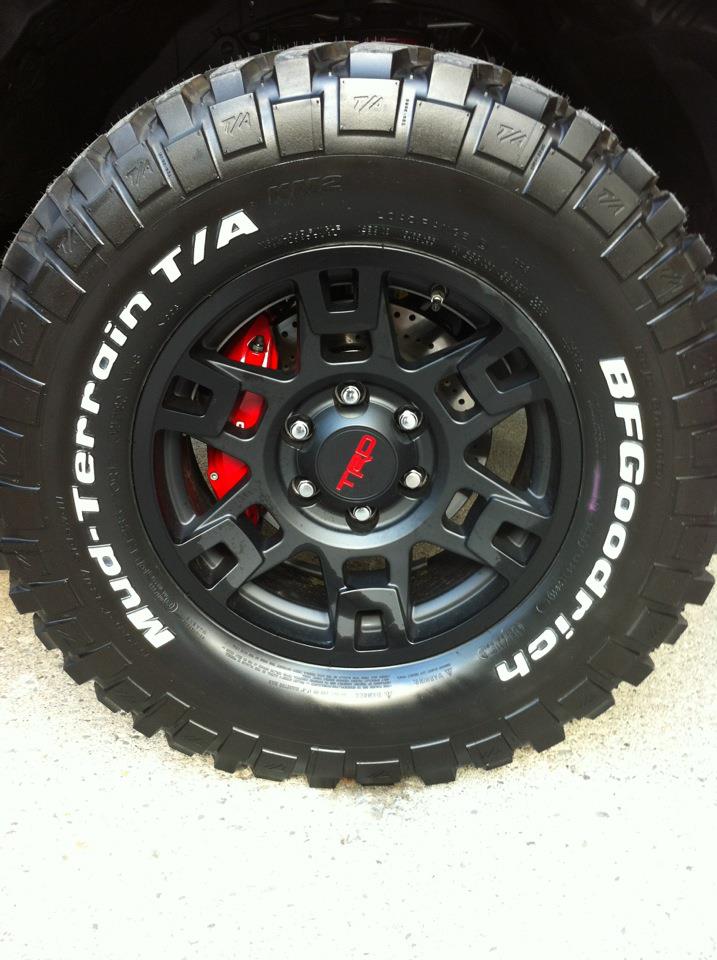

These TRD wheels are shown mounted on a FJC. Someone posted they are for sure 17"s but no other info was posted, which is fine since it was a supercharger thread and getting off-topic...

But does anyone have info on P/N? are they one off's or future TRD wheels? width? I've searched the web and keep getting info on the newer rock warrior TRD wheels. And yes I see the license plate that says "concept vehicle" but it looks just like my wifes 08 FJC except the rear bumper is a bit sexier.

Thanks!

T



[FERAL 4R]

You kinda answered your own question.... "Concept vehicle"

You probably wont find much info on those wheels. Now the cool remote res suspension, SC, exhaust and CAI...maybe.



[joneseyyy]

These were on the concept FJ at the summit. If I recall correctly, the gent from TRD said they'd be available on ~6 months (but who knows). Weight is allegedly in the mid-low 20's.



[harper7]

These were on the concept FJ at the summit. If I recall correctly, the gent from TRD said they'd be available on ~6 months (but who knows). Weight is allegedly in the mid-low 20's.

Ya , They were 17's for sure and pretty sure he said they were 17x8 and zero offset.



[limamike]

Ya , They were 17's for sure and pretty sure he said they were 17x8 and zero offset.

That's what I heard.



[4RunnerTrail]

Ya , They were 17's for sure and pretty sure he said they were 17x8 and zero offset.

0 offset is not correct for our 4runners is it?



[Corbet]

Pretty sure they are pictured/featured in the 2013 FJC brochure from memory. I don't recall if specs were there. But I doubt it as Toyota's brochure generally suck for that kind of info.



[flying fuzz]

You kinda answered your own question.... "Concept vehicle"

You probably wont find much info on those wheels. Now the cool remote res suspension, SC, exhaust and CAI...maybe.

Found out they weigh mid 20 lbs, available in 6 months to a year and that they are 17x8. All of which I didn't know until I started this thread and even after searching the interweb...

Thanks for the info from the rest of you guys!



[Okki]

Found out they weigh mid 20 lbs, available in 6 months to a year and that they are 17x8. All of which I didn't know until I started this thread and even after searching the interweb...

Thanks for the info from the rest of you guys!

You now also know they looked pretty darn nice in person :roadkill:

arty:

Okki



[453030]

Found out they weigh mid 20 lbs, available in 6 months to a year and that they are 17x8. All of which I didn't know until I started this thread and even after searching the interweb...

Thanks for the info from the rest of you guys!

That sounds right if they are 17x8. I was surprised when I weighed my recently sold 17" x 7.5" TRD wheels that they weighed 27lbs each. The steel ring looks really cool but weighs about 2 pounds on its own.



[FERAL 4R]

Found out they weigh mid 20 lbs, available in 6 months to a year and that they are 17x8. All of which I didn't know until I started this thread and even after searching the interweb...

Thanks for the info from the rest of you guys!

You forgot 0 offset.



[adio3x]

0 offset is not correct for our 4runners is it?

I have -10 offset :naughty:



[Moving Chicane]

You forgot 0 offset.

"Forgot" as a fact, or an indicator they won't work for us 5th gens?!?!



[UtahSooner]

Bump... Any new info on these wheels from the 2013 FJ Summit this past weekend?



[philskeeter]

Bump... Any new info on these wheels from the 2013 FJ Summit this past weekend?

I love those wheels :boink:



[c2one]

Info one these TRD wheels

Looks like they are going to have a matte gray version too.

Offset is 4mm.

Part number gray: PTR20-35110-GR

Part number black: PTR20-35110-BK

Edit: more info

For vehicles with OE 20 inch wheels, you must order & install the TRD 17 inch Tire Pressure Label (MDC# 00602-35155) when installing these TRD 17" wheels & 17" OE tires.

TRD Owner's Manual Label (MDC # 00602-35061) also required and available thru the MDC.

Matte GRAY Paint Color with Red TRD Logo on Center Cap.

17 inch x 7.0 inch x 4 mm offset, Cast Aluminum TRD Wheel with TRD snap-in center cap (PTR20-35111-GR).

This wheel is designed for use with OE Flat-Seat lugnuts (90942-01058), sold separately.

Optional 4Runner DIO Wheel Lock Kit is 00276-00901

Optional FJ Cruiser DIO Wheel Lock Kit is 00276-42960 (includes 5th lock for spare tire)

This wheel is designed to re-use the OE 17" Tires P265/70R17 113S

Bridgestone Dueler H/T D684 II A/S OR Dunlop Grandtrek AT20 A/S

Edit: crappy picture



[sandcrawler]

matte gray too—cool! where'd you find that [MENTION=98089]c2one[/MENTION]? nice grab!

very interested to learn what these wheels actually weigh. if i recall correctly, the OEM Trail wheels are ~28 lbs. be great if these TRDs shave a couple pounds off that and help offset the additional weight of 285 tires. :hungry:



[c2one]

matte gray too—cool! where'd you find that [MENTION=98089]c2one[/MENTION]? nice grab!

very interested to learn what these wheels actually weigh. if i recall correctly, the OEM Trail wheels are ~28 lbs. be great if these TRDs shave a couple pounds off that and help offset the additional weight of 285 tires. :hungry:

On Toyota's TRD site.
http://www.toyotaracing.com/trd/parts-detail.html?p=PTR20-35110-GR

According to their description these are alloy wheels making them lighter.



[FERAL 4R]

On Toyota's TRD site.
TRD - Part Detail

According to their description these are alloy wheels making them lighter.

I like those. Now for the cost.... I'm gonna say $499 per wheel



[sandcrawler]

I like those. Now for the cost.... I'm gonna say $499 per wheel

hope not. guessing these won't be priced liked the TRD faux beadlocks; lower end, so to speak. i'm thinking/hoping they'll be priced more in line with the old style 16" TRD wheels for the FJ.
