NAV Schematics?

[kheller2]

Hello everyone. I'm not a 4Runner owner (although I do like them and wanted one at one time). I came across this board because of oemvalue.com.

I'm a 2004 Sienna owner and I think we have the exact same NAV systems. I was wondering if someone could give me the run down on the options available on your factory NAV unit.

On the Sienna, we have the main 3-in-1 head unit, the DVD ECU, and a rear entertainment system with surround.

I noticed that 4Runner also has a cd changer option?

Could someone please email me or pm me pictures of your nav unit's front controls and the manf. sticker on the unit, and the rear pin connections.

Also.. what would be really nice is the NAV schematics so I can see how to wire up a cd changer on my Sienna.

For what it is worth... if these are the same NAV units... over at www.siennaclub.org we've managed to modify the units to allow full time navigation changes and full time DVD player functionality .. so no more parking brakes and going under 2MPH.

Thanks in advance,

Karl



[gregtay]

Do you want the factory 4Runner NAV (which is the same one in the Sienna) or the Camry/Solara units we are installing.?



[kheller2]

Actually, all of them. The Camry and Solara use different amps.

I'm specifically looking for any notes/diagrams on how the 6 cd changer gets added to a NAV 4 runner.



[gregtay]

I have the notes/diagrams for both NAV system, i will scan them and send them to ya.



[MAC4Runner]

gregtay -

Where did you get your solara navi system? Did you do the install yourself? Any pics?

TIA



[gregtay]

OEMvalue.com. Yes, I installed it myself. in the next day or two I will get around to typing up my install. Highly recommend it if you don't have one.



[MAC4Runner]

:beer: I look forward to the post..........



[gregtay]

gregtay -

Where did you get your solara navi system? Did you do the install yourself? Any pics?

TIA

a few photos here: http://www.toyota-4runner.org/showthread.php?s=&threadid=2151&pagenumber=4



[gregtay]

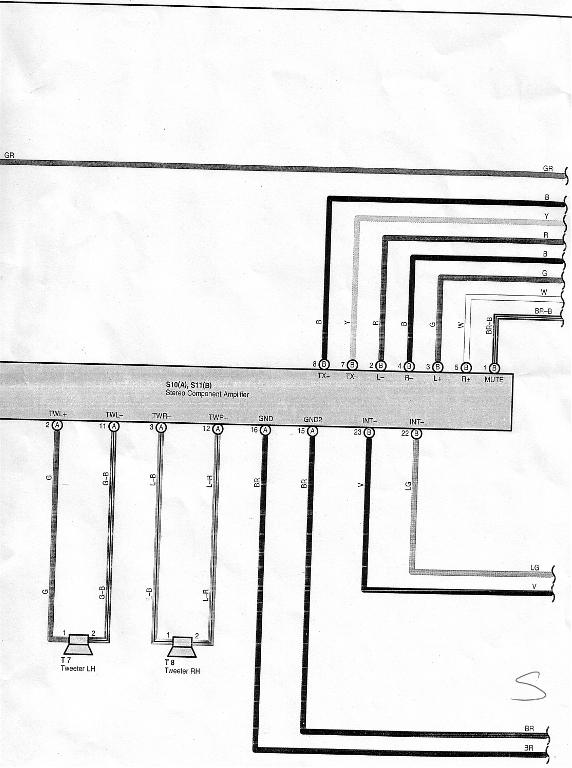

2004 Camry NAV diag.

Here is the wiring diagram for the 2004 Camry w/ the Camry NAV system. This might be useful if you are installing a Camry NAV in your 4Runner. The Camry NAV is model 7003 (Solara is 7001... other than that.. they look identical)



[gregtay]

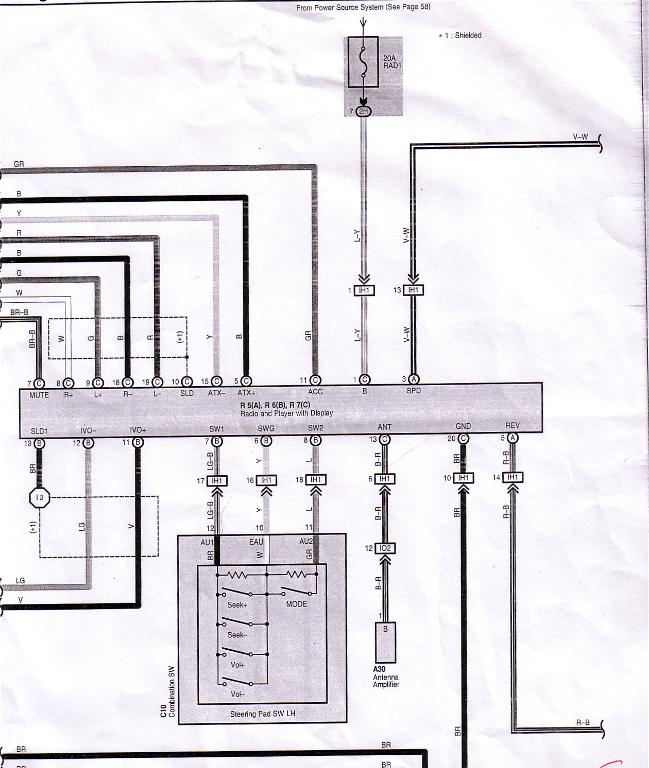

Camry NAV Diag.

page 2, Camry NAV. Again. this is the diagram for the 2004 Camry (not a 4Runner)



[gregtay]

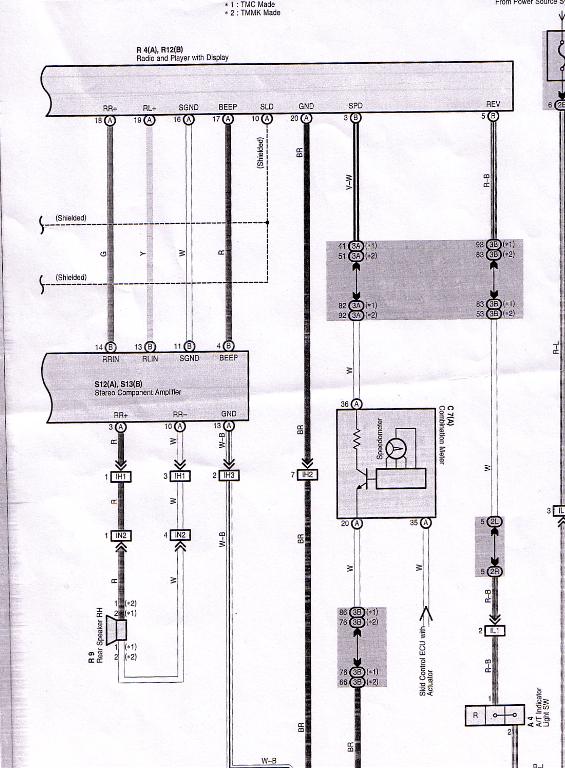

2004 Solara NAV wiring

Here is the wiring diagram for a 2004 Solara w/Navigation. This will help if you are installing a Solara NAV (7001) in your 4Runner w/ 10 spk JBL.



[gregtay]

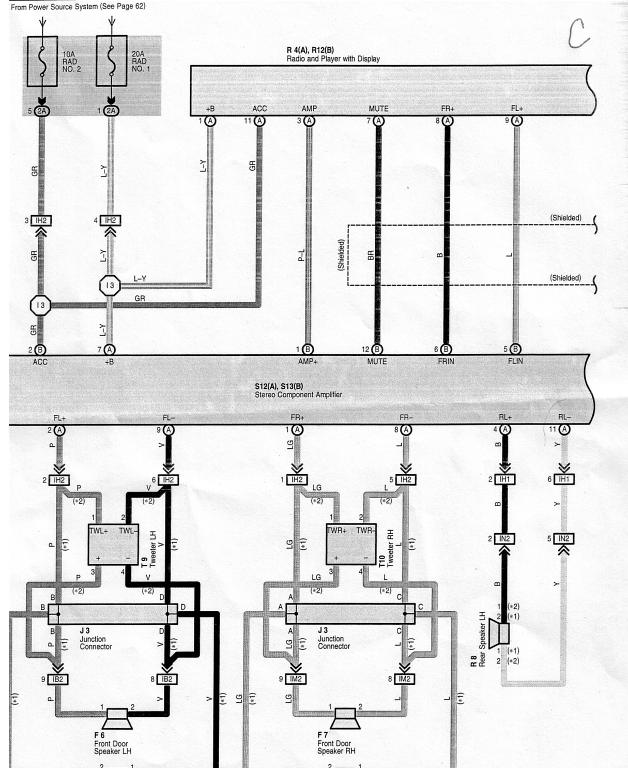

2004 Solara NAV page #2

Page 2 for Solara w/NAV
