New FN Overlander Wheels

Churchill

Churchill

New member
New wheel from FN Wheels, modeled after the FJ Trail Teams Wheel:


FN Overlander

2 separate wheels:
Spec A
Spec B - has simulated, beadlock that is machined as part of the wheel and is non-removable/non-replaceable as a result.

Diameter: 17"
Width: 8.5"
Offset: -6mm
Backspacing: 4.5"
Load rating: 955KG (2,100lbs+)
Weight:
Spec A - 26.9lbs
Spec B - 28.5lbs
Certification: JWL-T, VIA, SAE J-2530, DOT approved
Colors:
Spec A - Graphite gunmetal metallic, Matte black
Spec B - Bronze, Graphite gunmetal metallic, Matte black

Toyota specifics: 106mm hub centric for Toyota hubs, lug holes drilled for 12mm Toyota wheel studs for a snug fit on all 6x139.7 Toyota hubs.

Price: $950 / set of four including shipping. (as of 12/30/16)

You can contact Dustin at 951-735-1100.


Attachments

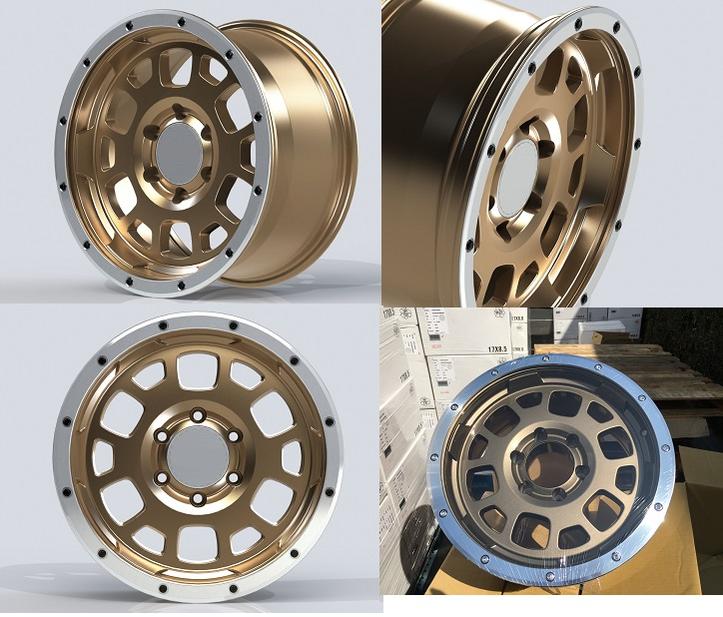

  • OL Bronze.jpg
    OL Bronze.jpg
    76.2 KB · Views: 9,160

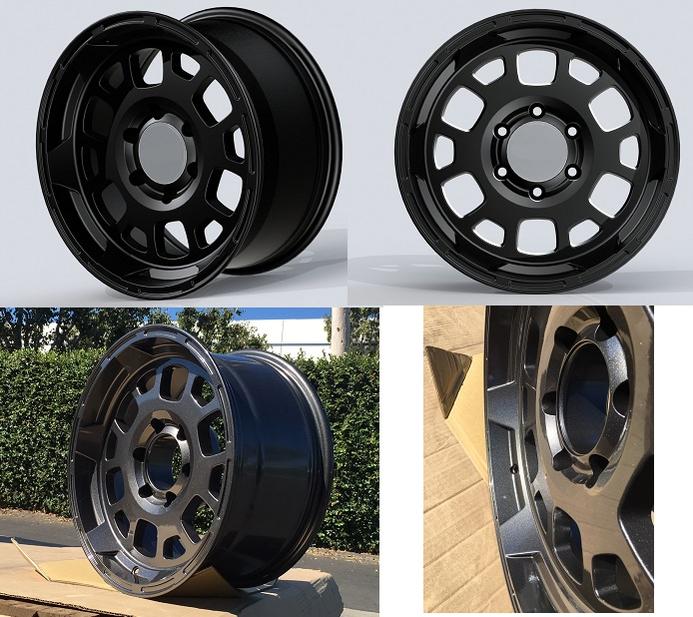

  • FN OL Graphite.jpg
    FN OL Graphite.jpg
    97.1 KB · Views: 9,983
  • FN OL Blk Grph.jpg
    FN OL Blk Grph.jpg
    82 KB · Views: 9,213
Last edited:
Register to hide this ad
More Pics

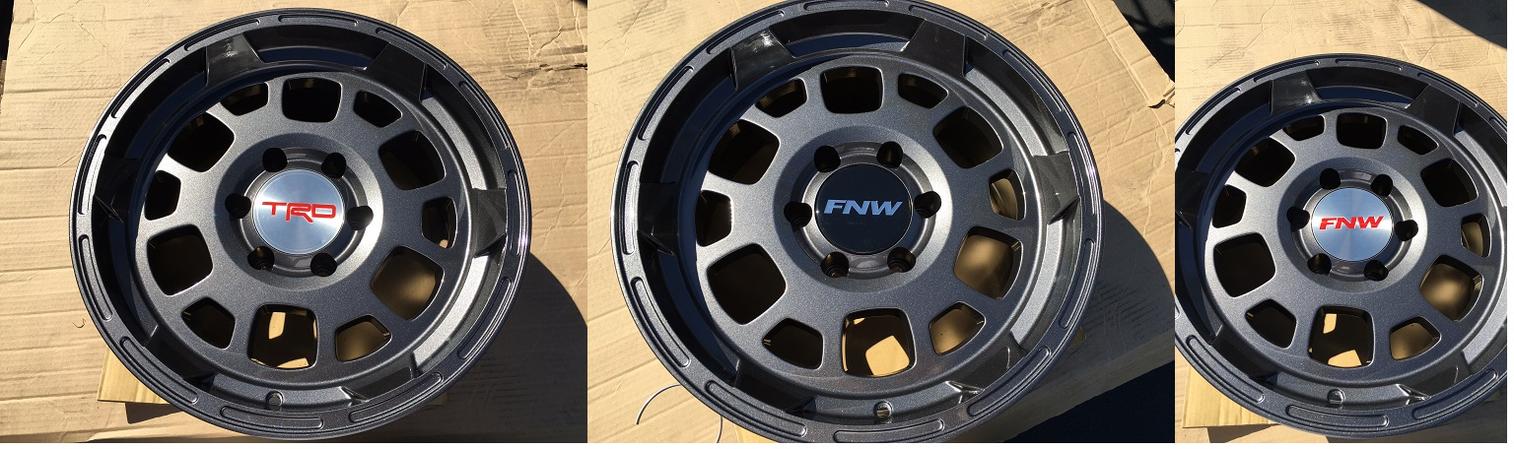

More pics showing center caps


Attachments

  • FNW TRD center cap.jpg
    FNW TRD center cap.jpg
    135.2 KB · Views: 10,037
Last edited:
I saw an FJ Trail Teams edition with these wheels the same day I posted these pics. Sweet wheel. And yes, can't say it enough that Dustin's a great guy. Looking forward to buying a set of wheels (or two) from him.

Nice wheel.

I used to scoff at the simulated bead lock rings, but have now come to look at the removable versions as a useful and easily replaceable first line of defense for the area of the wheel most likely to get damaged off road.

That said, are the rings on these wheels removable replaceable? Will Dustin sell the rings separate so I can replace mine once they are all chewed up?

I do wish they'd update their website to show current offerings. There's about 3 different mods they carry that are all at the top of my short list.

2017 Prices

Beater said:
They will not. I recently ordered a set and asked the same question.
Click to expand...

Dustin from FN stated that his wheel prices will need to go up in 2017 though. Sorry Dustin (hope this doesn't get me in trouble). :hiding:

The 2016 FN wheels are produced with a higher end casting process called flow forming, yet FN did not raise prices, even though the manufacturing cost went up $40 IIRC.

So the year end is a good time to buy:fro:

Churchill said:
Dustin from FN stated that his wheel prices will need to go up in 2017 though. Sorry Dustin (hope this doesn't get me in trouble). :hiding:

The 2016 FN wheels are produced with a higher end casting process called flow forming, yet FN did not raise prices, even though the manufacturing cost went up $40 IIRC.

So the year end is a good time to buy:fro:
Click to expand...


Sounds like I purchased my wheels just in time then :cheer2:

Beater said:
I would've been all over the Overlanders had they weighed closer to the Countersteers (20.5).

Ended up with the Countersteer Type-X's :car:
Click to expand...

That would be why the Countersteer X is so popular! Sharp wheel tire setup you've got, BTW!

Last edited:
Niiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiice!!!

:fishing:

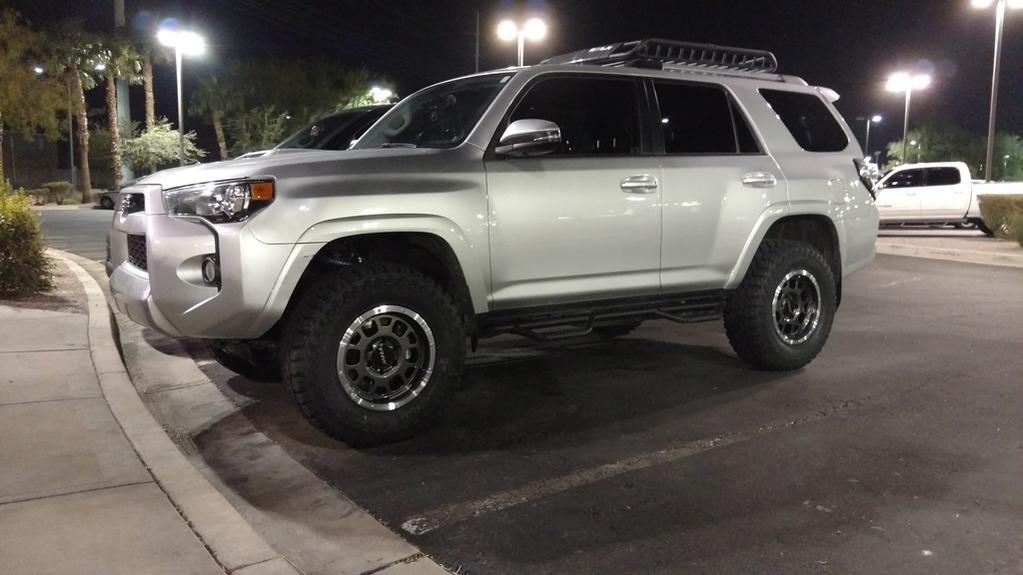

Got one! Snagged pic from the lifted thread!

Truck belongs to:
[MENTION=100354]williamlv282[/MENTION]


Attachments

  • fnw ol.jpg
    fnw ol.jpg
    69.9 KB · Views: 3,645
