New Hella Light Install Pics

[Beaston]

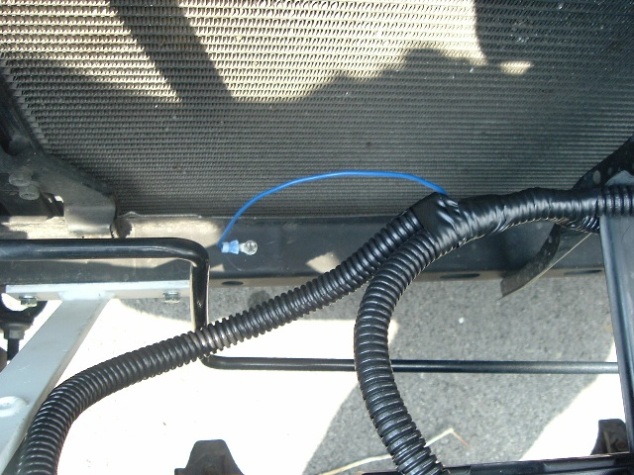

Well I finally bought in and put a pair of Hella 500 driving lights on my car. After getting the lights from advanced auto parts and the light bar curtesy of 4fun4me, took me about 5 hours total spread out over 3 days just because i didnt have everything i needed. I bundled up the wires using split flex tubing. Some of the pictures below show where i mounted the fuse and how i wired it up. Also shows where i put the wires through the firewall and my non-mounted switch. Will be getting a stock toyota switch soon. I'll be happy to answer any comments or questions. Thanks



[Beaston]

.



[Beaston]

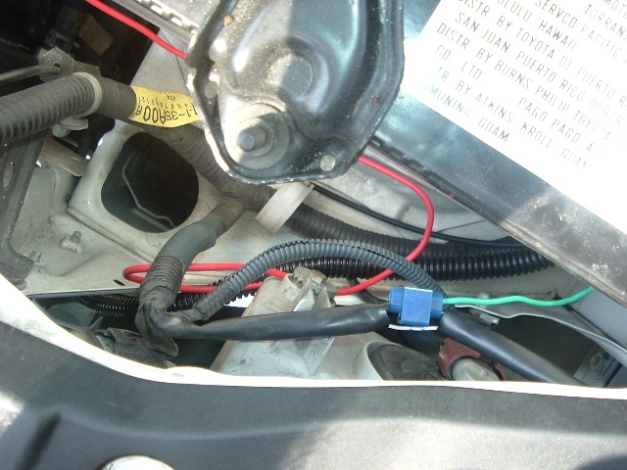

the green wire is the positive lead to the switch in the dash. i ran it to the parking light wire on the drivers side up towards the front, had i known earlier i could have just gone to the one right under the dash i would have, but it still works so yeah!



[Beaston]

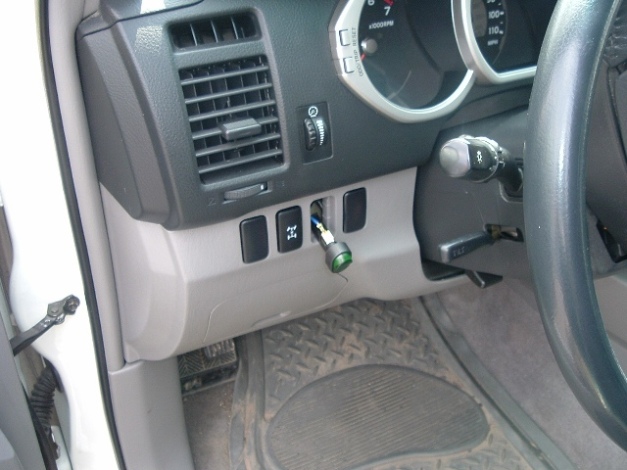

and the stock switch from hella, only a temporary solution until i buy a stock toyota switch for my dash



[Beaston]

and last one i promise, side view of the lights, sorry about the sun. Plus i gotta figure out how to upload multiple files on this piece...thanks ya'll for looking



[BostonBeachbum]

the green wire is the positive lead to the switch in the dash. i ran it to the parking light wire on the drivers side up towards the front, had i known earlier i could have just gone to the one right under the dash i would have, but it still works so yeah!

Which wire under the dash is the parking light?



[Beaston]

check out this link below and towards te end, you will need to test this wire to verify. this link



[BostonBeachbum]

the green wire is the positive lead to the switch in the dash. i ran it to the parking light wire on the drivers side up towards the front, had i known earlier i could have just gone to the one right under the dash i would have, but it still works so yeah!

Which wire under the dash is the parking light?



[BostonBeachbum]

check out this link below and towards te end, you will need to test this wire to verify. this link

thanks, this will make the install much simpler. not sure why it posted twice.
