Pioneer Avic Install in 04

[corsair944]

Hey all, Here is my install in the wife's 04 SR5 4WD non JBL.

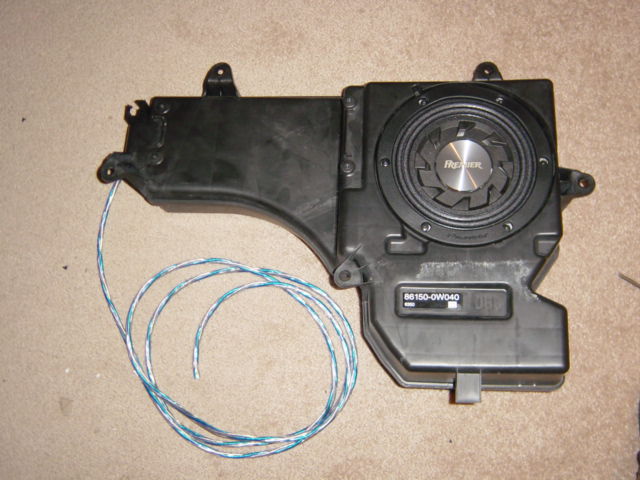

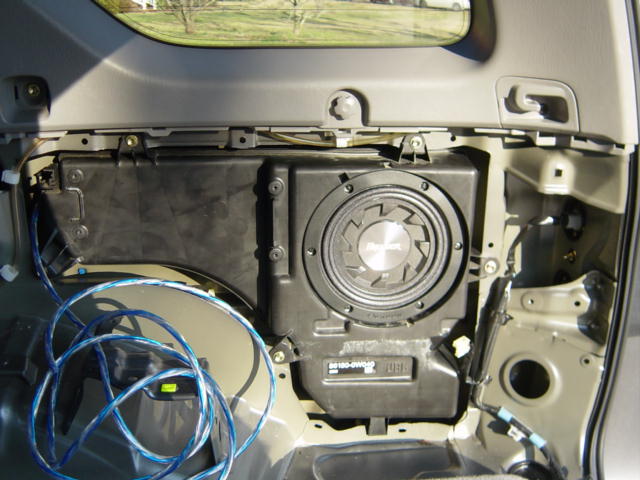

Here is the sub and rear area. I picked up the JBL box and sub cover panel, rear shelf system and the cargo cover from a local salvage yard. 30 bucks for all of that. I steal I know. The outcome was to be nothing sticking out and everything out of sight. Except headunit, of course.



[corsair944]

in place



[corsair944]

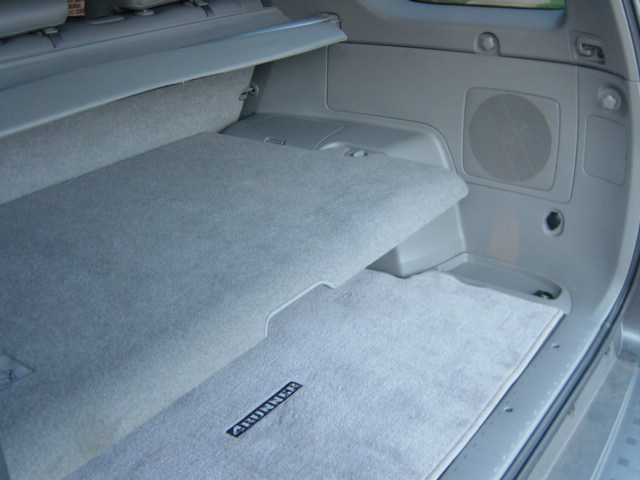

And covered up



[corsair944]

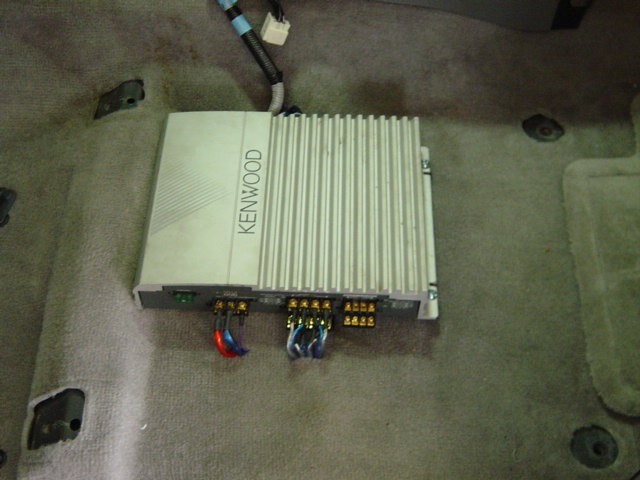

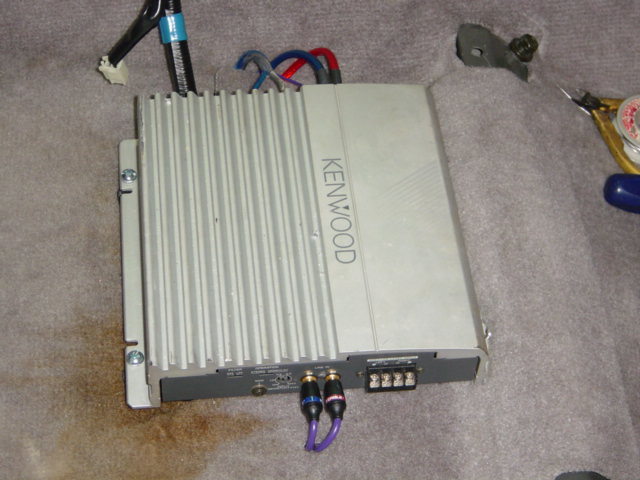

I installed 2 Kenwood Amps under the seats. I put some small rubber gromets to allow the air to flow under the amps to the rear area.



[corsair944]

the other one



[corsair944]

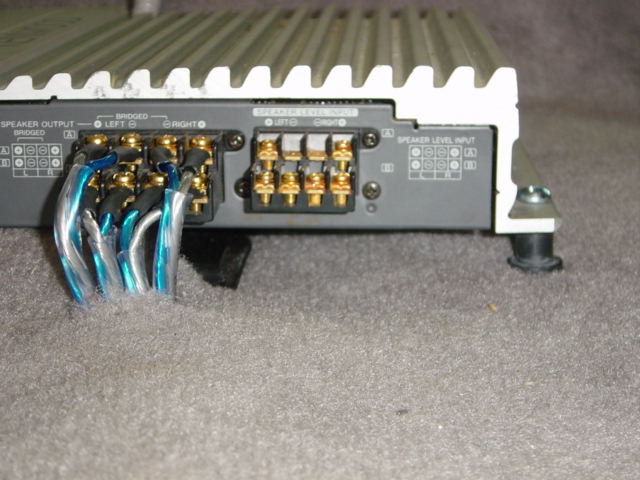

And just the right amount of clearance.



[corsair944]

The door speakers was an all day job. I put Pioneer 6X9 in the front doors and Kenwood 6.5 in the rear doors. I had to totally gut the old paper spearkers so I could use them as adapters. Liquid Nails to seal the new speakers to the old speaker/adapter. Then I had to trim the panels because the new speakers were sticking out a little more than the old. Then I went with Kenwood tweeters. I cant find the pics of the door speakers. ??



[corsair944]

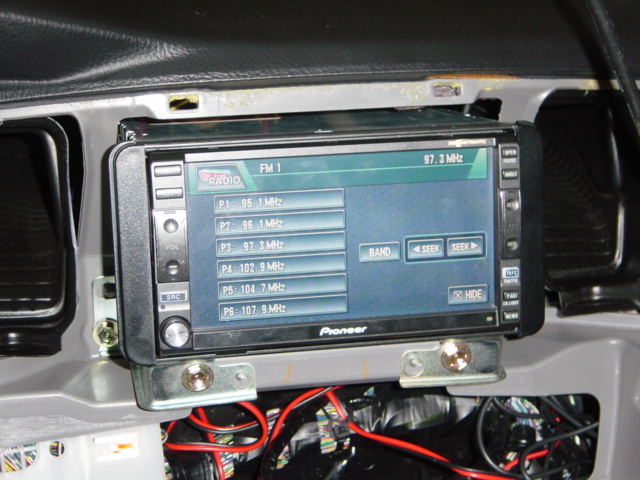

Avic. Thanks to petergaz. After searching for "navigation install" his post probably saved me 1 day of work. I was able to tap into the reverse wire and speed sensor in about 10 min with his info. I owe you a beer..



[corsair944]

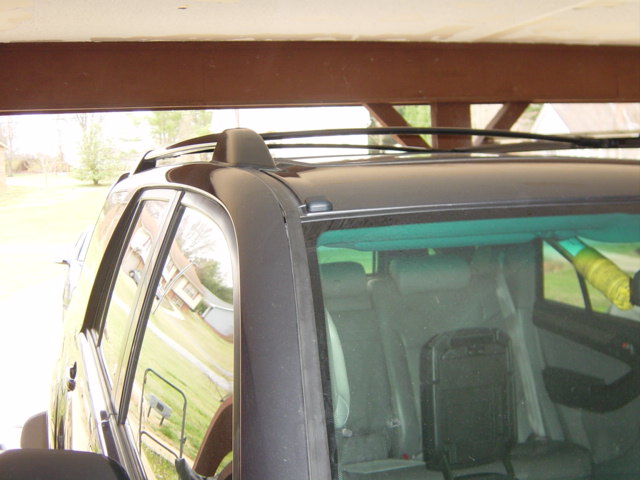

GPS antenna on pass side roof. I simply ran the wire behind the windshield trim, into the engine bay..



[corsair944]

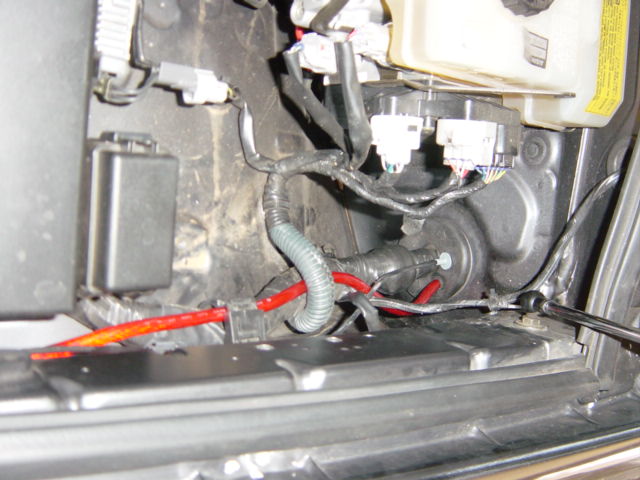

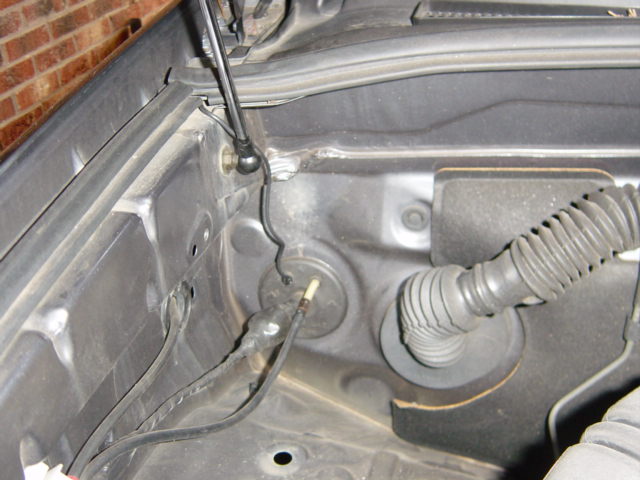

And in through the fire wall. Sealed up with black RTV.



[corsair944]

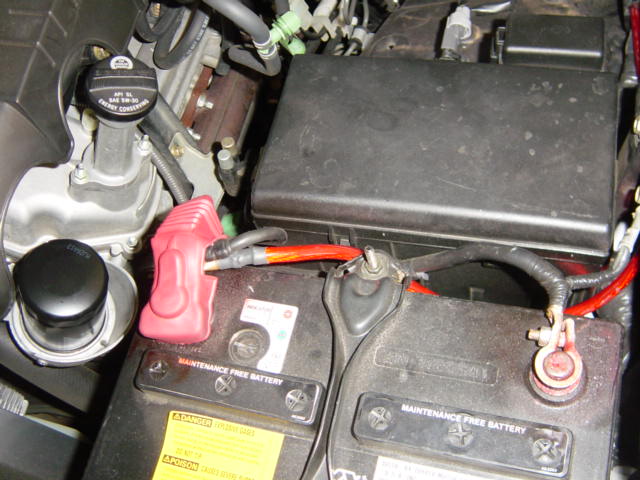

Battery/Power cable



[corsair944]

And through the firewall, to the center armrest.



[corsair944]

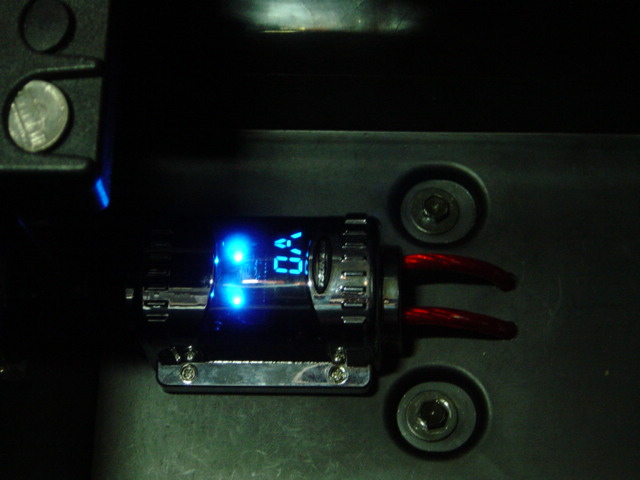

Open up and the Tsunami distrib. block



[corsair944]

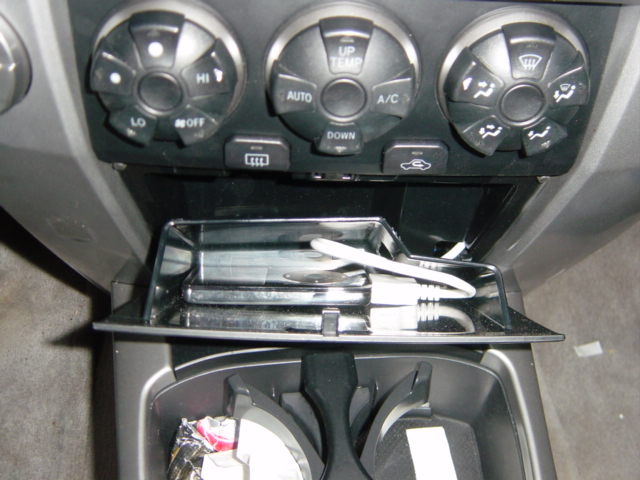

IPod interface. Hidden away out of sight and no wires dangling everywhere.



[corsair944]

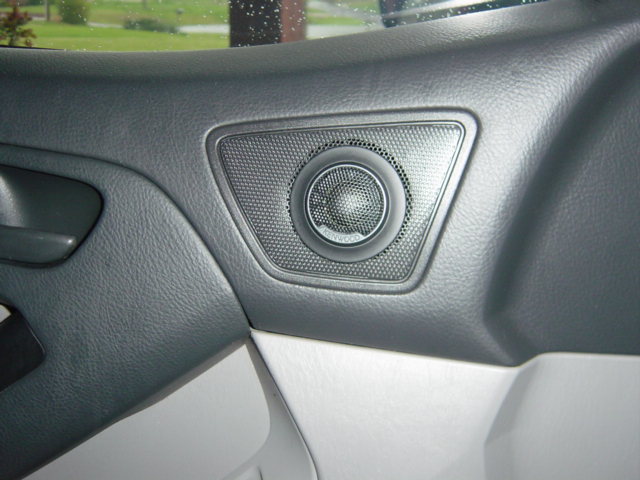

Tweeter.



[corsair944]

I used the 2 goofy trim pieces on the Avic. Its not great but it will do. I used Tsunami speaker wire. Street Wires power and ground cables. And Monster audio cables. The sub is the shallow mount Pioneer 8 incher. Not super low but fills in the bottom end pretty good.



[Mike07SE]

Very nice install! How does the Pioneer sub sound in relation to the factory now?



[corsair944]

The car never had a sub. I got the sub box at the salvage yard too, so I never heard a runner with a sub. But it sounds pretty nice to me. Its not super loud but it does fill the lower end out pretty nice.
