RCI TRD Pro integration skid plate

[calimero]

Has anybody installed the RCI TRD pro integration skid plate. Mine came with 2 sets of screws (one long, one short) and 2 nylon spacers.
I purchased the entire set of skid plates (no tank skid) and haven't yet tried to install them. The documentation for the integration plate was missing hence teh following few questions:
1. Do you know if the front screws are the short ones?
2. Are the nylon spacers for the back screws and do they need to be inserted between the chassis and the transmission skid (which is above the integration plate)?

Thanks for any feedback.

Eric



[Kamalani Mahie]

Has anybody installed the RCI TRD pro integration skid plate. Mine came with 2 sets of screws (one long, one short) and 2 nylon spacers.
I purchased the entire set of skid plates (no tank skid) and haven't yet tried to install them. The documentation for the integration plate was missing hence teh following few questions:
1. Do you know if the front screws are the short ones?
2. Are the nylon spacers for the back screws and do they need to be inserted between the chassis and the transmission skid (which is above the integration plate)?

Thanks for any feedback.

Eric

I honestly have no idea so I can't help you, but why not just contact RCI???



[calimero]

RCI contacted

I left a message at RCI a few days ago but I have not received any feedback yet.... May be too impatient hence the reason for me to try my luck on the forum.



[Kamalani Mahie]

I left a message at RCI a few days ago but I have not received any feedback yet.... May be too impatient hence the reason for me to try my luck on the forum.

Good man. Sorry I can't be of help. Hopefully someone can or RCI gets back to you soon.



[sigepbiker]

I left a message at RCI a few days ago but I have not received any feedback yet.... May be too impatient hence the reason for me to try my luck on the forum.

I'm sure there's a reason for not hearing back, RCI has great customer service and I'm sure it was an over site not sending you paper work for the installation.
[MENTION=90834]joshp767[/MENTION] w/ RCI is on the forum and might be able to answer your questions on this tread.



[Zapper]

I have the same skids, but cannot remember the specifics to how I installed it. I thought the directions were fairly straight forward. I will be the Reston area tomorrow. PM me and stop by the fire house, we'll give you a hand.



[stephan07]

Don’t remember exactly, but I recall the nylon spacers go above the skid plate up front along with the longer screws. I’m outta town or I’d crawl under, but it’s pretry self explanatory once you get under the vehicle and push the plate up.
They look fantastic



[sandcrawler]

Has anybody installed the RCI TRD pro integration skid plate. Mine came with 2 sets of screws (one long, one short) and 2 nylon spacers.
I purchased the entire set of skid plates (no tank skid) and haven't yet tried to install them. The documentation for the integration plate was missing hence teh following few questions:
1. Do you know if the front screws are the short ones?
2. Are the nylon spacers for the back screws and do they need to be inserted between the chassis and the transmission skid (which is above the integration plate)?

Thanks for any feedback.

Eric

i don't have the trans skid, so i can't speak to that, but it'll be clear which bolts go fore or aft based on how much thread engagement you feel. mine has the spacers in front. good luck and enjoy your skids.



[calimero]

Thanks for your help

I am sure the missing documentation is an oversight. I do not blame RCI for that. As mentioned it should make sense once i am underneath the vehicle.
Zapper thanks for proposing to help me unfortunately, I will not be around DC for most of the end of the week. Thanks again.
The rest of the skids installation seems pretty simple and et design of the skid is well done to not mess up there.
Eric



[calimero]

I am sure the missing documentation is an oversight. I do not blame RCI for that. As mentioned it should make sense once i am underneath the vehicle.
Zapper thanks for proposing to help me unfortunately, I will not be around DC for most of the end of the week. Thanks again.
The rest of the skids installation seems pretty simple and et design of the skid is well done to not mess up there.
Eric

Got in touch with RCI,
They do not have a documentation yet but their answer was pretty clear.
The small ones are for the front, the l’on. One for the back. The Nylon spacers are placed in between the cross members and the transmission plate which is above the integration plate. They were not able to tell me Toyota OEM torque spec. Does anybody know the torque specs ?
Does anybody use blue Loctite (threadlocker) on the bolts or is that unnecessary?
Thanks
Eric


Sent from my iPhone using Tapatalk



[snif6969]

Does anybody use blue Loctite (threadlocker) on the bolts or is that unnecessary?

I have the ShrockWorks Skids, no call for blue Loctite, every bolt had a lockwasher tho. I don't know about the RCI.



[calimero]

Thanks snif6969



[Angonemoto]

Here's a full install video

For those of us who are more visually inclined take a look here.

https://www.youtube.com/watch?v=RoHhVheh4e8

Kudos to Jason "Swell Runner" K for the video.



[barcainho]

For those of us who are more visually inclined take a look here.

https://www.youtube.com/watch?v=RoHhVheh4e8

Kudos to Jason "Swell Runner" K for the video.

Thats the video i used when i was installing mine. I have the full RCI skids and the only problem i ran into was connecting the Transfer skid to the frame points suggested (2 bolts on each side, the inside bolts were a tiny bit short.



[Cymon]

Has anybody installed the RCI TRD pro integration skid plate. Mine came with 2 sets of screws (one long, one short) and 2 nylon spacers.
I purchased the entire set of skid plates (no tank skid) and haven't yet tried to install them. The documentation for the integration plate was missing hence teh following few questions:
1. Do you know if the front screws are the short ones?
2. Are the nylon spacers for the back screws and do they need to be inserted between the chassis and the transmission skid (which is above the integration plate)?

Thanks for any feedback.

Eric

I’ll see if I can dig up my instructions for you tomorrow. I didn’t do a full write-up in my thread because it was pretty straight forward. I did order extra nylon spacers from RCI to give the front differential a little more breathing room. It’s all in my thread below.

Posts 52 & 82
http://www.toyota-4runner.org/5th-gen-t4rs/222282-cymons-weekend-warrior-mfd-thread-4.html



[Cymon]

[MENTION=191118]calimero[/MENTION]

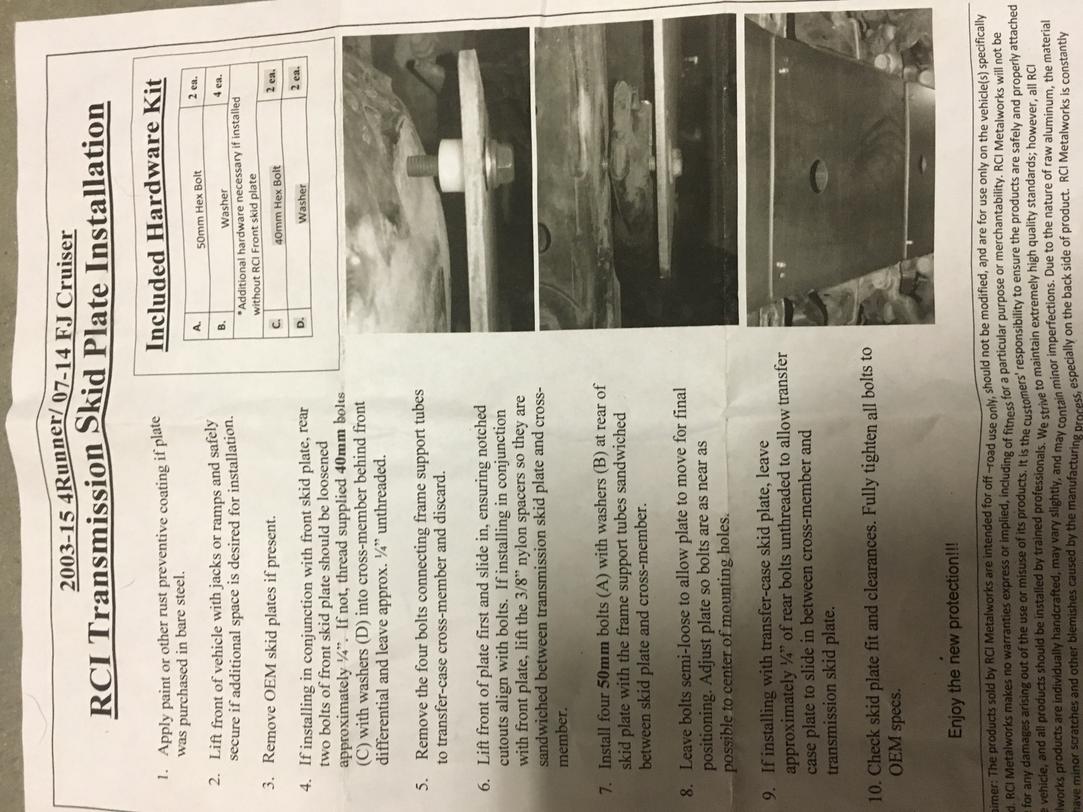

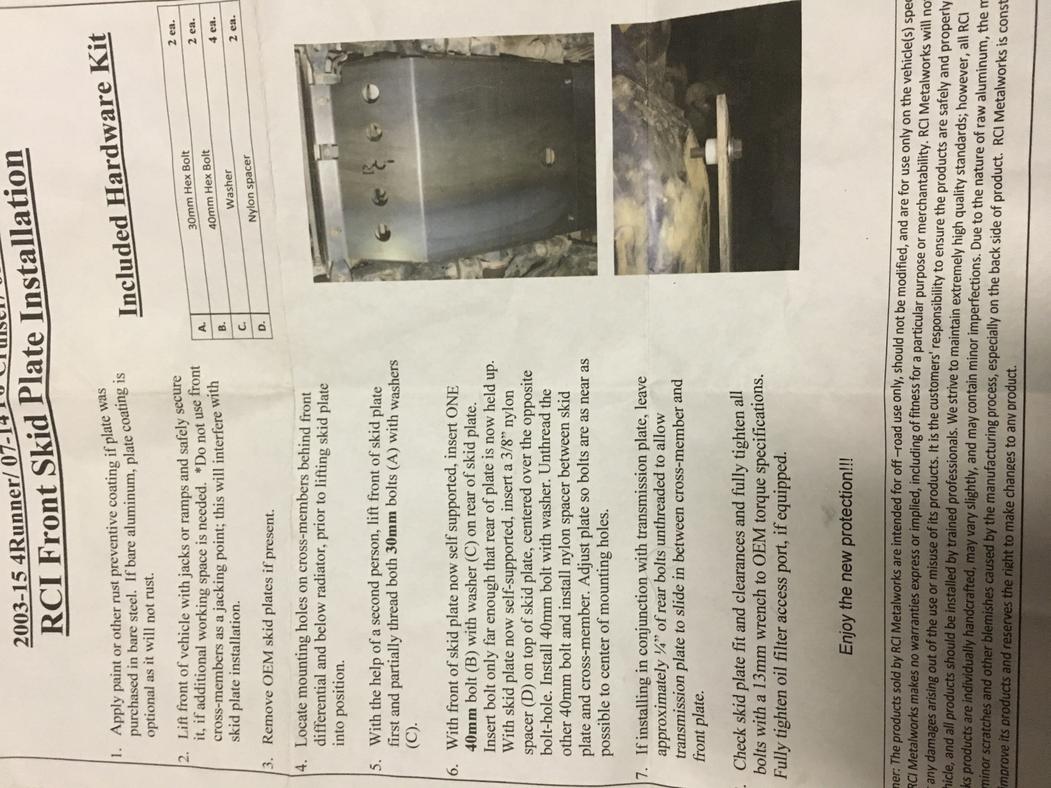

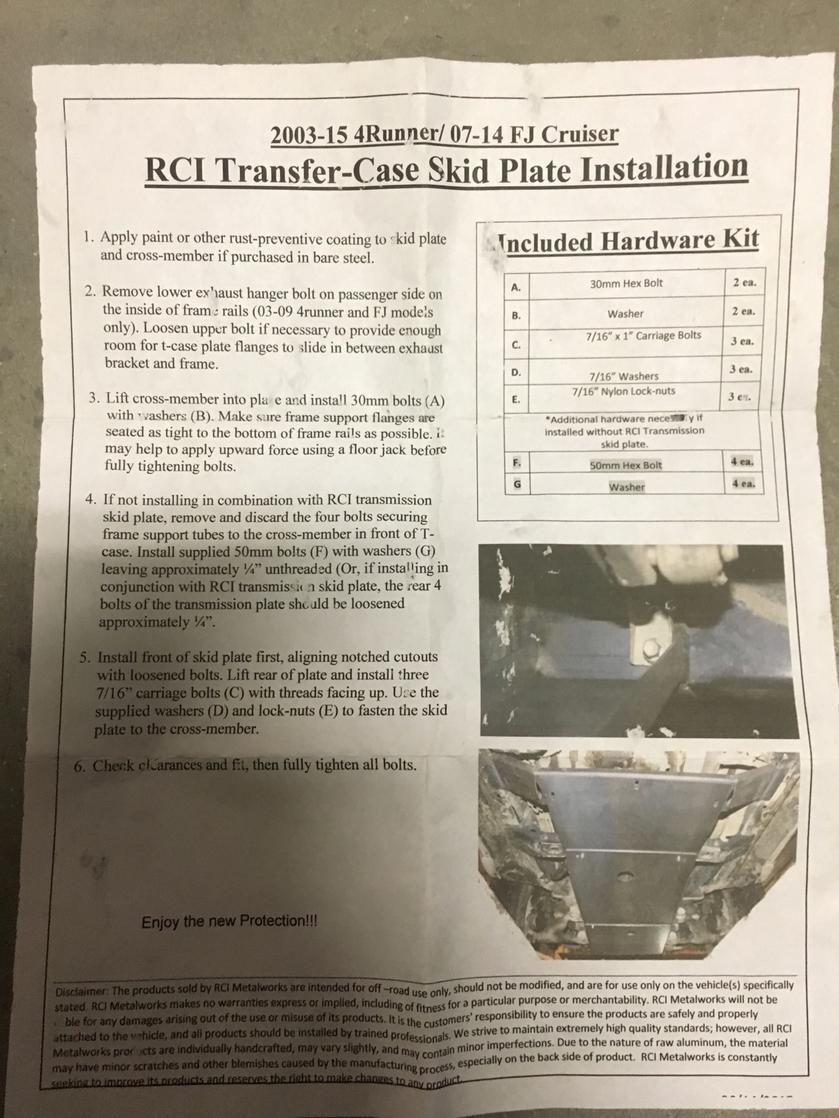

I also didn’t have the integration skid plate instructions. I forgot as it was a while ago. Here are the pics of the instructions I do have. I believe they sent me the front skid instructions to go with the integration skid as you’ll use the 30 mm bolts up front and the 40 mm bolts with Nylon spacers in the rear (that’s what I believe I did). Follow the front skid instructions, and take a look at the pics in my thread I posted in my previous post, hopefully that can help you out.



[calimero]

Thanks Cymon for the photos.
It seems to match what I was told by RCI. Will install them shortly.



[calimero]

Cymon,
one last question. Do you remember how much torque did you use on the bolts?
Thanks



[Cymon]

Cymon,
one last question. Do you remember how much torque did you use on the bolts?
Thanks

Hand torque...goodentiet in German. Also I applied anti-seize to all of the bolts. I don’t have any official numbers but haven’t had any issues yet after 18 months. Just in case you haven’t seen my post on this with the TRD skid plate, you may want to do this as well while your down there.

http://www.toyota-4runner.org/5th-gen-t4rs/239833-if-you-have-trd-skid-plate-read.html



[Thumper2018]

I just installed RCI skid plates (Integration, Transmission and Transfer Case) on my 2018 SR5 4Runner. I had already installed the TRD front skid some months ago. Like the previous poster, the Integration plate came with instructions for the RCI Front Skid Plate. After some close inspection and a little "dry fitting", it becomes pretty clear how these plates go together. There is no need to loosen or remove any bolts from the previously installed TRD Front Skid. Just remove the OEM skid that covers the transmission, and the Integration Skid tucks right on up there. Leave all bolts loose until you have all your plates in place. If you are doing the Transfer Case skid, you need to install the provided cross-member. On the driver's side, there is a bolt that secures some fluid lines with a 3' plate. That's where the cross-member attaches to the frame. The bolt hole on the passenger side is pretty obvious. Take their tip and put a jack under the cross-member to raise it up snug to the frame before tightening. The whole thing took me about 2 hours with just a jack and some jack stands for help.
