Rear bumper with swing-out arm. What layout?

[Arild]

Hi,
A fab shop is making a rear bumper for me with a swing out arm but i have a question. What layout should i go for?

Single or double swingout arm?

Single swingout is less hassle to open the tailgate i guess. But it takes more space when 'swinged out' in eg. a parking lot.

Is there another reason why i should go for a double swintout?

My other needs are:

• license plate holder
• jerrycan holder
• spare tire carrier (max 31")

It's a plate-bumper btw. Not a tube-bumper.



[Eacook1]

I think it’s personal preference. I’m building one now. Going with a single, less moving parts to buy and engineer into the design.


Sent from my iPhone using Tapatalk



[Arild]

The cost isn't a huge difference but i was thinking: two arms is less weight/arm when is't open.

Meh, it won't matter. I'll probably go for 1 arm.



[Dropzone]

I think it’s personal preference. I’m building one now. Going with a single, less moving parts to buy and engineer into the design.


Sent from my iPhone using Tapatalk

The cost isn't a huge difference but i was thinking: two arms is less weight/arm when is't open.

Meh, it won't matter. I'll probably go for 1 arm.

what hinge are you using? an eighty pound spare, 40 pounds of gas plus all the steel is a lot of weight to hang off a one of the cheap trailer hub axle kits. Or are you doing a double shear style mount?



[Arild]

'I' am doing nothing A shop is doing it for me so i'm not worried about quality and strength. I don't think they're going to use a double shear mount.

But the project is on hold due to that corona-crisis



[Eacook1]

what hinge are you using? an eighty pound spare, 40 pounds of gas plus all the steel is a lot of weight to hang off a one of the cheap trailer hub axle kits. Or are you doing a double shear style mount?

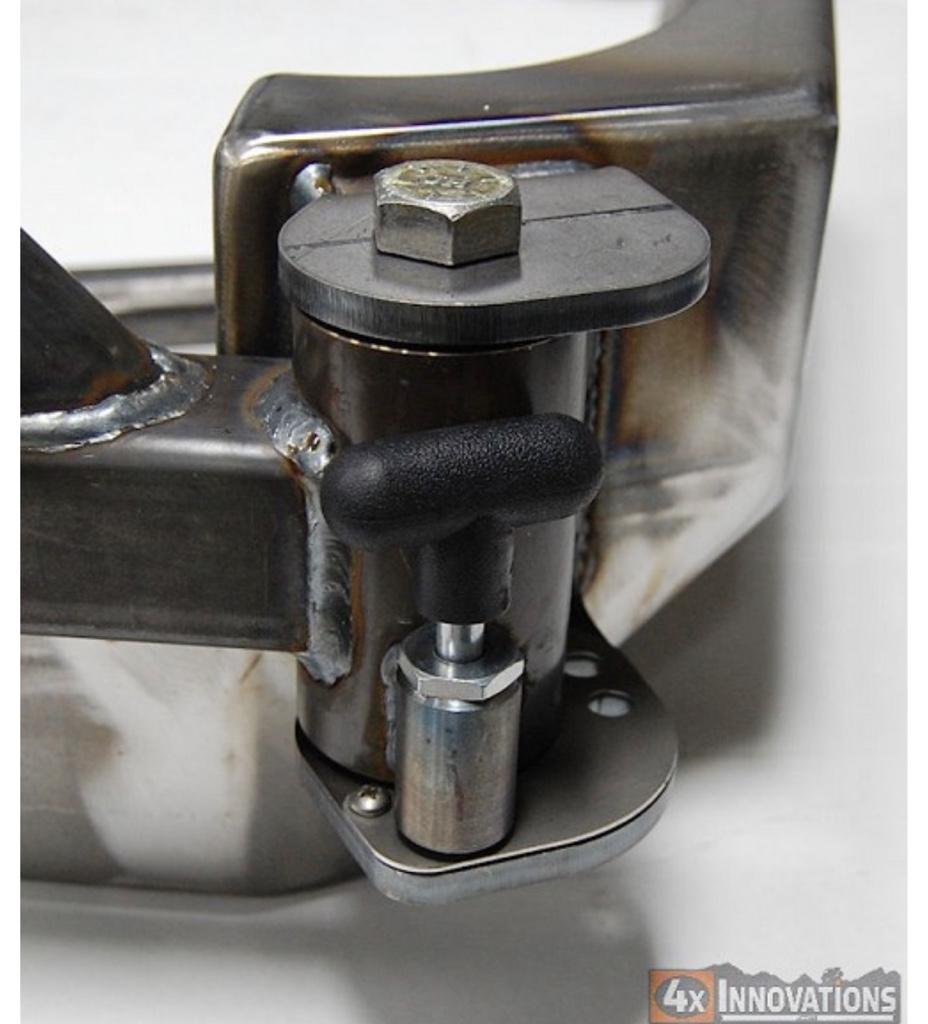

I’m using a 4xinnovations double sheer.

Sent from my iPhone using Tapatalk



[Arild]

Looks like a stong and solid mount. I wonder how much more those hinges can carry besides a spare tire. It would be nice to mount a bike-rack onto the spare wheel.



[Eacook1]

I think how the hinge is supported will be the limiting factor. The bearings in this hinge are rated at 1000 pounds and it uses 3/4 grade 8 bolt.


Sent from my iPhone using Tapatalk



[PRdubi]

Does anyone have one ready to bolt on for a 4runner ?

Sent from my SM-G950U using Tapatalk



[CTDST16]

I’m using a 4xinnovations double sheer.

Sent from my iPhone using Tapatalk

^---This. These are solid.



[Eacook1]

Does anyone have one ready to bolt on for a 4runner ?

Sent from my SM-G950U using Tapatalk

I think I’ve only seen a couple swing outs for 1st and second gens. Can’t think of the companies off the top of my head.


Sent from my iPhone using Tapatalk



[Chris In Milwaukee]

Double swing out requires less space behind you to open them in the case you’re in a narrow parking lot or parallel parking situation. My other thought is less weight on the bearings, although there are plenty of single-swing units out there. So, probably less of an issue.



[Arild]

less space behind you to open them

less weight on the bearings

Thos are the exact 2 advantages i was thinking about. But we don't use the 4runner to go shopping or as a daily driver. Well, it is out daily driver but we dont drive it much... So the disadvantage to open two arms takes the upper hand,... maybe... hwell:



[Eacook1]

This conversation has made me realize that my single swing out won’t clear my trailer when it’s attached. One reason I wanted a single swing was to place all the weight of the tire in the middle of the vehicle rather than off to one side or the other. I’ll have to re-think this.


Sent from my iPhone using Tapatalk



[Dropzone]

I’m using a 4xinnovations double sheer.

Sent from my iPhone using Tapatalk

Adam @4xinnovations makes some great stuff. I had his sliders and transfer case mounts on my 81 Trekker. Even after 10 years the mounts are still in great shape.



[RAD4Runner]

Double swing-out structurally better on wider SUV's, but looks overdone and over-kill on the 4Runner.



[Arild]

Double swing-out structurally better on wider SUV's, but looks overdone and over-kill on the 4Runner.

Also true. It would match a 80s series better for example. I like the 4runner for it's subtlety and i don't have plans to make it a full-accessory overlander.

The semi-lockdown is over next week so the shop will be open again. I will update with pics soon.
