Thought I'd amuse you guys with some Firestone alignment printouts.

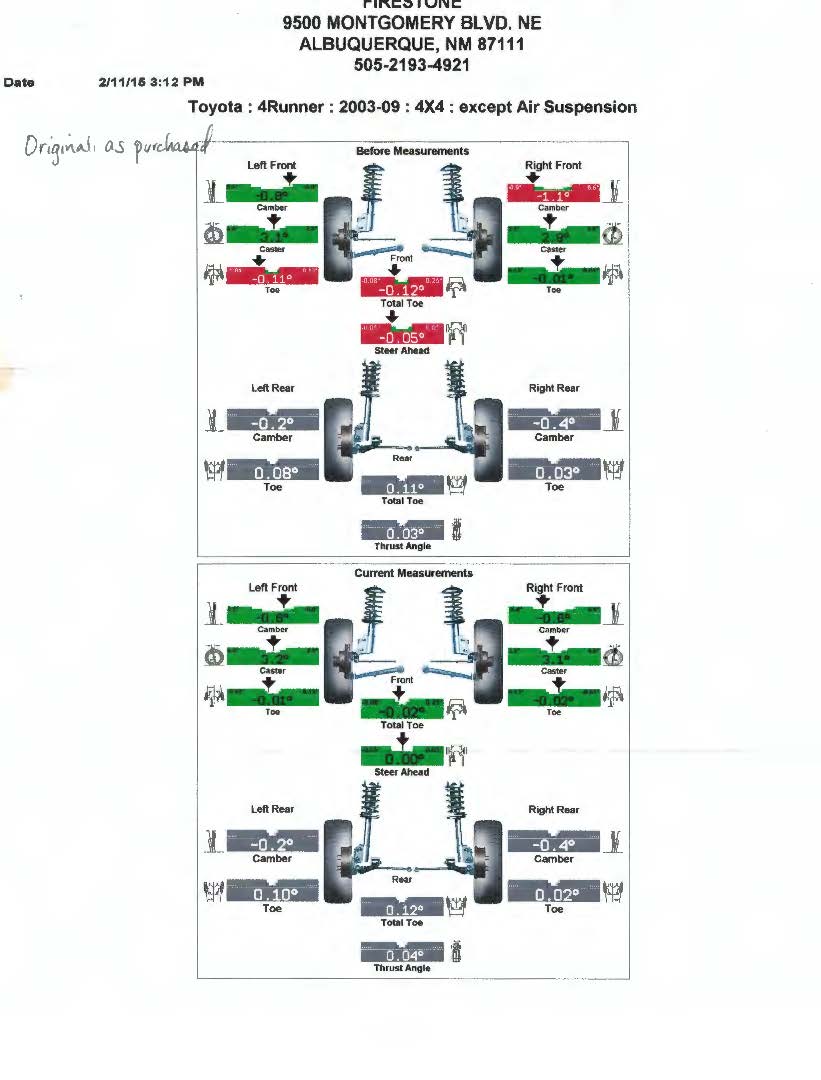

First one is on 2/11/16 - as purchased

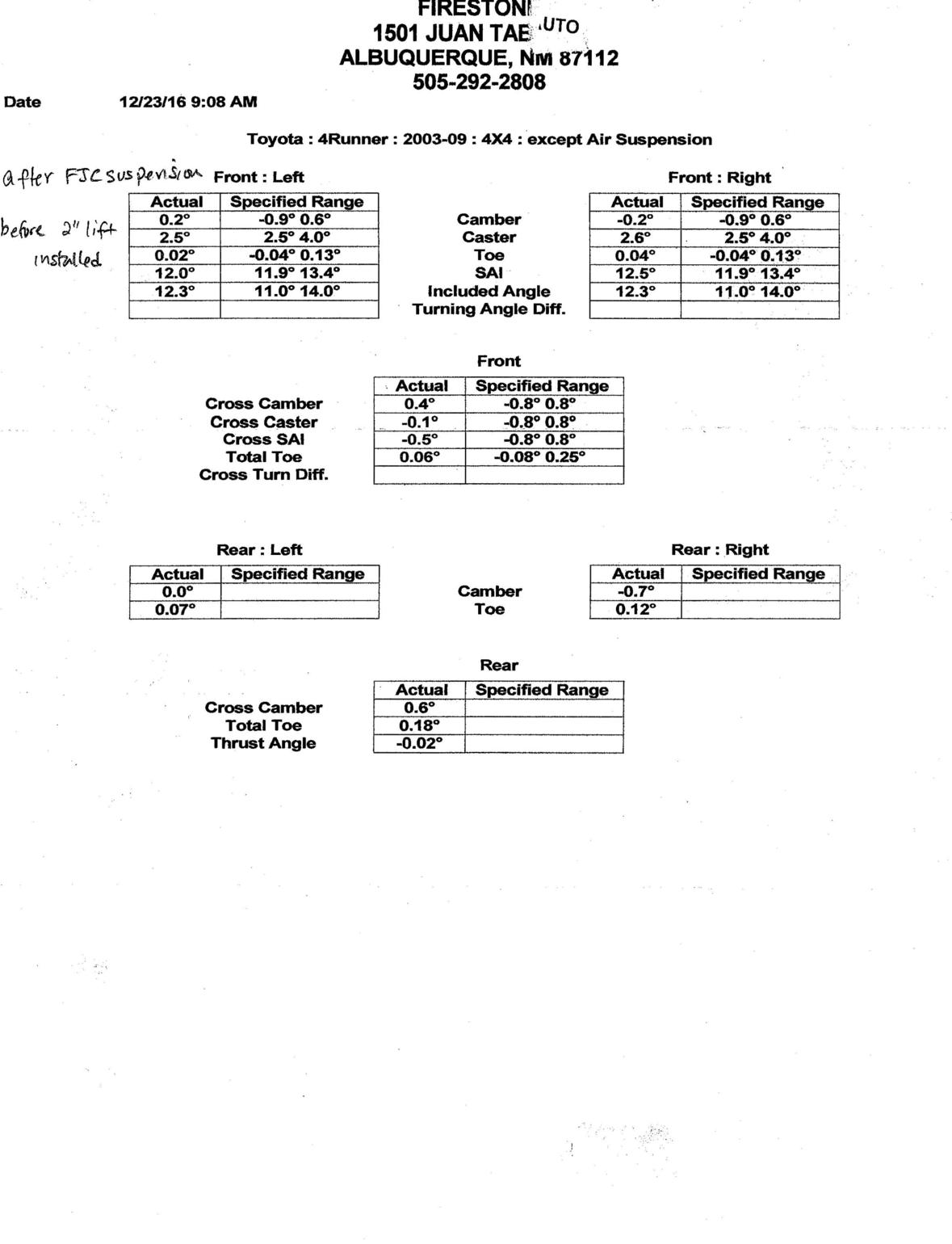

Second one is on 12/23/16 - after FJC cruiser suspension installed for about one year and before the 2" lift

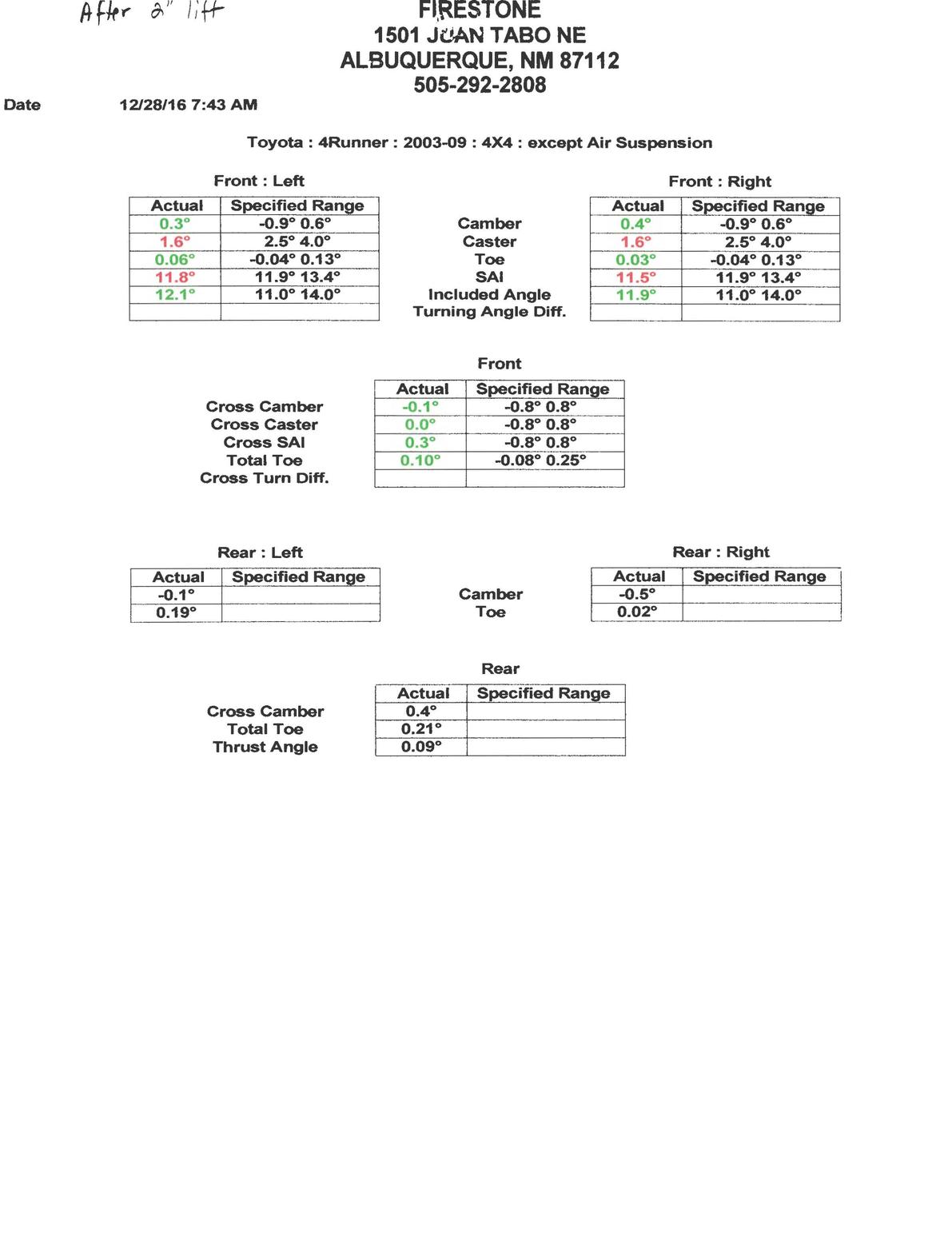

Third one is 12/28/16 - after Bilstein 6112s up front, set on the lowest setting for a 2" lift. Driver side on 3rd groove from bottom, pass side first groove from bottom. This is per Bilstein's recommendations
View attachment 234210
First one is on 2/11/16 - as purchased
Second one is on 12/23/16 - after FJC cruiser suspension installed for about one year and before the 2" lift
Third one is 12/28/16 - after Bilstein 6112s up front, set on the lowest setting for a 2" lift. Driver side on 3rd groove from bottom, pass side first groove from bottom. This is per Bilstein's recommendations
View attachment 234210
