SR5 Instrument Panel PIX

[B'klyn_Mike]

Can someone please post some close-up pix of the SR5 instrument panel - both lit and unlit? I'm looking to see what external gauges/colors would match the OEM gauges/colors for possible customized add-ons.

Thanks!

Mike :artist2:



[fxoffroad]

Here's a few...

Can someone please post some close-up pix of the SR5 instrument panel - both lit and unlit? I'm looking to see what external gauges/colors would match the OEM gauges/colors for possible customized add-ons.

Thanks!

Mike :artist2:



[B'klyn_Mike]

Wow...those are great...thanks!

Now I need one showing them unlit - with the ignition key in the OFF position or out of the ignition switch altogether!

Mike :artist2:



[WhiskeyCop]

That 1st pic was of the Limited Optitron panel, not the SR5.



[snow&surf]

Yeah, first pic is the Optitron cluster. It turns on/off when you start/stop the engine. When it's off, the cluster is completely black and you can't see anything.



[fxoffroad]

yup... just thought i might as well include that... just in case he changes his mind. those are photos from the Toyota Pressroom.

i was just too lazy to caption the pics. :hiding:

That 1st pic was of the Limited Optitron panel, not the SR5.



[Lee T4R]

Wow...those are great...thanks!

Now I need one showing them unlit - with the ignition key in the OFF position or out of the ignition switch altogether!

Mike :artist2:

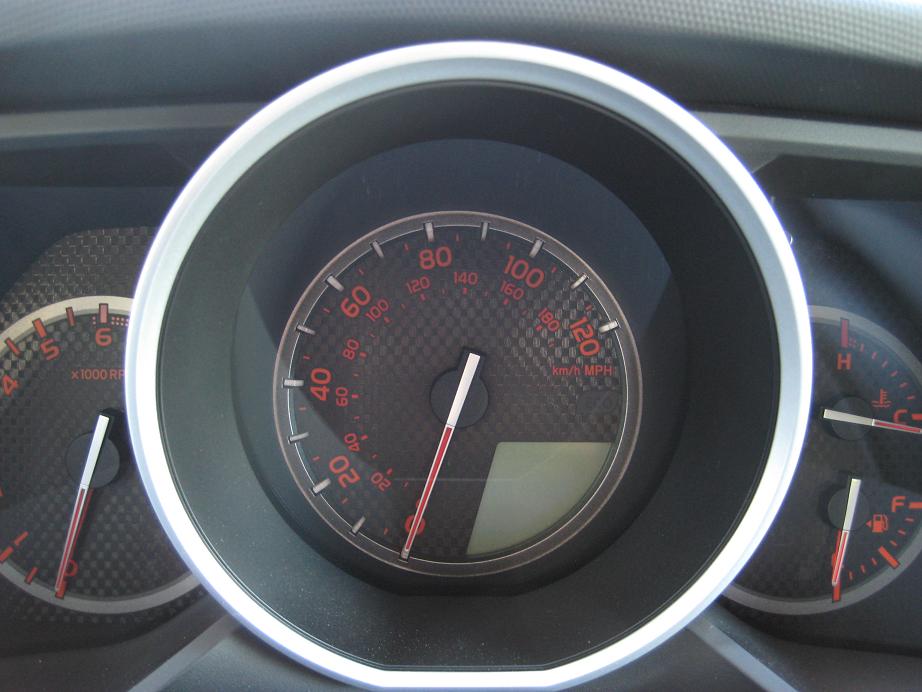

Here you go, sorry about the glare, I tried blocking it but the pictures were grainy and using the flash didn't show its true coloring.



[B'klyn_Mike]

Thanks everyone...I appreciate the feedback! :bigok:

Lee T4R, that pic will do just fine! :trophy:

Mike :artist:



[TechJE]

What does the panel look like in the Limited if you don't have the Nav package? Same as the SR5?



[fxoffroad]

It has the stereo head that the SR5 has, but the a/c * heating controls that you see on the Limited pic w/ the nav screen.

What does the panel look like in the Limited if you don't have the Nav package? Same as the SR5?
