Supplemental Reverse Lights (SUV)

[illzoni]

I want to install supplemental reverse lights on my 1987 4Runner. I’ve purchased a pair of halogen lights from Harbor Freight (Clear Lens Halogen Lights). The kit came with a simple switch I doubt I’ll use.

I want them wired so that I can select one of three options at the dash: a) off; b) on; c) on only when in reverse. I doubt the existing wiring is adequate to run them, so I suspect I should run a heavier wire from the battery to the rear of the truck, then run a smaller wire to/from the lights and switch, with a relay closing the heavier circuit.

Can anyone confirm my ideas? Correct me where I’m running astray?

Can anyone suggest parts and sources for the relay and switch? (Of course, I’d prefer a local vendor where I can walk in and buy them, then start tinkering directly.)

Thx,
Jon



[illzoni]

Really?
No inputs?



[blkexp98]

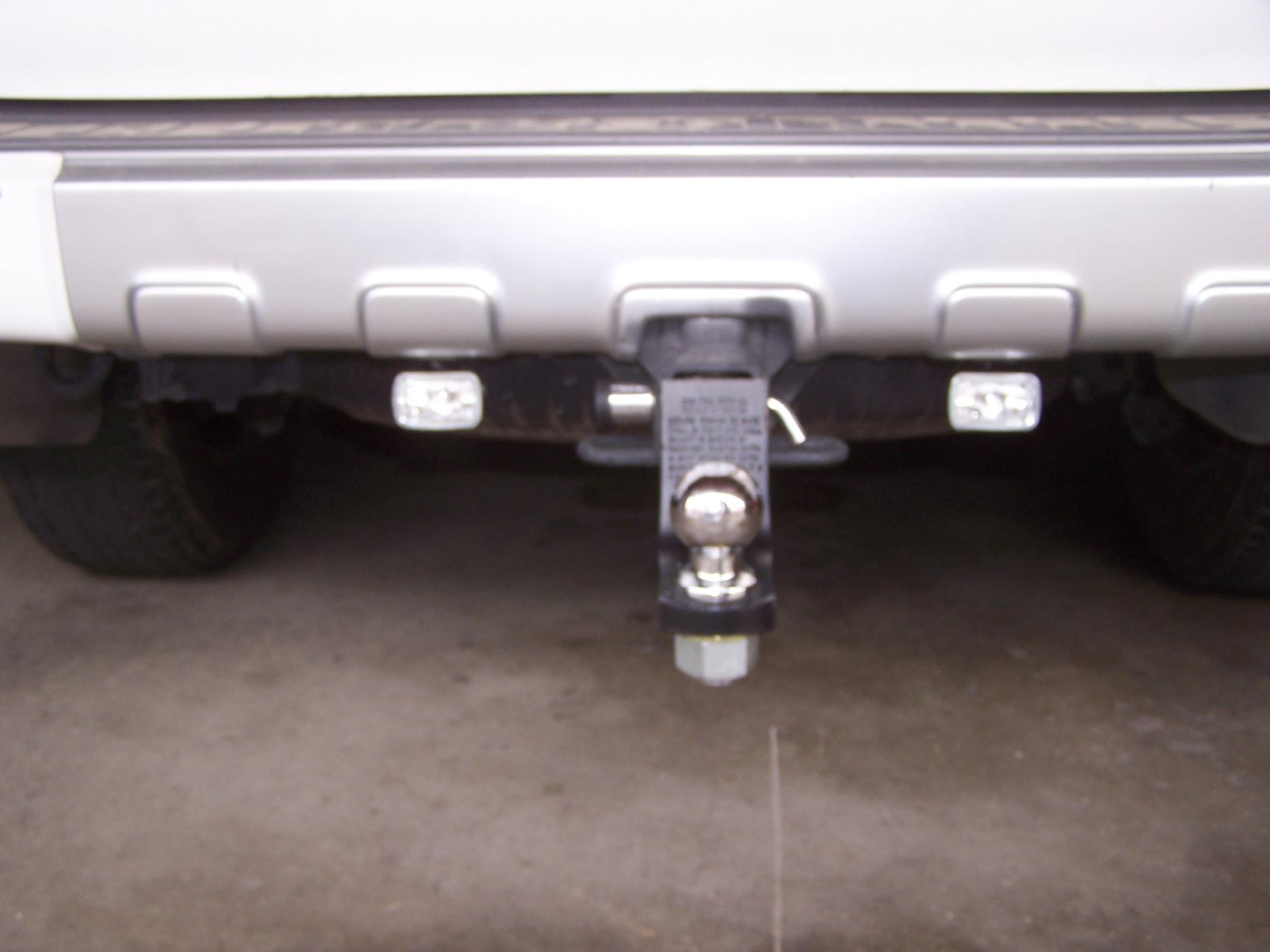

I would definatly add some but may choose something better than harbor freight offerings. On my old explorer i put in a set of lights for backup purposes and loved them. I mounted them by the hitch and they blended in pretty well since hey were more oval shaped.

To make it work with the reverse lights you can find those wire colors and go up front and see if you can find them again closer to the dash. Theni would use a 3 way switch for ON -> OFF -> backup lights. That way you have a simple setup. I would also run seperate wires for the lights themselves but use that factory backup light wire as a sense for the relay.

Hope that helps some and i may have to look into doing this on my 4runner too.


Oh and for the relay i would just go to one of the auto parts stores. They may have a switch but i dont know about a 3 way. You could always use two and just have the second switch be a bypass over the relay. The auto parts store will probably be overpriced for the switch but it is local. If you have time you can order from Mouser or even ebay probably. To get lighted switches radioshack has some or you could look online again.



[chaz]

these links may help. there on a 4th gen. but maybe u can get some info. http://www.toyota-4runner.org/4th-g...everse-backup-lights-installed-lots-pics.html http://www.toyota-4runner.org/4th-gen-t4rs/55526-auxiliary-backup-light-installation-questions.html http://www.toyota-4runner.org/accessories/18428-aux-reverse-lights.html



[illzoni]

Thanks for the info.



[810moto]

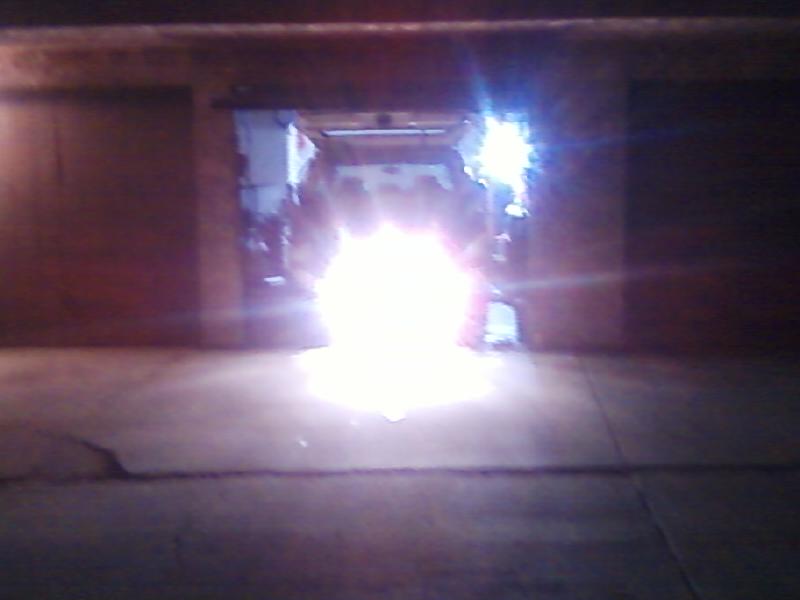

i picked up a set from walmart for under $20. they work great and are
2x55w hooked up with a daystar switch and run thru a blue sea block.
I don't know about hooking them up with the way you are looking to do but having them switched by themself allows me to only use them when I need to.
