Sway Bar Links - Eugene, OR

[MStudt]

Disclaimer- Please read this carefully! (Moved 3/1 to a more visible location)
*Please allow 3-5 business days for delivery*
*Please note these are an aftermarket product, that are intended for off-road use*
*They are to be installed at the owners discretion, and the owner will assume all risk*
*The builder is not responsible for any damage to any vehicles during the installation or use of these products*
*It's the buyers responsibility for securing any loose parts when the links are removed*
*No used links will be returned*
*1 year warranty on all links (cost after 1st year)
*All sales are final*
*By purchasing these links, you understand and assume all risk*


These links will work on lifts up to 3", and add an additional 1" to the overall length. The links are over sized, a lot stronger than OEM, and NO DRILLING IS REQUIRED.

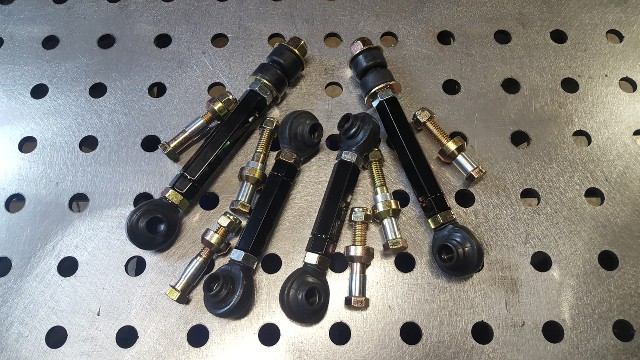

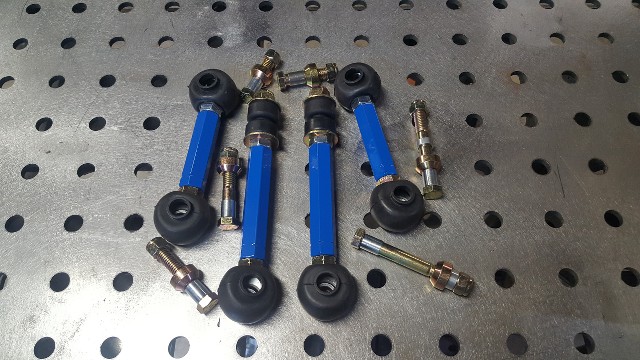

Heim Joint Links

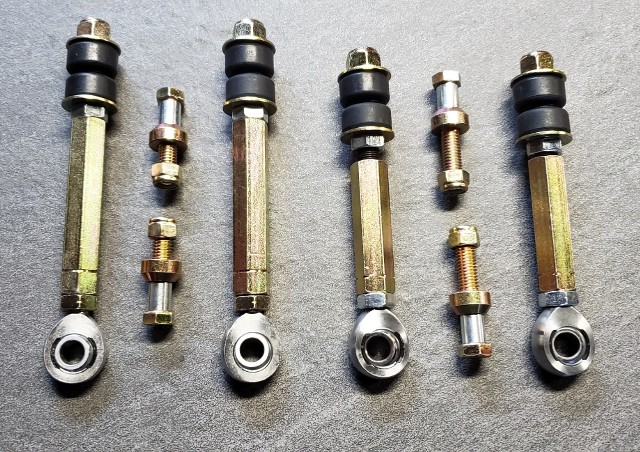

3rd Gen 4runner Links:

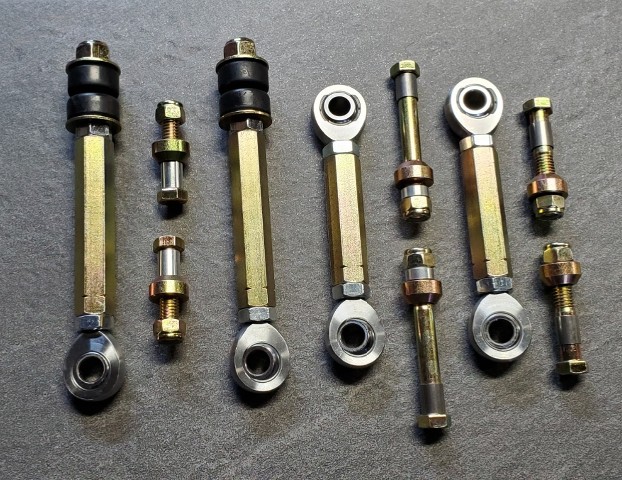

4th & 5th Gen 4runner, FJ Cruiser, and GX Links:

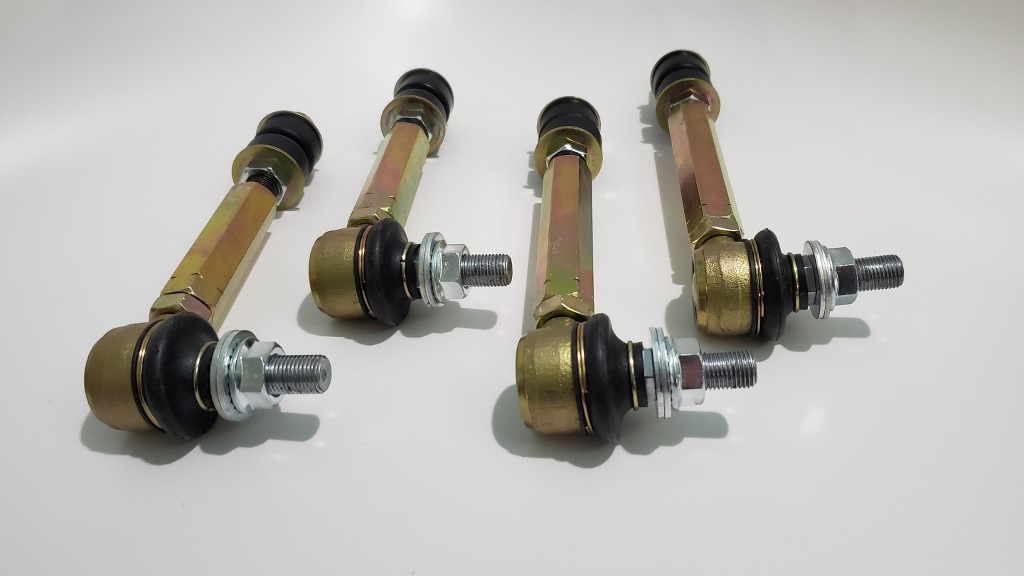

Forged Ball Joint Links
3rd Gen 4runner Links:

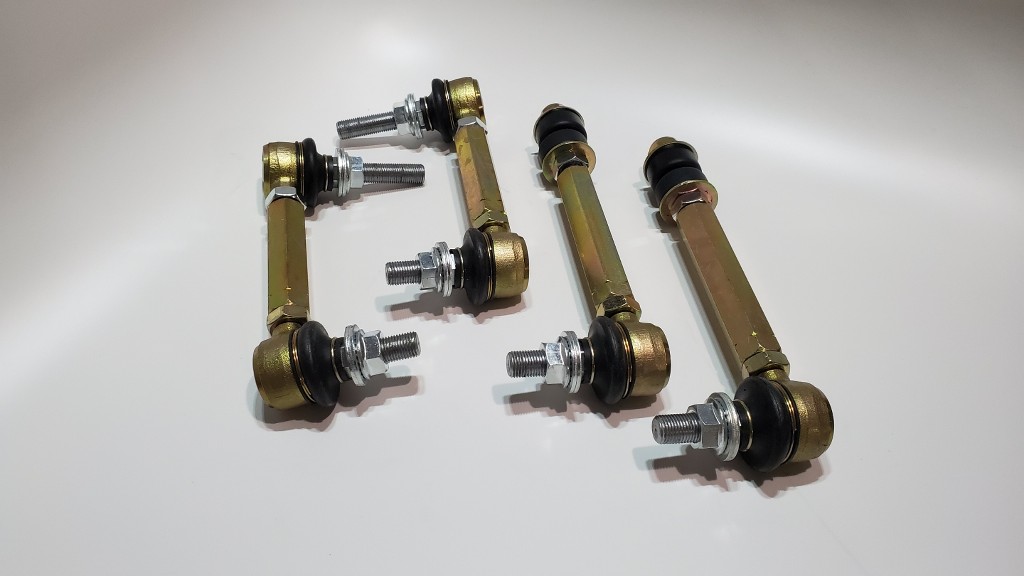

4th & 5th Gen 4runner, FJ Cruiser, and GX Links:

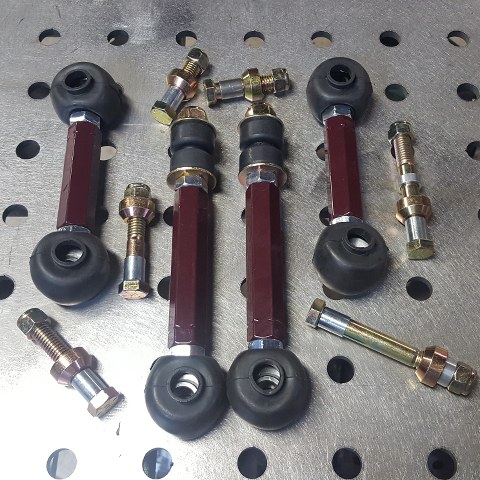

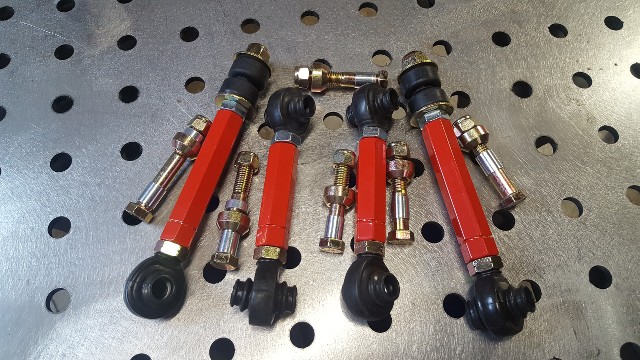

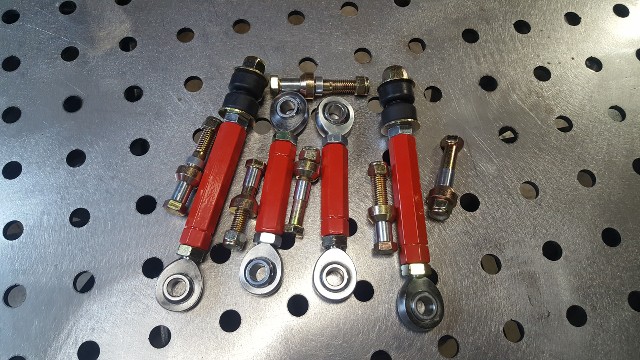

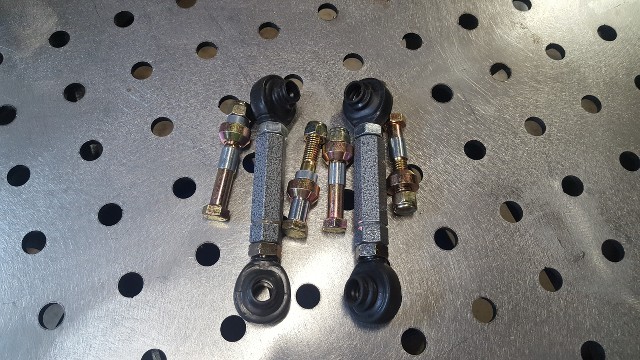

Custom Powder Coat Links:

PLEASE READ BELOW FOR PRICING, AND KNOW WHAT YOU'RE ORDERING WHEN YOU ORDER IT!
Pricing
*Heim Joint Links - $170 for front or rear; $220 for front and rear
*4th and 5th Gen Disco's - $220 for front; $270 for front and standard rear
*Powder Coated - +$20
*Heim Boots - +$10-$30

*Forged Ball Joint Links - $190 for front or rear; $250 for front and rear

Thanks,
Mike



[Skidmarcx]

Very nice looking links!



[Robb235]

What's the difference between a double disconnect and single?



[MStudt]

Here are some pictures to help everybody with the install. These are front links on a 3rd Gen, but it's the same process for any other Gen.

This is how you should receive the bolts in the box.

Step 1. Install the reducer.

Step 2. Slide the bolt through the heim. (picture 2 with boots)

Step 3. Put on the cone washer. (picture 2 with boots)

Step 4. Slide through bolt hole, put nut on back side, and tighten.



[BrianSD_42]

Interesting. Do you offer a warranty?

How about a warranty that says if any piece breaks w/in 5 years you will send the part (say the joint) at cost price. ?



[BrianSD_42]

They look really good btw.

I've found that one of the benefits of custom links is that they are longer and return the sway bar articulation to normal after you have lifted the truck.

I have not found the quick disconnect to be that useful. Rather, with proper length extended links you don't even need to disconnect them.



[MStudt]

They look really good btw.

I've found that one of the benefits of custom links is that they are longer and return the sway bar articulation to normal after you have lifted the truck.

I have not found the quick disconnect to be that useful. Rather, with proper length extended links you don't even need to disconnect them.

Some like the option of being able to remove them and not worry about it. I started doing the double disconnects for the 4th and 5th Gen guys on the front since they are a little different then ours.



[Mtssurf1]

extremely interested, id need the doubles for the front of a 2000 limited with a 3 inch lift.



[MStudt]

extremely interested, id need the doubles for the front of a 2000 limited with a 3 inch lift.

No problem, 3rd Gen's are easy. PM me you information.
*your email
*3rd gen
*red or black bushings
*front/rear/or both

I'm placing an order today for parts, don't miss out!

Mike



[GX4SEVEND]

Any options for people who just placed an order for your other links but would like to swap out for these?



[Kraze]

The warranty is certainly a good idea! I don't think I've heard of any style link breaking before, so it's probably a safe bet haha.

I have not found the quick disconnect to be that useful. Rather, with proper length extended links you don't even need to disconnect them.

And then there's guys like me, who won't even consider hooking my sway bar back up unless I have disconnects on both ends haha.

Edit: I was curious and did some searching, and it looks like some guys have broken stock links before. The warranty sounds even better now, although I would definitely have mine disconnected for wheeling, so I don't think I'll have to worry about it :thumb:



[MStudt]

Any options for people who just placed an order for your other links but would like to swap out for these?

Shoot me a PM and we'll discuss.



[frank_socal]

PM sent for my order.

Thanks



[MStudt]

PM sent for my order.

Thanks

Thanks for the order!



[MStudt]

Thanks for all the orders guys! I'll be making a parts order this evening. If anyone is interested, shoot me a PM before then to get on this round of orders.

Mike



[Brique]

I got a buddy whose stock links have both broken (due to age, not wear) I'll send him the link. I'll also be very interested when i start building. Could blue bushings be an option?



[MStudt]

I got a buddy whose stock links have both broken (due to age, not wear) I'll send him the link. I'll also be very interested when i start building. Could blue bushings be an option?

Blue bushings are fine.



[white_n_slow]

I think I'm gonna order a set, but can you post a picture of what the double disconnect looks like when disconnected (i.e. what is left behind on the swaybar?) Just something to illustrate what you said in post #4 since I'm more of a visual person



[MStudt]

I think I'm gonna order a set, but can you post a picture of what the double disconnect looks like when disconnected (i.e. what is left behind on the swaybar?) Just something to illustrate what you said in post #4 since I'm more of a visual person

Essentially you have the pin on the top on the sway bar in the rear and on the lca in the front. The bushings and a small stud will be left on the rear frame mount and the sway bar in the front.



[white_n_slow]

Does the stud with bushings mount back onto the link body by threading on, or is there some sort of quick release mechanism?
