Trail Operating Modes Matrix

[77Bronc]

I searched but cannot find what I am looking for. Sometime back some one posted a matrix on all of the operating modes and positions for the Trail version. I found the one that is a spreadsheet, like an XL spreadsheet, this was more like a poster...if anyone can post a link I would appreciate it.

If I remember is was colorful and well organized.

Thanks,


77



[marshal]

sorry, had to. i don't have anything else



[winston70]

I searched but cannot find what I am looking for. Sometime back some one posted a matrix on all of the operating modes and positions for the Trail version. I found the one that is a spreadsheet, like an XL spreadsheet, this was more like a poster...if anyone can post a link I would appreciate it.

If I remember is was colorful and well organized.

Thanks,


77

I haven't seen it but would like to as well.



[Jeremy556]

Meh, the MTS is pretty much fluff. Only thing I use it for is dirt mode in 4hi as it makes the traction control and ABS less intrusive. 4lo gets ATRAC, then rear/front locker as needed.



[Bevo]

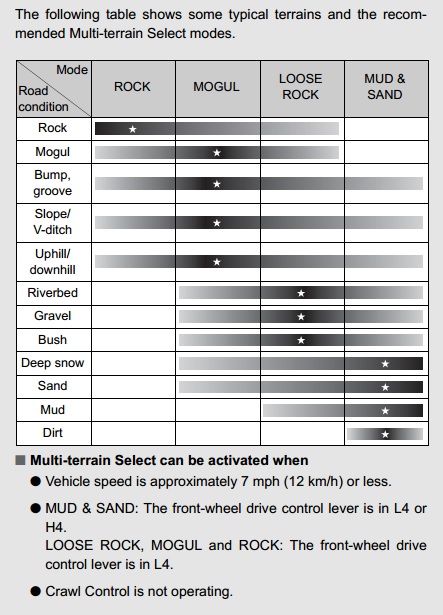

This is the only one I could find, but it sounds like it is the one the OP already found. I am pretty sure it is from the owners manual.



[Z0MBIEproof]

[MENTION=104049]marshal[/MENTION] you truly are the king of meme's in this forum :first:



[77Bronc]

I found it, posted by member BBB, from California. I took a screen shot on my iPad, but zoomed in and cut off the name. But had the title, just searched the title and found it. For those who are more posting savvy than me, could post the original link.

Was posted in 2010, so I assume the newer TP operating modes also holds true.

Search "4Runner Trail Drive Systems"

Thanks who replied.

77



[markwilaoto]

I am pretty sure it is from the owners manual.



[77Bronc]

I am pretty sure it is from the owners manual.

Thanks,

I don't have a 4Runner yet, just planning and looking ahead. I would like to see a manual, having trouble finding one online. Can't find a .pdf version.

77



[1engineer]

Thanks,

I don't have a 4Runner yet, just planning and looking ahead. I would like to see a manual, having trouble finding one online. Can't find a .pdf version.

77

Please don't read the manual. If you do then you will join the one percenters and have all the rights and responsibilities of that knowledge thrust upon you. The pressure is intense. The drama is real.



[BobsTrail]

Start at Section 2-236, page 20

After getting confused with too much info, get your T4, find some sand and just play with all the settings.

If you get a Trail, use the Multi-Terrain in place of the ATRAC.



[77Bronc]

Start at Section 2-236, page 20

After getting confused with too much info, get your T4, find some sand and just play with all the settings.

If you get a Trail, use the Multi-Terrain in place of the ATRAC.

Thanks Bob great help. I will read tonight

77
