Transmission to transfer case hose part number: *Pic*

[fourfive]

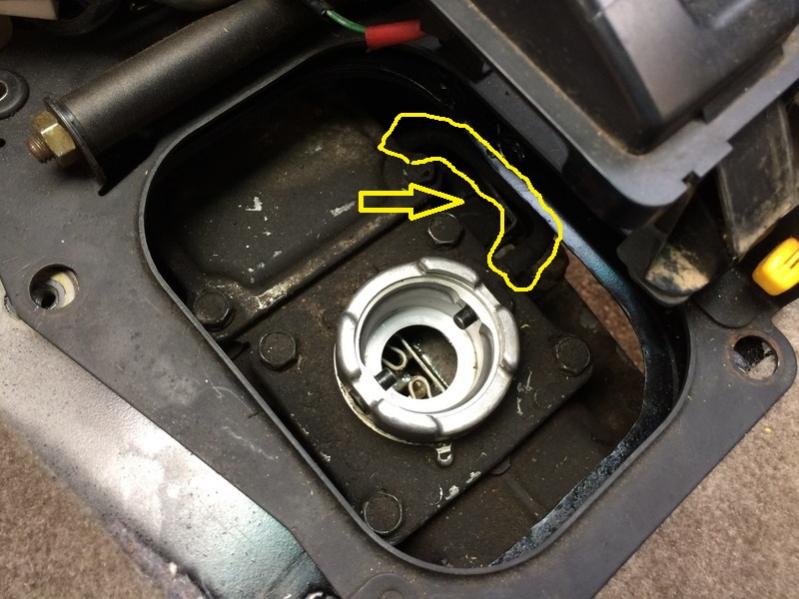

Trying to find the part number for the short U shaped rubber hose that connects between the transmission & transfer case. Hard to see in the 1st pic, google pic, but I outlined it in yellow.
Edit: the first pic is with the transmission shifter assembly removed.

90447-08119, circled in red in the 2nd pic, & 90904-45005, circled in blue, are the closest I was able to find on a parts diagram but don't think it's the right one.



[Dieselchessy]

This E-bay listing has it hanging off the back for reference. I suspect its 36117N, but not sure.

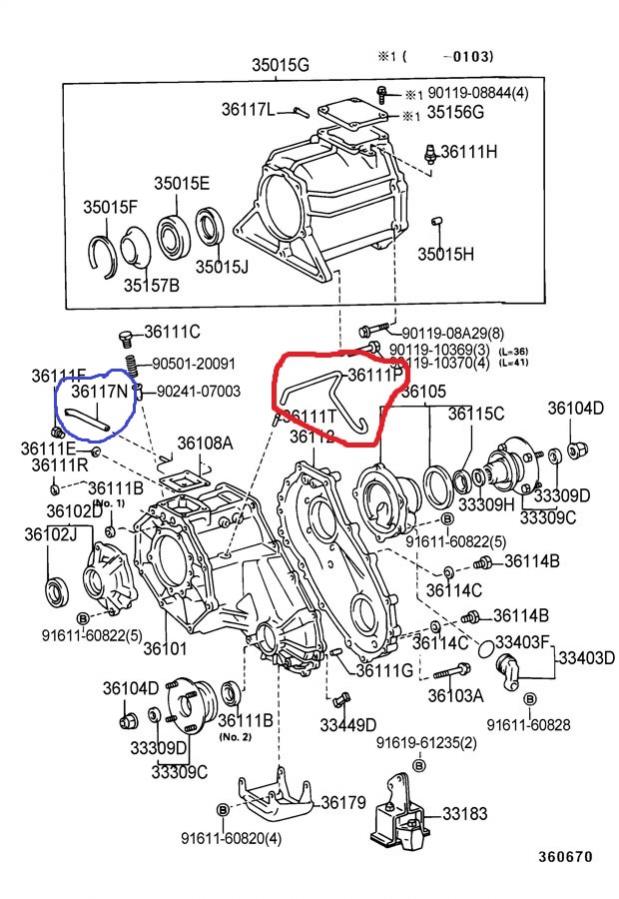

Follow this link => more drawings => center drawing (MC U602a) shows 36117N being the correct shape and routed where you depict.

TRANSFER CASE & EXTENSION HOUSING. 2000 Toyota 4Runner SR5 3.4L V6 4WD AT | Toyota


https://www.ebay.com/i/312734759074...MIpuTvhr6r5gIV6iCtBh39ggUlEAQYAiABEgKP7_D_BwE



[phattyduck]

I thought I recognized that picture... its my truck! (taken while I was replacing the shifter seat bushing) :beer:

Anyways, that hose is just a vent for the transfer case adapter (that forward section is not part of the transmission, it is the adapter between the transmission and the main body of the transfer case).

Assuming you have a V6 auto, that hose is PN 90904-45005 - but any old vacuum line will work fine.

-Charlie



[fourfive]

Perfect, 36117N in the diagram part number 90904-45005 is exactly what I was looking for. Thank you.

Glad you snapped that pic changing your shifter seat bushing for me to referece.
