115V mod

[drapaki]

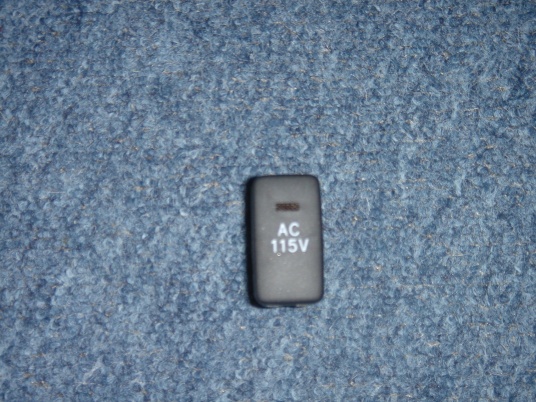

can someone with the wiring diagram for the 4th gen let me know which tabs are for what? (+,ground etc..)

(part number 84480-35070)



[drapaki]

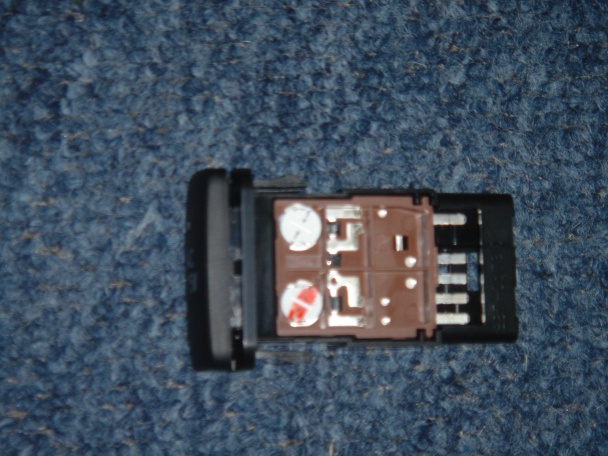

(side view)



[A/V1]

PM me with your email addy & I'll send the pdf.



[drapaki]

yeah..i should have mentioned that i have the diagram. but it's far to confusing for my undejumicated self. might as well be reading Chinese.

certainly someone can decipher that beast and help me out on the tabs!



[A/V1]

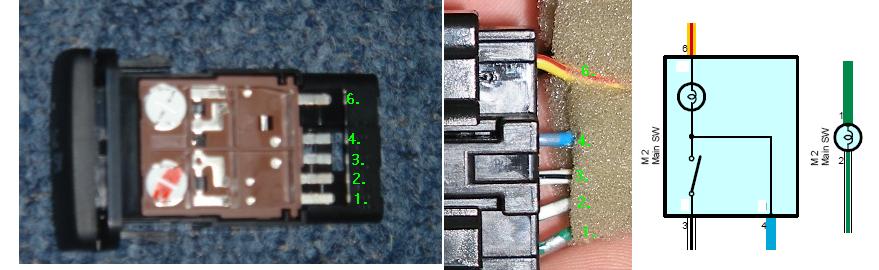

Here, Check this out. Hopefully it helps. Let me know if you have any questions.



[A/V1]

6. is the power "in" from ignition circuit for the "on" lamp
5. (not used)
4. The switch switches ground in this application. This is the wire for the inverter relay which gets the ground through the switch
3. is the ground for the the inverter relay and "on" lamp,
2. illumination ground (through the rheostat)
1. illumination power



[drapaki]

my good sir, you are an asset to this forum!

looks like i need to get a relay. would the 'automotive relay' from radio shack work?

i wonder which posts i need. i think otter on this forum knows about this kind of stuff...

6. is the power "in" from ignition circuit for the "on" lamp
5. (not used)
4. The switch switches ground in this application. This is the wire for the inverter relay which gets the ground through the switch
3. is the ground for the the inverter relay and "on" lamp,
2. illumination ground (through the rheostat)
1. illumination power



[drapaki]

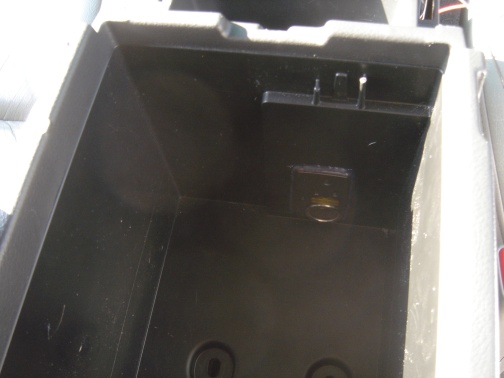

ok.. so i guess this would be considered my first mod. what do you think?

hacked this apart:

http://www.radioshack.com/product/i...origkw=inverter&kw=inverter&parentPage=search

fan still works, takes up no space. no noise etc..



[drapaki]

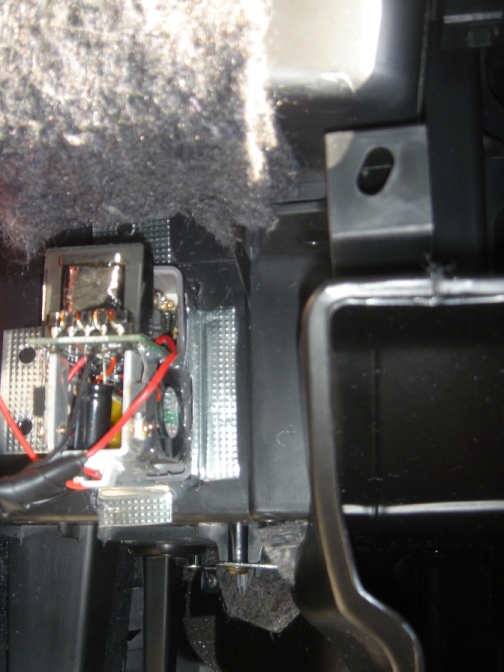

this is what the back looks like..

the metal used was some thin corner stripes used in drywalling... i think it's tin. lots of hot glue gunnage.



[drapaki]

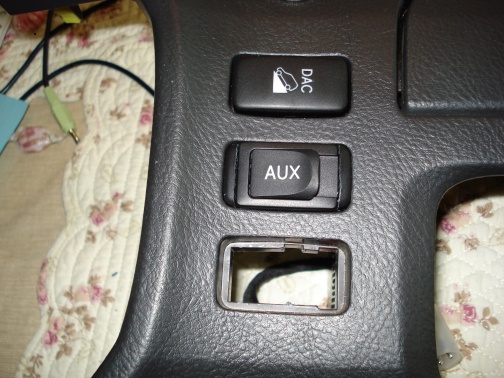

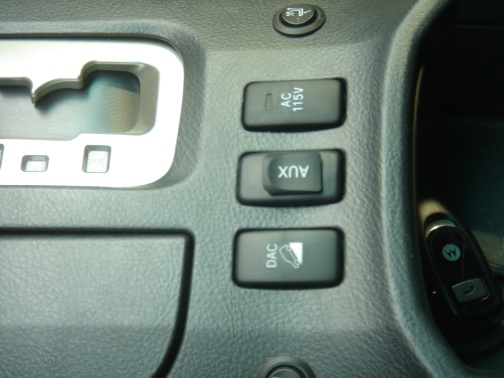

factory button (84480-35070) installed in a more convenient location. night light works and so doe the 'on' lamp.



[drapaki]

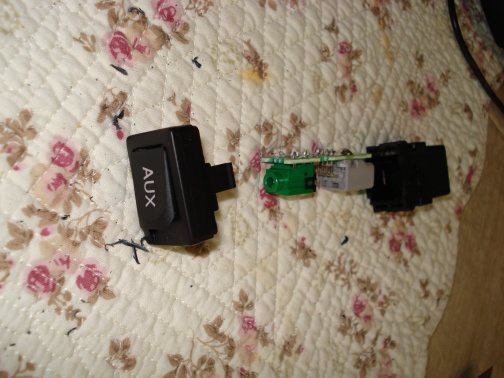

for the aux input, (i have an eclipse nav unit) i altered a standard aux input from toyota. 86190-53010



[drapaki]

initially i cut a blank in three pieces using the tabs along side the original housing and it looked like this.



[drapaki]

my wife wasn't too happy with the look, so i used my rotary tool to doctor up a blank instead... using the "AUX" flap.

....... she's happier.

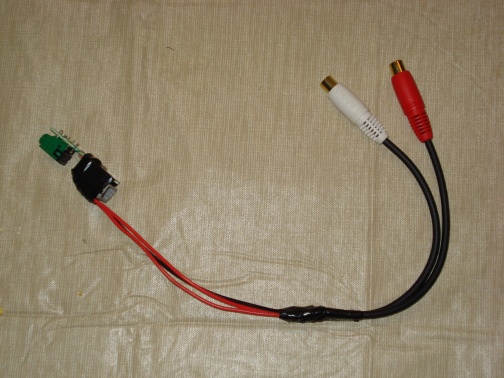

this is what i did to the back of it.



[Uneek]

Looks good. As for the Aux input, it looked good either way. Great work!



[atomic punk]

Nice work, especially hiding that inverter. I've one to install too, but been procrastinating. I like the look of yours.


Keepin' the wifey happy.... hahaha..... makes your life easier....!



[jimsi]

Are you using a relay for this and where are you getting the power from?

...nice install...also noticed the heated seats, how do you like the switch locations.

this is what the back looks like..

the metal used was some thin corner stripes used in drywalling... i think it's tin. lots of hot glue gunnage.



[drapaki]

thanks to all for the compliments.

yup.. got my relay from Radio Shack.. 30 amp rating so i'm more than safe. the power is coming from where the second cigarette lighter would have been had i chosen that option. so i'm not pulling any more power than what the truck's electrical system is designed for.

Are you using a relay for this and where are you getting the power from?

...nice install...also noticed the heated seats, how do you like the switch locations.

initially i was thinking the switches would go on the bottom of the seat, near the track.. but the guys at the shop put it there to match the factory location.. guess that's a good idea. makes it easier to play tricks on my passengers by turning theirs on high on a hot summer day.
