90080-87010 relay help

[RodrickHeffley]

I'm planning to install a AC 115v 100W outlet from an '07 Matrix in my 4runner. I have the inverter, button and plug and got the relay that goes with it.
I understand the wiring for everything except the relay, which has no documentation online (and I can't read electrical schematics very well so the diagram on the side isn't helpful either.) My question is, Where can I install said relay (90080-87010) and what is the pinout for it? Thanks!


Some other details: it's in a shape akin to ||=.

Pin 3 is at the left with Pin 5 to its' right. Next to those are two more prongs. From top to bottom, Pin 2 and Pin 1.

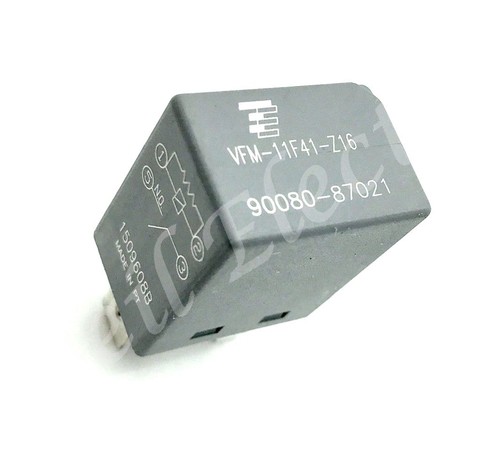

Image for clarity:



[Drew76]

Pins 1 and 2 are the coil. Pin 1 +12 vdc from your switch. Pin +2 Ground

Pins 3 and 5 are the Normally open contacts. Pin 3 +12vdc from battery (should install fuse inline). Pin 5 to the load you are trying to power.

I'm guessing that you're wanting to use a switch to turn on/off the inverter with the relay. Don't think there is anywhere the relay will just plug into, you would have to add connectors/wires to the terminals of the relay.



[spartacus]

pin 1.Signal/Input: Connect positive wire coming from switch or button.
pin 2- Supply ground to relay from body or negative (-) battery post.
pin 3- Supply current from positive (+) battery post.
pin 4- Output: Connect it with accessory or electrical component. This will supply current directly from battery.

edit pin 4=pin 5



[RodrickHeffley]

Pins 1 and 2 are the coil. Pin 1 +12 vdc from your switch. Pin +2 Ground

Pins 3 and 5 are the Normally open contacts. Pin 3 +12vdc from battery (should install fuse inline). Pin 5 to the load you are trying to power.

I'm guessing that you're wanting to use a switch to turn on/off the inverter with the relay. Don't think there is anywhere the relay will just plug into, you would have to add connectors/wires to the terminals of the relay.

thanks! yeah the mod comes with a 115 toggle switch as well as the outlet so I am planning to use that.
