black connectors behind switch panel

[teamugi]

Hi all,

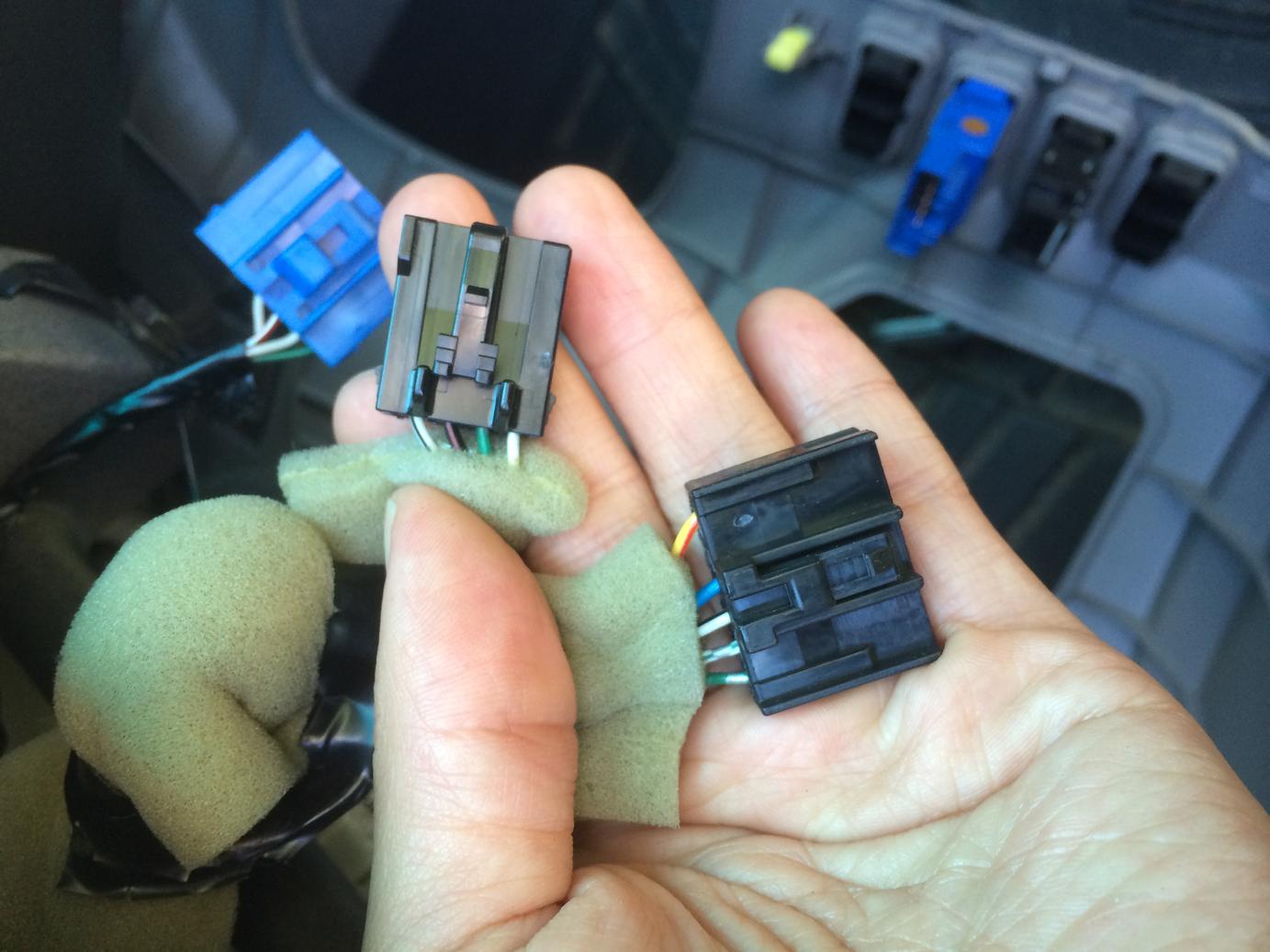

I was going to do my VSC disable mod when I noticed these two black connectors behind the switch panel, right above the fuse panel. One is a 4 pin and the other is a 5 pin. I am using a switch from Air on Board (12 Volt 3amp ON-OFF Toyota OEM Replacement Push Switch with LED amber lights -Air On Board), which will be for my VSC off switch.
The AoB switch has 4 pins and I was going to route power to the switch based on the light switch being activated. I note that in the black 4 wire connector the green wire is 12V when the lights are activated. Before I tap into any of these lines, I am curious if anyone knows what they are used for?

My car is a 2007 SR5, V6, 2WD. Very basic. Thanks for any info!



[robtmc]

The six pin connector is for the 115V AC option. The four pin is for the SC**& something or other side curtan disable.

I used the Yellow/Red socket to tap into for 12V DC, and pins 1&2 on the four pin connector for dash lights. Always try to avoid cutting wires when I can, and these were unused and had what I needed on them.

You really ought to get on the website that has all the schematics and diagrams for the 07. I use it all the time to navigate around the wiring and ID connectors.



[teamugi]

Thanks Robtmc.

I have a 2006 wiring diagram and repair manual I am using. Downloaded all that from this website and toyota120. Is there another website I am missing? I thought 2006 would work for me. But I already found some discrepancies.



[robtmc]

This is what I use, has some 2008 stuff as well:

Toyota Factory Service and Repair Manual - 2007 4Runner + Updates
