Building my own Roof Rack

[jross20]

Update. Looking pretty good to me. So far my cost estimates put it around $300-350 depending on a few extras. According to Sherpa, the 3rd gens roof rails are flat... I'm still a bit unsure about that but I'm going to get a single crossbar (1" x 2" x 40.5") and a few brackets to test with. Sherpa's feet are the best in terms of ease of use and design, but at $22.50 a pop they are pretty expensive. So I am going to experiment with 2 hole L brackets with metal spacers to clear the side of the rails. More photos to follow...

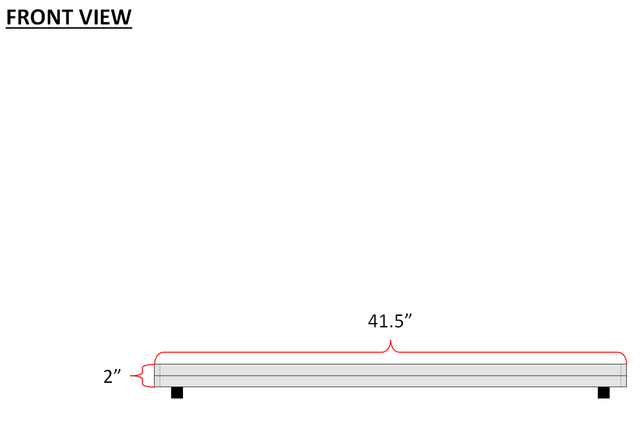

Here is the most recent design.



[Brian.]

no clue, but should be easy to test with a level or angle finder, just put it on the existing rails, or the roof if no rails, and see if it shows different side to side.

Not That hard to account for given the load limitations of the roof itself, you Really want the rack attachment points to fail before the roof. Means those brackets aren't going to be Overly stout (you won't be using a standoff of more 80/20), something like a bent steel bracket (which can be bent to the right angle easily enough).

Gut feeling is that they ARE angled.



[jross20]

no clue, but should be easy to test with a level or angle finder, just put it on the existing rails, or the roof if no rails, and see if it shows different side to side.

Not That hard to account for given the load limitations of the roof itself, you Really want the rack attachment points to fail before the roof. Means those brackets aren't going to be Overly stout (you won't be using a standoff of more 80/20), something like a bent steel bracket (which can be bent to the right angle easily enough).

Gut feeling is that they ARE angled.

Yeah I feel like they are...but maybe if I hope enough they will magically be flat... lol

I guess I will need to get some kind of angle measurement tool. Also need to figure out how to mount the rails as low as possible to keep the profile low. I was hoping to be able to mount them directly to the rails if I can... I don't plan on loading them with an outrageous amount of weight. Haha

Need to see if I can upload a drawing or something... Basically I'm thinking 5 or 6 cross bars that each mount to the roof rails then two long, double bars to mount to each respective side of the crossbars. This will give it a "lip" on the sides. Then on the front and rear I'll use the curved bars to hopefully cut down any potential noise.

Going to take some measurements tonight and see how wide and long of bars I'll need.



[RomanSchnobrich]

You could consider getting some of these handy Sherpa feet just to save yourself the pain of fighting the angled roof rails, and then make your own rack attaching to the feet.

Adjustable Track Mounting Feet



[jross20]

You could consider getting some of these handy Sherpa feet just to save yourself the pain of fighting the angled roof rails, and then make your own rack attaching to the feet.

Adjustable Track Mounting Feet

Oh
MY
Lord

YESSSS!!!

Holy shit that is amazing. But wait, is that $30 per bracket or per a set? I was thinking about doing 5 cross bars so that might be expensive...haha



[Endlessblockades]

Making your own rack that is Cheap, Strong and Easy? - Pick 2.

:bounce:



[XtremeAdventurer]

Yes, the roof curves. I thing it's about 3/8" total difference.

Here is a link to my build:
SoSueMe Gobi Roof Rack



[T4topher]

Oh
MY
Lord

YESSSS!!!

Holy shit that is amazing. But wait, is that $30 per bracket or per a set? I was thinking about doing 5 cross bars so that might be expensive...haha

You 100% don’t need to do 5 crossbars with roof attachments. I’d do 2x per side MAX 3x per side.. (you can still put 5x crossbars just don’t attach all of them) Way strong enough with just 2x the only thing is if your doing a full length rack your going to want feet that rest near the sun roof to support the front of your rack. I got something like this to support the front of my DIY rack. (Not exactly these but you get the idea)

Hyever Heavy Duty Leveling Screw Leg 4" Adjustable Feet Leveler Foot for Furniture Mechanical Equipment Pack of 2 - - Amazon.com



[jross20]

Making your own rack that is Cheap, Strong and Easy? - Pick 2.

:bounce:

So far my estimate is around 200-300. Now it could probably be done for less than that but I'm choosing to make it a little nicer just because I want to.

Honestly these extruded aluminum bars are pretty cool, I was not aware of such until I learned about it just the other day.

You 100% don’t need to do 5 crossbars with roof attachments. I’d do 2x per side MAX 3x per side.. (you can still put 5x crossbars just don’t attach all of them) Way strong enough with just 2x the only thing is if your doing a full length rack your going to want feet that rest near the sun roof to support the front of your rack. These are the feet that I got when I did my DIY roof rack, also need some 3/8 stainless all thread and nuts/washers.

Vlier HVESSP304B High Value Series Leveling Device, Stainless Steel, 3/8''-16 Thread Size, 1 3/16" Long: Amazon.com: Industrial & Scientific

You think so? I wasn't really intending the sidebars to actually carry load, but I guess they could. That's an interesting idea.

I did come up with a different support bracket idea, but I've got to do some math tomorrow to figure out if it's more or less expensive than the pre-made brackets.

I think I'll opt for 3 bars with attachments just for maximum strength. (Although again I'm probably going to never push this thing to its limits, but I always like to overbuild things for longevity) maybe one of each in, and one in the middle to make it balanced!

I also discovered that some of these companies sell finishing attachments, so like pieces that can fill the gaps in to make them smooth and stuff, end caps, but the coolest one are these rubber strips that fit into the slots! To add grip and stuff. Pretty awesome.


All right so I finished my basic design tonight, I'll try to figure out how to upload a screenshot to see what you guys think.



[T4topher]

So far my estimate is around 200-300. Now it could probably be done for less than that but I'm choosing to make it a little nicer just because I want to.

Honestly these extruded aluminum bars are pretty cool, I was not aware of such until I learned about it just the other day.




You think so? I wasn't really intending the sidebars to actually carry load, but I guess they could. That's an interesting idea.

I did come up with a different support bracket idea, but I've got to do some math tomorrow to figure out if it's more or less expensive than the pre-made brackets.

I think I'll opt for 3 bars with attachments just for maximum strength. (Although again I'm probably going to never push this thing to its limits, but I always like to overbuild things for longevity) maybe one of each in, and one in the middle to make it balanced!

I also discovered that some of these companies sell finishing attachments, so like pieces that can fill the gaps in to make them smooth and stuff, end caps, but the coolest one are these rubber strips that fit into the slots! To add grip and stuff. Pretty awesome.


All right so I finished my basic design tonight, I'll try to figure out how to upload a screenshot to see what you guys think.

I mean I’m just going off of how the companies that make these racks do it. They use like 3/16 or 1/4” thick flat aluminum for the sides then the ends of the extruded aluminum are drilled/tapped and you throw a bolt threw the flat aluminum side pieces into the extruded aluminum. Were you basically planning on not having side plates?



[thenightman]

5 crossbars is a lot. What are you carrying? I have a big rotopax, a high lift, flagpole, and often firewood on 3.



[Brian.]

You think so? I wasn't really intending the sidebars to actually carry load, but I guess they could. That's an interesting idea.

Umm... that's the only way Possible. The roof itself is a flexible sheet of thin steel. Takes maybe 5 pounds of force to deflect it. The crossbars (and/or platform) are only there to carry the load to the side rails/attachment points to transfer the load into a structural section.



[jross20]

I mean I’m just going off of how the companies that make these racks do it. They use like 3/16 or 1/4” thick flat aluminum for the sides then the ends of the extruded aluminum are drilled/tapped and you throw a bolt threw the flat aluminum side pieces into the extruded aluminum. Were you basically planning on not having side plates?

Oh no, I'm definitely going to have side plates I just wasn't planning on them really carrying the load. Basically if all the cross bars attached to the roof, then the side rails would just kind of be there but wouldn't necessarily be structurally required.

I figured it would be easier to strap things down with side rails plus I just think it looks better.

5 crossbars is a lot. What are you carrying? I have a big rotopax, a high lift, flagpole, and often firewood on 3.

I don't know cargo or luggage I guess. The crossbars are basically the bottom of my desire. So all the cargo will set directly on the crossbars. So the more crossbars there are the less giant gaps in between. Although I've also thought about using expanded aluminum or something to give more of a platform so small things can't fall through... But I haven't fully decided on that yet

Umm... that's the only way Possible. The roof itself is a flexible sheet of thin steel. Takes maybe 5 pounds of force to deflect it. The crossbars (and/or platform) are only there to carry the load to the side rails/attachment points to transfer the load into a structural section.

Whoops, forgot to reply to this quote... Lol.

Yeah so that's why I was opting for 5 connected crossbars. To make sure the load is evenly distributed onto the factory rails.



[Bad Luck]

So, I got the idea recently to build my own roof rack after being disappointed in the current offerings and prices...

I drew up a basic design using extruded aluminum bars and such but wanted to run somethings by you guys in case anyone has done this before. Mainly, are the top roof rails "flat"? Or do they both angle with the roof? It looks flat to me...but I'm not sure.

In case that doesn't make sense... basically if I bolt a bar to one rail and tighten it, will it lay flat on the other rail or will it point up in the air due to being angled?

Flat would be easy...but angled will required some pondering to see how to attach the rails flatly.

This video might be of some help to you: Build Your Own (Better) Roof Rack - Improvements On The $300 DIY Roof Rack - YouTube



[jross20]

This video might be of some help to you: Build Your Own (Better) Roof Rack - Improvements On The $300 DIY Roof Rack - YouTube

Hey that is pretty cool. Gonna check it out during lunch.

Ohh, do you guys know the best place to order the connectors from? I was looking at 80/20, which their price per bar is pretty cheap to me, but the connectors are nuts. I guess it's like PVC, the pipe is cheap as hell but the damn fittings kill ya.



[jross20]

Here is a crappy photo of the top view: (this is old now)



[Romeo1]

I wished the arb base rack was available for the 3rd gen runners. I want something very suttle and low profile. Lowest clearance possible. Footprint of the OE rack roughly. Just something nice low and flat. I could handle it going over the sun roof if it didn’t have some huge valance hanging way out.

I don’t want it to go almost all the way to the glass like most of the full ones do. I know most that buy these things want a fashion statement, but I don’t. I want to be able to tie gear down when needed, and have it out of the way and not a noisy mpg killing impediment.

Neighbor has an AEV JKUR hemi with a really slick flat roof rack. Sits really low on the hardtop.

Flat, low and suttle. That’s it. I’m not saying the other ones out there aren’t cool, but they’re just not for me.

Maybe I’ll just end up rolling my own.



[jross20]

I wished the arb base rack was available for the 3rd gen runners. I want something very suttle and low profile. Lowest clearance possible. Footprint of the OE rack roughly. Just something nice low and flat. I could handle it going over the sun roof if it didn’t have some huge valance hanging way out.

I don’t want it to go almost all the way to the glass like most of the full ones do. I know most that buy these things want a fashion statement, but I don’t. I want to be able to tie gear down when needed, and have it out of the way and not a noisy mpg killing impediment.

Neighbor has an AEV JKUR hemi with a really slick flat roof rack. Sits really low on the hardtop.

Flat, low and suttle. That’s it. I’m not saying the other ones out there aren’t cool, but they’re just not for me.

Maybe I’ll just end up rolling my own.

Hey man I totally feel you for the most part. Just about all of the racks that I've seen are way too bulky... But at the same time I don't like the ones that are just flat, I do like that bit of a basket.

I think mine will be pretty sleek if I can manage to complete it, it should be pretty low and compact



[jross20]

Um... Just found this while taking measurements... Do I need to tighten it down? As far as I can tell it doesn't leak so I'm afraid to touch it if it's in equilibrium



[cl4Rk]

Um... Just found this while taking measurements... Do I need to tighten it down? As far as I can tell it doesn't leak so I'm afraid to touch it if it's in equilibrium

I would personally take it out, clean it up, add some silicone, and screw it down, all the way but not too tight. YMMV
