Diff Lock Button Photo Request!!!

[MrSeth]

Hey team,

I have been searching ALL over the web for a side photo of our center diff lock switch with the wires showing.

The prev. owner had an aftermarket CDL switch installed and has stripped the wires/snipped off the previous connector to the back of the switch.

Can one of you guys pop your diff-lock switch out (but leave the wires connected to the back) and take a photo of it from the side so I can solder on mini connectors and wire my OEM switch back on? Should only take like 5 mins, but I gotta be able to see the wire colors!!!

Thanks in advance friends!



[xtremewlr]

I can't dig mine out of the dash without unbolting the dash. I don't have a CDL any longer so I taped the connector and stuffed it way in back. But, I have wiring diagrams that should help.

The grey connector is shown below, showing you wire locations. The CDL switch has a Grey wire, #3 on the connector and a White/Black, #4 on the connector. The other 2 are for the switch light.

The connector spades are 1 thru 4 from bottom to top in your pic.

Hopefully that helps.

I'd be happy to send you my old switch and cut the connector off with a few inches of wire since it will never be used in my truck again. Shoot me a PM if you want it. Just pay shipping, USPS Priority small box.



[metramm]

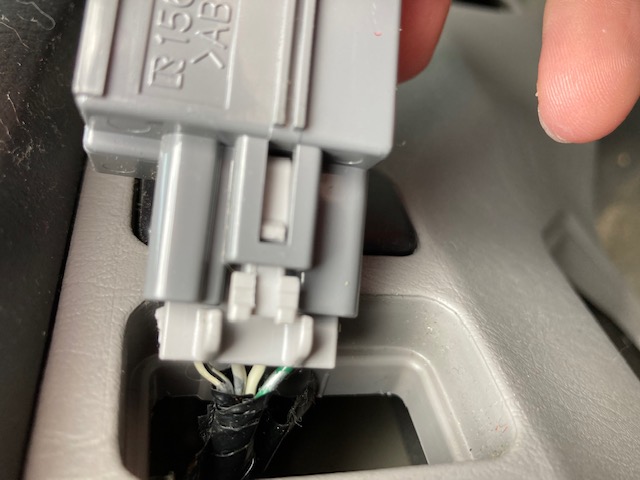

Let me know if this helps.



[MrSeth]

Let me know if this helps.

Thanks! That's exactly what I needed!!!!!! :whoo:



[randy88fj62]

I have a spare in my garage with the connector attached to it. pm me if you need a picture etc.
