Eibach 5th Gen 2.0 Coilover Kit

[TotalAutomotiveLV]

** New Product Release **

Eibach's NEW PRO-Truck 2.0 Coilover Kit for 5th Gen 4Runner is here!

We have been waiting for the Release Date of these 2.0 Coilovers and
it appears we will finally get on hands on these in November.

The New PRO-Truck 2.0 Coilover was Developed utilizing Eibach's
extended-travel monotube design and variable force valving.

Eibach's Toyota 4Runner 5th Gen 2.0 COILOVER delivers control during
on-road transit and compliance for maximum traction on the trails.

Designed for use with Eibach's Off-Road Race Springs.

The 2.0 Coilover Kit allows for various combinations to fine tune ride
height and load capacity from fully loaded to factory weight vehicles.

• Utilizes ERO springs manufactured using race winning off-road spring technology
• Adjustable ride height allows adjustment of up to +2.5" on the 4Runner
• Pre-assembled for direct bolt-on installation, out of the box height is set to match the rear height
• Designed to work with factory control arms for an increase in height without accelerated wear to ball joints and bushings
• Developed specifically to provide a balanced ride quality on and off-road
• Made by Eibach in the USA

Retail: $1,667.67
Online: $1,500.00

_



[TotalAutomotiveLV]

Eibach 2.0 Coilovers - Click Here

Retail: $943.33
Online: $849.00

Included:

2 - Front Coilover Threaded Body Shocks
2 - Front Eibach Race Springs
2 - Billet Aluminum Top Mount
2 - Billet Aluminum Spring Perches
2 - Polyurethane Elastomer Bump Stops
1 - 6mm Adjustment Tool
All Required Mounting Hardware

Ride Height:

Front: +0.0 - 2.5"



[daytonaviolet]

awesome

looks like the rears are adjustable as well. how much adjustability in the rears? 2.5" like the fronts?



[TotalAutomotiveLV]

awesome

looks like the rears are adjustable as well. how much adjustability in the rears? 2.5" like the fronts?

When it comes to the NEW 2.0 Coilover Kits, there will only be 2 options to start;

1 - Load-Leveling 200, Part #AK31-82-071-01-02

2 - Load-Leveling 250, Part #AK31-82-071-02-02

See all 3 Load-Leveling Kits - Click Here

_



[mark@eibach]

This just in!

A helpful vid on how to setup your new Eibach Pro-Truck Coilover 2.0's

How to: Adjusting the PRO-TRUCK Coilover 2.0 - YouTube



[TotalAutomotiveLV]

Looking for Eibach Shocks this Holiday Season?

Check out the NEW 2.0 Eibach Coilover Kits - Click Here

Promo Code "Cyber20"



Promo Code Expires 11/30/2020

*Due to COVID-19, supply shortages, and a surge in demand, manufacturers are experiencing
longer than normal production and ship times.

_



[Endle55_5earch]

Decided to take a chance on these coil-overs with some Dobinsons UCAs. Should be perfect for my weekend warrior :rockon: Happy Holidays!



[Espresso_OI]

Would be appreciated if anyone is able to objectively compare this to the other combo in this exact same price range, the 6112/5160 - especially since I was about to pull the trigger on the billys!



[Muff Muff]

Would be appreciated if anyone is able to objectively compare this to the other combo in this exact same price range, the 6112/5160 - especially since I was about to pull the trigger on the billys!

The 6112 is getting you a digressively valved steel shock body/piston that's ~2.6" in diameter, as well as a remote reservoir rear with the 5160. It doesn't get you rear springs, a threaded body (still adjustable height, just with JC clips.)

From the looks of it, the Eibach kit gets you a smaller ~1.8", but aluminum, shock body/piston, rear springs with their load leveling capability, and "variable force valving," whatever that means.

Maybe someone from Eibach could chime in with some more technical details, but from what I'm seeing, these shocks are smaller than similarly priced kits (6112/5160, Fox 2.0, Dobinson's IMR, etc) but at least come with rear springs, which other kits don't (except Dobinson's.)



[4X4T4R]

This just in!

A helpful vid on how to setup your new Eibach Pro-Truck Coilover 2.0's

How to: Adjusting the PRO-TRUCK Coilover 2.0 - YouTube

Ordered a set of these for my '21 TRD ORP and they showed up yesterday. They arrived with no wrench. I had some trouble getting through to tech support with some questions. I ended up getting someone via the sales option and was told yes a wrench should be included, but I would have to go through the place I ordered from. Eibach couldn't help me out. I've emailed and called but no answer yet (I'm also waiting for find out why my rears didn't arrive too). So I'm stuck without a wrench, and I'm not sure what wrench I should be getting. The video shows what looks like a basic stamped sheetmetal type and another aluminum machined type. How do I get ahold of one of these, where can I order one? Would another brand wrench work?

Next question, some, but not all photos show what looks like a yellow bump stop on the shaft. Even some of the photos on the Eibach site show them. Were these suppose to be included? or maybe not? Just wondering, since they're shown in photos. Actually I just read above it says "Included - 2 - Polyurethane Elastomer Bump Stops"

Last question, the coilovers came set to about 1.2" of thread showing a the bottom. Any idea what ride height this will give me on a stock no weight added 4R ORP. I've seen some approximate height on the Eibach ProLift according to ring position. On the coilovers there's no info at all in the instructions. It would be nice to get them in the ball park before install.

Can’t remember ever spending so much $ on something that arrived incomplete and no one seems to have an answer.

Thanks for any help. Sorry to hijack the thread but it's the only 2.0 Coilover one I could find.



[Saker]

Some pics I see bumpstops, some I don’t!
Interested to know if they are really supposed to be installed!



[4X4T4R]

I actually see now that the place I ordered from has a note in the listing.

“Spanner Wrench not currently included: this kit does not currently come with a spanner wrench. Eibach is in the process of redesigning their 2.0 spanner wrench, though we do not currently have an ETA.”

That explains why one wasn’t included. I may end up trying to make one myself.

Saker.....Picture on their listing also shows bump stops (stage3motorsports)



[nimby]

Try using a punch tool with a metal pipe over it for more leverage.

Most people with coilovers (whatever company they come from) end up using something like this rather than the supplies spanner wrenches because the supplied spanner wrenches are almost always junk.



[blschaefer1]

I have the front Eibach 2.0 coilovers and load leveling kit in the rear.

The fronts came with a flimsy metal spanner for adjusting but the shop that I had install them bent it while attempting to use it. The out of box setting was too high, so they had to remove them, compress the springs to decrease load, and adjust the collar by hand.

I called Eibach and was placed on a ‘list’ to receive the milled aluminum spanner pictured in their adjustment video. No clue when these will be made available.

My rear setup came with nothing to adjust which I’m not happy about.

Despite this, very happy with the performance of both front and rear. Excellent road manners and no complaints off road either.



[4X4T4R]

I have the front Eibach 2.0 coilovers and load leveling kit in the rear.

The fronts came with a flimsy metal spanner for adjusting but the shop that I had install them bent it while attempting to use it. The out of box setting was too high, so they had to remove them, compress the springs to decrease load, and adjust the collar by hand.

I called Eibach and was placed on a ‘list’ to receive the milled aluminum spanner pictured in their adjustment video. No clue when these will be made available.

My rear setup came with nothing to adjust which I’m not happy about.

Despite this, very happy with the performance of both front and rear. Excellent road manners and no complaints off road either.

Any idea where you're set now and what ride height you're getting in front? How much exposed thread below adjuster?



[icyhotahs]

[MENTION=277772]mark@eibach[/MENTION] :

I'm sure ya'll are busy, but there's a few questions above.

Also:

When are you expecting the Load Leveling Kits to be back in stock? I'm just trying to give you my money, that's all.

Thanks!



[mark@eibach]

Ordered a set of these for my '21 TRD ORP and they showed up yesterday. They arrived with no wrench. I had some trouble getting through to tech support with some questions. I ended up getting someone via the sales option and was told yes a wrench should be included, but I would have to go through the place I ordered from. Eibach couldn't help me out. I've emailed and called but no answer yet (I'm also waiting for find out why my rears didn't arrive too). So I'm stuck without a wrench, and I'm not sure what wrench I should be getting. The video shows what looks like a basic stamped sheetmetal type and another aluminum machined type. How do I get ahold of one of these, where can I order one? Would another brand wrench work?

Next question, some, but not all photos show what looks like a yellow bump stop on the shaft. Even some of the photos on the Eibach site show them. Were these suppose to be included? or maybe not? Just wondering, since they're shown in photos. Actually I just read above it says "Included - 2 - Polyurethane Elastomer Bump Stops"

Last question, the coilovers came set to about 1.2" of thread showing a the bottom. Any idea what ride height this will give me on a stock no weight added 4R ORP. I've seen some approximate height on the Eibach ProLift according to ring position. On the coilovers there's no info at all in the instructions. It would be nice to get them in the ball park before install.

Can’t remember ever spending so much $ on something that arrived incomplete and no one seems to have an answer.

Thanks for any help. Sorry to hijack the thread but it's the only 2.0 Coilover one I could find.

1. Apologies for getting bounced around. Our standard protocol is to point people in the direction of their original place of purchase, but this is a special scenario where we had just finished replacement parts and hadn't got them to the vendor in question. This should no longer be an issue, though there will likely be people who have not received the replacement yet. We're handling claims here and the team is aware of the situation, so for anyone reading this, or if you guys see it, please point them our way. They can simply email [email protected] with their proof of purchase and shipping info letting us know they didn't get a spanner and will send it out right away.

2. 4Runner kit does not come with bump stop as the vehicle features a chassis mounted bump stop. Below is a picture of the actual part.

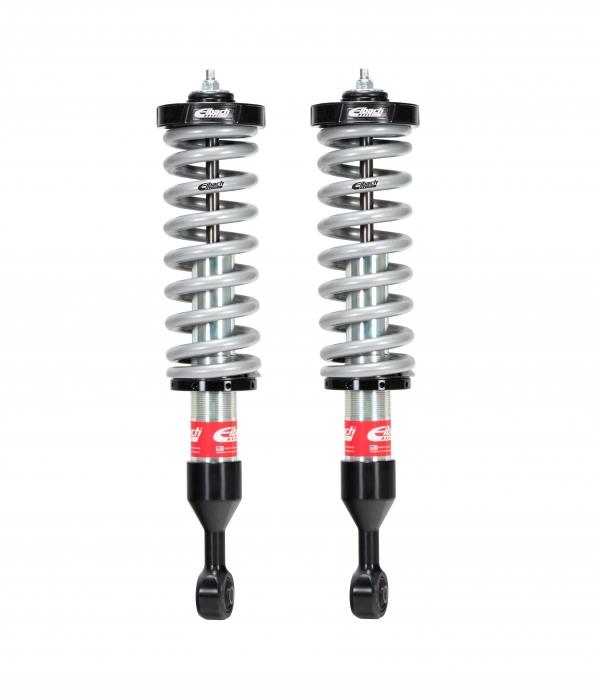

PRO-TRUCK Coilover (Front)

3. The coilover kits should be level with the rear factory height out of the box. Every vehicle is different though, and may require additional adjustment.

Some pics I see bumpstops, some I don’t!
Interested to know if they are really supposed to be installed!

See above.

I have the front Eibach 2.0 coilovers and load leveling kit in the rear.

The fronts came with a flimsy metal spanner for adjusting but the shop that I had install them bent it while attempting to use it. The out of box setting was too high, so they had to remove them, compress the springs to decrease load, and adjust the collar by hand.

I called Eibach and was placed on a ‘list’ to receive the milled aluminum spanner pictured in their adjustment video. No clue when these will be made available.

My rear setup came with nothing to adjust which I’m not happy about.

Despite this, very happy with the performance of both front and rear. Excellent road manners and no complaints off road either.

You should have received rear adjusters, please drop Tanner or I a line and we'll get you sorted. That being said if you have a 6mm Punch it will do the trick.

[MENTION=277772]mark@eibach[/MENTION] :

I'm sure ya'll are busy, but there's a few questions above.

Also:

When are you expecting the Load Leveling Kits to be back in stock? I'm just trying to give you my money, that's all.

Thanks!

our 250 (most popular) kit should be back in stock by end of next week!
Our 200 and 300 kits will be by end of next month.



[icyhotahs]

Figure I'll ask you [MENTION=277772]mark@eibach[/MENTION] while you're around...

I'm carrying roughly 200 lbs everyday. close to 400 when I travel. I drive a 80/20. Will the 250 be overkill?

Thanks in advance!



[4X4T4R]

Hey Mark,


Thanks for the reply. I spoke with Tanner a couple weeks ago and he took care of me. He also helped me with a set of rear shocks that never showed up from the place I ordered.

As far as ride height, you might want to check into this before you recommend out of the box being "level". I've got a 3 month old TRD ORP with kdss. Installed on front with 1.2" of thread showing below adjusting ring. The only weight I have is a set of sliders. My front end was MUCH higher than back. I stopped at 6 turns down from that and my front was 1/4 to 1/2" higher in front. I left it like this hoping for a little settling. Meanwhile a week later the pro rear shocks came in. They're MUCH harder to compress than stock ones. They actually slightly lifted my rear, so at half tank everything is as close to level as I can get it. I've got both fronts set the same and it only leans depends on how much gas I have in the tank.

BTW, no one really mentions ride quality. I've gone from all stock, to Eibach front only, to Eibachs all around. It's rides considerably better on the Eibachs. Haven't done much offroad yet, but on road they've firmer handling yet softer over bumps. There's a road I test ride on with 4 speed bumps in a row. Hitting them at 10-20-30-40mph is a night and day difference.



[Sky]

They can simply email [email protected] with their proof of purchase and shipping info letting us know they didn't get a spanner and will send it out right away.

So has anyone received the fancy "milled aluminum spanner"?

Having been pleased with the 1.0's on my 4R, I bought the 2.0 coilovers for my F150, and finally after more than month waiting got the new spanner- but it is steel with a welded on pin of the proper size.

Seems to me the curve of the spanner should match the diameter of the preload adjuster part. It does not.

Haven't gottten around to installing yet, going to be very displeased if the latest spanner won't turn the adjusters.
